Yale YRCB-490-BLE Manual de usuario

YRCB490-MNL-0014 Rev A

Smart Cabinet Lock

Installation Instructions

THE PRODUCT AND VOID THE FACTORY WARRANTY

Glow in the Dark

Emergency Release

If you have any questions while installing, call our 24/7 tech support team!

Call 1-855-213-5841 or email Support@YaleLock.com

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO

Fold Up 90°

Fold Up 90°

Fold Up 90°

Front of Smart Cabinet Lock

Mounting Template

x1

Mounting Bracket

x1

CR2 Battery

x1

Lock Post Guide

x1

x2

M3 x10Screw

3M MountingTape

x1

3M MountingTape

x1

x2

M4x12Screw

Lock Post

x2

Lockbody

x1

Download the Yale Access App

1

Insert CR2 Battery Into Lockbody

2

iOS Android

IOS 11.0 + Android 6.0 +

2

YRCB490-MNL-0014 Rev A

Lock will automatically

unlock if batteries die.

Your app will alert you

when batteries are low.

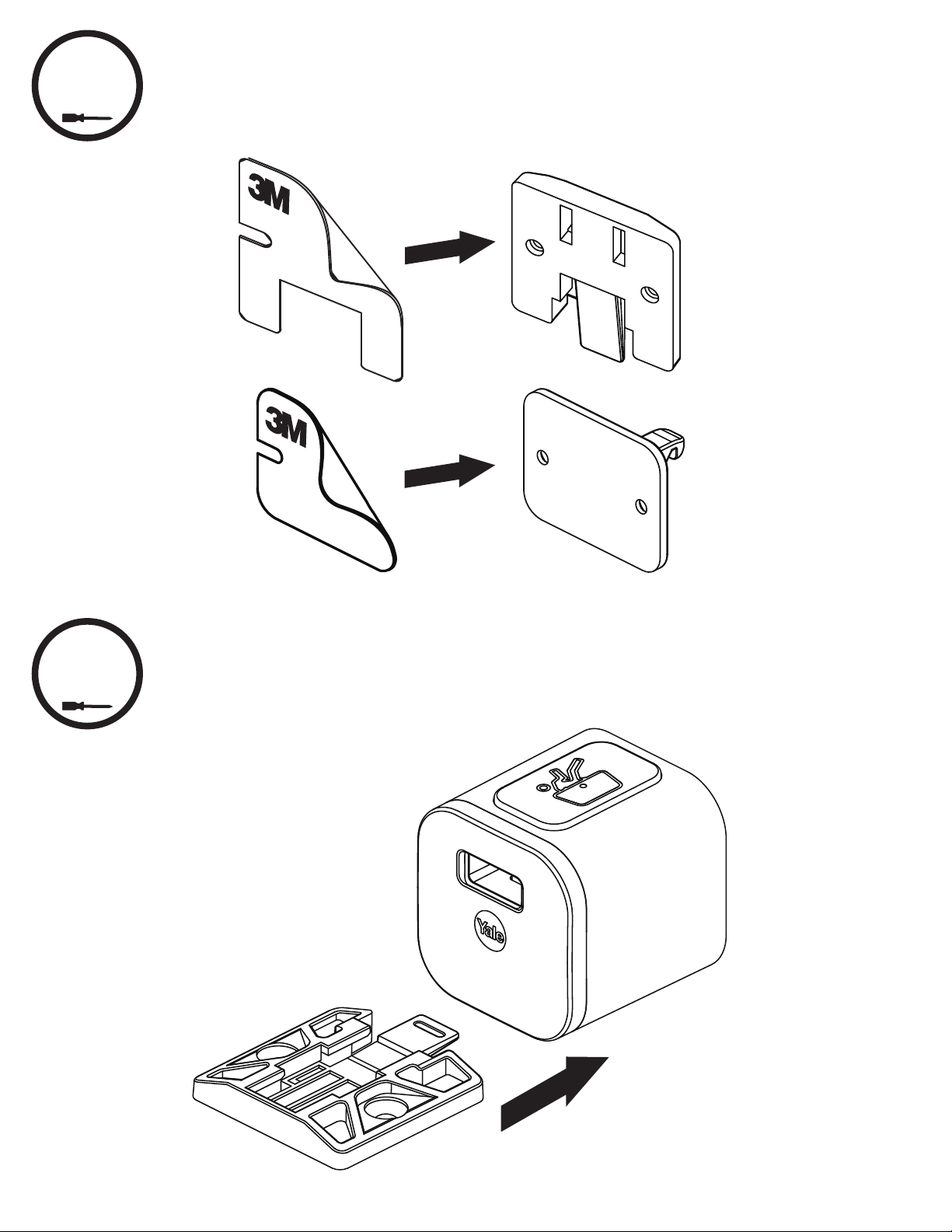

Attach 3M Tape To Mounting

Bracket and Lock Post

3

4Slide Mounting Bracket Onto

Bottom Of Lockbody

3

YRCB490-MNL-0014 Rev A

5Slide Lock Post Guide

Onto Lock Post

6Attach Lock Post To Lockbody

4

YRCB490-MNL-0014 Rev A

Place mounting template in

desired location for installation.

7Install Smart Cabinet Lock

Remove 3M film

from mounting bracket.

5

YRCB490-MNL-0014 Rev A

8Attach Lock Post To Door

6

YRCB490-MNL-0014 Rev A

Test Operation

7

YRCB490-MNL-0014 Rev A

9Remove Lock Post Guide

8

YRCB490-MNL-0014 Rev A

Congratulations! You've installed the Yale®Smart Cabinet Lock.

Follow the steps in your Yale Access app to complete the setup process.

NOTE TO INSTALLER AND CONSUMER

A second lock post is provided as a spare in the

event the cabinet door must be forced open and

installed lock post is broken.

9

YRCB490-MNL-0014 Rev A

OScrew Mounting

Remove lockbody from

mounting bracket to

access screw holes.

10

YRCB490-MNL-0014 Rev A

Ensure screws

are no longer

than depth of

your cabinet

door.

!
