XtendLan SDOMEOAT2-SD310 Manual de usuario

SDOMEOAT2-SD310

---------------------------------------------------------------------

High Speed Dome

Series

---------------------------------------------------------------------

User

Manual

CONTENTS

IBefore Installing ………………………………….………….…………

II Key Features ……………………………………………………. ……

III Environmental requirement …………………………………………

IV Dome setting Instruction ……………………………………………

Camera ID Setting………………………………………………………………….

Camera Module Setting…………………………………………………………. .

V Basic High Speed Dome Operation …………………………………

OSD Operation………………………………………………………………. ……

Enter OSD …………………………………………………………………………. .

Menu function instructions………………………………………………………

Camera Exposure………………………………………………………………….

White Balance………………………………………………………………………

Privacy Mask ………………………………………………………………………

Others of the Camera menu……………………………………………………….

Camera Mode………………………………………………………. . ………………

Zoom Speed ………………………………………………………………………

Focus Speed ………………………………………………………………………

Pan……………………………………………………………………………………

Shortcut Key…………………………………………………………………………

Leisure Time ………………………………………………………………………

VI High Speed Dome Camera Menu……………………………………

VII Auto-Tracking ...............................................................................

VII Analysis on Common Malfunctions and Maintenance…

IBefore Installing

Installation should be carried out only by qualified personnel and in accordance with

any wiring regulations in force at the time.

Please read this instruction and warnings before installing.

Do not attempt to service or repair the speed domes as opening or removing covers

may expose dangerous voltages or other hazards. Refer all servicing to qualified

service personnel.

Adequate protection against lightning strikes and power surges must be installed to

prevent damage to the speed dome.

II Key Features

360º Panning, speed is 0.1º-300º/s.

Auto flip 180º

128 presets, the accuracy of preset is less than 0.1º

4 dynamic privacy zones (SONY Camera Module)

Auto cruise by preset, the leisure time is 1s-250s.

Image freeze while panning

Manifold of scan, scan speed could be set from 1º/s to 80º/s

Left limit and right limit scan.

7 alarm input and 2 relay output.

Easy fixing configuration

24V power supply built in

Static proof and thunder proof design

III Environmental requirement:

Operation Temperature: -40-+60

Humidity: <90%

Air pressure: 86-106Kpa

Power supply:AC24V/2.5A, 50/60Hz

IV Dome setting

Bracket Configure

Setting Attention:

Adequate protection against high speed dome falling and damage when installing.

The dome should be hang setting, and please avoid up side down.

Please install the dome at the low humidity condition and keep it sealing for avoiding any damage to

dome.

Please set the power switch correct.

Ceiling mount Wall mount

Communication PCB

PCB Locker

Open Up the PCB

DIP table of Communication PCB board

Note: The PCB can be locked by the PCB locker as the picture showed, and it can be turned

over when do the setting works as below (Please turn the locker to the housing side to

open it):

The system setting Switch Camera ID

SW1 SW2

Alarm connector 8P Short connector

AUX 4P

RS485 communication 2P

AC24V power supply

Alarm signal

Alarm Relay Output “AUX1”

Alarm Relay Output “AUX2

Alarm Input GND

1、Power supply and

communication cable：

AC24V

2、Video output：

AC24V RS485

Alarm input signal：l -7

AL1、AL2、AL3、AL4…AL7：Alarm input.

The switch setting SW1 ON=1 OFF=0

Protocol setting

Baud rate setting

Alarm

Alarm mode

DIP Switch

Description

SW1234=0000

(PELCO-D/PELCO-P

Auto identify)

SW5,6=

00=2400

01=4800

10=9600

11=19200

1=Alarm

enable

0=Alarm

disable

1=Always short circuit.

(Alarm while open)

0=Always open circuit.

(Alarm while short)

Note：PELCOD、PELCOP could be identifying automatically. On and off is the corresponding

switch position.

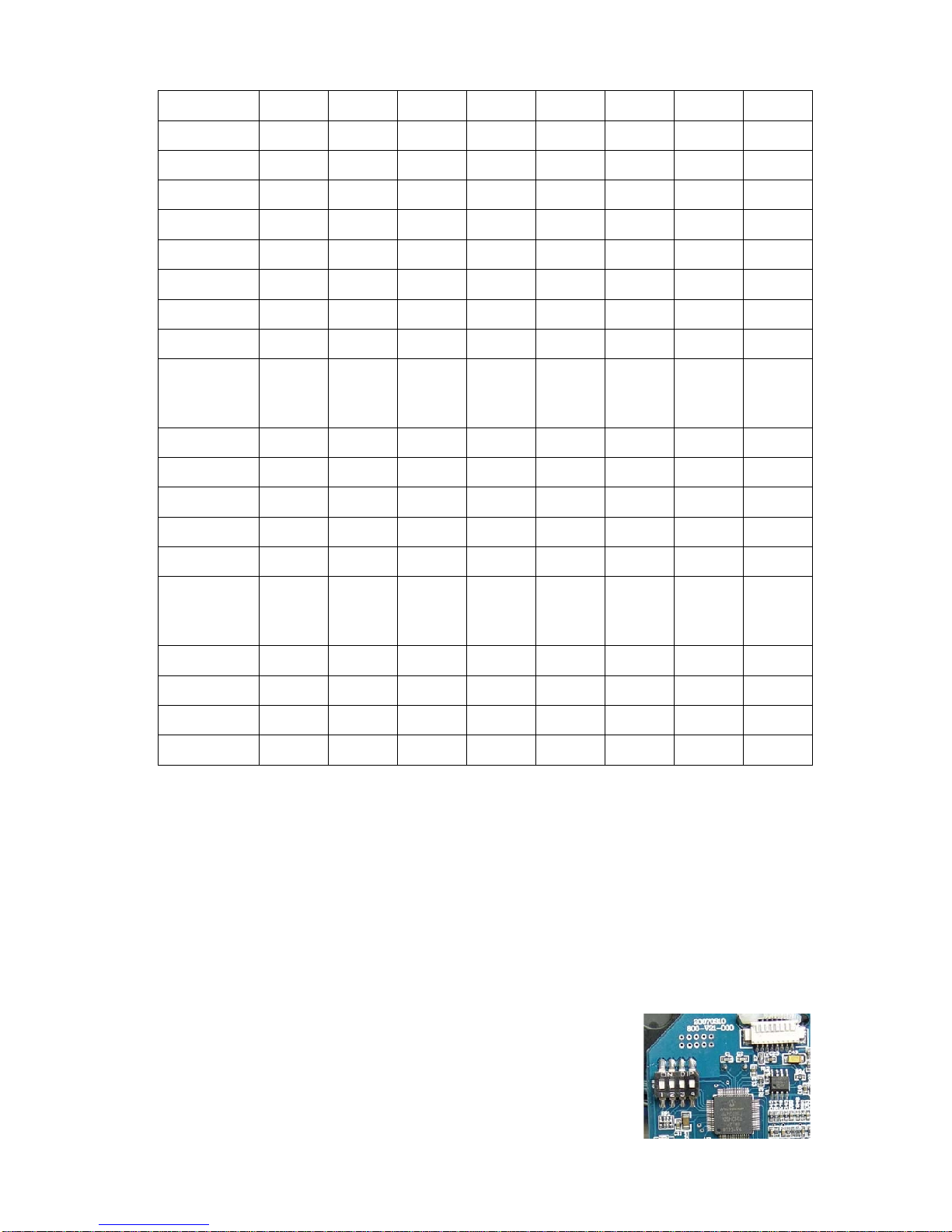

Camera ID Setting:

SW2 switch: address DIP table

CAM ID

OFF

CAM ID

OFF

∶

128

OFF

129

OFF

130

OFF

131

OFF

132

OFF

∶

252

OFF

253

OFF

254

OFF

255

OFF

Note：The address of the some protocol are from 0, and the others are from 1, please setting

the address(±1) as your protocol.

Alarm

7 alarm input. The dome will alarm when alarm input port connect the GND. The AUX will be closed

when has alarm, and open when no alarm in. The capacitance of the relay is AC24V/1A.

The relay output:

2 relay switch AUX1, AUX2, the biggest capability is AC24V/1A. AUX1 connect with the alarm, the

master or keyboard controls AUX2.

Camera Module Setting Switch

The dome can be fit different camera, and they have different switch

Camera

Switch 1

Switch 2

Switch 3

Switch 4

DIP-1

DIP-2

DIP-3

DIP-4

SONY

OFF

HITACHI

OFF

CNB-200L

OFF

CNB-M1560

OFF

SAMSUNG(SDM300/SDM330

)

OFF

Note: Please make sure the camera parameters are correct or the camera

cannot work or cannot work well. If this, please enter the camera menu

and restore factory settings first, then setting the parameters as

request.

VBasic high speed dome operation

When power on, the version, protocol, baud rate and ID will display on the monitor, and the dome will

automatic self-check both the vertical and level then display the specs of camera.

Example:

High Speed Dome

Ver：1 00

PELCO D P

2400

ID：001

Tile reference OK

Pan reference OK

SONY FCB-EX480CP

The operation by keyboard controller

Function

Control

Level / Vertical

Joystick left, right / up and down

OSD Confirm

OPEN

Cancel and Back

OSD Display

Call 95 preset

Original Position

Call 34 preset

Level Scan

Call 99 preset

Auto Flip

Call 33 preset

Left limit: call 92 preset

Level Scan Limit

Point

Right limit: call 93 preset

Call preset scan 1

Call 81 preset

Call preset scan 2

Call 82 preset

Call preset scan 3

Call 83 preset

Call preset scan 4

Call 84 preset

Function

Control

Camera mode 1

Call 100 preset

Camera mode 2

Call 101 preset

Camera mode 3

Call 102 preset

4 Privacy mask, only fit to SONY480, SONY980 andSONY1000 camera.

Level area increase: FAR

Level area reduce: NEAR

Vertical area increase: TELE

Privacy Mask

Vertical area reduce: WIDE

OSD Operation

Enter OSD

Please call the number 95 preset to display the OSD on the screen.

At figures the current item, figures the enabled item, and the► after the item which have

submenu.You can change the item state when it has been enabled. Please press OPEN key to enter

or confirm and CLOSE key to back or cancel, and the key UP and DOWN control the cursor up and

down.

Menu function instructions

Call the number 95 preset to enter the OSD, and you could set the shortcut key to display the OSD.

Main Menu

Camera ►

Pan ►

Shortcut Key

Self act Nothing

Leisure Time 030

Camera OSD (SONY)

Camera ► Press Key Open to enter the camera menu.

Exposure ►

White Balance ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed 005

Focus Speed 001

Exp Mode Auto

Shutter speed 006

Iris 016

Gain 001

Bright 016

Back Light Off

Slow Shutter Off

Camera Exposure

Exposure ►Press OPEN key to enter the camera exposure

submenu.

Exposure operation

1, How to change the exposure

Exp Mode press OPEN key, enable Exp Mode, then

operate up and down by the joystick, the parameters

are:Auto, Manual, Shutter, Iris and bright

2, Confirm Exposure.

Exp Mode press OPEN key, select effect, the menu change to Exp Mode

3, Cancel Exposure

Exp Mode press CLOSE to cancel the Exposure mode change, the menu change to Exp

Mode

Back the main camera menu

Exp Mode press CLOSE key to cancel the last menu.

Other operation of Exposure Menu

Exp Mode, control the joystick up or down to let the up and down, press OPEN key to

enable the item, then go on control up and down with joystick, and press OPEN key to confirm, the

cursor will change to .

White Balance

The dome has the function of Manual White Balance and Auto White Balance.

White Balance► press OPEN key, enter the White

Exposure ►

White Balance ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed 005

Focus Speed 001

Balance submenu, then change the parameter,

WB Mode Auto

R Gain 214(0-255)

B Gain 175(0-255)

White Balance Mode operation:

WB Mode Auto

R Gain 210

B Gain 175

WB Mode Auto

R Gain 210

B Gain 175

WB Mode Auto

R Gain 210

B Gain 175

1、WB Mode

2、At WB Mode, press OPEN key to enable the Exp Mode

menu, then it will change to WB Mode, control the

joystick to change the parameter which order is: Auto,

Manual,ATW, OPW, Outdoor and Indoor. R Gain

3, R Gain

At WB Mode, operate the joystick down let the

cursor come to R Gain, press OPER key to enter the menu.

Then operate the joystick up (increase) and down (reduce) the

R Gain. The homologous parameter is 0-255. Press OPEN

key to confirm and back or press CLOSE to cancel and back.

4, B Gain

At WB Mode operate the joystick to control the

cursor come to B Gain, press OPEN key to enter the B Gain

setting, joystick up and down to increase and reduce the

parameter which from 0-255. Press OPEN key to confirm and

back or press CLOSE to cancel and back.

Privacy Mask

Exposure ►

White Balance ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed 005

Focus Speed 001

Privacy1

Privacy2

Privacy3

Privacy4

At Exposure ► operate the joystick to let the cursor

come to Privacy press OPEN to enter the submenu, then

set the parameter.

There are 4 privacy masks, which have the same operation

1. How to set privacy mask?

At the submenu of the Privacy, press OPEN key to enter the

adjust image, adjust the privacy zone by OPEN (confirm),

CLOSE(cancel), FAR (level increase), NEAR (level reduce),

TELE(vertical increase), WIDE (vertical reduce). Then press

OPEN key to confirm and back.

2 . How to clear privacy mask?

a, Restart the speed dome, all of the privacy mask will be cleared.

b, Enter the menu of the Privacy mask, press OPEN key to enter and press CLOSE to clear the

privacy mask you want to clear.

Others of the Camera menu

Digital Zoom On

Auto ICR Off

ICR Off

Display Off

Exposure ►

White Balance ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed 005

Focus Speed 001

Camera Mode Save：

Normal

Day

Night

Camera Mode Exec：

Normal

Day

Night

Press OPEN key to enable the submenu, operate joystick to

change the states of ON and OFF. Press OPEN to confirm

and back and CLOSE to cancel and back.

Camera Mode

Camera Mode setting menu:

Press OPEN to enter the menu.

There are three save mode under the Camera Mode Save

menu, move the cursor to the mode going to be change,

press OPEN the cursor will change to , the setting will be

saved and it will back to after 1 second.

The three items under Camera Mode Exec is opposite the

three modes above. Move the cursor to the mode you want

to call and press OPEN to confirm and back. The saved mode

could be called by the shortcut preset: Normal---call 100 preset; Day --- call 101 preset; Night --- call

Tabla de contenidos

Otros manuales de Cámara de seguridad de XtendLan

XtendLan

XtendLan PEDOMEOIR48023SD Manual de usuario

XtendLan

XtendLan ABOX56022 Manual de usuario

XtendLan

XtendLan HDC-SDOMEO51MIR-B Manual de usuario

XtendLan

XtendLan XL-ICA-306M3 Manual de usuario

XtendLan

XtendLan XL-ICA-H660-SC110 Manual de usuario

XtendLan

XtendLan Speed Dome Manual de usuario

XtendLan

XtendLan XL-ICA-206M2T-M39 Manual de usuario

XtendLan

XtendLan XL-ICA-371M2 Manual de usuario

XtendLan

XtendLan XL-ICA-306M1 Manual de usuario

XtendLan

XtendLan SDOMEO4802701 Manual de usuario

XtendLan

XtendLan SDOMEOAT2-SD332 Manual de usuario

XtendLan

XtendLan XL-ICA-641M2 Manual de usuario

XtendLan

XtendLan XL-ICA562M1CIR Manual de usuario

XtendLan

XtendLan SDOMEOIR6-CM10 Manual de usuario

XtendLan

XtendLan XL-ICA-206M1IR Manual de usuario

XtendLan

XtendLan SDOMEOATM Manual de usuario

XtendLan

XtendLan XL-ICA301A Manual de usuario

XtendLan

XtendLan SDOMEOAT-57030SD Manual de instrucciones

XtendLan

XtendLan OUTIRDVS620FR-42 Manual de usuario

XtendLan

XtendLan XL-ICA-361M3CP Manual de usuario

XtendLan

XtendLan XL-ICA-H660-SC110 Manual de usuario

XtendLan

XtendLan XL-ICA-661M1CP Manual de usuario

XtendLan

XtendLan XL-ICA-107M1C Manual de usuario

XtendLan

XtendLan XL-ICA-206M2IR-36 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
