Preface

About This Guide

This document describes the FPGA Mezzanine Card (FMC) XM104 connectivity card,

referred to as the XM104 in this guide. Xilinx® supported evaluation (carrier) boards are

referred to simply as boards in this guide.

Guide Contents

This manual contains the following chapter:

•Chapter 1, XM104.

Additional Documentation

Prior to using the XM104, users should be familiar with Xilinx resources. See the following

locations for additional documentation on Xilinx tools and solutions:

• ISE® Design Suite: www.xilinx.com/ise

• Answer Browser: www.xilinx.com/support

• Intellectual Property: www.xilinx.com/ipcenter

The XM104 can be used with Xilinx FMC high pin count (HPC) boards and, with limited

functionality, FMC low pin count (LPC) boards. Board documentation, schematics and

PCB design files are available at www.xilinx.com/fmc.

Additional Support Resources

To find additional documentation, see the Xilinx website at:

www.xilinx.com/support/documentation/index.htm

To search the Answer Database of silicon, software, and IP questions and answers, or to

create a technical support WebCase, see the Xilinx website at:

www.xilinx.com/support/mysupport.htm

6www.xilinx.com FMC XM104 Connectivity Card User Guide

UG536 (v1.1) September 24, 2010

Preface: About This Guide

FMC XM104 Connectivity Card User Guide www.xilinx.com 7

UG536 (v1.1) September 24, 2010

Chapter 1

XM104

Overview

This document describes the FPGA Mezzanine Card (FMC) XM104 connectivity module,

referred to as the XM104 in this guide. A Quick Start section and Board Technical

Description are combined within this document.

Quick Start

System Requirements

Hardware

Table 1-1 details the board validated to support the XM104. The ML605 board provides one

FMC high pin count (HPC) (J64) and one FMC low pin count (LPC) (J63) connector

interface. The XM104 connector must be installed on the HPC J64 connector of the ML605

board to have full functionality, as shown in Figure 1-1, page 9.

The XM104 can work on LPC FMC interfaces, but with limited functionality. Xilinx boards

containing LPC connectors are supported as follows:

• SP601 - Si5368 clock source only

• SP605 - Si5368 clock source and Data Port 0 (DP0) channel

• ML605 LPC (J63) - Si5368 and DP0 channel

• ML623 - Si5368 clock source only

• SP623 - Si5368 clock source only

Table 1-1: FMC Supported Boards

Xilinx Platform Part Number FMC HPC

Connector

FMC LPC

Connector

Virtex-6 FPGA ML605 Evaluation Kit EK-V6-ML605-G J64 J63

Notes:

While every effort has been made to comply with the FPGA Mezzanine Card Specification, Xilinx cannot

claim nor assume full compliance with the FMC/VITA-57-1 specification. Consequently, Xilinx cannot

claim nor support the usage of the XM104 on any other FMC (VITA-57.1) board.

Xilinx FMC cards are generally designed to implement expanded functionality for supported Xilinx

evaluation boards (SP601, SP605, or ML605) and thus might exceed the FMC card outline dimensions

discussed in the Single Width FMC Module Mechanical section of the FMC/VITA-57-1 specification.

Therefore, Xilinx FMC cards might not physically fit in a non-Xilinx evaluation board environment.

8www.xilinx.com FMC XM104 Connectivity Card User Guide

UG536 (v1.1) September 24, 2010

Chapter 1: XM104

Software

Example designs that use this hardware are not provided at this time.

Package Contents

The following items are included in the XM104 shipment:

• XM104 card

• Four (4) mounting screws

•Two(2)standoffs

• Four (4) SMA-P to SMA-P cables

• Serial ATA loopback cable

• Serial ATA cable

• Welcome letter

Necessary Equipment

• Small Phillips screwdriver to secure the XM104 to the board

• PC with Internet access to download documentation, board files, and schematics

System Setup

Complete the following steps to install the XM104 to a Xilinx board. For additional

information on Xilinx boards, refer to the board’s user guide. See Additional

Documentation, page 5.

1. Turn off the DC power switch and disconnect the input power source from the board.

2. Remove the XM104 from the electrostatic device (ESD) bag.

3. Using a small Phillips screwdriver, remove the two screws from the bottom side of the

two standoffs on the XM104. These screws will be used to attach the board to the

standoffs attached to the XM104.

4. Install the XM104 to the ML605 FMC HPC connector J64. The XM104 hangs off the

edge of the board as shown in Figure 1-1, page 9.

5. Turn the attached board and XM104 such that the FPGA is facing the table. Install two

screws from the bottom side of board's FMC mounting holes into the two standoffs

attached to the XM104. Hand tighten the two mounting screws to the bottom of the

board.

6. Turn the attached board and XM104 unit over such that the Xilinx FPGA is visible.

7. Connect the input power source to the board. Turn the board power input switch to

ON.

The system is now ready for use.

FMC XM104 Connectivity Card User Guide www.xilinx.com 9

UG536 (v1.1) September 24, 2010

Quick Start

Technical Support

Xilinx offers technical support for this product only when used in conjunction with boards

listed in Table 1-1. For assistance with the XM104 and Xilinx boards, contact Xilinx for

technical support at www.xilinx.com/support.

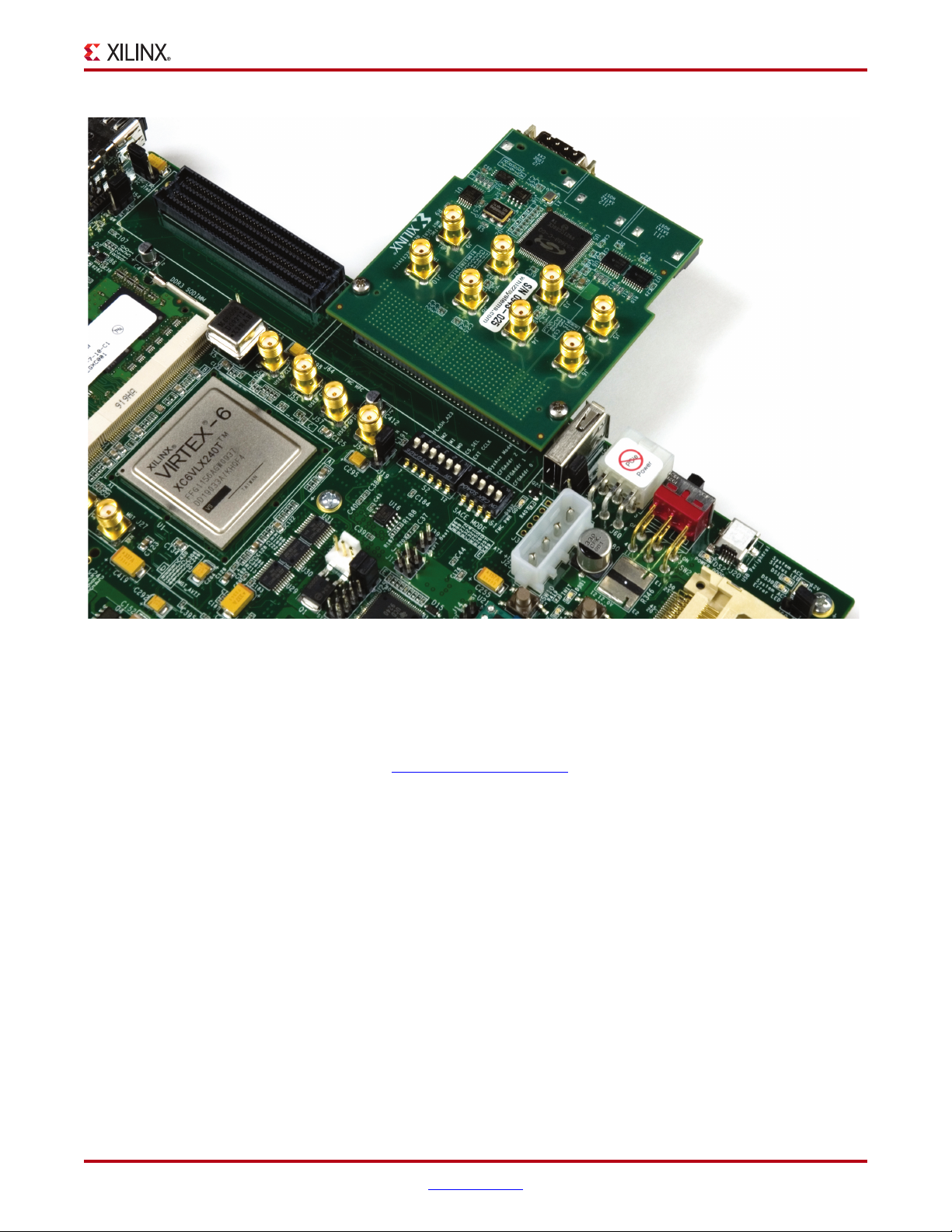

X-Ref Target - Figure 1-1

Figure 1-1: Installation of XM104 to Board FMC HPC Connector

UG536_01_111609

10 www.xilinx.com FMC XM104 Connectivity Card User Guide

UG536 (v1.1) September 24, 2010

Chapter 1: XM104

Board Technical Description

The XM104 provides a number of connectors which break out the FPGA multi-gigabit

transceiver (MGT) interface signals to and from the board interface. Figure 1-2 shows a

block diagram of the XM104. Each MGT data port interface consists of two differential

pairs of MGT signals, one pair for the transmitter and one pair for the receiver. MGT Data

Ports 0 and 1 are each wired to four SMA connectors. MGT Data Ports 2 and 3 are each

wired to host Serial ATA connectors J11 and J12 respectively. MGT Data Ports 4 through 7

are wired to a 10GE Base-CX4 connector supporting a XAUI application interface. MGT

transmitter Data Ports 8 and 9 are electrically looped back to the board receiver ports 8 and

9 respectively. The ML605 does not support Data Port 8 and 9 interfaces.

Silicon Laboratories Si570 serial IIC bus reprogrammable LVDS clock source and a Si5368

any-rate precision clock multiplier and jitter attenuator integrated circuits provide a

variety of programmable differential clock sources to the board’s FGPA. The Si5368

integrated circuit receives three differential LVDS clock inputs from the board and outputs

five LVDS differential clock outputs to the FPGA.

A 2 Kb serial IIC EEPROM is also connected to the IIC interface of the board providing

non-volatile storage. The serial IIC interface also connects to the Si570 and Si5368

integrated circuits enabling the board’s FPGA to program the clock circuitry on the XM104.

X-Ref Target - Figure 1-2

Figure 1-2: XM104 Block Diagram

UG536_02_120309

2 Kb

EEPROM

Si5368

Any-rate Clock

Si570

Clock

156.25 MHz

Clock

Driver

Level

Shifter

IIC

Switch

GBTCLK1_M2C

GBTCLK0_M2C

CLK1_M2C

CLK2_M2C

CLK3_M2C

LA00_CC

LA01_CC

LA17_CC

MGT DataPort 0

SMA (4x) DP0

DP1

DP2

DP3

DP4-DP7

DP8-DP9

MGT DataPort 1

SMA (4x)

MGT DataPort 2

Serial ATA J11

MGT DataPort 3

Serial ATA J12

MGT DataPorts4-7

10GE Base-CX4 J2

J1 FMC HPC Interface

MGT DataPorts8-9

Electrical Loopback

CLK0_M2C

J3, J4, J5, J6

J7, J8, J9, J10

FS_OUT

CKOUT1

CKOUT2

CKOUT3

CKOUT4

CKIN1

CKIN2

CKIN3

CKIN4

Tabla de contenidos

Otros manuales de Hardware de computadora de Xilinx

Xilinx

Xilinx VC707 Manual de usuario

Xilinx

Xilinx Virtex-II Pro Manual de usuario

Xilinx

Xilinx LogiCORE IP Video In to AXI4-Stream v1.0 Manual de usuario

Xilinx

Xilinx Virtex-4 QV FPGA Manual de usuario

Xilinx

Xilinx MicroBlaze Manual de usuario

Xilinx

Xilinx VC707 Manual de usuario

Xilinx

Xilinx LogiCORE IP AXI Manual de usuario

Xilinx

Xilinx Kintex-7 FPGA KC705 Manual de usuario

Xilinx

Xilinx Virtex UltraScale FPGA VCU1287 Manual de usuario

Xilinx

Xilinx Alveo U30 Manual de usuario

Xilinx

Xilinx Spartan-3A DSP FPGA Series Manual de usuario

Xilinx

Xilinx ML623 Manual de usuario

Xilinx

Xilinx ZCU102 Instrucciones de operación

Xilinx

Xilinx ML630 Si570 Manual de usuario

Xilinx

Xilinx ML605 Instrucciones de operación

Xilinx

Xilinx Spartan-3A DSP FPGA Series Manual de usuario

Xilinx

Xilinx Spartan-3A DSP FPGA Series Guía de inicio rápido

Xilinx

Xilinx XM104 Manual de usuario

Xilinx

Xilinx Alveo X3522 Manual de usuario

Xilinx

Xilinx ChipScope Pro Manual de usuario

Xilinx

Xilinx Virtex-II Pro ML300 Manual de usuario

Xilinx

Xilinx Zynq-7000 Manual de usuario

Xilinx

Xilinx Virtex-5 FPGA ML561 Manual de usuario

Xilinx

Xilinx ML506 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
