IMILAB EC4
Spotlight Battery Camera Set
User Manual
Read this manual carefully before use,
and retain it for future reference.
EN DE ES FRIT RU HE PL
CONTENTS
English 01-18
19-36Deutsch
37-54Español
55-72Italiano
73-90Français
91-108
109-124
Pусский
125-141Polski
ע ִ בר ִ י ת
Getting started
1.Camera quantity and accessories vary by bundle package.
2.Hub power adapter varies by region.
For hub installation
IMILAB
Smart Hub
Power Adapter Ethernet Cable
IMILAB EC4 Micro-USB
Charging Cable
Mounting
Bracket
Mounting Screws
and Anchors
For camera installation
EN-01
Product overview
Hub
Alarm
USB
Power
Reset
Ethernet
1
1
2
3
4
5
6
7
8
2
3
4
Reset Button
5
Power Port
6
Ethernet Port
7
USB Charging Port
Alarm
8
EN-02
Status LED
MicroSD Card Slot
Speaker

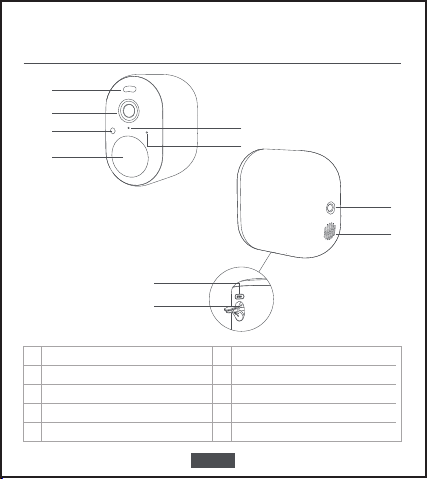

Camera
1
2
5
6
3
4
7
8
9
10
EN-03
1
2
3
4
6
7
8
9Motion sensor
Status LED
Mounting hole
Speaker
SYNC Button
5 10Microphone USB Charging Port
Spotlight
Lens
Light sensor
Connecting the hub
1.Use the ethernet cable provided to connect the hub to your
home router.
2.Power on the hub.
3.The status LED indicator turns flashing orange then hub is
ready for setup.
SYNC
USB
Power
Reset
Ethernet
Status LED
EN-04
Setting up the system
Download the app and set up the system
1. Download the Imilab Home APP
from the app store (ios devices) or
google play (Android devices).
2. Sign up for a imilab home account , then follow the
onscreen instructions to complete the setup.
EN-05
7-10 ft
(2-3 m)
Up to 26 ft (8 m)
Camera field
of view Motion
Detection
Zone
Mounting the camera
Select height and location
1. Hang the camera 7-10 ft (2-3m) above the ground. This
height maximizes the detection range of the motion sensor
of the camera.
EN-06
Mount the camera
The camera can be mounted both indoors and outdoors.
1. Drill two holes on the wall by using the base of the IMILAB
EC4 as a template. It is recommended that you mark the
locations of the hole with a pencil before drilling. The
diameter of each hole is approximately 6 mm, and the depth
is approximately 30mm.
2. Insert the anchors into the holes.
EN-07

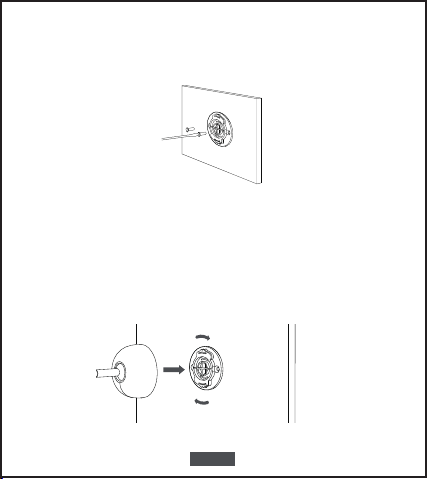

4. Match the bottom groove of the camera mounting base
with the raised area on the base. Press down until the two
surfaces are flush, then turn it in either direction to lock it in
place.
EN-08
3. Firmly screw the base of the mounting bracket onto the wall.
