Xerox WorkCentre C226 Quick Start Guide Page 3

Xerox WorkCentre C226

Quick Start Guide

Bypass Tray

Duplex Bypass/Inverter

Unit and Exit Tray

Left Side Cover Release

Operation Panel

Centre Tray

Power Switch

Left Tray

Left Side Cover

DADF

Front Cover

Paper Tray Duplex Module/2 Tray Unit

Quick_Start_Guide.fm Page 3 Wednesday, May 4, 2005 11:28 PM

Page 4 Xerox WorkCentre C226 Quick Start Guide

Welcome to Your Machine

Thank you for choosing the Xerox WorkCentre C226.

To support the delivery of your new machine please refer to the following:

¾Quick Start Guide

¾User Guide

¾System Administration Guide

¾The Xerox web site http://www.xerox.com

The following pages contain an overview of the main features to help you get started.

If you require more detailed information about any of the features available on your

machine, please refer to the WorkCentre C226 User Guide.

Xerox Corporation

GKLS European Operations

Bessemer Road

Welwyn Garden City

Hertfordshire

Al7 1HE

ENGLAND

information now allowed by statutory or judicial law or hereinafter granted, including without

limitations, material generated from the software programmes which are displayed on the

screen, such as icons, screen displays, looks etc.

Xerox®, the digital X® and all Xerox products mentioned in this publication are trademarks of

Xerox Corporation. Product names and trademarks of other companies are hereby

acknowledged.

Quick_Start_Guide.fm Page 4 Wednesday, May 4, 2005 11:28 PM

Xerox WorkCentre C226 Quick Start Guide Page 5

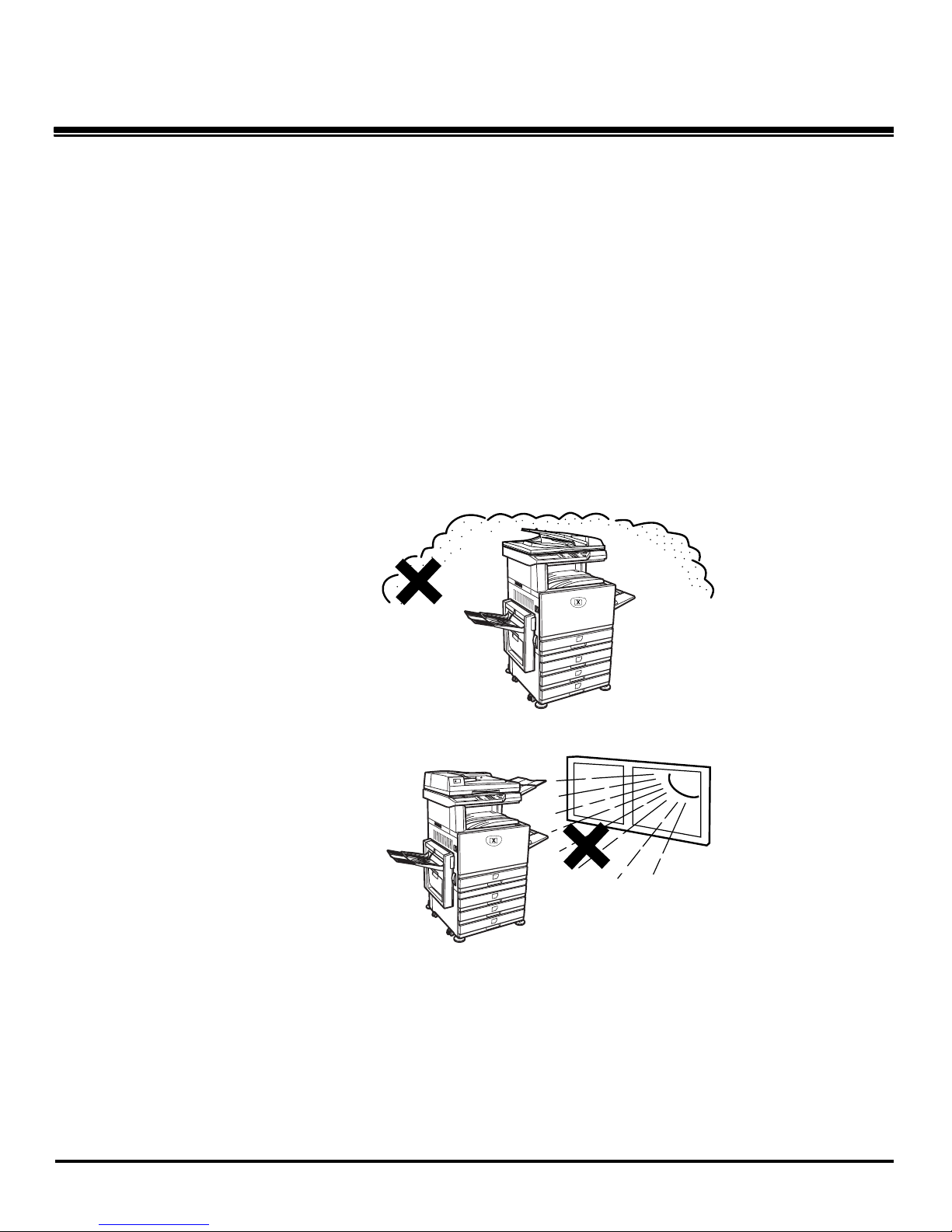

Unpacking

Installation Requirements

Improper installation may damage this product. Please note the following during

initial installation and whenever the machine is moved.

1. The machine should be installed near an accessible power outlet for easy

connection.

2. Be sure to connect the power cord only to a power outlet that meets the

specified voltage and current requirements. Also make certain the outlet is

properly grounded.

For the power supply requirements, see the name plate on the main unit.

3. Do not install your machine in areas that are:

¾damp, humid, or very dusty

¾exposed to direct sunlight

Quick_Start_Guide.fm Page 5 Wednesday, May 4, 2005 11:28 PM

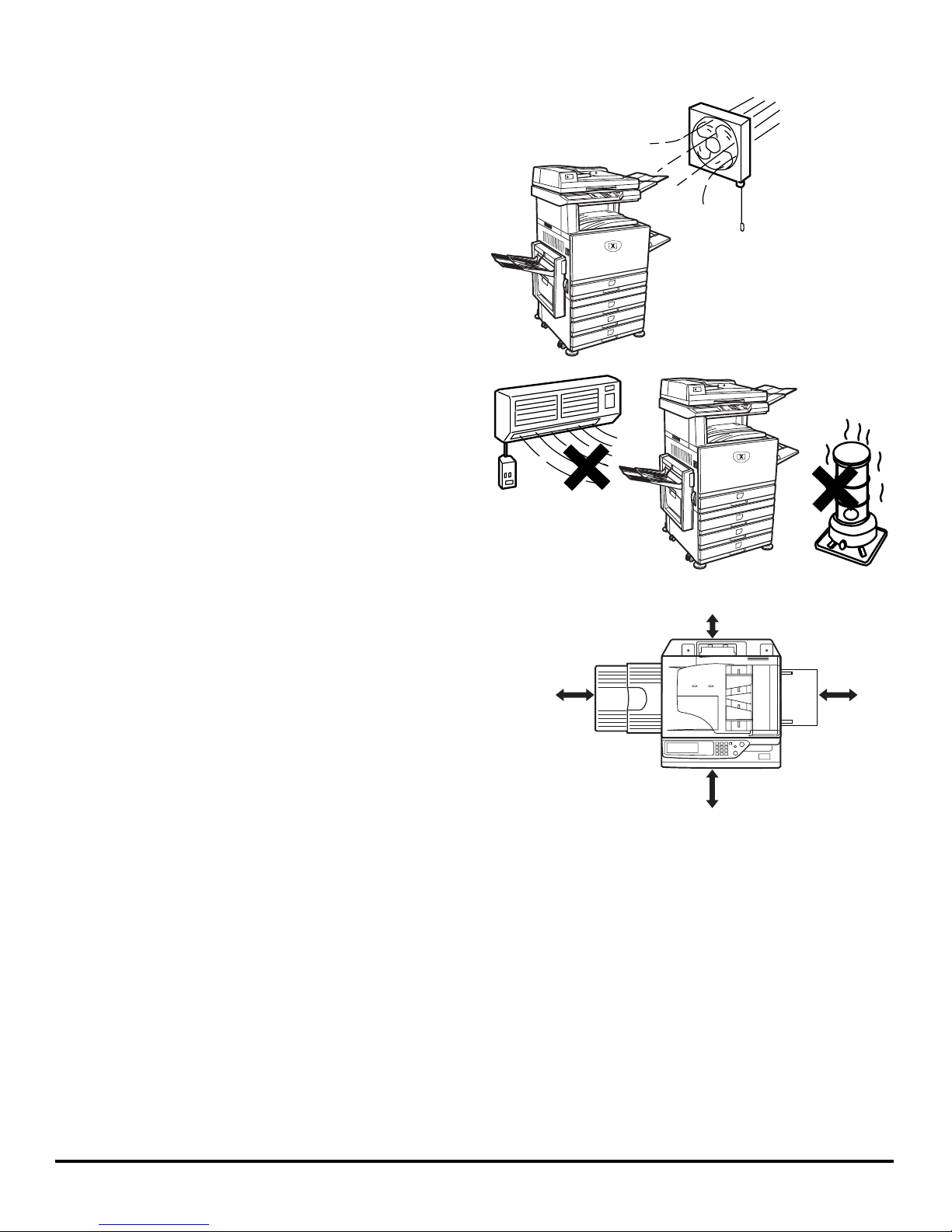

Page 6 Xerox WorkCentre C226 Quick Start Guide

¾poorly ventilated

¾subject to extreme

temperature or humidity

changes, e.g., near an air

conditioner or heater.

4. Be sure to allow the

required space around the

machine for servicing and

proper ventilation.

A small amount of ozone is

produced within the copier during

operation. The emission level is

insufficient to cause any health

hazard.

NOTE: The present recommended long term exposure limit for ozone is 0.1 ppm

(0.2 mg/m3) calculated as an 8 hr. time-weighted average concentration.

However, since the small amount that is emitted may have an objectionable odour,

it is advisable to place the machine in a ventilated area.

80cm

(31-1/2")

60cm

(23-5/8")

60cm

(23-5/8")

30cm

(11-13/16")

Quick_Start_Guide.fm Page 6 Wednesday, May 4, 2005 11:28 PM

Xerox WorkCentre C226 Quick Start Guide Page 7

Operation Panel Overview

3 4

8 9 10 11

Item Description

1. Touch panel Displays the machine status, messages and touch keys.

2. Mode select keys and

indicators

Use to change modes and the corresponding display on the touch

panel.

[Copy] key Press to select the copy mode.

[Scan/Fax] key Press to switch the display between network scanner mode and fax

mode.

[Print] key Press to enter the printer mode.

3. [Job Status] key Press to display the current job status.

4. [Machine

Administration] key

Use to adjust the contrast of the touch panel or to set key operator

programmes.

5. Numeric keys Use to enter number values for various settings.

6. []key Used when you select the copy, network scan, and fax functions.

Quick_Start_Guide.fm Page 7 Wednesday, May 4, 2005 11:28 PM

Page 8 Xerox WorkCentre C226 Quick Start Guide

7. [#/P] key Used as a programme key when using the copy function, and to dial

when using the fax function.

8. [C] Clear key Used in copy mode, network scanner mode, and fax mode.

9. [Black Copy

Start] key

Used to make black and white copies, to scan a black and white original

in scan mode, and to scan an original to be faxed in fax mode.

10. [CA]Clear All key Used in copy mode, scan mode, and fax mode.

11. [Colour Copy

Start] key

Used to make full-colour or single-colour copies and to scan a colour

original when the network scanner function is used.

Item Description

Quick_Start_Guide.fm Page 8 Wednesday, May 4, 2005 11:28 PM

Xerox WorkCentre C226 Quick Start Guide Page 9

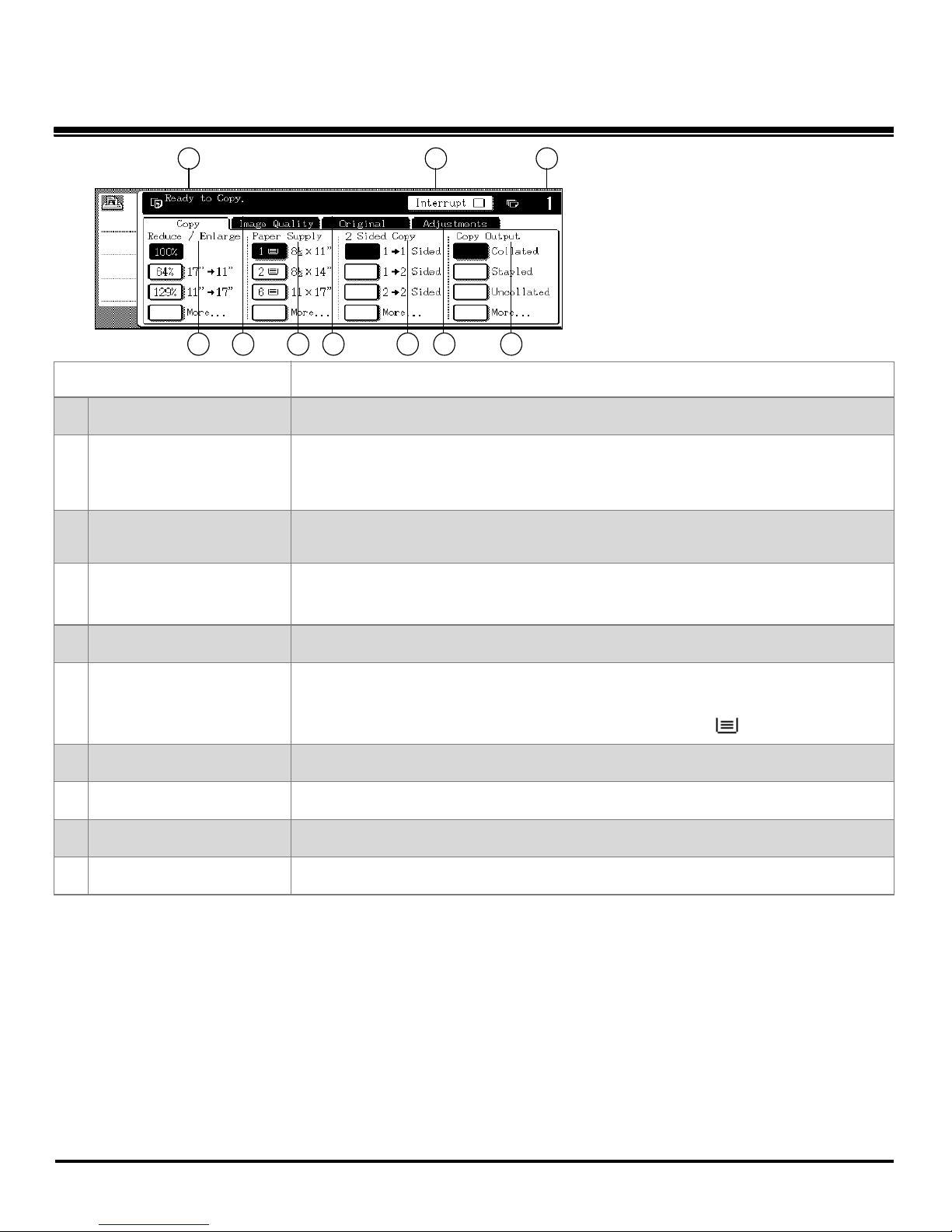

Main Screen of Copy Mode

Item Description

1. Message display Basic status messages are displayed here.

2. [Interrupt] key display

area

When interrupt copy is available, the [Interrupt] key is displayed here.

When an interrupt copy job is being run, a [Cancel] key is displayed

here to be used for cancelling the interrupt copy job.

3. Copy quantity display Displays the selected number of copies before the [Start] key is pressed

or the number of remaining copies after the [Start] key is pressed.

4. Reduce/Enlarge

display

Use to select the copy ratio.

5. Image Quality tab Touch to adjust the image quality.

6. Paper Supply display Use to select the paper size. The display shows the location of the

paper trays, the size of the paper in the trays and the approximate

amount of paper loaded in each tray (indicated by ).

7. Original tab Touch this tab to manually enter the original size.

8. 2 Sided Copy display Use to select the duplex copy mode setting.

9. Adjustments tab Touch to display the Adjustments screen.

10. Copy Output display Use to select Collated, Stapled, and Uncollated.

1 2 3

4 5 86 7 9

Quick_Start_Guide.fm Page 9 Wednesday, May 4, 2005 11:28 PM

Page 10 Xerox WorkCentre C226 Quick Start Guide

Installing Cartridges

Open the front cover.

Lift the cartridge lock lever toward you.

Remove a new toner cartridge from the package and shake it

horizontally five or six times.

1Arrangement of colour

toner cartridges

Yellow

Magenta

Cyan

Black

)Shake the toner cartridge well to ensure that the toner

flows well and will not stick to the inside of the cartridge.

Quick_Start_Guide.fm Page 10 Wednesday, May 4, 2005 11:28 PM

Xerox WorkCentre C226 Quick Start Guide Page 11

Remove the protective material from the new toner cartridge.

Insert the new toner cartridge.

Align the insert holes as shown and then push the

cartridge in.

Push the cartridge in until it locks securely in place.

Do not push the white area shown in the illustration.

The lock lever may come down.

Quick_Start_Guide.fm Page 11 Wednesday, May 4, 2005 11:28 PM

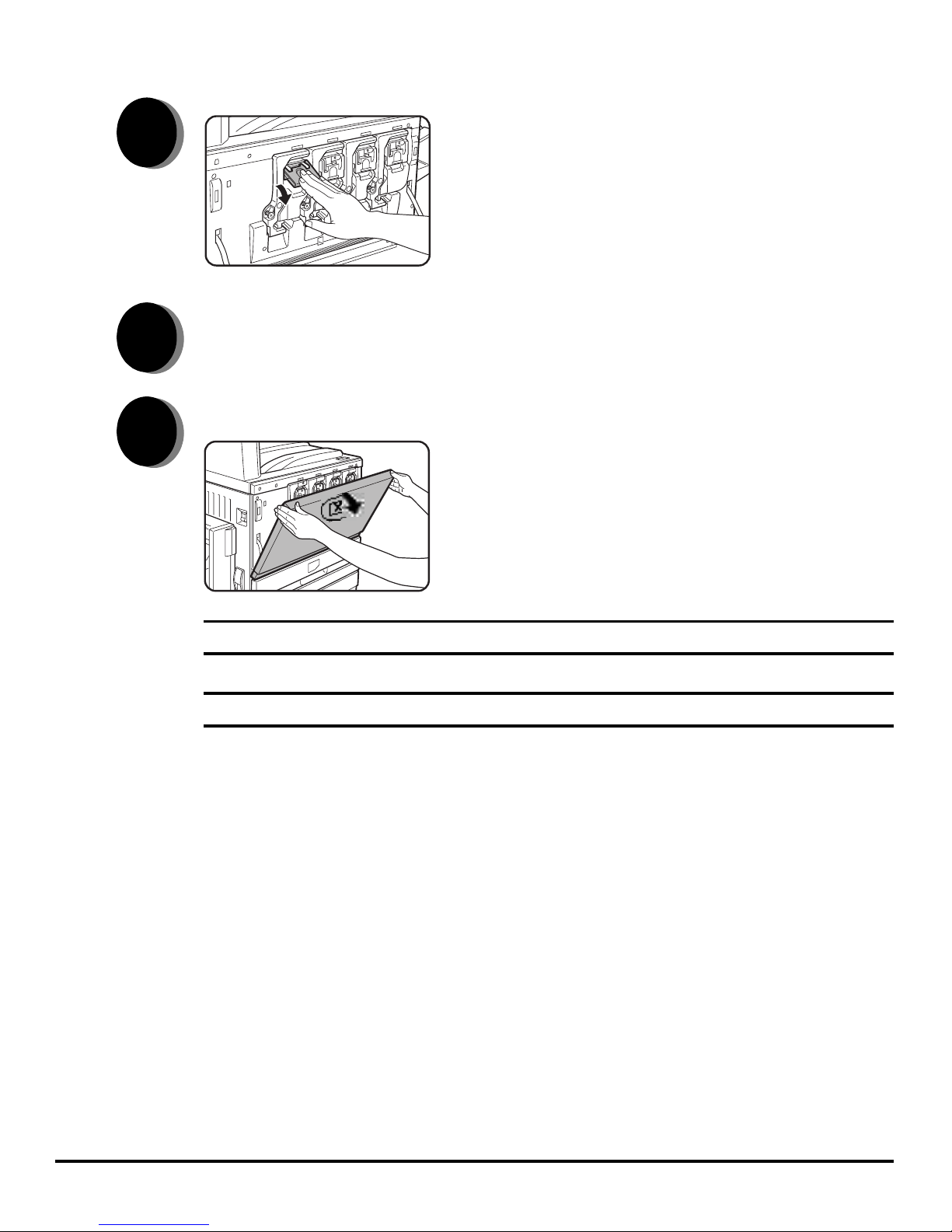

Page 12 Xerox WorkCentre C226 Quick Start Guide

Return the cartridge lock lever.

Repeat steps 2 - 7 for the other three cartridges.

Close the front cover.

CAUTION: Do not throw the toner cartridge into a fire. Toner may fly and cause burns.

CAUTION: Store toner cartridges out of the reach of small children.

Quick_Start_Guide.fm Page 12 Wednesday, May 4, 2005 11:28 PM
