WorkCentre 7425/7428/7435

Software Upgrade Procedure

Purpose

The purpose of this ReadMe is to enable System Administrators to upgrade a WorkCentre 7425/7428/7435. The

upgrade process will take about 30 minutes. The WorkCentre will be inoperable during this time. Please make sure

that the WorkCentre is free of faults and jams before commencing any part of the upgrade.

Upgrade Requirements

To perform this upgrade, the following will be required:

1. The .bin file. IMPORTANT: This file must be extracted from either xx_STD.zip or from xx_PS.zip before it

can be used. Follow the instructions under Prepare for the Upgrade to determine which .zip file needs to

be extracted.

2. A PC with network access to the WorkCentre.

3. The WorkCentre must have the HTTP option enabled.

Prepare for the Upgrade

The purpose of this section is to identify which of the 2 available upgrade files needs to be applied to your

machine(s) and then download the appropriate upgrade file to your workstation.

Use the following procedure to determine what type of “Controller ROM” is installed in your machine and then

download the appropriate software upgrade file to your workstation.

1. In your web browser, enter http:// followed by the TCP/IP address of the machine in the Address or Location

field, then press [Enter]. The machine’s internal web page, CentreWare Internet Services, will appear.

2. Click on the [Properties] tab.

3. Expand the [General Setup] folder and then select the document icon [Configuration].

4. Within the "Configuration" screen, look below the Software header and make a note of whether you see

"Controller ROM" listed or “Controller + PS ROM” listed.

5. Click on the appropriate System Software Upgrade file link based on the following:

If your machine has "Controller ROM", click the "Standard Download" link.

If your machine has "Controller+PS ROM", click the "Postscript Download" link.

6. Click Accept if you accept the license agreement.

. Save the System Software Upgrade file to a location on your computer.

Upgrade the Machine

1. Verify that the machine is up and running, and is not in PowerSaver mode.

2. In your web browser, enter http:// followed by the TCP/IP address of the machine in the Address or Location

field, then press [Enter]. The machine’s internal web page, CentreWare Internet Services, will appear.

3. Click the [Properties] tab.

4. Click the [Services] folder.

5. Click the [Machine Software] folder.

6. Click [Upgrades] and click the Enabled check box, then click [Apply].

7. Enter the admin user name and password if prompted.

8. Click [Manual Upgrade].

9. Click [Browse] and move through your file system to locate the System Software Upgrade file that you just

downloaded from Xerox.com.

10. Highlight the file and click [Open].

11. Click [Install Software] to install the software.

Xerox Corporation in the United States and/or other countries.

Otros manuales para WORKCENTRE 7425

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Xerox

Xerox

Xerox WorkCentre 6400SFS Manual de usuario

Xerox

Xerox WorkCentre PE16 Manual de usuario

Xerox

Xerox Phaser 8860 Manual del operador

Xerox

Xerox Colour 560 Printer Manual de usuario

Xerox

Xerox Versant 180 Press Manual de usuario

Xerox

Xerox VersaLink B415 Manual de usuario

Xerox

Xerox WorkCentre Pro 423 Manual de usuario

Xerox

Xerox WORKCENTRE C2424 Manual de usuario

Xerox

Xerox ColorQube 8700 Manual de usuario

Xerox

Xerox Fiery EXP4110 Especificaciones

Xerox

Xerox WorkCentre 5845 Manual del propietario

Xerox

Xerox WorkCentre 7132 Manual de instrucciones

Xerox

Xerox WorkCentre XK35c Manual de usuario

Xerox

Xerox WorkCentre 7232 Manual de funcionamiento

Xerox

Xerox 4150 - WorkCentre B/W Laser Manual de usuario

Xerox

Xerox WorkCentre 3615DN Manual de usuario

Xerox

Xerox Copycentre C118 Manual de usuario

Xerox

Xerox Phaser 6180MFP Manual de usuario

Xerox

Xerox WorkCentre 7346 Manual de usuario

Xerox

Xerox WorkCentre Pro 580 Manual de usuario

Xerox

Xerox AltaLink C80 Series Manual de usuario

Xerox

Xerox Phaser 6300 Guía de instalación y uso

Xerox

Xerox DocuColor 5252 Manual de instrucciones

Xerox

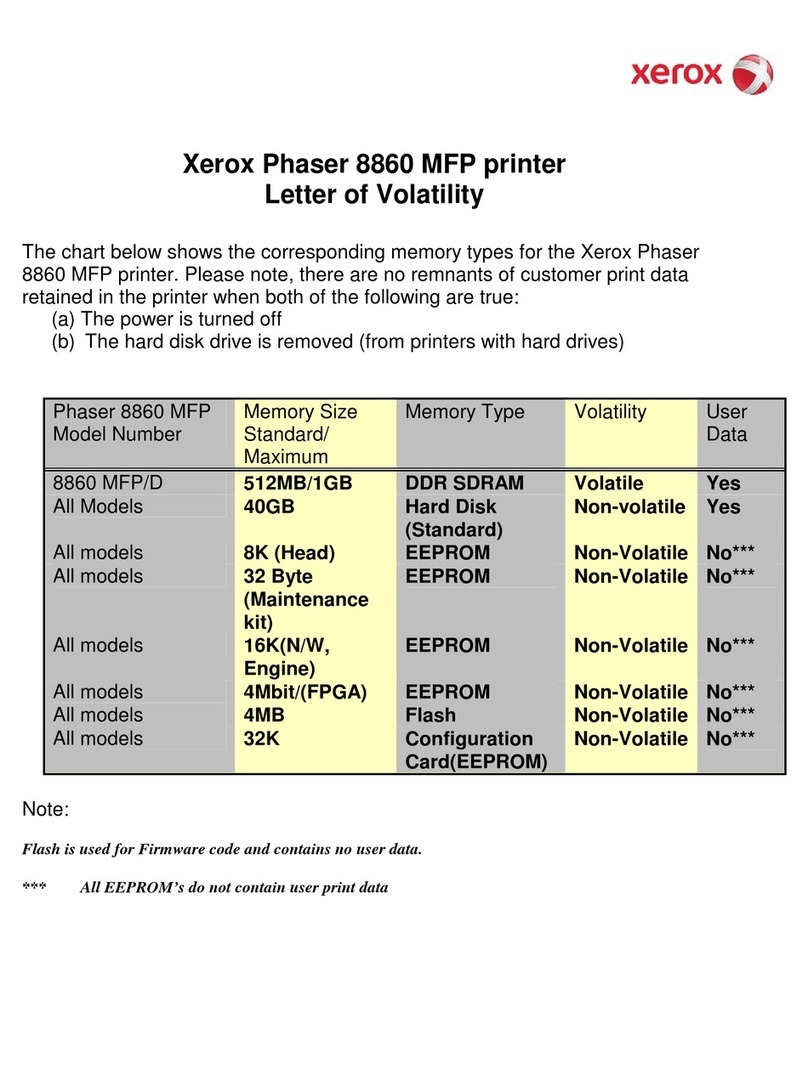

Xerox 8860MFP - Phaser Color Solid Ink Manual de usuario
