4850/4890 HighLight Color LPS

Palettes

This document contains color-related information for the Xerox

4850/4890 HighLight Color Laser Printing System (LPS) as follows:

• A list of the primary colors available.

• The commands to use when printing inks and palettes.

• A list of the inks available in the XEROX1, DFAULT, and

XEROX ink catalogs.

• The highlight color palettes that comprise the XEROX1,

DFAULT, and XEROX ink catalogs. These palettes represent

the full range of inks available on your 4850 or 4890

HighLight Color Laser Printing System.

• Comparisons of the equivalent or closest matching inks

between the DFAULT or XEROX catalogs and the XEROX1

catalog.

Available palettes

Table P-1 lists the palettes contained in each of the three Xerox

ink catalogs.

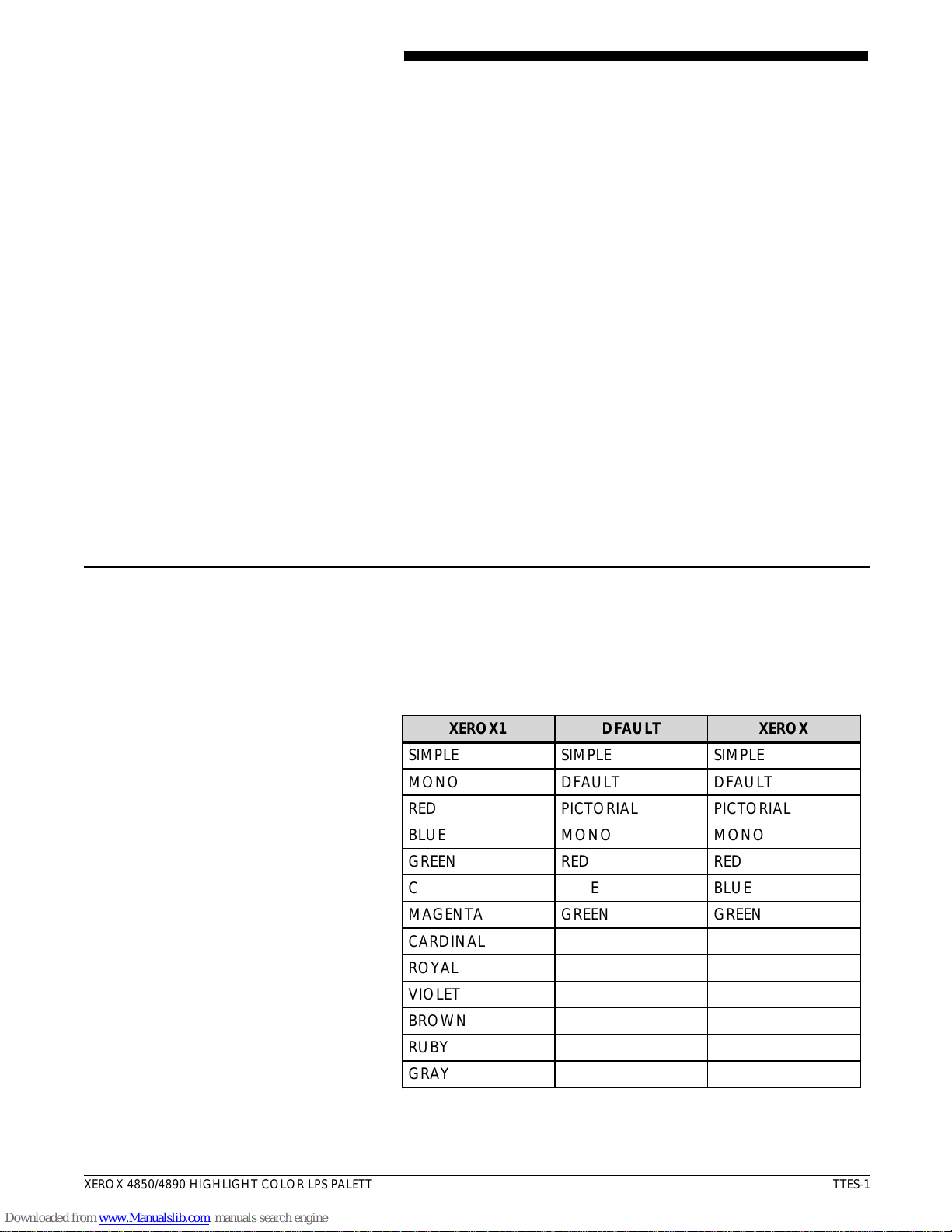

Table P-1. Xerox ink catalog palettes

a

XEROX1

a

DFAULT

a

XEROX

a

SIMPLE

a

SIMPLE

a

SIMPLE

a

MONO

a

DFAULT

a

DFAULT

a

RED

a

PICTORIAL

a

PICTORIAL

a

BLUE

a

MONO

a

MONO

a

GREEN

a

RED

a

RED

a

CYAN

a

BLUE

a

BLUE

a

MAGENTA

a

GREEN

a

GREEN

a

CARDINAL

a

ROYAL

a

VIOLET

a

BROWN

a

RUBY

a

GRAY

a

XEROX 4850/4890 HIGHLIGHT COLOR LPS PALETTES PALETTES-1

COLOR PALETTES

Printing inks and palettes

Table P-2 lists the forms to specify in the SAMPLE command,

when printing the available palettes and inks contained in the

XEROX1, DFAULT and XEROX ink catalogs.

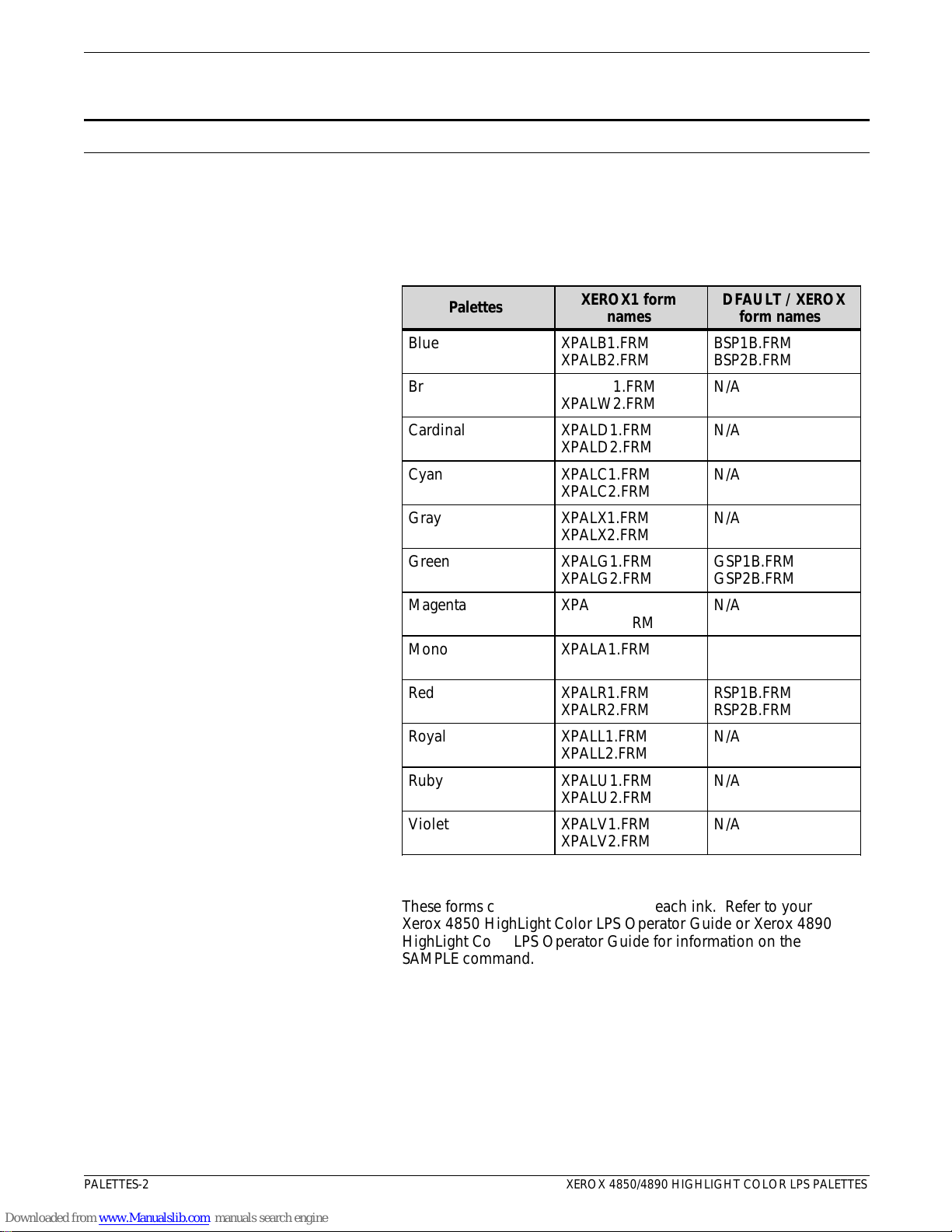

Table P-2. SAMPLE command for Xerox ink catalog palettes

a

Palettes

a

XEROX1 form

names

a

DFAULT / XEROX

form names

a

Blue

a

XPALB1.FRM

XPALB2.FRM

a

BSP1B.FRM

BSP2B.FRM

a

Brown

a

XPALW1.FRM

XPALW2.FRM

a

N/A

a

Cardinal

a

XPALD1.FRM

XPALD2.FRM

a

N/A

a

Cyan

a

XPALC1.FRM

XPALC2.FRM

a

N/A

a

Gray

a

XPALX1.FRM

XPALX2.FRM

a

N/A

a

Green

a

XPALG1.FRM

XPALG2.FRM

a

GSP1B.FRM

GSP2B.FRM

a

Magenta

a

XPALM1.FRM

XPALM2.FRM

a

N/A

a

Mono

a

XPALA1.FRM

a

Red

a

XPALR1.FRM

XPALR2.FRM

a

RSP1B.FRM

RSP2B.FRM

a

Royal

a

XPALL1.FRM

XPALL2.FRM

a

N/A

a

Ruby

a

XPALU1.FRM

XPALU2.FRM

a

N/A

a

Violet

a

XPALV1.FRM

XPALV2.FRM

a

N/A

These forms contain a box filled with each ink. Refer to your

Xerox 4850 HighLight Color LPS Operator Guide or Xerox 4890

HighLight Color LPS Operator Guide for information on the

SAMPLE command.

PALETTES-2 XEROX 4850/4890 HIGHLIGHT COLOR LPS PALETTES

COLOR PALETTES

XEROX1 ink catalog palettes and inks

The XEROX1 ink catalog contains a SIMPLE palette and a palette

for each of the primary colors, including black (that‘s the MONO

palatte). The XEROX1 ink catalog contains the following palettes:

• SIMPLE

• MONO

• BLUE

• CARDINAL

• CYAN

• GRAY

• GREEN

• MAGENTA

• RED

• ROYAL

• RUBY

• VIOLET

SIMPLE palette

The SIMPLE palette contains a solid ink for each primary dry ink.

The colors available are:

• BLACK

• BLUE

• BROWN

• CARDINAL

• CYAN

• GRAY

• GREEN

• MAGENTA

• RED

• ROYAL

• RUBY

• VIOLET

Refer to the sample palette printouts at the end of this chapter

for representations of these colors.

XEROX 4850/48909 HIGHLIGHT COLOR LPS PALETTES PALETTES-3

COLOR PALETTES

MONO palette

The MONO palette contains inks which can be printed on

monochrome printers. The colors available are:

• WHITE

• EXTREMELY LIGHT GRAY

• VERY LIGHT GRAY

• LIGHT GRAY

• MEDIUM GRAY

• DARK GRAY

• VERY DARK GRAY

• BLACK

•K0

•K1

•K3

•K6

•K9

• K13

• K18

• K25

• K33

• K42

• K52

• K64

• K73

• K86

• K100

Refer to the sample palette printouts at the end of this chapter

for representations of these colors.

Color palettes

The palettes for the remaining primaries have the same name as

the primary. Color names unique to the separate primaries are

listed in Table P-3. Each of these palettes also contains a large

set of common colors. Those common colors are listed in Table

P-4.

Refer to the sample palette printouts at the end of this palettes

chapter for representations of these colors.

PALETTES-4 XEROX 4850/4890 HIGHLIGHT COLOR LPS PALETTES

COLOR PALETTES

Table P-3. XEROX1 ink catalog: colors palettes

a

Palette: color palattes

a

Palette: BLUE

BLUE

STRONG BLUE

BLUISH WHITE

EXTREMELY PALE BLUE

VERY PALE BLUE

LIGHT BLUE

BRILLIANT BLUE

MODERATE BLUE

PALE BLUE

GRAYISH BLUE

LIGHT BLUISH GRAY

BLUISH GRAY

DARK BLUISH GRAY

Palette: BROWN

BROWN

Palette: CYAN

CYAN

Palette: CARDINAL

CARDINAL

a

Palette: GREEN

GREEN

VIVID GREEN

GREENISH WHITE

VERY LIGHT GREEN

BRILLIANT GREEN

VERY PALE GREEN

PALE GREEN

GRAYISH GREEN

LIGHT GREENISH GRAY

GREENISH GRAY

LIGHT GREEN

MODERATE GREEN

DARK GREENISH GRAY

Palette: GRAY

GRAY

Palette: MAGENTA

MAGENTA

a

Palette: RED

RED

VIVID RED

PINKISH WHITE

PALE PINK

LIGHT PINK

MODERATE PINK

STRONG PINK

DEEP PINK

GRAYISH PINK

GRAYISH RED

PINKISH GRAY

REDDISH GRAY

LIGHT GRAYISH RED

DARK PINK

DARK REDDISH GRAY

Palette: ROYAL

ROYAL

Palette: RUBY

RUBY

Palette: VIOLET

VIOLET

XEROX 4850/48909 HIGHLIGHT COLOR LPS PALETTES PALETTES-5

COLOR PALETTES

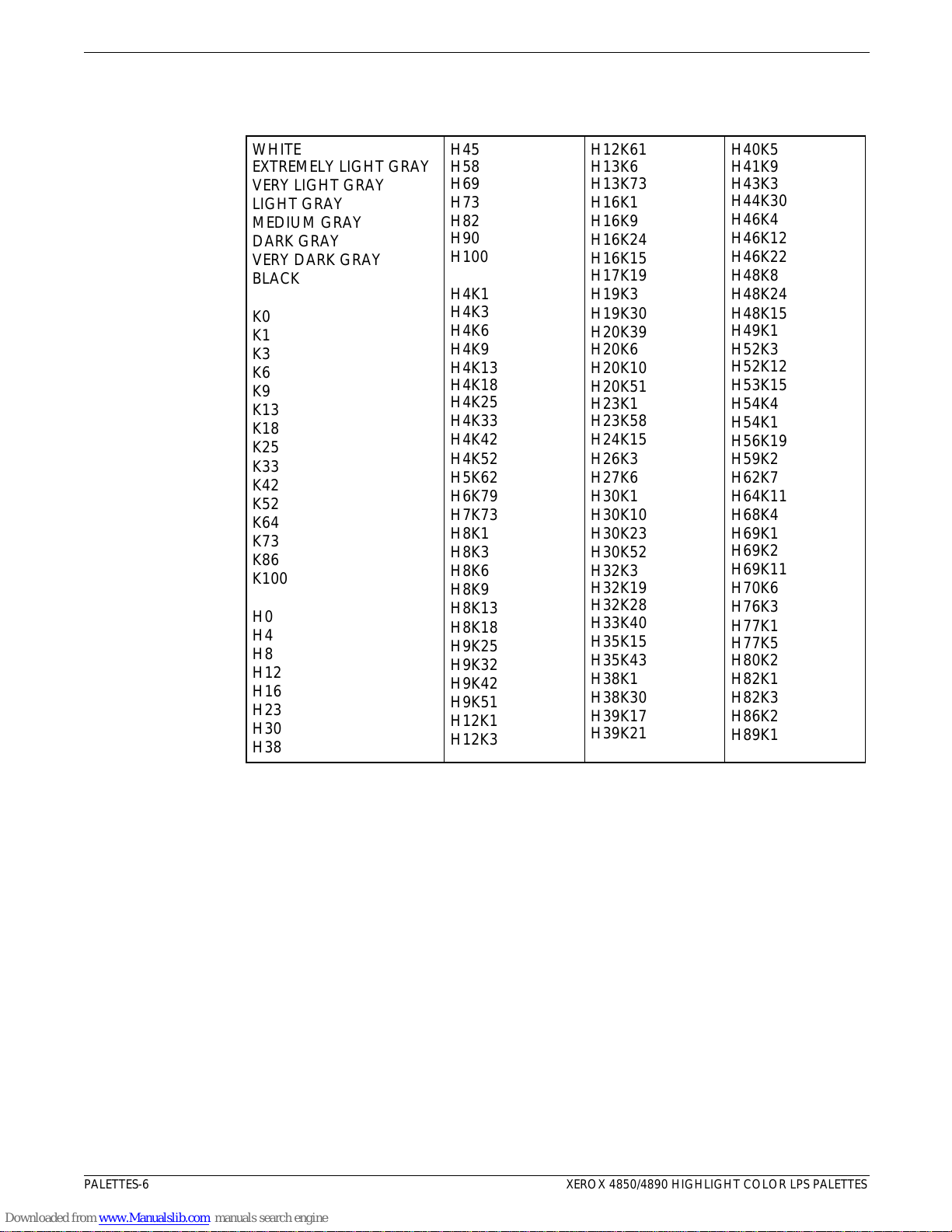

Table P-4. XEROX1 ink catalog: common colors

a

WHITE

EXTREMELY LIGHT GRAY

VERY LIGHT GRAY

LIGHT GRAY

MEDIUM GRAY

DARK GRAY

VERY DARK GRAY

BLACK

K0

K1

K3

K6

K9

K13

K18

K25

K33

K42

K52

K64

K73

K86

K100

H0

H4

H8

H12

H16

H23

H30

H38

a

H45

H58

H69

H73

H82

H90

H100

H4K1

H4K3

H4K6

H4K9

H4K13

H4K18

H4K25

H4K33

H4K42

H4K52

H5K62

H6K79

H7K73

H8K1

H8K3

H8K6

H8K9

H8K13

H8K18

H9K25

H9K32

H9K42

H9K51

H12K1

H12K3

a

H12K61

H13K6

H13K73

H16K1

H16K9

H16K24

H16K15

H17K19

H19K3

H19K30

H20K39

H20K6

H20K10

H20K51

H23K1

H23K58

H24K15

H26K3

H27K6

H30K1

H30K10

H30K23

H30K52

H32K3

H32K19

H32K28

H33K40

H35K15

H35K43

H38K1

H38K30

H39K17

H39K21

a

H40K5

H41K9

H43K3

H44K30

H46K4

H46K12

H46K22

H48K8

H48K24

H48K15

H49K1

H52K3

H52K12

H53K15

H54K4

H54K1

H56K19

H59K2

H62K7

H64K11

H68K4

H69K1

H69K2

H69K11

H70K6

H76K3

H77K1

H77K5

H80K2

H82K1

H82K3

H86K2

H89K1
