1

Amplifiers & Preamplifiers

INSTALLATION INSTRUCTIONS

AV-61

AUDIO/VIDEO 6-WAY DISTRIBUTION AMPLIFIER

GENERAL INFORMATION

• The AV-61 is a low noise, low distortion unity gain distribution amplifier for line level stereo audio and video

baseband signals.

• It splits audio and video signals six ways with no signal loss.

• It prevents audio distortion in multiple zone systems by buffering the source units from the loading effects

of several AV receivers or preamps.

• The space saving "flat pack" design allows great flexibility in mounting and positioning.

16VDC

INPUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

45 6

OUTPUTS

1234

AV61

AUDIO VIDEO DISTRIBUTION AMPLIFIER

AV-61 Panel Descriptions

1. INPUT jacks. Connect to the corresponding output jacks of the source component (Laser Disc player,

VCR, CD player, Tuner, etc.).

2. 16V DC Supply Jack and Power Indicator LED. The 16 VDC 300 mA power supply (included) is

plugged in here. The LED will light when power is applied.

3. OUTPUT jacks. Connect to the corresponding input jacks of AV receivers, preamps, TV monitors,

VCRs, etc.

4. Mounting Holes.

TYPICAL APPLICATIONS

Audio/Video Distribution

Fig. 2, shows the distribution of video (baseband) and stereo audio signals to three TV monitors and three

VCRs from a singleDVD player via the AV-61. Many other combinations of AV or audio only products could

be configured in a similar manner.

Zoned Systems

One of the most useful applications of the AV-61 is to drive several receivers or preamps from common

sources in multiple zone A/V systems. Fig. 3 illustrates the use of four AV-61's to drive four receivers from

four sources in a typical four zone system. Use it when configuring zoned systems with the Xantech 795

and 796 IR Zone Controllers.

Fig.1 AV-61 Panel Descriptions



2AV61

16VDC

INPUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

45 6

OUTPUTS

AV61

AUDIO VIDEO DISTRIBUTION AMPLIFIER

VCR 1 VCR 2 VCR 3

VLR

DVD

VLR VLR VLR

VLRVLRVLR

MONITOR

Power Supply

(Included)

To 120 VAC

Fig.2 Audio/Video Distribution

Fig3 Zoned Systems

VCR

Laser Disc

AV-61

INPUT

OUTPUTS

AV-61

INPUT

OUTPUTS

AV-61

INPUT

OUTPUTS

AV-61

INPUT

OUTPUTS

A/V Receiver-Zone 1

A/V Receiver-Zone 2

A/V Receiver-Zone 3

A/V Receiver-Zone 4

COMMON SOURCES

MONITOR

AV-61 DISTRIBUTION

AMPLIFIERS VL R

VL R

CD Changer

VL R

To Laser Disc Inputs

on each Receiver

To Satellite Inputs

on each Receiver

To VCR Inputs on

each Receiver

To CD Inputs on each Receiver

Satellite Receiver

See text, note 3

Power Supply

(Included)

See text, note 4

Power Supply

(Included)

Power Supply

(Included)

Power Supply

(Included)

See text, note 3

See text, note 4

3

Amplifiers & Preamplifiers

AV61

INSTALLATION NOTES

1. Use high quality low-loss cables for all A/V connections. For runs in excess of 10 feet, use low-loss

RG-6 coax. Runs in excess of 50 feet are not recommended.

2. AV-61 Distribution Amplifiers, used in zoned systems, prevent loading mismatch on the source

components & audio distortion on music peaks when some zones are turned off while one or more are

still on. You need one AV-61 for each source, as shown in Fig. 3.

3. The distribution amps should have their AC power switched on and off along with the common source

components in zoned systems. Refer to the Xantech model 680 AC Switcher instructions for details.

4. The A/V Receivers also need AC power management. Refer to the 680 instructions for details.

5. Fig. 3 assumes the use of A/V Receivers having base-band video switching capabilities.

SPECIFICATIONS

AUDIO

Gain: Unity

Input Overload: 3.0 V RMS

Input Impedance: > 20k Ohms (ea. input)

Output Impedance: < 100 Ohms

THD: 0.06% at 1.0 V input level

Freq. Response: 10-45 kHz +/- 1 dB

Channel Separation: > 75 dB @ 1 kHz

IN-OUT Isolation: > 60 dB

OUT-OUT Isolation: > 60 dB

Signal to Noise: 100 dB (re 2V out)

VIDEO

Gain: Unity

Input Impedance: 75 Ohms

Output Impedance: < 3 Ohms

Video Insertion Loss: 50 Hz - 10 mHz < 1 dB

IN-OUT Isolation: 50 Hz - 10 mHz > 25 dB

OUT-IN Isolation: 50 Hz - 10 mHz > 55 dB

Return Loss: 50 Hz - 10 mHz > 20 dB

GENERAL

A/V input/outputs: RCA-type phono jacks

Power Requirements: 16V DC @ 300 mA

(Power Supply included)

Power jack: 2.1 mm coaxial type

Dimensions: 10" W x 2 3/4" D x 1 1/4" H

9-20-00

Tabla de contenidos

Otros manuales de Amplificador de Xantech

Xantech

Xantech MX88 Manual de usuario

Xantech

Xantech PA1235 Manual de usuario

Xantech

Xantech 792-10 Manual de usuario

Xantech

Xantech ZPR68-10 Manual de usuario

Xantech

Xantech ZPR68-10 Guía del usuario

Xantech

Xantech PA4100X Manual de usuario

Xantech

Xantech PA1235X Manual de usuario

Xantech

Xantech PA635 Manual de usuario

Xantech

Xantech PA1235X Manual de usuario

Xantech

Xantech HD16D Manual de usuario

Xantech

Xantech D5RHK Manual de instrucciones

Xantech

Xantech BXAUDIO4X4 Manual de usuario

Xantech

Xantech MRC88 Manual de usuario

Xantech

Xantech MRC44 Manual de usuario

Xantech

Xantech MRC88 Manual de usuario

Xantech

Xantech PA635X Manual de usuario

Xantech

Xantech RP41AV Manual de usuario

Xantech

Xantech CA1250 Manual de usuario

Xantech

Xantech PA435X Manual de usuario

Xantech

Xantech MRC88 Manual de usuario

Xantech

Xantech AV61 Manual de usuario

Xantech

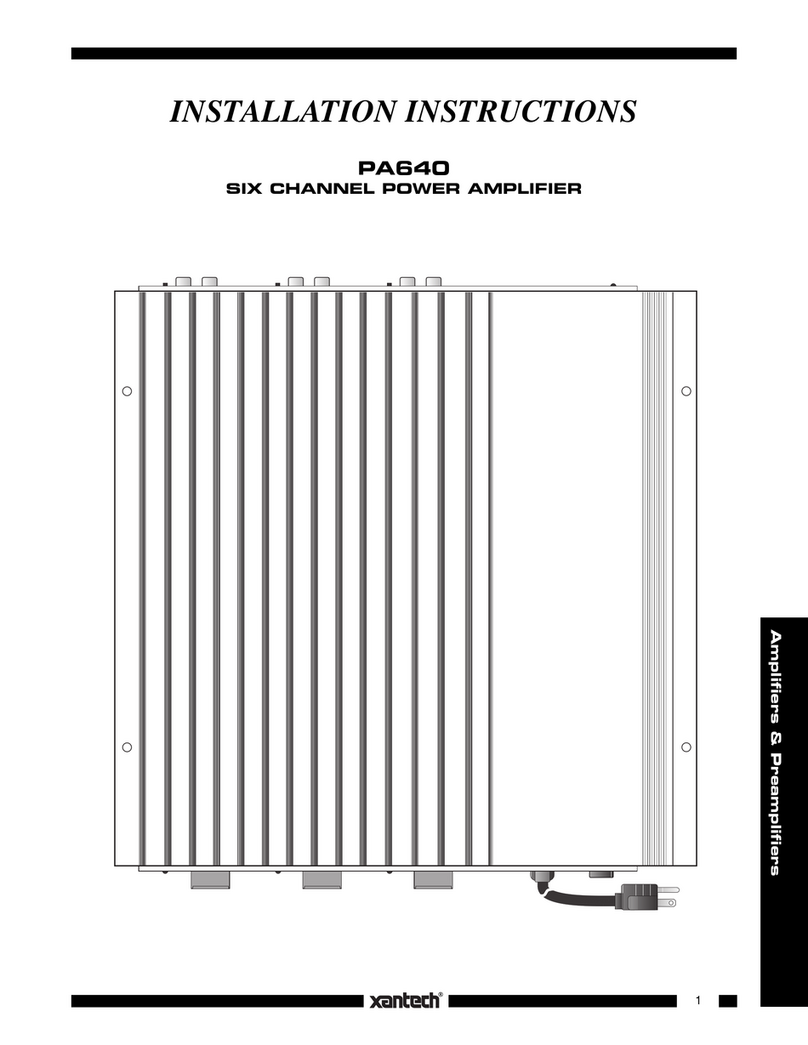

Xantech PA640 Manual de usuario
