Xante ColourLaser 21 Series Manual de usuario
1 Install the Printer
h
Select a Location (see p. 3)
h
Unpack (see p. 4)
h
Check Components (see p. 5)
h
Record the Serial No. (see p. 5)
h
Remove Shipping Materials
(see p. 6)
h
Prepare Image Drums (see p. 6)
h
Install Toner Cartridges (see p. 7)
h
Load Print Media (see p. 8)
h
Open the Straight-Through Exit
(see p. 9)
h
Connect to Power (see p. 9)
h
Print the Demo Page (see p. 9)
Installation Checklist:
Please cut this page out and use it as a guide when installing your printer.
2 Make the Computer Connection &
Install the Software
Windows
• Network Install (see pp. 10-12)
• USB Install (see pp. 13-16)
• Parallel Install (see p. 17)
Macintosh
• Network Install (see pp. 18-19)
• USB Install (see pp. 20-21)
h
Complete
3 Finish the Setup
h
Set Color Balance (see p. 22)
h
Check Media Settings (see pp. 23-26)
h
Check the Printer Settings (see p. 27)
h
Print a Sample File (see p. 28)
h
Install the Handy Reference (see p. 28)
✁
Congratulations!
This completes the installation of your XANTÉ ColourLaser 21 Printer. Now it’s
time to let your imagination run free and enjoy some colorful printing!
For more information, see the documents listed on the back of this checklist.
XANTÉ®
ColourLaser™ 21 Series
Setup Guide
Setup Guide
The document you’re holding. Gets you up and
running.
XANTÉ ColourLaser 21 Handy
Reference Guide
For help with day-to-day operation, including:
• Loading Print Media
• Usable Print Media
• Walk-up Functions
(Proof & Print, Secure Print, etc.)
• Operator Panel
• Clearing Paper Jams, etc.
Attaches to the printer with Velcro®fasteners.
Customer Safety &
Certification Booklet
• Safety Information
• FCC/IC/CE
• Material Safety Data Sheets, etc.
Documentation
rinted n-Line
PO
XANTÉ ColourLaser 21 Series
User’s Guide
The XANTÉ ColourLaser 21 Series User’s Guide
is located on the printer’s driver CD, and includes
information on:
• Print Media
• The Control Panel
• Printer Menus
• Using Print Features
• Proof & Print, Secure Print
• Problem Solving
• Maintenance
• Working with Color
• Specifications
• Service & Support, etc.
XANTÉ Network User’s Guide
The Network User’s Guide is also located on the
printer’s driver CD. It includes information on
printer networking, including:
• Setting the Printer’s IPAddress
• Advanced Management Features
• Novell Netware
• TCP/IP, etc.
2
3
Installation
1Select a location
• Firm, level surface capable of supporting
at least 160 lbs (72 kg).
• Clearance:
- Left & Right: 24 inches (60 cm)
- Front: 39½ inches (100 cm)
- Back: 8 inches (20 cm)
- Top: 27½ inches (70 cm)
• Nearby power source
• Room temperature:
– Ideal: 62.6 to 80.6°F (17 to 27°C):
– Maximum Permissible: 50 to 89.6°F (10 to 32°C)
• Relative humidity:
– Ideal: 50 to 70% RH
– Maximum Permissible: 20 to 80% RH
• Away from direct sunlight

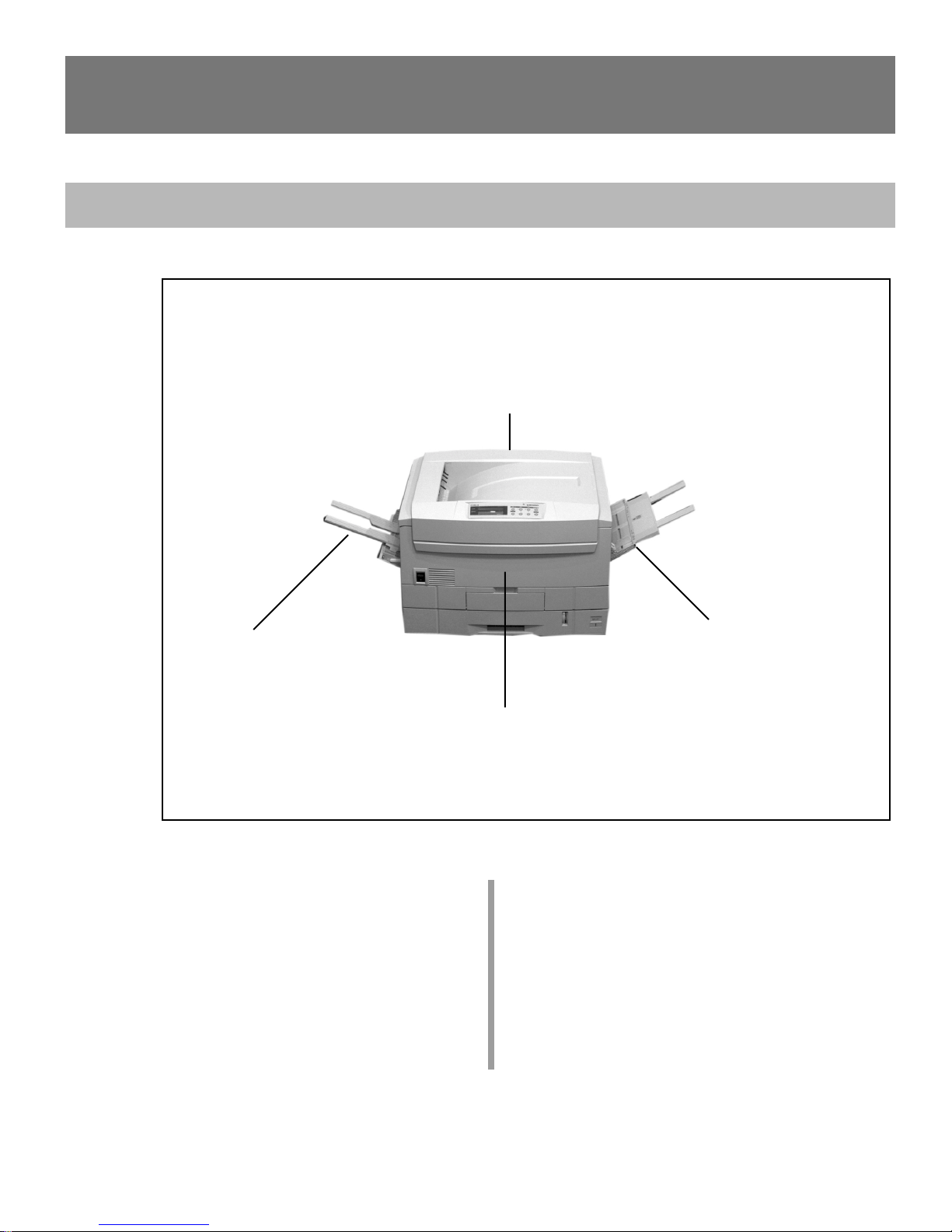

For Orientation Purposes:
Left
(Straight-Through
Exit, Connections)
Right
(Multi-Purpose Tray,
Side Cover)
Front
(Control Panel, Tray 1)
Back
4
2Unpack
Grasp the printer using the hand
holds on the sides and back, and
carefully remove it from the
shipping tray.
Lift off the accessory tray and
set it aside.
Remove the top shipping
cushions.
!It’s a good idea to save all the packing materials in case you
ever need to ship the printer.
Remove the hand holds.
!Caution!
• The printer weighs 160 pounds.
• Use more than one person to lift the printer.
• Use appropriate lifting techniques.
Lift the shipping container off
the printer.
Place the printer on a suitable
support, then remove it from the
plastic bag.
5
3Check Components
4Record the Serial Number
Before proceeding, locate the silver ratings plate on
the back of the printer. Record the serial number you
find there at the back of the Handy Reference Guide.
You’ll need this number to register your printer and to
take advantage of XANTÉ’s technical support service.
Cyan, Magenta, Yellow & Black
Toner Cartridges with LED Lens
Cleaners Power Cord
CD(s)
With Drivers, Utilities &
On-Line User’s Guides
Light-Shield Bags
(Used to protect image
drums
from light when they are
removed from printer.)
Documentation
(see page 2):
Setup Guide
Handy Reference Guide
Customer Safety &
Certification Booklet
Printer
You can
• Register your XANTÉ products
• Download or view manuals online
• Download drivers
• … and more!
Just point your browser to www.xante.com and
click on Support.
www.xante.com
Web-based support* for the XANTÉ products
you own: 24 hours a day, 7 days a week—no
waiting!
Log on and check for
• Product News
• What’s Changed?
* English Only.
6

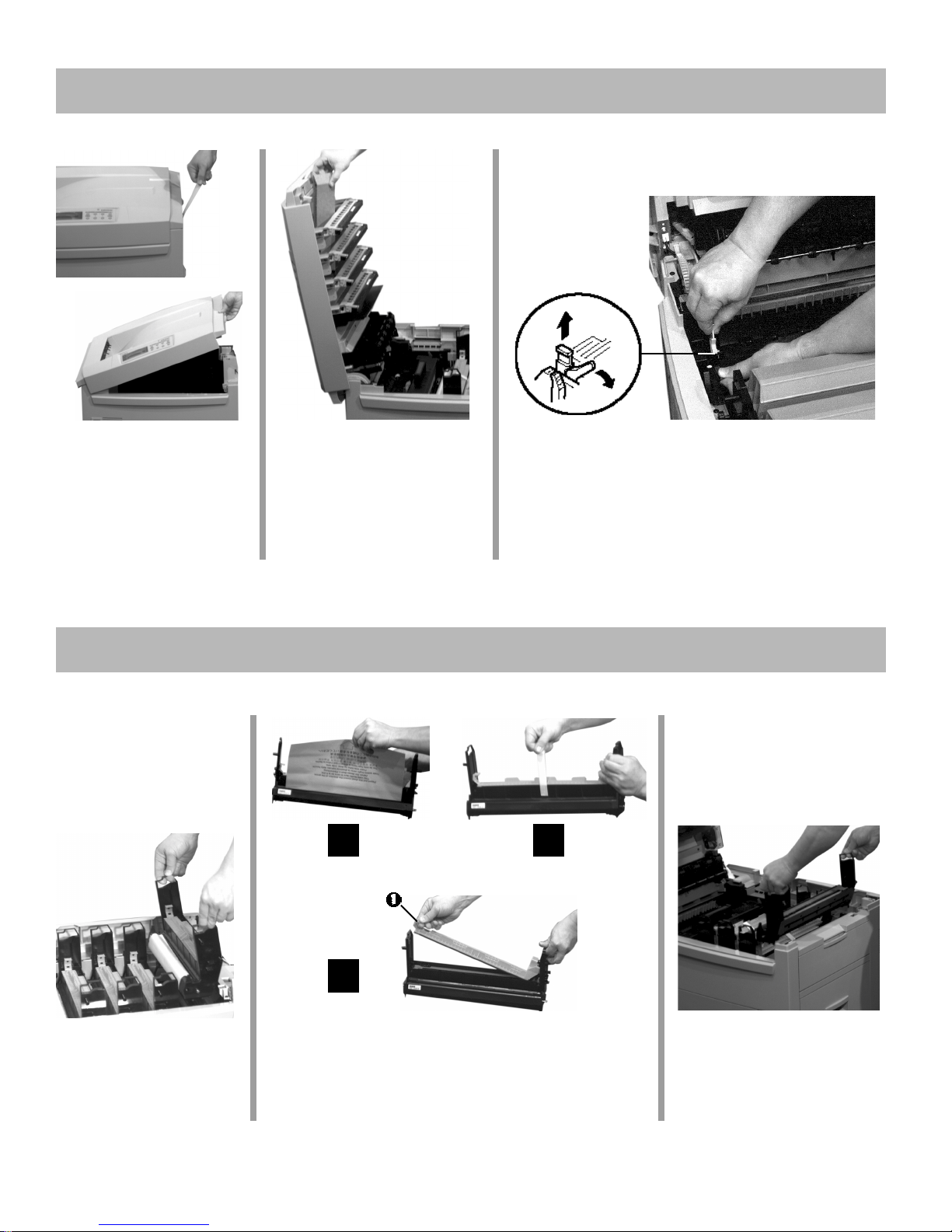

5Remove the Shipping Materials
Remove any shipping
tape and external
packaging materials.
Pull up on the release
latch and open the
cover.
6Prepare the Image Drums
Lift out the black
image drum (the one
furthest to the right).
a. Remove the protective sheet.
b. Remove the tape.
c. Push the tab (1) in the direction of the arrow
and remove the blanking plate.
Place the drum back into
the printer, then repeat this
process for each of the
three remaining drums.
Pull the blue fuser roller lever to the right (away
from the open cover) and remove the orange
transport lock, then push the fuser roller lever to
the left as far as it will go (toward the open cover).
Remove (grasp, twist,
lift) the cardboard
shipping restraint from
behind the LED heads.
B
A
C
7

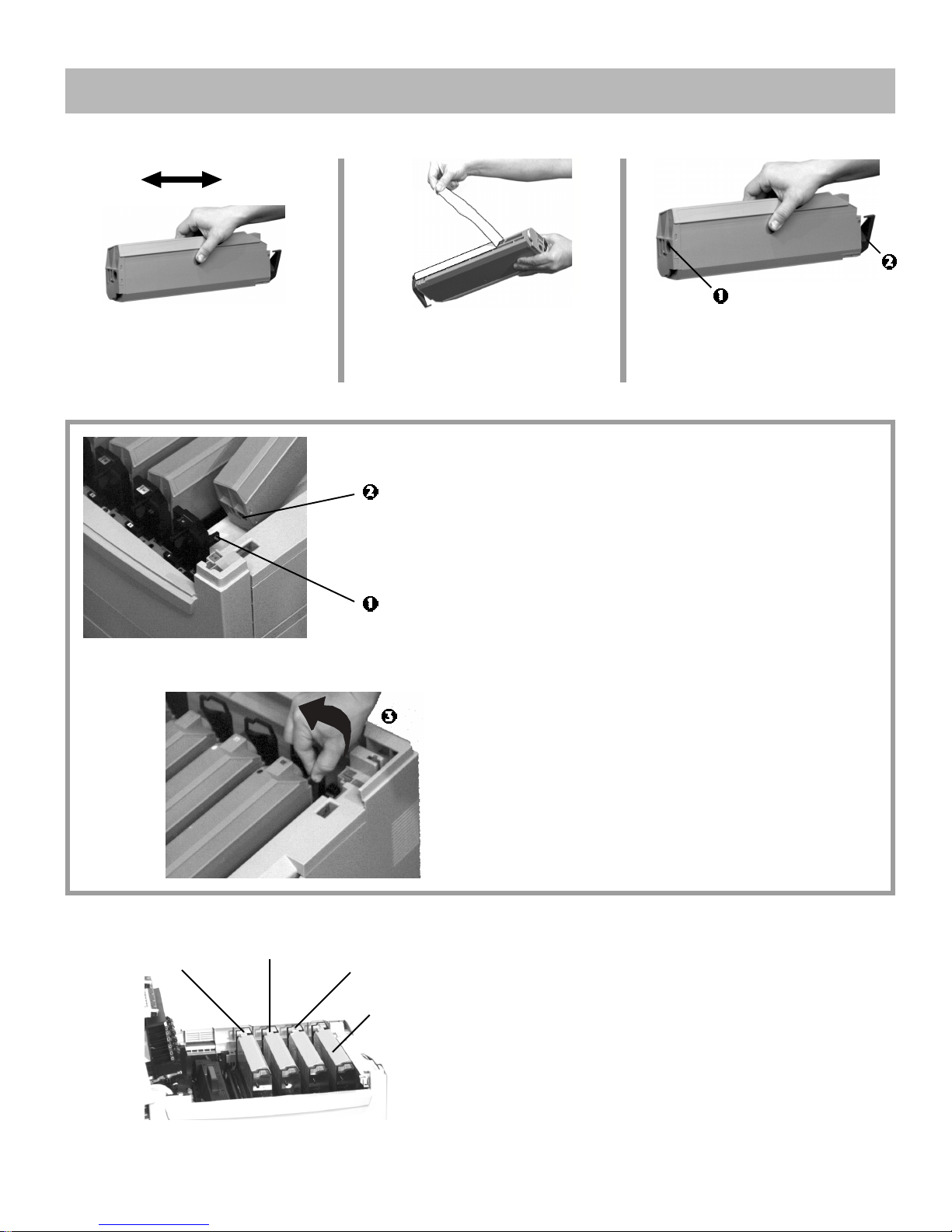

Unpack the black toner cartridge
and shake it back and forth.
Lightly press the cartridge against the image drum port,
then lower the lock lever end, aligning the white tab with
the groove in the drum.
Repeat the process for each toner cartridge, being
careful to match the toner color to the drum
color.
!Before closing the cover, check to be sure all the
toner cartridge lock levers (blue) are pushed
back as far as they will go.
Close the cover.
Port end (1).
Lock lever end (2).
Carefully remove the tape.
Lower the port end of the cartridge into the image drum
closest to the right end of the printer, so that the tube (1)
on the drum slides into the port (2) on the toner
cartridge.
Push the lock lever (3) to the left (toward the open
printer cover) until it stops.
!To avoid damage to the printheads, be sure to push the
lock lever as far as it will go.
Install the Toner Cartridges
7
Magenta Yellow
Black
Cyan
8
8For information on usable print media, see the Handy Reference.
Load Print Media
Pull the tray out of the printer.
Fan the paper
(max. 550 sheets
20-lb. paper).
If necessary, lift out the media
indicator and reinsert it with the
proper media size showing.
Load the print media (default is 8½ x 11", long edge feed) keeping it below the
“PAPER FULL” mark (1), then push the tray back in gently.
Slide the guides to fit the size media you are using.
For legal size or larger print media, position the media supports:
a. Press the spring release
b. Slide and lift the support
c. Snap into the correct position (refer to the markings in the tray).
Option: Tabloid (11 x 17")
Media Gauge:
Indicates the amount of
media left in the tray.
Default: 8½ x 11", long edge feed
Option: 8½ x 11", short edge feed
9
9Open the Straight-Through Exit
Print out the Demo page:
aPress Menu repeatedly until INFORMATION MENU
appears.
bPress ITEM - repeatedly until DEMO1 displays.
cPress Select.
The Demo page prints. The printer goes back on
line.
11Print the Demo Page
10Connect to Power
Attach the power cord to the
left side of printer.
!Be sure to use the cable
supplied with the printer.
Connect to
grounded power
socket.
Turn the printer on and wait for it to warm up.
The display will read ONLINE .AUTO
TRAY1
Normally the printer feeds documents face
down into the top exit tray. If you will be
printing special media such as transparencies,
thick paper or labels, open the
straight-through exit path, then specify it in
the driver when you are printing on special
media (see “Selecting the Straight-Through
Exit Path in the Driver” under Exit Paths in
the on-line User’s Guide).
If you always want to use the straight-through
exit, you can set it as the default (see
Changing the Default Exit Path in the on-line
User’s Guide).
To open the straight-through exit, pull the tray down
and pivot out the extenders.
10
Network Connection
!No Ethernet®cable is supplied with the printer. Use
an Ethernet cable with two twisted wire pairs and an
RJ45 plug.
= Test Button
= Status Light
Turn the printer off.
Connect your Ethernet cable to the network port on
the print server (3).
Connect the other end of the Ethernet cable to the
network port (4).
Turn the printer on and wait for the print server status
light to stop blinking.
Press the Test button on the print server.
A Configuration Sheet prints. This sheet contains
information you need to set up the printer on your
network.
12 Network Install: Windows®
Setting Up the Network
Installing the Printer Drivers
The printer drivers are located on the CD supplied with
the printer.
For Windows 2000:
\Drivers\Win2K\English\Pcldrv and/or \Psdrv
For Windows Me, 98, and 95:
\Drivers\Win9x\English\Pcldrv and/or \Psdrv
For Windows NT 4.0:
\Drivers\Nt40\English\Pcldrv and/or \Psdrv
Installing the Drivers on Client Computers
Clients with Windows 2000 & Windows NT 4.0:
Push Installation
Copy the driver files from the XANTÉ ColourLaser
21 CD (\Drivers\Nt40 or Win2K\English\Pcldrv or
Psdrv) to the network directory of your choice.
At the host computer, open Network Neighborhood,
then double-click the client computer on which you
wish to install the drivers.
Double-click the Printers folder, then click Add
Printer.
Make sure Print Server/[Computer Name] is
selected, then click Next.
Follow the Add Printer Wizard to add the drivers
from the network directory where you installed them
onto the selected client computer.
Click the driver to be installed, then click Next.
Click Next and follow the on-screen instructions to
complete the installation.
Repeat the process for each client computer, then do a
quick check of the client computers to be sure that the
driver was installed.
To view the XANTÉ Network User’s Guide once it is
installed on your computer, click Start
®
Programs
®
XANTÉ Network User Guide
®
Network User’s
Guide.
Tabla de contenidos
Otros manuales de Impresora de Xante
Xante
Xante FilmStar 4 Guía de configuración
Xante
Xante Accel-a-Writer 8200 Manual de usuario
Xante
Xante CL30 Manual de usuario
Xante
Xante Accel-a-Writer 812 Manual de usuario
Xante
Xante CL30 Manual de usuario
Xante
Xante FilmMaker 4 Manual de usuario
Xante
Xante CL30 Manual de usuario
Xante
Xante Accel a Writer 812 Manual de usuario
Xante
Xante Accel-a-Writer 8300 Manual de usuario
Xante
Xante Accel a Writer 8300 Manual de usuario
Xante
Xante Accel-a-Writer 812 Instrucciones de funcionamiento
Xante
Xante Ilumina Manual de usuario
Xante
Xante Assel-a-Writer-8300 Manual de usuario
Xante
Xante Accel-a-Writer 8200 Manual de usuario
Xante
Xante Accel-a-Writer 812 Manual de usuario
Xante
Xante PlateMaker 4 Manual de usuario
Xante
Xante FilmMaker 4 Manual de usuario
Xante
Xante Accel-a-Writer 812 Manual de usuario
Xante
Xante ScreenWriter Colour ScreenWriter Manual de usuario
Xante
Xante Accel-a-Writer 812 Guía
