X10 LINKED LY20 Manual de usuario
Before using this product, please read the guide carefully to
avoid any damages to the product, do not misconfiguration or
misuse.

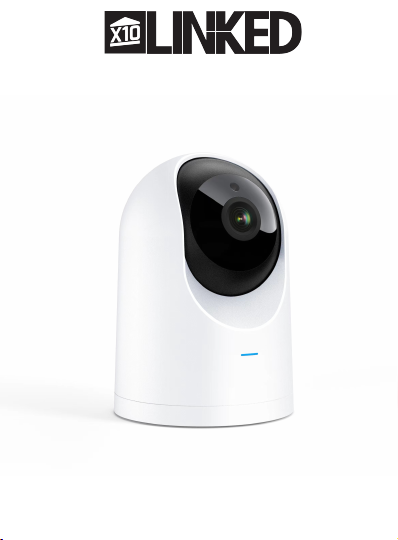

Pan and Tilt LY20
User Manual
Camera
0
�
�
m �
USB Cable
1.Product Overview
1.1 What's included
The LINKED APP is required to operate the camera. To
sign up:
1. Open the app and click Sign up.
2. Enter your email or phone number, click send
verification code.
3. Get the verification code from your email or message,
input it and set up the password.
4. Sign in with the account and password.
-1-
1.1 Install SD Card
CAUTION: Please insert the Micro SD Card according to the
directions shown in the diagram. Micro SD Card might JAM
if inserted incorrectly and the device could be damaged.
SD Card Slot:
Support micro SD card for local storage (Max 128GB).
Reset Button:
Used to restore the camera to factory settings (Press and hold for
5-8s).
-2-
2. Installation
2.1 App installation
For iPhone users:
Open the App Store and search for “X10 Linked” Download
and install the Linked app onto your iPhone.
For Android phone users:
Open the Google Play Store and search for “X10 Linked”
Download and install the Linked app onto your Android phone.
2.2 Device Hardware installation
Connect the power supply to the camera device, then wait for
the indicator light to flash.
X10 Linked
For AndroidFor iOS
-3-
Different LED colors correspond to different
camera status:
Blue
Slow blue flash
Fast blue flash
Solid blue
System start up
Syncing mode
Connecting to Wi-Fi
Camera working properly
2.3 User Account Registration
After opening the app for the first time, register your account by
clicking ‘sign up’ and enter the email address.
1) Click "Send code", your email will receive a verification
code, enter the code within 30 minutes.
2) Input the password twice, click "Register immediately".
3) Your login information will be saved the next time you
open the app; however, it is recommended that you
write your login information down.
-4-
1) Find your wireless network in the first field. You can
select ‘Other’ if you do not see your wireless network.
2) Enter your Wi-Fi password. If your wireless network does
not have a password, click on the ‘No Wi-Fi password’ box.
Then click ‘Next’, select your timezone.
3) Follow the instructions on the screen and move your phone
speaker close to the camera’s microphone. Before doing so,
make sure you are in a quiet environment without any noise
interference and make sure your phone is not on silent. Then
click ‘send sound wave’.
4) You will hear a scrambled sound being played from your
phone. Keep your phone still and wait for the duration of the
transmission, before you move your phone away. Afterwards,
the voice prompt will indicate that the binding was successful
and the app will redirect to the camera view interface
automatically.
5) If you do not hear the voice prompt say, ‘binding
successful’, you can try again by clicking the ‘Send sound wave’
or click on the hyperlink and follow the instructions.
2.4 Camera Device and Phone Synchronization
Click Add Camera button, click on ‘connecting my camera’ Step
1: Check to see if the front LED light is flashing: After powering
on the camera, the LED light should be flashing blue, click on
‘Next’ and proceed to Step 2.
Step 2: Connect to your wifi network(802.11 b/g/n 2.4GHz):
-5-
3. App functions
3.1 Live video
After syncing successfully, click the IP Camera interface to view live
video. Smooth, SD and HD video definition are available.
3.2 Video Recording
Users can record video on live video interface , by pressing the red
video recording icon on the left, refer to photo below. The recorded
video will be stored in the album on the homepage of app.
X10 Linked
X10 Linked
-6-
Playback: Click “Playback” icon and choose the time to replay the
video recorded in the MicroSD card.
Select the date and time you wish to playback. You can fast
forward/backward by swiping on the time bar. Tap on the camera
icon to take a screen shot while replaying the video. Refer to
photo below.
3.3 SNAPSHOT SHARING
Our camera provides a function that shares any snapshot
photos to Email/SMS, etc. To access snapshots, please follow same
directions as accessing your video recording explained under
playback feature, choose the photo you want to share
and the platform you want to share it from as indicated in Figure 1.
X10 Linked
Figure 1
-7-
3.4 SUB-ACCOUNT MANAGEMENT
Sub-Accounts gives you the option to allow for multiple users live access
to the same camera. Each camera can support up to 15 live viewer
accounts (including the Administrator account). The administrator can
add and delete sub-accounts by using
Sub-Account Management function. Refer Figures 2, 3 & 4 below. New
sub-accounts can be setup by clicking on the “Add” button. Note: Please
follow the same procedure under user account registration in page 2 to
register and verify the email address you are willing to add as a sub-
account prior to adding it as new sub-account.
3.5 VIEWING LOCK
This function allows the user to watch live video and
replay videos only after a password has been setup.
Figure 2 Figure 3 Figure 4
X10 Linked
1) To set up, click on the ‘Setting’ button in the IP camera page as
indicated in Figure 5 & 6 below.
2) In the Setting screen, tap on the ‘Video Lock’ button
(defaulted to ‘Not Set’) as indicated in Figure 7 below.
3) Then enter a password that you can remember.
-8-
X10 Linked
Figure 5 Figure 6
Figure 8
X10 Linked
Figure 7
3.6 TWO WAY AUDIO
When you are viewing camera, you can press the “Microphone Icon”
as indicated in Figure 8 above and talk or if the volume on the
phone is up the voice from the camera could be heard in the phone.
X10 Linked
-9-
