Wyrestorm RX-500 Manual de usuario

4K HDR 4:2:0 60Hz HDBaseT2.0 Receiver with

USB Device Inputs, Ethernet & PoH (4K: 35m/115ft)

RX-500 Quickstart Guide

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document

versions, additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x RX-500 Receiver

1x 12V DC 2A Power Supply (US/UK/EU/AU)

2x Mounting Brackets with Screws

1x 3-pin Terminal Block

1x Quickstart Guide (This Document)

KEY

HDMI

Control

Power

Ethernet/HDBaseT

Analog Audio

USB

In-Wall

Transmitter

Receiver

Laptop

Macbook

USB

Camera

Keyboard and Mouse

Display Device

Ampliﬁer

Ceiling

Speakers

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

[email protected]

2 of 4

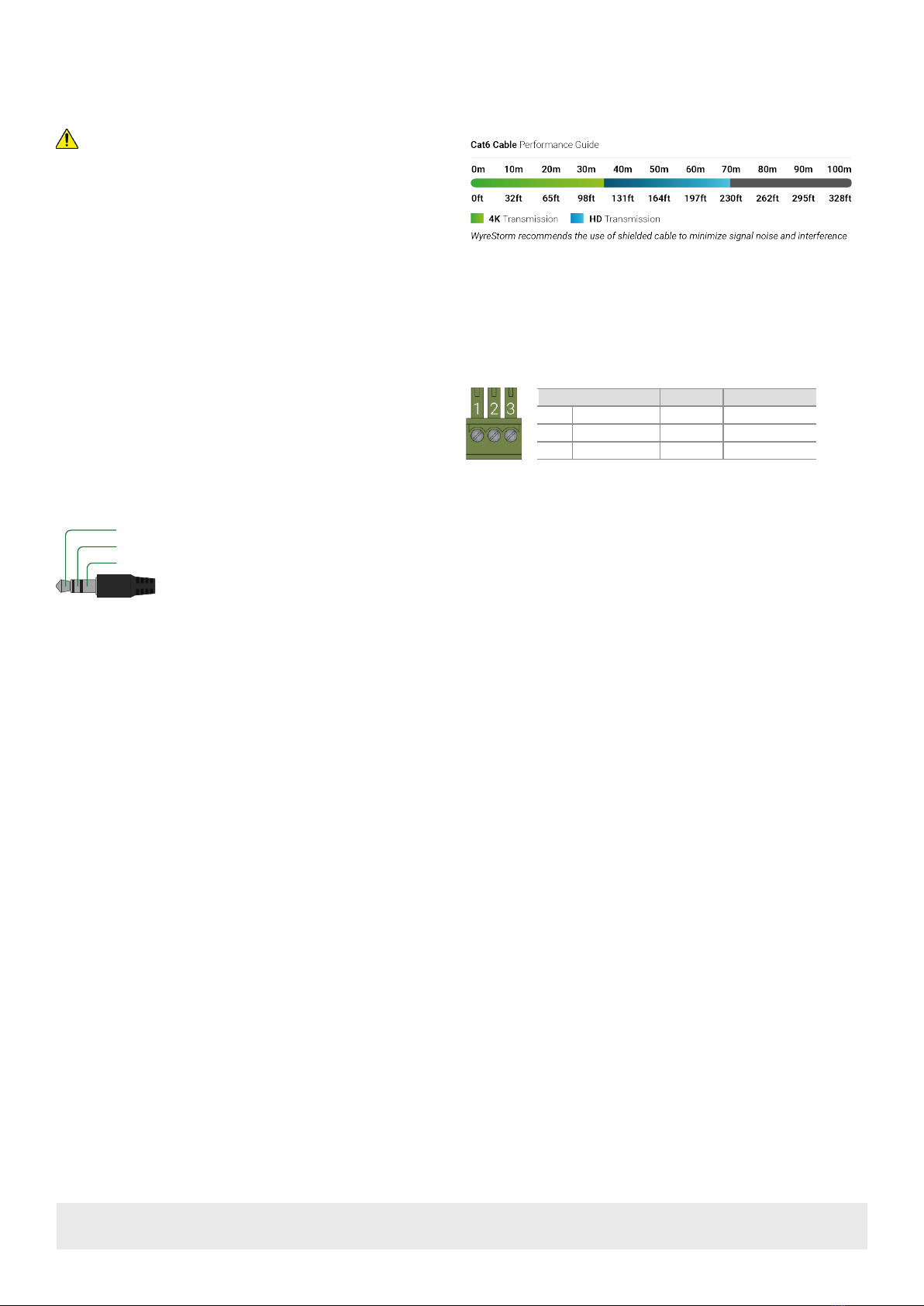

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

Audio Connections

Tip:

Ring:

Left Channel

Right Channel

Sleeve: Ground (GND)

RS-232 Wiring

The RX-500 uses a 3-pin RS-232 with no hardware flow control. Most control

systems and computers are DTE where pin 2 is RX, this can vary from device

to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends the use of shielded category cable to minimize

signal noise and interference.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

[email protected]

3 of 4

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the receiver.

• Verify that the HDBaseT cable is properly terminated following EIA568B

standard.

• Verify that the output resolution of the source and display is supported by

this receiver.

• If transmitting 4K, verify that the HDMI cables used are 4K rated.

• Verify that all source and HDBaseT connections are not loose and are

functioning properly

No or Intermittent 3rd party Device Control

• Verify that the IR and RS-232 cables are properly terminated following the

Wiring and Connections section.

• Verify that RS-232 modes are properly selected for the desired operation.

Refer to RS-232 Mode Settings for details.

Troubleshooting Tips:

• WyreStorm recommends using a cable tester or connecting the cable to

other devices to verify functionality.

Warranty Information

WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a

period of ve (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited

product warranty.

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

[email protected]

4 of 4

Specications

Note: WyreStorm reserves the right to change product specication, appearance or dimensions of this product at any time without prior notice.

Audio and Video

Inputs 1x HDBT In: 8-pin RJ-45 Female

4x USB Type A (Device)

Outputs 1x HDMI Out: 19-pin type A

2x Audio Out/De-embed: 3.5mm (1/8in) TRS Stereo

Output Video Encoding HDBaseT Class B

Encoding Data Rate 10.2Gbps

End to End Latency 10μs (micro seconds)

Audio Formats HDMI Out: 2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos

Audio Out/De-embed: 2ch Analog/PCM

Video Resolutions (Max)

Video Resolution HDMI Cat6 Cat6a/7

1920x1080p @60Hz 12bit 15m/49ft 70m/230ft 70m/230ft

3840x2160p @30Hz 8bit 4:4:4 7m/49ft 35m/115ft 35m/115ft

3840x2160p @60Hz 8bit 4:2:0 7m/49ft 35m/115ft 35m/115ft

Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.

Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock 297MHz

Communication and Control

HDMI HDMI | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included)

RS-232 1x RS-232: 3-pin Phoenix

USB

4x Type A (device)

USB hub compatible | Maximum: 7 devices, 23 endpoints

Maximum uplink speed: 190Mbps

Power

Power Supply 12V DC 2A

Avg. Power Consumption 8W

Environmental

Operating Temperature 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing

Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing

Avg. BTU 27 BTU/hr

Dimensions and Weight

Rack Units | Wall Box <1U

Height 25mm/0.98in

Width 210mm/8.26in

Depth 90.2mm/3.55in

Weight 0.46kg/1.01lbs

Regulatory

Safety and Emission CE | FCC | RCM | EAC | RoHS
