WUBEN H1 Manual de usuario
User Manual V1.0
CONTENTS
(EN) English
(DE) Deutsch
(CN) 中文
(JP) 日本語
(KR) 한국어
03
09
15
21
27
WARNINGS
Please read user manual carefully before using the light.
Product will generate heat while working, please becautious with that to
avoid any possible harm.
Please don’t shine into eyes directly to avoid harm to eyes.
Please keep the light away from children.
Please use WUBEN or WUBEN recommended batteries.
Please don’t disassemble the light or it will not be covered by WUBEN warranty
policy.
Please don't throw the product into fire.
This is not a diving product, please don't use it underwater for a long time.
Before using this product, please check whether the contents of the package are
complete.
Package List
H1 × 1
1ABE2600C × 1
2Headlamp band × 1
3
Micro-USB charging
cable × 1
4Spare O-ring × 2
5User manual, warranty card,
quality certificate × 1
6
- 03 -
E
N

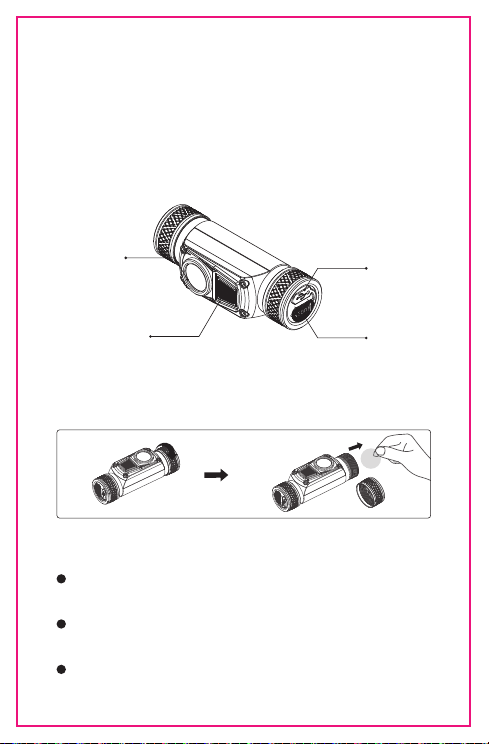

SwitchAuxiliary light, Battery power
indicator, Breathing light
Main light Micro-USB
charging port
1. About product
Product operation
H1 is an aluminum alloy headlamp with multiple light sources. Utilized 1 piece
OSRAM P9 LED, powered by 1 piece 18650 rechargeable Li-ion battery of 2600mAh,
the main light emits 1200 lumens max output. There are red light source and high
CRI neutral white light source as auxiliary lights. All functions operated with one
switch, you could choose high beam or low beam as you wish.
2. Installation
Please remove the insulation plate before using.
3. Operation
ON/OFF: Single click on the switch to turn on the main light, click again to
turn it off. The main light has memory function, will memorize default output
selections, but not flash modes.
Default Output Selections: When the main light is on, long press the switch
to cycle through Moon-Low-Med-High. It will lockout the brightness once
releasing the switch at any modes.
Quick Turbo: When the main light is on and not Turbo mode, double click the
2
3
1
Main Light Operation:
- 04 -
Red light constant onCharging
Blue light constant onCharging finished
5.Lockout/Unlock
When the headlamp is off, 4 times click the switch, the main light will blink 3 times
to indicate the lockout of the headlamp. Any operation on the switch will be
invalid unless another 4 times click on the switch, which will activate Moon mode,
to indicate unlocking of the headlamp.
6.Charging
7.Charging Status Indication
When the light is off, open the rubber cover, connect the headlamp to any 5V/2A
charging device with Micro-USB charging cable to charge it. It takes about 3 hours
to be fully charged, please remove the charging cable in time after charging finished.
switch to activate Turbo, single click to turn off the main light.
Flash Modes: When the main light is off, or the auxiliary Light is on, or at
High mode, double click the switch to activate Strobe, double click again
to cycle through Strobe-SOS-Beacon. Single click to exit flash modes.
4
1
2
4.Breathing Light
ON: When the light is off, long press the switch to turn on the auxiliary light.
Default Output Selections: Long press to cycle through: White light-Red light
-Red flashes. It will lockout the light mode once releasing the switch at any
modes, single click to turn off the auxiliary light. The auxiliary light has mode
memory function.
When the headlamp is off, triple click the switch to turn on/off the blue breathing
light. The standby time of the breathing light is up to 100 days if the headlamp is off.
Auxiliary Light Operation:
C ≥ 90%
90% > C ≥ 40%
40% > C ≥ 15%
15% > C > 0
8.Battery Capacity (C) Status Indication
Blue light constant on
(off after 5 seconds)
Blue light flashes
(off after 5 seconds)
Red light constant on
(off after 5 seconds)
Red light flashes
- 05 -
E
N
The O-Ring may be damaged for a long time use, please replace the O-Ring
in time to ensure the waterproofness of the product.
Please use WUBEN battery or WUBEN recommended batteries.
When the flashlight indicates low power, please charge or replace the battery
in time to avoid affecting the durability of the battery.
Please use alcohol and rag to clean the conductive parts of the flashlight in time.
When not in use for a long time, please remove the battery to prevent the
battery from leaking or exploding, store the flashlight in a dry and ventilated
place.
Maintenance
Parameters
FL1
Standard
FL1
Standard
1200 500
White light
Main light
Auxiliary light
400
Lumens Lumens
25 Hours
/
80
Lumens
1
Lumen
200
Lumens
10 Lumens
1200
Lumens
1 min+
2 Hours
125 Meters
3900 Candela
54g/1.90oz (without battery) | 102g/3.60oz (with battery)
85mm × 26mm × 33mm | 3.35in × 1.02in × 1.30in (L × W × H)
Strobe SOS
//
/
100
Lumens
Beacon
High Med Low Moon
Red light Red flashes
30 Hours
10 Lumens 10 Lumens
1 Meter
IP68
(2 meters underwater for 1 hour)
All data from experiments of WUBEN lab according to ANSI/NEMA FL1 standard may vary because
of different experiment equipment, experiment environment, or other factors. Experiments are
based on a WUBEN 2600mAh 18650 rechargeable Li-ion battery.
2.6
Hours
14
Hours Hours
500
- 06 -
1. Warranty coverage
Warranty policy
15 days replacement: Within 15 days from the date of purchase, if the product
has quality problems, customers can request free replacement.
1 year warranty: Within 1 year from the date of purchase, if the product has
quality problems, WUBEN will offer free repair.
5 years warranty: Within 5 years from the date of purchase, if the product
(accessories excluded) has quality problems, WUBEN will offer free repair for
WUBEN registered customers.
Battery warranty: WUBEN offers a 1-year warranty for the rechargeable
batteries but other included accessories are not covered by the warranty.
Lifetime maintenance: From the date of purchase, if the product has problem
after 5 years, WUBEN will offer paid repair for WUBEN registered customers.
If proof of purchase cannot be provided, it will be counted on the date of
manufacture.
If there is any dispute, the two parties will coordinate to solve.
FAQs
If your problems still not solved yet, please contact WUBEN Headquarters for
after-sales service.
Problems
Abnormal
flash or
failure
to turn on
Abnormal
noise
Check if the switch is turned
on correctly
Check if it is assembled in
place
Check if the battery is no
power
Check if the battery is
reversed
Check if the conductive
position is dirty
Check if foreign matter falls
in the tube
Part damage
Check if the flashlight is
lockout
Causes
Turn on the switch
Unlock the flashlight
Tighten the assembly parts
Try the battery on other
products
Remove the battery and
reassemble it correctly
Clean the surface with
alcohol
Pour out possible foreign
matter
Contact your seller
Solutions
- 07 -
E
N
The final interpretation right is reserved by WUBEN.
Man-made damage.
Damage caused by not following the instructions.
Damage caused by improper use of the battery.
Abnormal wear and tear.
Damage caused by irresistible factors.
Gifts.
2. Beyond warranty
SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD.
Add: 202#, Building A, Jihe E-Business Park,
No. 33 Yangmei Road, Bantian Street,
Longgang District, Shenzhen, China
E-mail: [email protected]
Web: www.wubenlight.com
WUBEN website Facebook
- 08 -
H1 × 1
Ersatz O-Ring × 2
Warnhinweise
Bitte lesen Sie die Bedienungsanleitung sorgfältig durch, bevor Sie das
Licht verwenden.
Das Produkt erzeugt während der Arbeit Wärme, bitte seien Sie vorsichtig,
um mögliche Schäden zu vermeiden.
Scheinen Sie bitte nicht direkt in die Augen, um Augenschäden zu vermeiden.
Bitte halten Sie das Licht von Kindern fern.
Bitte verwenden Sie WUBEN oder WUBEN empfohlene Batterien.
Bitte zerlegen Sie das Licht nicht, da dies nicht durch die WUBEN
Garantiebestimmungen abgedeckt ist.
Bitte werfen Sie das Produkt nicht ins Feuer.
Dies ist kein Tauchprodukt, bitte verwenden Sie es längere Zeit nicht unter
Wasser.
ABE2600C Li-ion
Batterie × 1
Bedienungsanleitung,
Garantiekarte,
Qualitätszertifikat × 1
Micro-USB-Ladekabel
× 1
Stirnlampe band × 1
Bevor Sie dieses Produkt verwenden, überprüfen Sie bitte, ob der Inhalt der
Verpackung vollständig ist.
Paketliste
1 2
5
3
6
4
- 09 -
D
E
2
3
1Ein/Aus: Klicken Sie auf die Taste einmal, um die Haupt Lampe einzuschalten.
klicken Sie sie wieder, um die Haupt Lampe auszuschalten. Die Haupt Lampe
hat die Memory Funktion (Für Beleuchtung Helligkeit aber nicht für
Flackernmodi).
Helligkeit einstellen: Wenn die Haupt Lampe an ist, drücken Sie lange die
Taste, um die Helligkeit zu wechseln ( Mond-Niedrig-Mittel-Hoch ). Die
Helligkeit wird gesperrt, sobald Sie die Taste in einem Modus loslassen.
Schnell Turbo: Wenn die Haupt Lampe an ist aber nicht Turbo-Modus.
2. Installation
Bitte entfernen Sie die Isolationsplatte vor der Verwendung.
Haupt Lampe Benutzung：
3. Bedienung
H1 ist ein Aluminium Stirnlampe mit multilichtquellen. Die Haupt Lampe ist mit
einer OSRAM P9 LED. Die maximale Helligkeit erreichet 1200 Lumen. Die Hilfslampe
ist mit rotes und weißes Licht. Diese Stirnlampe wird von einen wiederaufladbaren
2600mAh 18650 Li-ion Batterie gespeist. Mit einer Taste bedient allen Funktionen.
Sie können je nach Wunsch Fern-Abblendlicht wählen.
TasteHilfslampe, Batterieanzeige,
Atemlicht
Haupt Lampe Micro-USB-
Ladeanschluss
1. Über produkt
Produktbedienung
- 10 -
