Workrite Ergonomics CONF-2SDA-WOB-S Manual de programación

1 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

AConform Articulating Arms

Qty: 2

CM4 × 10 VESA mount screw

Qty: 8

BDual Arm Adaptor

Qty: 1 EPivot Cover Cap

Qty: 2

DM4 × 6 VESA mount screw

Qty: 8

Parts Included

Required Parts Sold Separately Tools Required

Assembly & Installation Instructions:

Conform Dual Articulating Arm CONF-2SDA-WOB-S

Attach Dual Arm Adaptor to Selected Base Option

Remove the Bolt and Washers from base

(if not already removed.)

Remove the Pivot Limiter.

Place Dual Arm Adaptor (B) on the pin mount

from your selected base option.

Tighten the two pre-installed set screws (hidden

in view) with the 2.5 mm Allen wrench on the

Dual Arm Adaptor to secure the Adaptor to the

base.

#2 Phillips head screwdriver

2.5 mm Allen wrench (included with base)

5 mm Allen wrench (included with base)

Selected base option with mounting hardware.

Do not use on hollow core tables.

Do not rotate or suspend arm beyond table surface.

Do not exceed 17 lb. per Arm.

M8 Flat Head Cap Screw M4 8mm Screw M4 12mm Screw M4 16mm Screw Spacer

Plastic Cap 7/32” Allen Wrench 1/8” Allen Wrench

Button Head Allen Cap ScrewPivot Pin

Steel WasherPlastic Pivot Washer

C-Clamp

Mount shown

Pivot

Limiter

Pre-installed

Set Screws

2 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Attach the Monitor to the Monitor Arm VESA Plate

Remove the monitor from its stand. Keep the original screws

to mount to Conform Arm.

Attach the VESA plate to the VESA holes on your monitor. Use

the screws from your monitor if possible.

Repeat for other arm.

Attach Conform Articulating Arms to Dual Arm Adaptor

Remove the Bolt and Washers from the Dual Arm Adaptor (B).

Place the Conform Arm (A) on the Dual Arm Adaptor Pin. Align

the tooth in the arm base with the slot in Pivot Limiter. (Note:

the slot always facing the back side.)

Insert the Bolt with washers through the bottom of the arm

assembly and into the Adaptor as shown. Tighten with 5 mm

Allen wrench (included with base.) Be sure the arm is tight but

rotates freely.

Repeat for other arm.

Remove

Insert c

Remove

Tooth

Slot

Important Note: It is strongly recommended to use the mounting

screws provided by the monitor manufacturer if possible. If longer screws are

required, use either part (B) 10 mm, or (C) 6 mm screws supplied. Always use

the shortest screws possible to avoid damage to the monitor.

100 mm VESA standard, use

4 outer corner holes.

75 mm VESA standard, use

4 inner corner holes.

3 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Monitor Capacity Adjustment (Silver Bolts)

If your monitor is too light or too heavy for the factory-

set capacity, the arm will raise, lower or tilt too easily. If

this is the case, you need to adjust the tension.

Adjusting Arm Capacity

To increase capacity(+) turn counter-clockwise using a

5 mm Allen wrench (included with base) until the arm

reaches a balanced adjustment.

To decrease capacity(-) turn clockwise until the arm

reaches a balanced adjustment.

Adjusting Tilt Capacity

To increase capacity(+) turn clockwise using a 5 mm

Allen wrench (included with base) until the monitor

reaches a balanced adjustment.

To decrease capacity(-) turn counter-clockwise until

the monitor reaches a balanced adjustment.

Repeat for other arm.

Adjusting Pivot Tension (Black Bolts)

Setting Tension

If the arm is loose, turn the adjustment screw clockwise using

a 5 mm Allen wrench (included with base) until the arm is tight

and pivots smoothly.

If the arm is tight and does not pivot, turn the adjustment screw

counter-clockwise until the arm pivots smoothly.

Repeat for other arm.

Place Pivot Cover Caps (E) on both arms.

Locking Tension

Tighten the two pre-installed set screws with 2.5 mm Allen

wrench (included with base) on the Dual Arm Adaptor to secure

the arm to the Adaptor.

Loosen

Tighten

Tilt capacity

Arm capacity

Pre-installed

Set Screws

4 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Cable Management

Upper arm: Insert cables into the recessed area under the

upper arm by pushing the cables through the clips.

Lower arm: Remove the cover by sliding it up, then o. Secure

cables with Hook & Loop strips. Slide cover down to secure.

Desk Base: Run the cable from lower arm to the back of

the base. Put cables into the cable clip.

Note: Leave suicient slack in the cables

to allow free movement of arm.

#1500246 Rev F

Parts & Support

C-Clamp & Grommet Base ....................................................CONF-BSE-CCG-S

Tw Pc C-Clamp & Grommet Base..........................................CONF-BSE-TPCCG-S

Tool Bar & Slatwall Base .......................................................CONF-BSE-TSB-S

Wall Plate Base ......................................................................CONF-BSE-WP-S

Dual Arm Adaptor..................................................................CONF-ADPT-DA-S

Knoll®Antenna®Adaptor.....................................................CONF-ADPT-KA-S

14” Pole Base with C-Clamp & Grommet .............................CONF-PB-14CCG-S

28” Pole Base with Heavy Duty C-Clamp & Grommet .........CONF-PB-28HDCCG-S

Single Pole Mount Adaptor ...................................................CONF-ADPT-SPM-S

Dual Pole Mount Adaptor......................................................CONF-ADPT-DPM-S

Quick Release Adaptor..........................................................MON-ADPTVQR-W-B

Technical Support: Please call Workrite Technical Support while at the Workrite product. (800) 969-9675 option 2.

Hook & Loop

Strips

Hook

& Loop

Strips

High

point

O

✓

Otros manuales de Rack y soporte de Workrite Ergonomics

Workrite Ergonomics

Workrite Ergonomics CONF-3SDS-WOPB-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-633 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Conform LT CONF-LT-1SA-TPCG-G Manual de programación

Workrite Ergonomics

Workrite Ergonomics Conform LT CONF-LT-2SA-TPCG-G Manual de programación

Workrite Ergonomics

Workrite Ergonomics PEAK-2DA-CCG-S Manual de usuario

Workrite Ergonomics

Workrite Ergonomics CONF-2SDS-WOPB-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-101 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Willow Dual Guía de inicio rápido

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-422 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Metro 6 Manual de programación

Workrite Ergonomics

Workrite Ergonomics CONF-ADPT-DA-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-303 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-523 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Conform Base CONF-BSE-TSB-S Manual de programación

Workrite Ergonomics

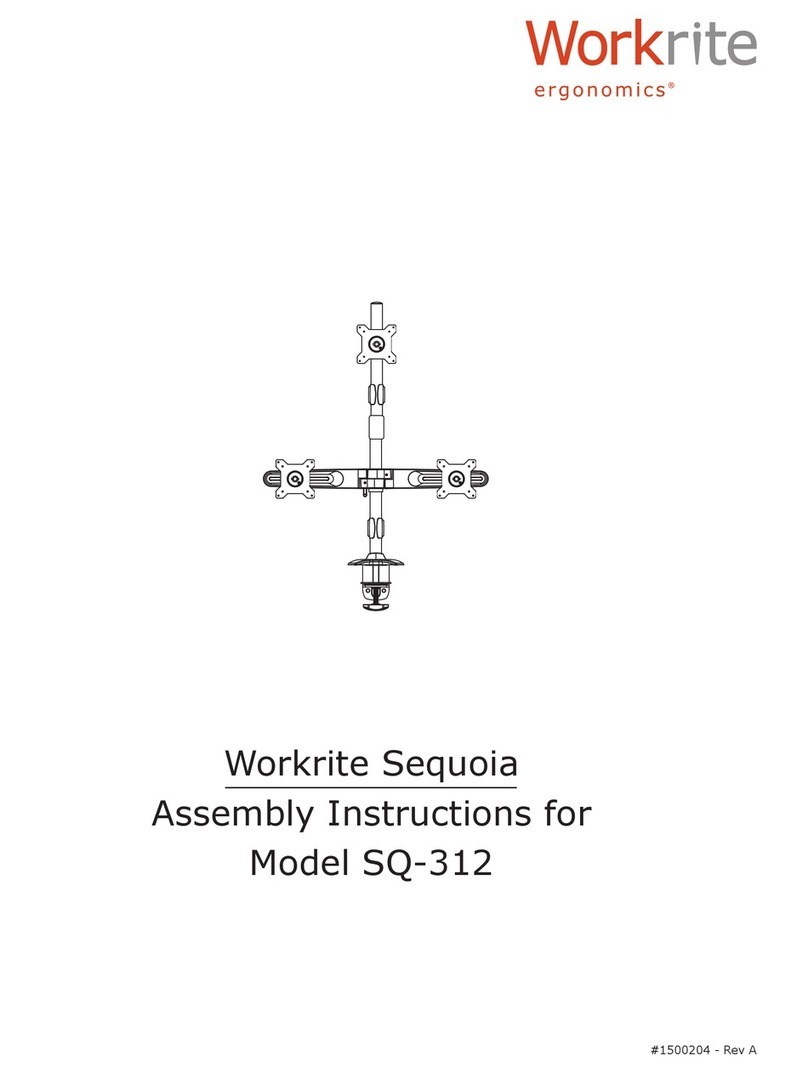

Workrite Ergonomics Sequoia SQ-312 Manual de usuario

Workrite Ergonomics

Workrite Ergonomics CONF-BSE-WP-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics Conform Sit-to-Stand Arm Manual de programación

Workrite Ergonomics

Workrite Ergonomics CONF-ACC-1EXT-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics PEAK-1SA-CCG-S Manual de usuario

Workrite Ergonomics

Workrite Ergonomics Conform CONF-1SDA-WOB-S Manual de programación

Workrite Ergonomics

Workrite Ergonomics 920 Series Manual de usuario

Workrite Ergonomics

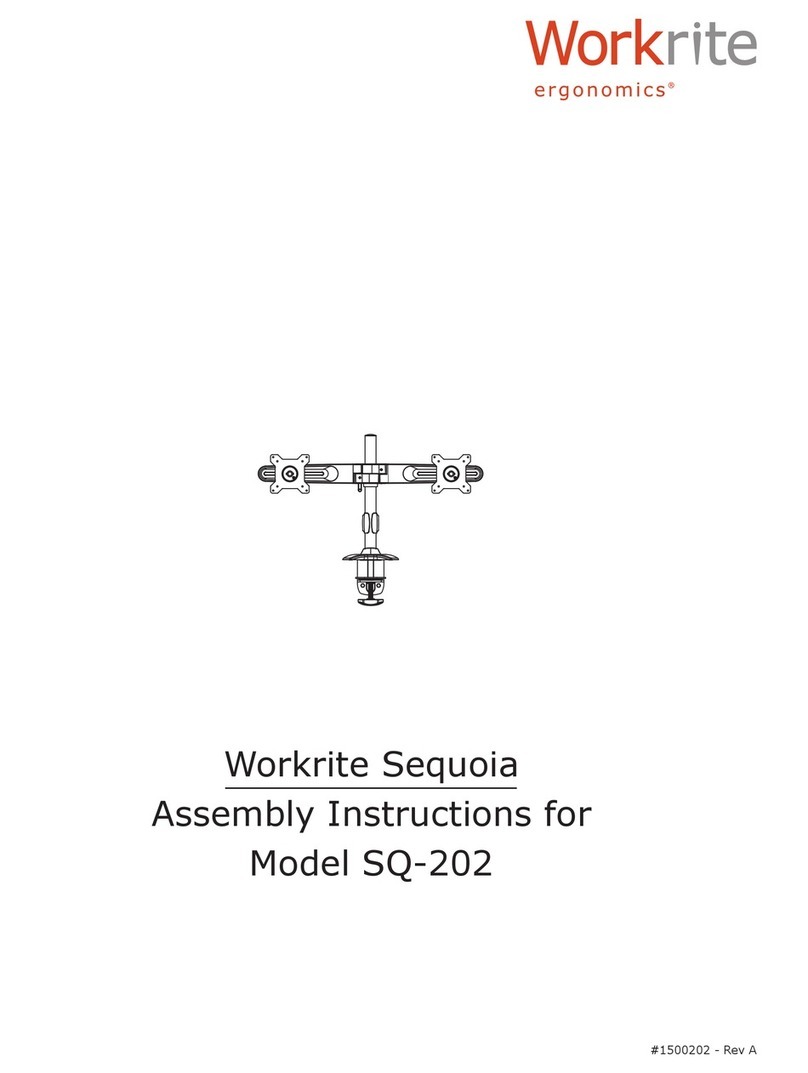

Workrite Ergonomics Sequoia SQ-202 Manual de usuario
