Wolf DO30F Manual de usuario
Planning Information
LSeries Built-In Double Ovens
MODELS DO30F AND DO30U
1
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
The Wolf L Series Model DO30F
framed and Model DO30U unframed 30"
(762) built-in double ovens are available in
the classic stainless steel finish. Model
DO30U is also available in the platinum
and carbon stainless steel finishes.
It’shard to put into a few words the differences you
will see in the Wolf L Series built-in ovens compared to
others on the market. Some of those differences are
very dramatic and some are very subtle. Suffice to say
that you and your clients will notice the differences.
You can choose from two different door styles—framed
and unframed. The framed is more traditional and lends
itself nicely with a professional rangetop, while the
unframed is sleek and contemporary in appearance.
Did you notice that the control panel closes? It’s an
attractive feature and will enable you to hide that control
panel that many of us have labored to makefunctional
and tried to make beautiful.
Inside, the beauty, design and functionality continue.
Brilliant halogen lights illuminate the beautiful blue
interior. As you open the oven door, feel the smoothness
of the door damper system. Pull that bottom oven rack
all the way out and notice how it is nestled on the door
rails. With the dual convection fans, both ovens of the
LSeries double ovens offer ten different cooking modes.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Model SO30F/S framed door style shown.
Model DO30F
Framed
Model DO30U
Unframed
Rotating electronic
control panel
Electronics and
door cooling vents
Recessed broil
element
Probe receptacle
Halogen lights
Removable six-level
rack guide per oven
Three removable
racks per oven
Hidden bake
element
Triple-pane window
Door hinge with
hydraulic damper
Exhaust vent
Location of rating
plate
Oven door light
switch
Thermostat
Oven gasket
Planning Information
LSeries Built-In Double Ovens
MODELS DO30F AND DO30U
2
50"
(1270)
297/8"
(759)
24" (610)
BEHIND FRAME
24"
(610)
OPEN OVEN DOOR
CONDUIT
CHANNEL
TOP VIEW
283/16"
(716)
28"
(711)
3"
(76)
203/4"
(527)
11/4"
(32)
17/8"
(48)
17/8"
(48)
RIGHT SIDE VIEW
481/2"
(1232)
INSIDE
SIDE TRIM
OVERALL DIMENSIONS
FEATURES
Framed and unframed door styles available
Classic stainless steel finish—Model DO30U
also available in platinum and carbon
Dual convection logic control system
Ten cooking modes—bake, roast, broil,
convection bake, convection roast, convec-
tion broil, convection, bake stone (accessory
required), dehydrate (accessory required) and
proof in each oven
Rotating glass touch control panel
Cobalt blue porcelain oven interiors
Three removable racks, six-level rack guides
and full-extension bottom rack in each oven
Large viewing triple-pane windows
Dual interior halogen lighting
Hidden bake element and recessed broil
element in each oven
Temperature probe and receptacle in each
oven
Self-clean, delayed start and Sabbath
features in each oven
Door hinge with hydraulic damper assures
smooth opening and closing of the doors
Factory-installed trim
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website,wolfappliance.com
Dimensions in parentheses are in
millimeters unless otherwise specified.
Unit dimensions may vary by ± 1/8"(3).
Planning Information
LSeries Built-In Double Ovens
MODELS DO30F AND DO30U
Dimensions in parentheses are in
millimeters unless otherwise specified. 3

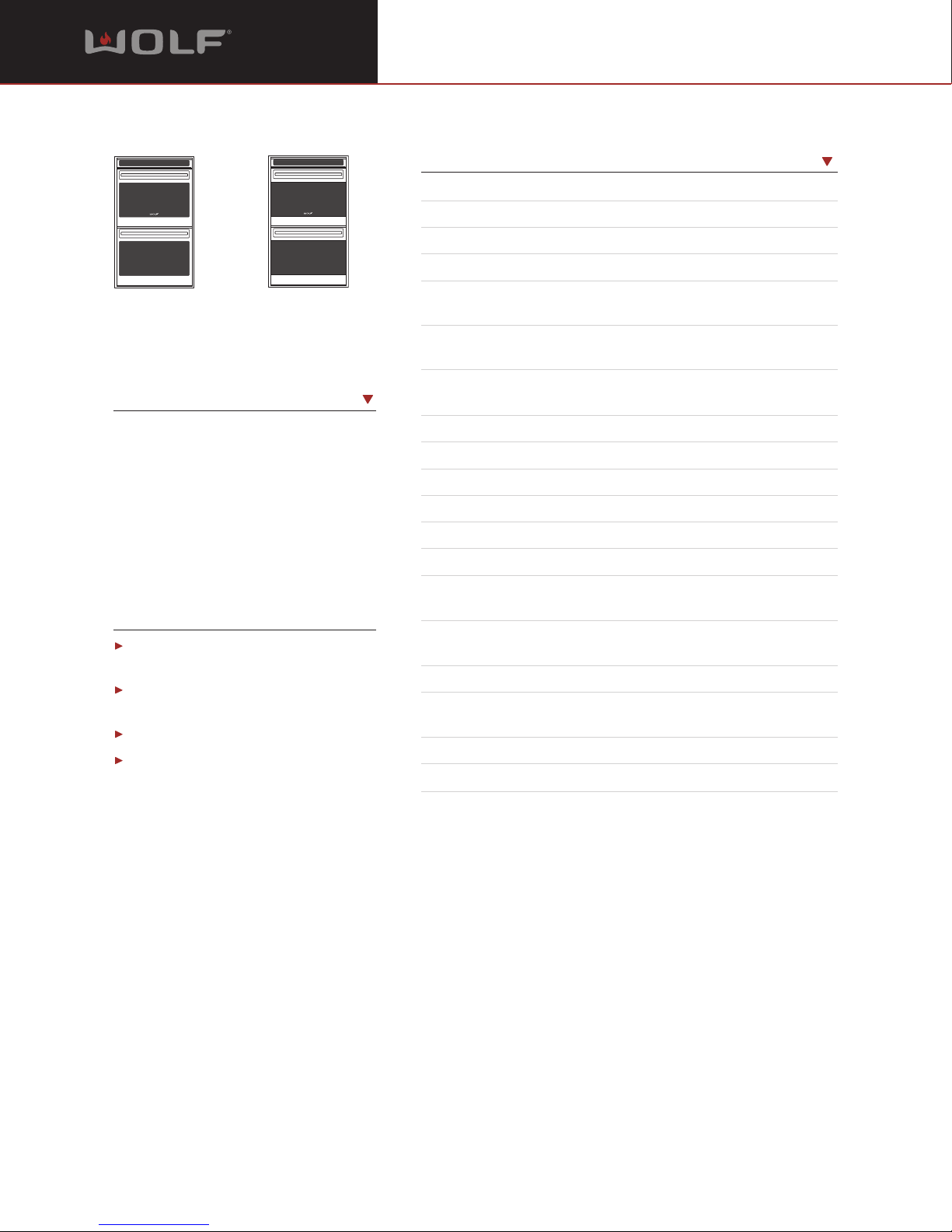

SPECIFICATIONS
Overall Oven Width 29 7/8"(759)
Overall Oven Height 50" (1270)
Overall Oven Depth 24" (610)
Open Oven Door Clearance 20 3/4"(527)
Overall Oven Interior Capacity
(per oven) 4.5 cu ft (127 L)
Overall Interior Dimensions 25" W x 161/2"Hx19" D
(635 x 419 x 483) each
Usable Interior Dimensions 211/2" W x 161/2" H x 16 3/8"D
(546 x 419 x 416) each
Recommended Cabinet Width 33" (838)
Minimum Cabinet Width 30" (762)
Minimum Cabinet Depth 24" (610)
Minimum Base Support 400 lbs (181 kg)
Opening Width 28 1/2"(724)
Opening Height 49 5/8"(1260)
Trim Overlaps 3/16"(5) top, 1/8"(3) bottom
3/4"(19) each side
Electrical Supply Requirements 240/208 V AC, 60 Hz
50 amp circuit
Conduit 5 ft (1.5 m) flexible 4-wire
Electric Rating 8.9 kW at 240 V
6.7 kW at 208 V
Total Amps 37
Shipping Weight 466 lbs (211 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Framed Door Style –
Classic Stainless Steel DO30F/S
Unframed Door Style –
Classic Stainless Steel DO30U/S
Platinum Stainless Steel DO30U/P
Carbon Stainless Steel DO30U/B
ACCESSORIES
Bake stone accessory, includes
stone, rack and peel
Two-piece broiler pan and
temperature probe
Set of three oven racks
Dehydration racks with door stop
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Showroom Locator
section of our website, wolfappliance.com.
Model DO30F
Framed
Model DO30U
Unframed
Planning Information
LSeries Built-In Double Ovens
MODELS DO30F AND DO30U
Dimensions in parentheses are in
millimeters unless otherwise specified. 4
5"
(127) E
281/2"(724)
OPENING WIDTH
4"
(102)
E
E
E
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
495/8"
(1260)
OPENING
HEIGHT
24"min (610)
OPENING DEPTH
67"typical
(1702)
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
CABINETS DEEPER
THAN 24"(610)
WALL INSTALLATION
IMPORTANT NOTE: Unless you are using cabinets deeper
than 24" (610), it is recommended that the electrical supply
be placed in an adjacent cabinet within reach of the conduit.
Choose the location shown in the illustration that best suits
your installation.
Planning Information
LSeries Built-In Double Ovens
MODELS DO30F AND DO30U
Dimensions in parentheses are in
millimeters unless otherwise specified. 5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
For ease of installation, Wolf recommends
using a 33" (838) wide cabinet with the L Series
double oven. You will need a minimum 24"
(610) of usable cabinet depth. The cabinet base
platform must be able to support 400 lbs
(181 kg).
Wolf L Series built-in ovens have a face trim
on all four sides and will overlap stiles and rails.
The trim overlaps 1/8"(3) on the bottom, 3/16"
(5) on the top and 3/4"(19) on each side.
L Series double ovens require a separate,
grounded 4-wire 240/208 V AC, 60 Hz, 50 amp
service with its own circuit breaker. It is
provided with a 5' (1.5 m) flexible 4-wire
conduit for connection at the electrical supply.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recom-
mended that the electrical supply be placed in
an adjacent cabinet within reach of the conduit.
Refer to the illustration on page 4 for location
ofelectrical supply.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
The Wolf L Series double oven may be
installed in combination with a Wolf warming
drawer with L Series stainless steel drawer
front or integrated drawer front. For additional
specifications, refer to the warming drawer
section of our website, wolfappliance.com.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
