Wingsland X1 Manual de usuario

User Manual V1.0

1Introduction Symbol Description User Suggestion Video Tutorial Download Wingsland X1 APPProduct Introduction Brief Introduction Aircraft DiagramAircraft Visual assistant positioning system Adjustable Camera Angle Exclusive Battery Status Indicating Light Propeller & Propeller Guard Extension PortDIY StickersWingsland X1 APP Control Interface Introduction Detailed APP Interface Introduction Function MenuControl Flight by Using Mobile Devices Preparation Before Flight Operation of Virtual Joy Stick Motion Control Flip FlightDisclaimer Product Safety Notice Flight Battery Safety GuidelinesLimitation of LiabilityFirmware UpdateAppendix Specifications After Sales Service Information 222223334-84456789-12991213-17171614131818181920202020ContentCopyright © 2017 WINGSLAND All Rights ReservedX1 User Manual8

2IntroductionSymbol DescriptionsWingsland X1 is an aircraft with lots of entertaining options, but please be attention that the X1 is not a toy. The wingsland X1 contains a flight controller, video system, propulsion system and intelligent flight battery, we highly recommend you to read the wingsland X1 Quick Start Manual and the X1 User Manual carefully before your first flight , to watch the video tutorial to ensure your safety.Video TutorialUsers can search the X1 video tutorial on www.wingsland.comDownload Wingsland X1 APPDownload wingsland X1 APP to control the flight.How to Download:1. Login to download.www.wingsland.com2. To download the APP in Apple Store or Google by searching keyword: wingsland X1Forbid Notice  TipsUser SuggestionCopyright © 2017 WINGSLAND All Rights ReservedX1 User Manual

12354768910131114123Product DescriptionsBrief IntroductionThe wingsland X1 is a FPV drone with many entertainment features, you can control the flight by using your mobile devices. Indoor Optical Flow Positioning System can help you to achieve indoor hover and speed racing easily. The X1 is Equipped with adjustable HD camera and HD digital transmission to seize the moment. You can enjoy the FPV flight and capture the memorable second at the same time . Makes it a typical FPV drone, you can capture the memorable moments and enjoy the speed racing at the same time. 12345678Propeller guard Propeller Arm CameraMotor Antenna Front light Footpad () Camera Angle is manually adjustable91011131412Back lightAccessory port Battery Battery clip USB portOptical flow assisted positioning module Copyright © 2017 WINGSLAND All Rights ReservedX1 User ManualAircraft Diagram

4Aircraft Vision positioning systemWhen the X1 takes off, at a flight height no more than 2.5m, if you stop any operation of direction or height, it will hover at the current position.Brief IntroductionWork TheoryWhen the X1 takes off, at a status of no operation, the optical flow sensor which located on the bottom of the aircraft can identify the ground image so the X1 can hover at current height and postion.At a flight height no higher than 2.5m, the vision system can’t function properly, the X1 won’t hover but flow with air.The vision positioning system can be affected by flying speed, light intensity and object surface texture, it won’t hover at the situations below:● high speed flight at low altitude.● A strongly reflecting object surface.● Surfaces of water and single color objects.● Extremely bright or extremely dark.● An object surface having a slope of more than 30 degrees.● Other conditions that may affect ultrasound and optical flow localization.Adjustable Camera AngleCamera Angle Adjust SystemThe X1 aircraft cameras are designed with adjustable angle, when the lens and the aircraft body are at the same level, (The relative angle is 0 degrees ),you can use your fingers to adjust the camera angle, the adjustable angle is 15 degree.How to Adjust Camera AngleAt the status that the X1 doesn’t take off, use your fingers to poke the camera to adjust its angle.Camera down 15° The X1 default camera angle is 0° Camera up 15°● Please adjust the camera angle gentlely.● Over adjustment may cause the damage of the X1.Copyright © 2017 WINGSLAND All Rights ReservedX1 User Manual

① ② ① ② 5V5CameraAfter the X1 aircraft is powered on, the camera will be activated automatically. Through the image transmission system, the camera can transmit the captured picture to X1-app meanwhile with the highest resolution of 1280x720p.The photos or videos will be stored in your mobile device’s album, athe stored video resolution is 640x368, image resolution is 640x368.Exclusive BatteryX1 BatteryBrief IntroductionThe X1 lithium battery has a capacity of 600mAh, voltage 3,7V, the maximum flying time is 7minutes. (the maximum flying time is tested under the Wingsland experimental environment)Battery Assembling and DisassemblingAssembling: When the battery is installed, the battery should be facing up and inserted into the battery compartment to ensure that the tail of the battery is stuck on the battery lock.Charging1. Insert the X1 battery into the battery compartment.2. Connect one end of the micro USB connector to the aircraft, and the other end to the power adapter. The input voltage is 5V.3. During the charging , the front indicator light of the X1 will blink slowly, and it will go out when the charging is complete.4. When the charging current is greater than 1A, the charging time is about 50 minutes. After charging, unplug the micro USB cable and remove the battery.The Aircraft ChargingDisassembling: Pull the battery latch down and pull the battery out with your fingers.Copyright © 2017 WINGSLAND All Rights ReservedX1 User Manual

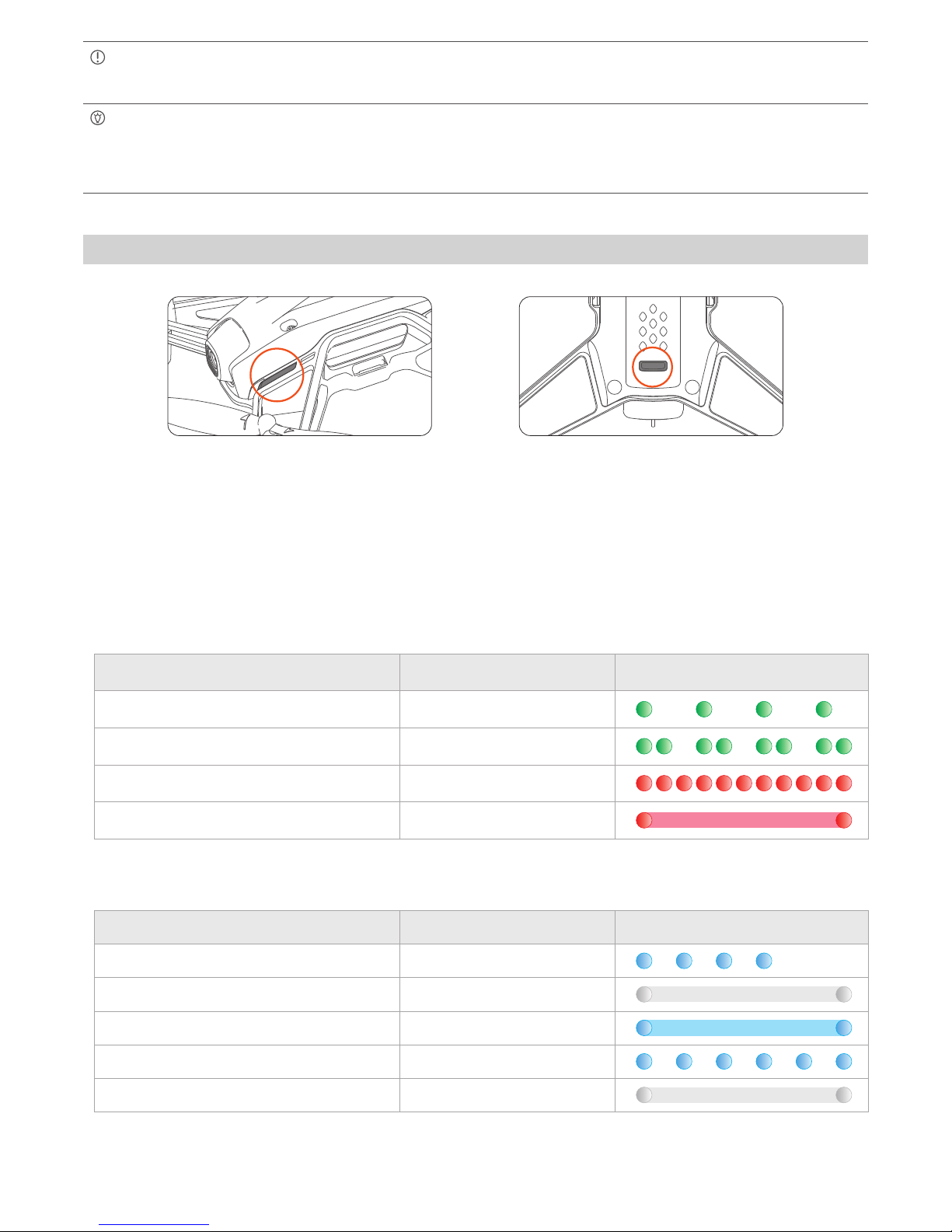

6● In low temperature environment, the performance of the battery will be seriously affected and the flight time will be shortened. Please preheat the battery to over 20 degrees centigrade.● Because some types of adapters have less charging current , the battery charging time will be prolonged.● Please fully charge the battery before using.● To ensure optimal performance of the battery, please don't store the full charging batteries for a long time. If you are not going to use the battery in a while, please fully charge the battery and fly with it about 2 minutes for discharging purpose, then store the battery in a cool and dry condition.● Please see more detail at the “Battery User Tips” in this User Manual.Status IndicatorAircraft front light Aircraft tail lightBrief IntroductionThere are 2 indicators on the aircraft, 2 are located on the front and 1 is located at the end of the aircraft, they show the orientation and some functions of the X1, it helps the users to get to know the aircraft status in an easy way.DefinitionAircraft tail indicator:Aircraft StatusIndicator statusdiagrammatic tableAircraft power on, before taking offGreen light Single interval scintillationAfter taking offLow batteryThe aircraft lands with low battery or fault Green light double interval scintillationRed light flashes fastThe red light will not go outAircraft front indicator:Aircraft StatusIndicator statusdiagrammatic tableCopyright © 2017 WINGSLAND All Rights ReservedX1 User ManualAircraft powered onBlue ColorIndicator lights flash 4 timeMobile device unconnected with aircraftIndicator lights offWiFi connected and opened the APPBlue ColorIndicator lights normally onCharging the batteryBlue ColorIndicator lights keep flashingCharging finishedIndicator lights off

② How to disassemble the propeller guard① How to disassemble the propeller② ①7Clockwise（A）Clockwise（A）Counter-clockwise（B）Counter-clockwise（B）NosePull the propeller guard down with one hand, while use the tool to clamp the propeller to lift it up.Hold the motor with one hand, twist and pull off the propeller guard.Brief IntroductionPropeller & Propeller GuardPropellerPropeller GuardCopyright © 2017 WINGSLAND All Rights ReservedX1 User ManualPropeller and propeller guard are easy to disassemble.Please pay attention to the arrow direction on the propellers while installing them, and make sure the directions are same to those on motor.Direction for Clockwise Propeller(A) and corresponding motor Direction for Counter-clockwise Propeller(B) and corresponding motorIf the propellers are not installed on corresponding motors, the X1 aircraft cannot fly normally, and will even flip over or rotate on the ground.How to Disassemble

8Extension PortCopyright © 2017 WINGSLAND All Rights ReservedX1 User ManualThe extension port is located at the bottom of X1, it is used to connect with the optional entertaining accessories provided by wingsland.①②Stickers Usage:① Paste the middle stickers on the middle of the aircraft upper shell.② Then paste the side stickers on two sides of the aircraft upper shell.StickersDIY Stickers

Wingsland X1 APPControl Interface Introduction：1Find the X1 APP icon on your device, click and enter into the main interface.. Detailed APP Interface Introduction：9X1 APP iconMain Interface12345678910111213ExitConnection StatusWiFi SignalBattery LevelGeneral SettingsIOC SettingFlipping Flight DataAuto Takeoff/Landing Button(3s)Time-lapse photography90%21345678910111213TakeOffH:0.0 V .S：0.0 F .T:00:00VideoShutterPhotoChina hainanMyStart to FlyAerialhighlightCopyright © 2017 WINGSLAND All Rights ReservedX1 User ManualAfter the mobile device connected with the X1 WiFi, you could control the X1 on wingsland X1 APP.
