Windster WS-5530SS Manual de usuario
Table of Contents
Safety Information ............................................................... 2 - 3
Content Checklist ..................................................................... 4
Measurements ........................................................................... 5
Preparation ........................................................................... 6 - 7
Installation ................................................................................. 8
Operation & Features ............................................................... 9
Cleaning & Maintenance ........................................................ 10
Troubleshooting ...................................................................... 11
Parts List / Replacement ................................................... 12-13
Warranty / Contact Us ....................................................... 14-16
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electriacal
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
The unit must be properly grounded and installed at the recommended height
before beginning operation.
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
In case the unit should need to be cleaned or repaired, switch power off at
service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
SAFETY INFORMATION
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
Never leave surface units unattended at high settings. Boil-overs may cause
smoking and greasy spillovers may ignite as result. Heat oils slowly on low or
medium settings.
SAFETY INFORMATION
Use proper pan size. Always use cookware for the size of the surface element.
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN–Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER – Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You know you have a Class ABC extinguisher, and you already know
how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit.
*Based on “Kitchen Fire safely Tips” published by NFPA.
WARNING- PROP. 65 WARNING FOR CALIFORNIA RESIDENTS:
This product may contain chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) WS-55 series(30", 36", or 42") hood assembly
b. (1) User’s manual
c. (1) 7" conversion collar
d. (2) Front round oil cup filters
e. (2) Rear rectangular oil cup filters
f. (1) Screw packet
g. (1) 8 watt LED light bulb (E27)
2. CONTENTS NOT INCLUDED
a. WS-55CFMR (CFM reducer)
b. Aluminum or metal piping
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Philips screwdriver
f. Spirit level
g. Measuring tape
h. Writing instrument (pen, marker, pencil)
i. Aluminum tape
CONTENT CHECKLIST
MEASUREMENTS
20-7/8"
30"
36"
42"
6-7/8"
6-11/16"
11-3/8"(30"cabinet)
14-3/8"(36"cabinet)
17-3/8"(42"cabinet)
15"
2"
Fig.1a
36"
Bottom of
hood to top
of cooktop
27" - 33" Standard
8" ceiling
Fig.1b
2-1/2"
1-1/2"
1"
1-7/8"
6-1/8"
30",36",42"
15"
2"
Use Fig.1a and 1b on page 5 for measurements
PREPARATION
PREPARATION
1. BEFORE YOU START
**DO NOT INSTALL IF DAMAGED**
**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take least 1 to 2 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
d. Collar size may need to be increased if utilizing a long duct run.
e. At least 12" of vertical duct is required before any turn.
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
i. Cold weather installation will require make-up air or a CFM reducer.
Check with your local building codes for more detail.
2. LOCATION
a. Determine the exact location you want to install the range hood.
b. Distance between cooktop and range hood should be between 27"-33".
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the dimension needed to install the unit.
PREPARATION
e. For cabinet with recessed-bottom, use (2) 3" x 12" or 15" wood strips on
both sides to balance the recession. Use (4) 1-1/4" long flat head screws
to secure the wood strips to cabinet. (Fig. 1d)
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to make sure it is working properly.
c. Remove the protective file on the hood.
d. Unscrew the (3) screws holding up the bottom panel and remove the
panel to access the inside of the hood.
Fig. 1c - Cabinet
1-7/8"
FRONT OF CABINET
BACK OF CABINET
CABINET BOTTOM VIEW
CABINET SIDE
CABINET SIDE
ELECTRICAL OUTLET
7" ROUND
EXHAUST
11-3/8" (30" CABINET)
14-3/8" (36" CABINET)
17-3/8" (42" CABINET)
Fig. 1d - Cabinet w/ recessed-bottom
1-7/8"
FRONT OF CABINET
BACK OF CABINET
CABINET BOTTOM VIEW
WOOD STRIP
CABINET SIDE
ELECTRICAL OUTLET
7" ROUND
EXHAUST
3"
CABINET SIDE
WOOD STRIP
1-1/2"
2-1/2"
1-1/2"
2-1/2"
11-3/8" (30" CABINET)
14-3/8" (36" CABINET)
17-3/8" (42" CABINET)
INSTALLATION
INSTALLATION
1. UNDER CABINET INSTALLATION
a. Make sure all preparation steps are completed.
b. Feed the wires coming out of the hood through the bottom of the cabinet.
c. Lift the unit up flush against the wall and the bottom of the cabinet.
d. Using the screws and washers provided, insert into each of the keyhole
openings and tightly secure the unit against the bottom of the cabinet.
NOTE: Install more screws through the back of the unit if necessary.
e. Use the conversion collar for 7" ducting. (OPTIONAL)
f. Connect 7" ducting to the collar of the hood.
g. Finish off by sealing the connection points with aluminum tape.
2. COLD WEATHER INSTALLATION (OPTIONAL)
a. Check with your local building codes to see if a CFM reducer is an
acceptable alterative to make-up air.
b. Remove the WS-55CFMR (CFM Reducer) and inspect for any sign of
defect or damage. (ie. Cracks, broken flips)
c. AFTER COMPLETING Step A-D of Section 1 UNDER CABINET
INSTALLATION.
d. Place the CFM reducer onto the outlet of the unit and seal the connection
point with aluminum tape. (Be sure it is secure with no opening or gaps)
e. Connect a 7" ducting to the collar of the CFM reducer.
f. Finish off by sealing the connection points with aluminum tape.
NOTE: If using CFM reducer, you must connect the reducer to the unit
before continuing.
OPERATION & FEATURES

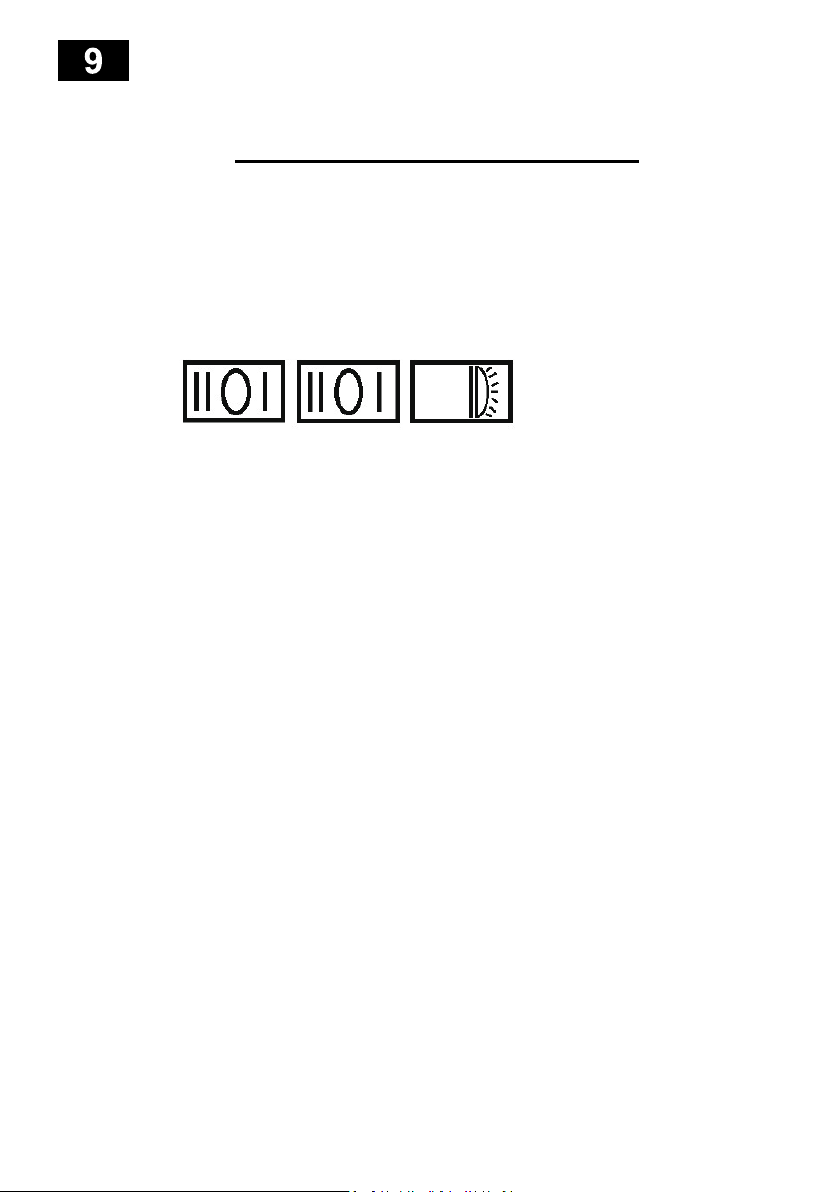

1. EASY A CCESS CONTROL SWITCH (from left to right)
a. Left Button – Controls Left Fan
b. Middle Button – Controls Right Fan
c. Right Button – Controls Light bulb
2. LED LIGHTING
a. Max. 8 Watts LED E27 Bulb
3. OIL CUP FILTERS
a. (2) Front circular oil cups
b. (2) Rear rectangular oil cups.
OPERATION & FEATURES
