WilTec 61033 Manual de usuario
Operation Manual
Turning Arbor Press
61033
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.
© by WilTec Wildanger Technik GmbH Item 61033 Page 2
http://www.WilTec.de
http://www.aoyue.eu 10 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without prior notice. No part of this
document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man-
ual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating
manual is complete, accurate and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to:
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler Germany
Do you wish to collect your goods? Our address for collection is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler Germany
In order to shorten the waiting time and to allow for an easy on-site processing, we kindly ask you to
contact us briefly beforehand or to place your order via the webshop.
E-mail: service@wiltec.info
Phone: +49 2403 55592-0
Fax: +49 2403 55592-15
To return your goods for exchange, repair or other purposes, please use the following address. Atten-
tion! To allow for a trouble-free complaint or return, it is important to contact our customer service team
before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler Germany
E-mail: [email protected]o
Phone: +49 2403 55592-0
Fax: (+49 2403 55592-15)
© by WilTec Wildanger Technik GmbH Item 61033 Page 3
http://www.WilTec.de
http://www.aoyue.eu 10 2021-1
http://www.teichtip.de
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manual
carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
Safety instructions
•Before use, check the device for completeness and functionality.
•Never us a damaged or dysfunctional device. Have a qualified technician check the device.
•Always work with care and the attention required.
•Keep your working area tidy and well illuminated. A cluttered and poorly lit workplace increases
the risk of accidents.
•Keep children away from the device.
•Thoroughly store the device if not using it. Store it in a dry place.
•Do not modify the device in any way.
•Only use original spare parts.
•Do not force the device; otherwise, it could be damaged.
•Only use the device according to the intended use defined in this manual. Pay special attention
to the maximum dimensions.
•Wear appropriate protection equipment (safety gloves, working shoes, protective goggles, etc.).
•While working, ensure a safe stand.
•Handle the device with care.
•Before use, control all screws and nuts for safe seat.
•Regularly inspect the device to find damaged spots or dysfunctional components.
•After maintaining the device, remove all tools.
•If parts are damaged, replace them with original spare parts.
•Do not use the device when being tired or under the influence of alcohol, drugs, or medicine.
Technical specifications
Max. work piece height (㎜)
105
Projection (㎜)
115
Mandrel size (㎜)
25 × 25
Diameter of table (㎜)
100
Tool holder inside diameter × depth (㎜)
10 × 25
Max. pressing force (t)
1 (9.8067 kN)
Weight (㎏)
13
© by WilTec Wildanger Technik GmbH Item 61033 Page 4
http://www.WilTec.de
http://www.aoyue.eu 10 2021-1
http://www.teichtip.de

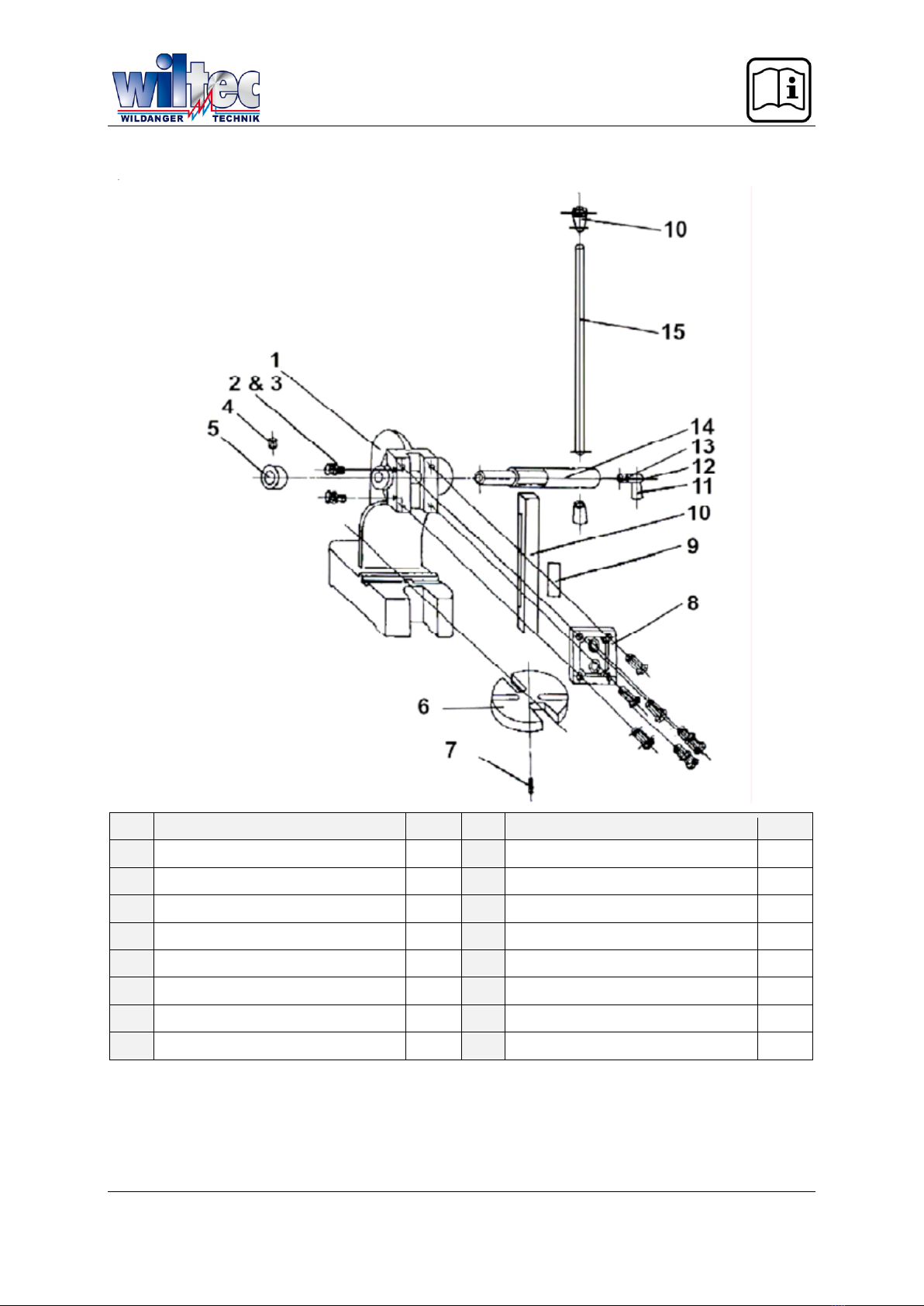

Exploded view and parts list
№
Name
Qty.
№
Name
Qty.
1
Body
1
9
(absent)
–
2
Screw
8
10
Guide rail
1
3
Nut
6
11
Locking bolt
1
4
Screw
1
12
Pin
1
5
Spacer ring
1
13
Screw
1
6
Plate
1
14
Shaft
1
7
Spring ring
1
15
Rod
1
8
Cover
11
16
Handle
2
Important Note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission
of WilTec Wildanger Technik GmbH.
