WiebeTech MGB Manual de usuario

M i c ro G B U se r M an u a l - 1 -

MicroGB

User’s Manual

Revised July 3, 2007

This user's manual is written to assist users to prepare the product when it is first

received and to install the product to the host computer. The manufacturer reserves the

right to make improvements to the product and to revise the document associated with it

at anytime without notice.

TABLE OF CONTENTS

FCC Compliance Statement 1

Package Contents 2

System Requirements 2

Installation Guide 2

Installing Hardware 2

Installing driver for PC 3

Installing driver for MAC 6

What is 1394 8

One Year Warranty Regulation 8

Attention!!! 8

FCC Compliance Statement

This equipment has been tested and found to comply with limits for a Class B digital device, Pursuant to

Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in residential

installations. This equipment generates, uses and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions may caused harmful interference to radio communications.

However, there is no guarantee that interference will no occur in a particular installation. If this equipment

does cause interference to radio or television equipment reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures.

•Reorient or relocated the receiving antenna.

•Move the equipment away from the receiver.

•Plug the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/television technician for additional suggestions.

WiebeTech LLC

M i c ro G B U se r M an u a l - 2 -

Only equipment certified to comply with Class B should be attached to this equipment to continuing

compliant with FCC emission limit, and must have shielded interface cables. You are cautioned that may

change or modifications to the equipment not expressly approved by the party responsible for compliance

could void your authority to operate such equipment.

Package Contents

•FireWire 2.5" hard disk enclosure

•USB 2.0 cable

•1394 cable

•Software drivers

•Manual & quick installation guide

System Requirements

•Windows 98 (USB 2.0)

•Windows 98 SE (FW / USB 2.0)

•Windows Me (FW / USB 2.0 )

•Windows 2000 (FW / USB 2.0 )

•MAC OS 8.6 or later (FW)

•One USB port or One FW port

Installation Guide

Installing Hardware

1. Loose the screws on the back of the FireWire 2.5" HDD enclosure 2. Open the cover

WiebeTech LLC

M i c ro G B U se r M an u a l - 3 -

3. Mount your 2.5" HDD to the IDE-44 pin socket on the Circuit Board firmly

4. Tighten each of 4 screws on the back of Circuit Board to

secure the 2.5" HDD

5. Restore the Circuit board and the enclosure in place

6. Place the software CD that comes with FireWire 2.5" HDD in the CD-ROM drive

USB Interface driver install for Windows 98/ Windows 98 SE:

Install for USB interface driver (Windows 98 / Windows 98 SE )

1. Boot up computer to Windows 98, or Windows 98 SE.

2. Insert the software driver CD into your CD-ROM drive .

3. Wait for the pop-up menu to come out. If the pop-up menu doesn't come out automatically,

please execute the autorun.exe file manually in the software driver CD from "My computer" icon

then CD ROM drive icon.

4. Click "Install Software Driver" Lable on the pop-up menu.

5. Select your language and press OK.

WiebeTech LLC

M i c ro G B U se r M an u a l - 4 -

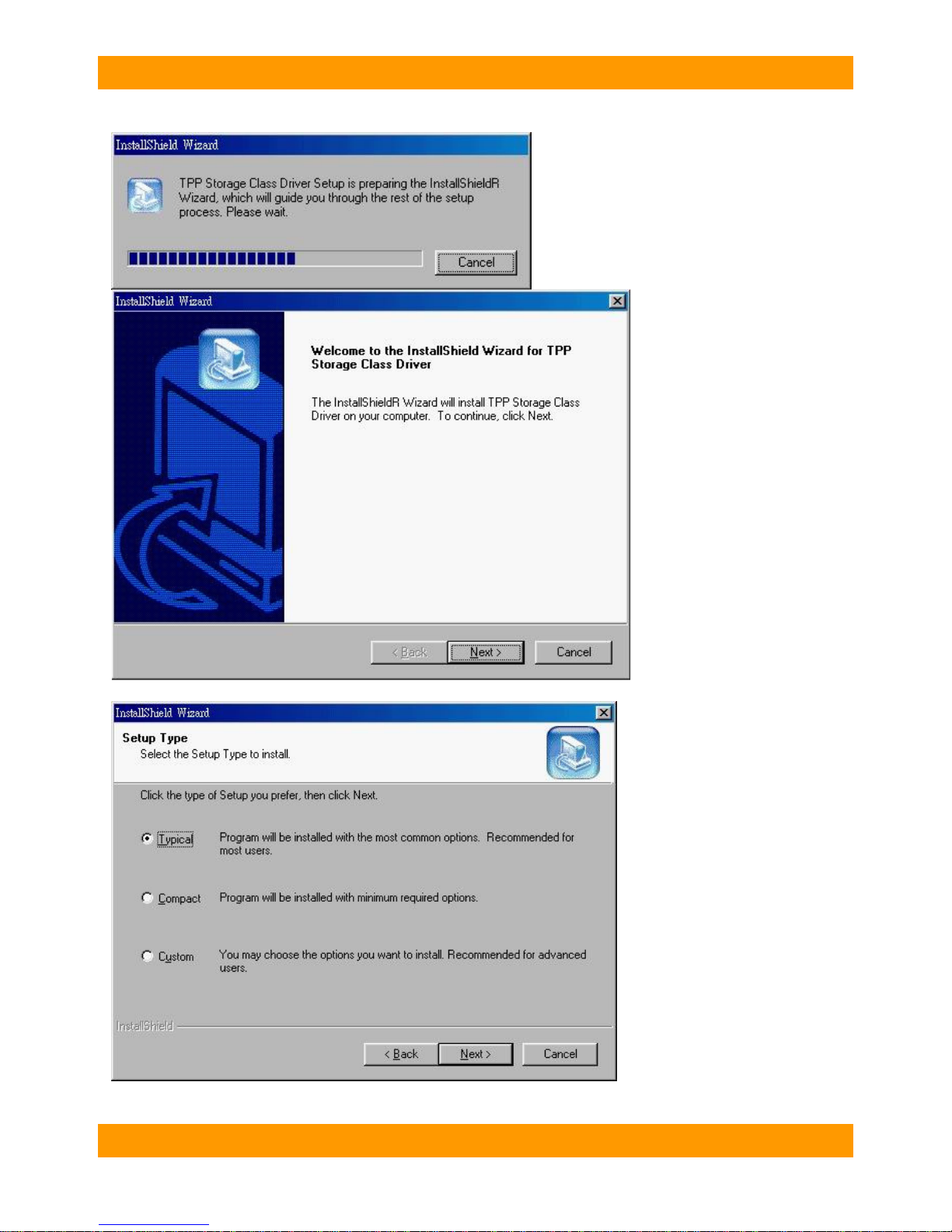

Press "Next"

WiebeTech LLC

M i c ro G B U se r M an u a l - 5 -

6. Follow the instructions to complete the Setup program and restart the computer .

7. Connect to computer, make sure all the cables are well connected.

WiebeTech LLC

M i c ro G B U se r M an u a l - 6 -

Install for USB interface driver (Windows ME / Windows 2000 )

1. Boot up computer to Windows ME / Windows 2000.

2. Connect the Mobile Disk to computer.

3. The system will recognized as a Removable Disk icon in "MY COMPUTER".

Install for USB interface for MAC OS (MAC OS 8.6, MAC OS 9.X , MAC OS X )

1. Boot up computer to .

2. Connect the Mobile Disk to computer and insert the external DC power supply

3. The system will recognized as a Removable Disk icon in "MY COMPUTER".

Install for FireWire hard Disk (Windows 98 SE / Windows / ME Windows 2000 )

1. Connect the FireWire cable (included) to any FireWire port on your PC and the other end of FireWire

cable to the FireWire 2.5" HDD.

2. The FireWire 2.5" HDD will be recognized as a Local Disk icon in "MY COMPUTER"

Install for FireWire hard Disk For MAC OS 8.6, OS 9.X

1. Place the software CD that comes with FireWire 2.5" HDD in the CD-ROM drive

2. Open the MAC folder in software CD to find "Storage" installer

3. Double click on the "Storage" installer to install the drivers

4. Follow on-screen instruction to complete installation

Click "Continue"

WiebeTech LLC

M i c ro G B U se r M an u a l - 7 -

Click "Install"

5. Follow the instructions to complete the Setup program and restart the computer .

6. Connect the FireWire cable (included) to any FireWire port on your MAC and the other end of FireWire

cable to the FireWire 2.5" HDD

7. The FireWire 2.5" HDD will be recognized as an "UNTITLED" drive icon on screen

WiebeTech LLC

M i c ro G B U se r M an u a l - 8 -

!!!!!!!!!!!!!!!!! Important notice for Mac users!!!!!!!!!!!!!!!!!!

Always drag and drop the Hard Disk "Untitled" icon into trash can before detaching the Hard Disk from the

USB (or FireWire ) port on your Mac computer. The drivers are now loaded. If the hard drive in Hard Disk

is unformatted, you must now format it following the instruction below:

(1) Highlight the icon for Hard Disk.

(2) From the Finder menu located at the top of the screen, select Special, Erase Disk.

You can select either DOS or Macintosh formatting. If you intend to use the device on both a PC and a

Mac, select DOS formatting.

1. USB Port

2. FireWire Port

3. External power

What is 1394?

The 1394 digital line standard was conceived in 1986 and the specification for this link was adopted in

1995 as the IEEE 1394 standard by technologists at Apple Computer who chose the "FireWire" as its

trademark and is also known as "iLink" or "iLink 1394" by Sony Corp. The IEEE 1394 multimedia

connection features hot swapping, high-speed performance, peer to peer communication and daisy

chained which can accept up to 63 devices connected simultaneously. The idea of IEEE 1394 standard is

all other devices and peripherals that connected outside of PC can simple plug into 1394 port instead of

opening case and adding a circuit board. IEEE 1394 standard is an important enabling technology for the

emerging multimedia market. For more information please visit 1394 Trade Association:

http://www.1394ta.org

One Year Warranty Regulation

Manufacturer warrants its products to be free from defects in material and workmanship under the

following terms:

•The effective period of this warranty is ONE year for parts and labor from the date of customer

purchase.

•The manufacturer is responsible only to repair or replace any defective hardware component part

of such products.

•The buyer is obliged to pay shipping cost of sending defective products to the manufacturer.

The warranty will not apply when

•Any product, on which the serial number has been defaced, modified or removed.

•Malfunction damage, deterioration resulting from accident, misuse, neglect, fire, water, or other

act of nature, unauthorized product modification or failure to follow instructions supplied with the

products.

•Damage or other loss in any shipment.

Attention!!!

1. It must use external power

2. It must use one interface at a time!
