White Rodgers 1F95-397 Manual de usuario

Thermostat With Humidity Control

Digital 7-Day Programmable

1F95-397

Operating Instructions

Retain for Future Use

Premium options

to customize the thermostat

to fit your application.

Easy, Menu-Driven Set-Up

and Programming 765432

17 16 15 14 13

Introduction Configuration Troubleshooting

Programming Features FAQs Index

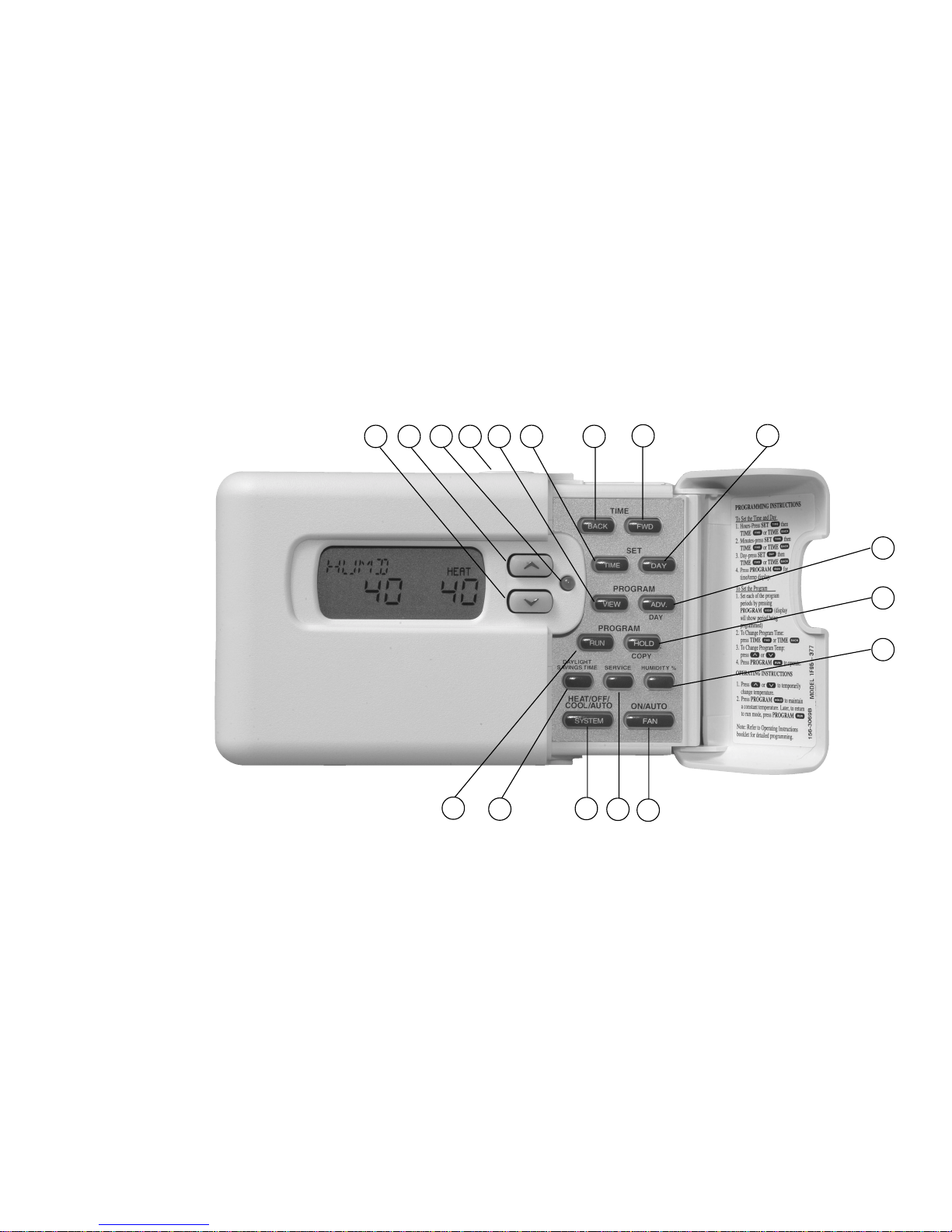

THE THERMOSTAT BUTTONS

See inside front cover for illustration

showing button locations.

(Blue arrow) Lowers temperature

setting (45°F or 7°C minimum)

(Red arrow) Raises temperature

setting (99°F or 37°C maximum)

The multi-color indicator glows:

green for 1st stage, yellow for 2nd stage,

flashing yellow for 3rd stage, red for

emergency heat and flashing red for

malfunction condition in system.

4This button (on top of the cover)

lights the display.

5Used to initiate or review

thermostat programming or advance to

next program period in programming

mode.

6Used with TIME

FWD

/TIME

BACK

to set the clock.

7Used to adjust the time backward,

or to select the previous menu item.

8Used to adjust the time forward, or

to select the next menu item.

9Used with TIME

FWD

/TIME

BACK

to set the current day.

10 Used to advance operation to the

next program period or advance to the

next day in programming mode.

11 Used to manually override

programming to hold at a selected

temperature.

12 Used to view ambient humidity or

modify humidity setting.

ORIENTATION

Selects fan operation (see The

Display page 3). This button is also

used to program the fan to run

continuously during a program period.

Used to enter the service menu to

change or reset humidifier, air filter,

UV bulb, and service timers.

Sets the system mode (HEATing,

EMERgency (Heat Pump models

only), OFF, COOLing, or

AUTOmatic changeover).

16 Used to adjust the clock one hour

forward or back.

17 Used to start or return to program

operation.

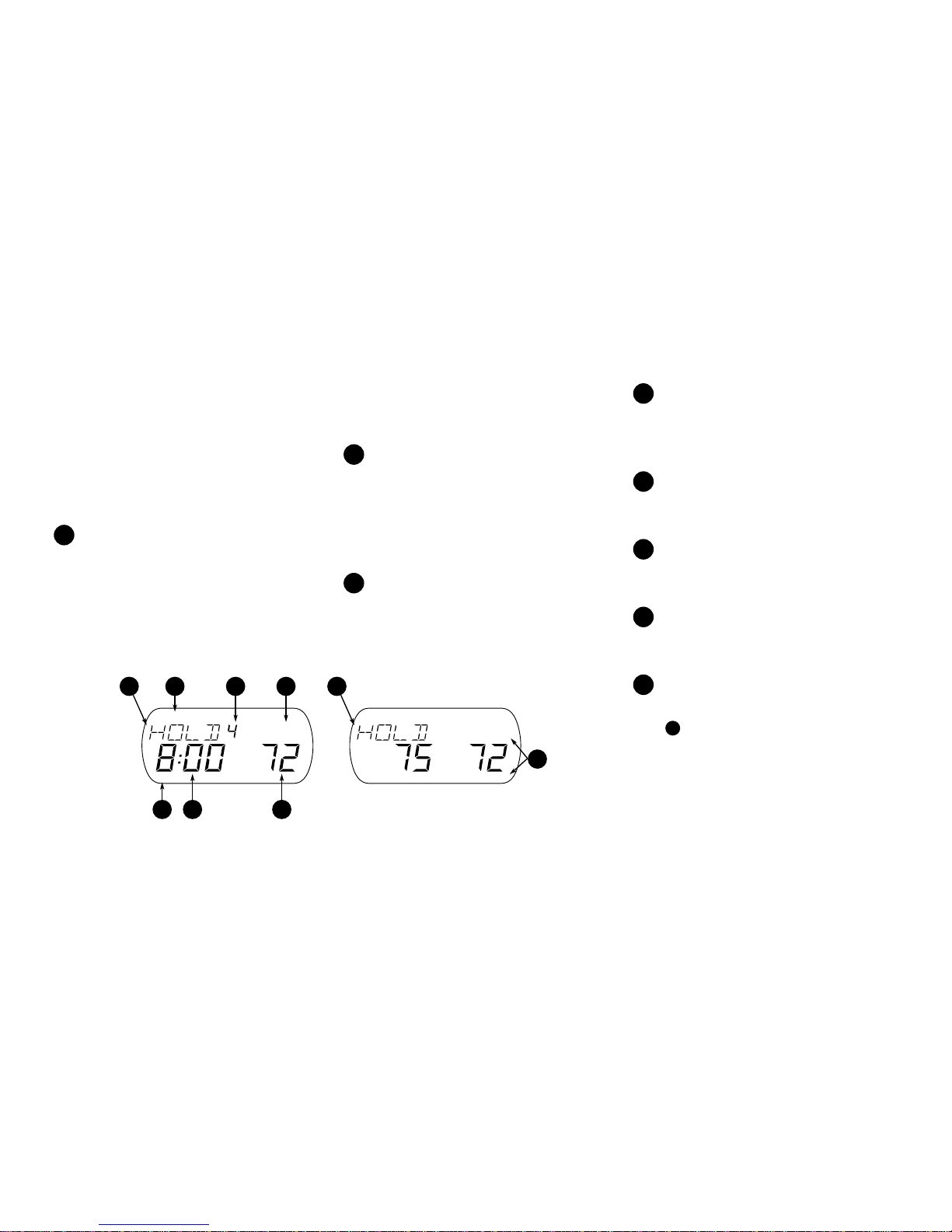

LARGE LIGHTED (LCD) DISPLAY

The thermostat display alternately

shows the current time and the current

temperature on the left side. The

display also shows the temperature

you have programmed or set on the

right side of your screen.

1Display system mode (OFF,

AUTO, HOLD, VACA or HUMD).

During programming displays the time

period (MOR, DAY, EVE, NHT)

being programmed. In the configura-

tion menu, the menu item name is

shown, one word at a time (PRGM

MODE, EMR, COOL FAN DELA

OFF, etc.).

2CHECK STAT appears when the

thermostat detects certain problems

within itself. CHECK SYSTEM

appears when the themostat detects

certain problems in the heating/cooling

or humidity system.

3Indicates the length of time

remaining in a temporary hold

condition. Also indicates the length of

time remaining in VACATION mode.

4Displays FAN ON when the fan is

operating continuously. Displays FAN

AUTO when the fan cycles with the

heating or cooling system.

5Displays the setpoint temperature.

In HUMD mode, shows humidity

setpoint.

6Alternately displays room

temperature and time of day. In

HUMD mode, shows actual humidity.

7Shows the current day of the week.

When programming, shows the day(s)

being programmed.

8The word HEAT or COOL will

appear above or below the setpoint if

area 1is needed to display other

information.

FAN AUTOHRS

CHECK STAT SYSTEM

°F

MON

FAN AUTO

HEATHEAT

HRS

CHECK BATTERY

°F

MON WED THU FRI SAT SUNTUEWED THU FRI SAT SUNTUE

1 1

2 3 4

INTRODUCTION

Introduction .....................................................3

Configuration ..............................................4-11

Manual Operation and Programming ......12-17

Features .................................................... 18-26

FAQs ......................................................... 27-30

Troubleshooting ....................................... 31-34

Index ...............................................................35

Use the tabs at the bottom of the page to quickly

locate sections.

Introduction Configuration TroubleshootingProgramming Features FAQs Index

Thank you for purchasing your

new digital thermostat with

humidity control. We believe you

will find that this thermostat is the

most user friendly and technologi-

cally advanced thermostat and

humidity control available today.

You will find information about

thermostat buttons (page 1) and

display beginning on page 2.

CONFIGURATION

The configuration menu allows you to set thermostat operating characteristics to your system or personal requirements.

To enter the menu, press TIME

FWD

and TIME

BACK

once at the same time. Press TIME

FWD

to advance through the

menu options. Press arrow keys to change options.

Step Press Button(s) Displayed Press or to select: COMMENTS Ref

(Factory Default) Page

0 F

(0) 5 LO to

5 HI

Adjusts temperature display higher or lower.

2EMR

(ON) OFF ON

ON L

Selects EMR option ON or OFF or ON L.

TIME FWD

3RH

(0) 20 LO to

20 HI

Adjusts humidity display.

TIME FWD

4DRY

(OFF) LO or HI to OFF

To reduce or eliminate condensation during cold

weather. Use LO setting first, if condensation persists

use HI setting.

TIME FWD

5OPTM CMFT

(ON) OFF

Enables improved dehumidification in cooling mode

if humidity is above setting.

TIME FWD

6( F) C

Adjusts temperature display between

F or C

TIME FWD

User Configuration Menu

User Configuration Menu (Continued)

Configuration

7SET FAN

(0) 0 HRS (OFF) to

6 HRS

Set Fan (one shot) option. Set the duration of the

one shot option.

TIME

FWD

8BEEP

(ON) OFF

Turns beeper ON or OFF.

TIME

FWD

9HEAT FAST

(ON) OFF

ON allows second stage to energize if setpoint is raised

3 or more degrees. OFF (economy) minimizes second

stage operation on setpoint changes.

TIME

FWD

10 COOL FAST

(OFF) OFF

ON allows second stage to energize if setpoint is

lowered 3 or more degrees. OFF (economy) minimizes

second stage operation on setpoint changes.

TIME

FWD

Enables Remote Sensor A (connected to SA).

TIME

FWD

REMT SEN A

(OFF) ON

Enables Remote Sensor B (connected to SA).

TIME

FWD

REMT SEN B

(OFF) ON

Enables Remote Sensor C (connected to SA).

TIME

FWD

REMT SEN C

(OFF) ON

14 STAT SEN L

(ON) OFF

OFF Disables Thermostat Sensor. (Only available if

remote sensor A, B, or C is connected).

TIME

FWD

Enables outdoor temperature sensor. Requires optional

F145-1378 outdoor sensor.

TIME

FWD

TEMP OUT

(OFF) ON

9&10

CONFIGURATION MENU

FEATURES

AdjustableTemperature Display.

(User menu, Item 1), The room

temperature display can be adjusted to

read higher or lower by following the

User menu and adjusting the tempera-

ture to a higher or lower value. The

thermostat is calibrated at the factory to

display a very accurate room tempera-

ture, but due to various conditions and/

or personal preference, you may wish to

adjust the thermostat display higher or

lower (up to 5°F). For example, if the

thermostat displays a room temperature

of 70°and you want it to display 73°the

display can be adjusted to read 73°. To

adjust,referto theCONFIGURATION

section (page 5, step 1).

Selectable Energy Management

Recovery (EMR).

(User menu, Step 2) EMR causes the

thermostat to start operating the system

early in order to make the building

temperature reach your program

setpoint at the time you specify. In

multistage heating, the thermostat will

start 8 minutes early for every 1°F

difference between the room tempera-

ture and the next programmed

temperature. In cooling and heat pump

applications, the thermostat uses 15

minutes per °F. For heating applica-

tions in large buildings where extra

time to reach the set temperature may

be desired, EMR Long may be selected.

When EMR ON L is selected in the

user menu (page 5, item 2) the

thermostat uses 15 minutes per °F.

EXAMPLE: If the temperature in the

room is 65°F and the thermostat is

programmed for 70°F at 7AM, the

thermostat will start approximately 40

minutes early. The difference between the

room temperature (65°F) and the setpoint

(70°F) is 5°and 5°X 8 minutes per °F =

40 minutes. The setpoint on the display

will actually change to display 70°about

40 minutes early. The maximum time the

thermostat can start early in heating is 75

minutes (or 3 hours,45 minutes if EMR

ONLisselected).Themaximumtime in

coolingandheatpumpapplications is 3

hours and 45 minutes. Cooling or heat

pumpapplicationsstartearlierbecauseit

takeslongertoreachthedesiredtempera-

ture.Thisfeaturealsominimizestheuseof

theauxiliarystagesifconditionsaresuch

thatthecompressorstagesareadequateto

reachthedesiredsetpoint.

Toselectordeselectthisfeature,refertothe

CONFIGURATIONsection(page4,step

2).

AdjustableHumidityDisplay(RH)

(User Menu step 3) The room

humidity display can be adjusted to

read higher or lower by following the

configuration menu and adjusting the

humidity to a higher or lower value.

The thermostat is calibrated at the

factory to display a very accurate

room humidity, but due to various

conditions and/or personal preference,

you may wish to adjust the thermostat

display higher or lower (up to +/-

20%). For example, if the thermostat

displays room humidity of 40% but

you want it to display 43% you can

adjust it. To adjust, refer to the

CONFIGURATION section (page 4,

step 3).

ProgrammableAutomatic

Humidity Reduction (DRY)

(User Menu step 4) This feature

automatically lowers humidity setting

when the outside temperature drops.

This is to prevent the interior windows/

walls from reaching the dew point

where water condenses on surfaces. To

achieve automatic humidity reduction,

the thermostat lowers the humidity

when furnace cycles are long.When the

furnace runs shorter cycles, it increases

humidity. For suggested settings see

table below.

ProgrammableDehumidification

OptimalComfort Mode(OPTM

CMFT)

(User Menu step 5)When turned on

this feature automatically reduces

indoor humidity during calls for

cooling if humidity is 2% above setting.

Humidity is set by pressing the

Humidity button when in the appropri-

ate mode, in this case Cooling, and

pressing the or buttons to

set desired humidity (range 40 to 95)

level followed by pressing Run

Program. This dehumidification feature

uses less energy by maintaining

temperature and dehumidifying only

when a call for Cooling is required.

Fahrenheit or Celsius

Temperature Display.

(User menu, Step 6) This thermostat is

factory set to display temperature in

Fahrenheit. If you prefer, you may

configure the thermostat to display

Celsius. See the CONFIGURATION

Section, page 4.

Configuration

Single Period Fan Control.

(User menu, Step 7) This feature

allows you to have the fan run for a

predetermined period of time by

pressing the FAN key twice within 1.5

seconds. If a time is set in the User

menu (page 4, step 8) the display will

show FAN, # hrs and PRG FAN ON

forsix seconds.After six secondsthe

displaywill continue to indicatePRG

FAN ON for the time period selected.

After this timeperiod,thefanwillreturn

tonormal operation.Toreturnthefan to

normaloperationbeforetheend ofthe

timeperiod, presstheFANbutton.

Beeper on.

(Usermenu,Step 8)Thethermostathas

abeeper thatwillemita tonewhenany

keyis pressed.Intheuser menu,the

BEEPfeaturecanbeturned OFFusing

or toprovidesilentkey

operation.

Heat Fast.

(Usermenu,Step 9)Thisfeature,when

setto ON,willbringthe secondstageof

heatingonanytimeyoumanuallyraise

thetemperaturethreeormoredegrees

aboveroom temperature.IfHEATFAST

issettoOFF,thethermostatwilldelay the

secondstage from0to30 minutesbased

onhow wellthefirst stageiskeepingup

withyoursetting.

Cool Fast.

(User menu, Step 10) This feature,

when set to ON, will bring the second

stage of cooling on any time you

manually lower the temperature three

or more degrees below room tempera-

ture. If COOL FAST is set to OFF,

the thermostat will delay the second

stage from 0 to 30 minutes based on

how well the first stage is keeping up

with your setting.

Optional Remote Temperature

Sense.

(User menu, Step 11,12,13,14) Up to

three remote sensors (F145-1328) can

be attached to this thermostat to sense

indoor temperature at locations away

from the thermostat. Each sensor may

be located as far as 300 feet away from

the thermostat. This is an excellent

feature if the thermostat is in a poor

location for sensing temperature or if

you want to install the thermostat in a

separate room to prevent tampering.

After installing and connecting the

remote sensor(s) to the thermostat, the

installer can enable each remote indoor

temperature sensor (A, B, and/or C).

When operating with remote sensor(s),

the thermostat will calculate an

average of the sensed temperatures in

all enabled sensor locations (A, B, C

and/or L), then display the average

Tabla de contenidos

Otros manuales de Termostato de White Rodgers

White Rodgers

White Rodgers 1F95W-80 Manual de usuario

White Rodgers

White Rodgers 1F85-0477 Manual de usuario

White Rodgers

White Rodgers Comfort-Set 1F95-371 Manual de usuario

White Rodgers

White Rodgers 1F80-24 Manual de usuario

White Rodgers

White Rodgers 1F72-151 Manual de usuario

White Rodgers

White Rodgers 1F86-344 Manual de usuario

White Rodgers

White Rodgers 1C21 Manual de usuario

White Rodgers

White Rodgers 1F82-261 Manual de usuario

White Rodgers

White Rodgers 1F92 Manual de usuario

White Rodgers

White Rodgers 1F82-261 Manual de usuario

White Rodgers

White Rodgers 1F90-51 Manual de usuario

White Rodgers

White Rodgers 1F88-270 Manual de usuario

White Rodgers

White Rodgers NP100 Diagrama de cableado

White Rodgers

White Rodgers 1F90W-71 Manual de usuario

White Rodgers

White Rodgers 1F95-391 Manual de usuario

White Rodgers

White Rodgers 1.00E+78 Manual de usuario

White Rodgers

White Rodgers 90 SERIES Manual de usuario

White Rodgers

White Rodgers COMFORT-SET 90 SERIES Manual de usuario

White Rodgers

White Rodgers 1E30N-910 Manual de usuario

White Rodgers

White Rodgers 1F80ST-0471 Manual de usuario

White Rodgers

White Rodgers 1F95-1291 Manual de usuario

White Rodgers

White Rodgers 1F85-275 Manual de usuario

White Rodgers

White Rodgers 1F86-444 Manual de usuario

White Rodgers

White Rodgers NP110 Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
