WHISPER KOOL Platinum Split Version 4 Manual de usuario

PLATINUM SPLIT

VERSION 4

TECHNICIAN’S MANUAL

The Coolest Thing In Wine Storage

with regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws of

the USA. Under copyright laws, this manual may not be copied, reproduced, translated, transmitted, or reduced to any

printed or electronic medium or to any machine-readable form, for any purpose, in whole or in part, without the written

consent of WhisperKOOL.

Every effort has been made to ensure that the information in this manual is accurate. WhisperKOOL is not responsible for

printing or clerical errors.

WhisperKOOL reserves the right to make corrections or improvements to the information provided and to the related

hardware at any time, without notice.

Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a

recommendation. WhisperKOOL assumes no liability with regard to the performance or use of these products.

We manufacture, test and certify 100% of our wine cooling units in

the USA. By sourcing the best components and closely controlling our

manufacturing processes, we can assure the highest-quality,

lowest defect manufacturing rates in the industry.

Conforms to ANSI/UL Std 427

Certied to CAN/CSA Std C22.2 No. 120

TABLE OF CONTENTS

Introduction ............................................................. 2

Quick Start Guide ........................................................ 3

Before You Start .......................................................... 4

Receiving & Inspecting the System ........................................ 5

Quick Reference Guide

Evaporator Unit........................................................ 6

4000 Wall-Mounted Unit Specications ...................................7

4000 Fully Ducted Unit Specications.................................... 8

8000 Wall-Mounted Unit Specications.....................................9

8000 Fully Ducted Unit Specications .....................................10

Evaporator Installation

Items to Route before Installing the Evaporator Unit ..................... 12

Preparing the Wall-Mounted Evaporator Unit............................ 13

Installing the Wall-Mounted Evaporator Unit ............................ 14

Preparing the Fully Ducted Evaporator Unit ............................. 16

Installing the Fully Ducted Evaporator Unit.............................. 17

Drain Line................................................................ 18

Liquid-Measuring Thermostat (Bottle Probe)............................... 19

Remote Display Installation............................................... 20

Wiring Diagrams

Platinum Split Evaporator.............................................. 26

4000/8000 Condensing Unit ........................................... 27

Copeland Cold Weather Start Kit ....................................... 28

Preparing the Condensing Unit ........................................... 29

Installing the Condensing Unit ............................................ 30

Line Set Piping Diagram .................................................. 35

Installing the Ducted Plenum ............................................. 38

System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Controller Functions...................................................... 41

WhisperKOOL Troubleshooting Guide ..................................... 47

Maintenance Schedule ................................................... 49

Bypass Test Procedure .................................................... 51

Technical Assistance & Accessories ........................................ 52

Installation Terms and Conditions ......................................... 53

Page 2 | 1-800-343-9463 PS 021319

WARRANTY REGISTRATION

In order to activate the warranty of your system, the verication and operational

documentation must be completed by the certied refrigeration technician

installing your system and submitted via mail, fax, or e-mail.

Mail to:

WhisperKOOL

ATTN: Warranty Registration

1738 E. Alpine Avenue

Stockton, CA 95205-2505

USA

Fax to:

209-466-4606

Scan and email to:

[email protected]

INTRODUCTION

Customer Service

Thank you for purchasing a WhisperKOOL cooling system. We strive to provide the highest-quality products and the best

possible customer service. If you have any questions about your system, please call us at 1-800-343-9463 or visit

WhisperKOOL.com.

Using the Manual

This manual is intended to assist in the proper maintenance of the cooling system. In order to ensure the longevity of your

cooling unit, the equipment should be installed as outlined in the technician’s manual. It is also vital to establish a proper care

and maintenance schedule. Please read and review this manual carefully and keep it for future reference.

What is the WhisperKOOL Cooling System?

The WhisperKOOL cooling system is a specialized refrigeration system designed for one purpose only: to maintain the optimal

temperature and humidity levels conducive to the proper storage and aging of ne wines. This system produces minimal in-cellar

noise and has the most lenient exhaust requirements. An exterior housing is required for outdoor condensing unit installations.

How Does the Cooling System Work?

Similar to the air conditioning systems used for homes, the evaporator unit and condensing units are installed in separate

locations and are connected by a refrigerant line set. The evaporator portion is commonly installed in the wine cellar, with the

condensing unit is located either outside or in a remote indoor location that is ventilated. An exterior housing is required for

outdoor condensing unit installations.

Temperature Setting

The system is designed to maintain a cellar temperature of 55°F as long as the ambient temperature does not exceed 110°F.

www.whisperkool.com | Page 3

Platinum Split

Pump Down Cycle

WhisperKOOL’s split systems operate on a pump down cycle dierent from traditional air conditioners. As such, there is no wiring

between the condensing unit and evaporator unit.

WhisperKOOL units utilize a solenoid valve on the liquid line and a low-pressure switch on the suction line. When the thermostat

calls for cooling, the solenoid valve opens, permitting the ow of refrigerant. The low-pressure switch then signals the compressor

to cycle on.

When the cellar reaches the desired temperature and the thermostat is satised, the solenoid will close, stopping the liquid

refrigerant ow to the TXV valve. The compressor will continue to operate until most of the refrigerant on the low side boils o

and is pumped through the compressor into the condenser coil and receiver. As the suction pressure falls below the pressure

control setting, the low-pressure switch will signal the compressor to cycle o. Most of the refrigerant is now stored between the

condensing unit and receiver.

…………………………………………………………………………………………………

WARNING: Do not utilize a ground fault interrupter, as it will prevent

the unit from drawing the necessary amperage to start the unit.

QUICK START GUIDE*

TXV Adjustments

A. A TXV adjustment may be necessary based on ambient temperatures in the cellar and at the condensing unit.

B. Adjust the TXV until the total superheat measured at the suction line service valve is 20-30°F.

C. Under normal operation, with the wine cellar at 55°F and the ambient temperature at 85°F, the low side pressure should be

between 28-32 PSI and the high side should be between 145-155 PSI.

*Further system operation information is available on page 39.

Liquid Line King Valve

This location is used to charge the system with liquid refrigerant

and identify the high side pressure of the system.

Calculating Subcooling

To determine the subcooling of the system, calculate the dierence

between the high side pressure of the system (converted to

temperature) and the temperature of the liquid line. The temperature

of the liquid line will be taken at the outlet of the receiver.

*Saturation temp — liquid line temp

4-6°F SUBCOOLING REQUIRED FOR WARRANTY APPROVAL

TXV

The TXV is preadjusted at the factory. If the superheat is not within

20-30° at the service valve, the TXV will need to be adjusted.

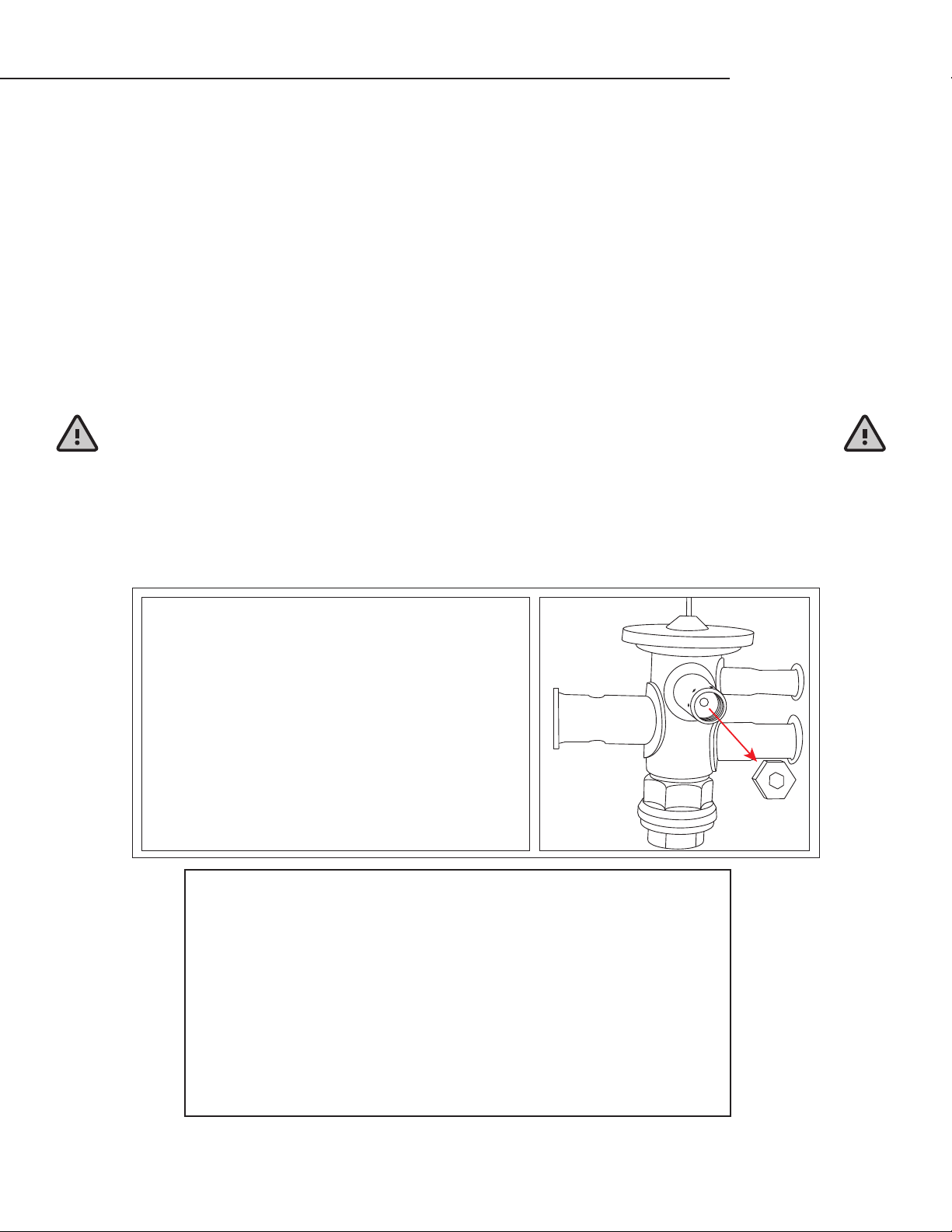

ADJUSTING THE TXV

Use a ⁄” hex key to remove the cap from the TXV superheat

adjustment port. With the cap removed, insert the hex key into

the superheat adjustment port. Increase superheat by turning the

hex key clockwise. Decrease superheat by turning the hex key

counterclockwise.

Page 4 | 1-800-343-9463 PS 021319

BEFORE YOU START 1-800-343-9463

1. Inspect all components prior to installation. If damage is found, please contact your distributor or WhisperKOOL Customer

Service at 1-800-343-9463.

2. The evaporator unit requires a dedicated 115V, 15-amp circuit. The 4000 condenser requires a dedicated 115V, 15-amp

circuit. The 8000 condenser requires a dedicated 115V, 20-amp circuit. Use a surge protector with the unit. Do not use a

GFI (ground fault interrupter) line.

3. No communication cable is required between the evaporator and condensing unit.

4. You are REQUIRED to install a drain line to remove condensation from the evaporator unit.

5. The warranty is not active until a warranty checklist has been received, reviewed, and approved.

6. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine storage

consultant with a valid contractor’s license to build your wine cellar.

7. WhisperKOOL requires that all split systems be installed by a certified HVAC-R technician only. NATE or equivalent is

recommended.

If you encounter a problem with your WhisperKOOL system, please refer to the Troubleshooting Guide. If you have any further

questions or concerns, or need assistance, please contact WhisperKOOL’s Customer Service at 1-800-343-9463. Please be sure all

testing has been completed prior to contacting Customer Service. Please have your results ready for your representative.

www.whisperkool.com | Page 5

Platinum Split

• (2) ½” x ½” nylon barbed tting

• (1) ½” barbed tee

• (1) Double-D strain relief

• (4) ¾” adhesive cable tie mounts

• (2) Small cable ties

• (4) #8 x 1¾” hex-head screws

RECEIVING & INSPECTING THE SYSTEM

Please leave the unit in its original box until you are ready for installation. This will allow you to move the product safely without

damaging it. When you are ready to remove the product from the box, refer to the installation instructions.

TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.

(1) Filter grille

(1) Duct plenum

Wall-Mounted Accessory Kit

Ducted Accessory Kit

(1) Platinum Split evaporator

unit

(1) Condensing unit

Main Evaporator Box

Main Condensing Unit Box

• Use caution when lifting and check package for damage.

• Lift only at the designated hand-hold locations on the shipping container, or fully support the unit from underneath. A

shipment may include one or more boxes containing accessories.

• Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.

• Write any discrepancy or visual damage on the bill of lading before signing.

• Allow the condensing unit to sit for 24 hours prior to start-up. The condensing unit can be placed in the installation

location, piped, and evacuated during this time.

NOTE: WhisperKOOL units are manufactured in the USA and tested prior to shipment.

• Review the packing slip to verify contents.

• Check the model number to ensure it is correct.

• Check that all factory options ordered are listed.

If any items listed on the packing slip do not match your order information,

contact WhisperKOOL Customer Service immediately.

Check all shipped boxes for the following contents:

Documentation bag:

• Platinum Split Version 3 owner’s manual

• Platinum Split Version 3 technician’s manual

• R-134a split system warranty checklist

Condensing unit accessory kit:

• (1) Filter drier

• (1) Sight glass

• Retractable bottle probe

• Stainless steel bottle probe (50-ft cord)

(1) Platinum Evaporator Wall-Mounting Template

Accessory kit bag:

• KDT Plus display cable (50 feet)

• KDT Plus wall mount bracket assembly

• KDT Plus ush mount bracket assembly

• KDT Plus display assembly

• Flush mount template

• Black strain relief bushing

• Evaporator installation hardware bag

• KDT Plus hardware bag

• (1) ⁄” OD grommet

• (2) ½” nylon hole plugs

• (4) #6 x 1” PHP zinc Type A screws

• (4) 8-10 x ⁄” blue plastic screw anchors

Page 6 | 1-800-343-9463 PS 021319

QUICK REFERENCE GUIDE

Filter grille

Evaporator unit

INSIDE CELLAR

Option 2

THROUGH THE WALL

Option 1

Knockout for wiring

Knockout for drain line

Line set knockout

Mounting keyholes (4)

Line set knockout

Knockout for drain line

Front / Side View

Rear / Side View

REAR VIEW

www.whisperkool.com | Page 7

Platinum Split

WALL-MOUNTED UNIT SPECIFICATIONS

Model 4000 Evaporator

(Fan Coil Unit)

4000 Condenser

(Air-Cooled Condensing Unit)

Cellar Size Approx. 1000 cu. ft., provided cellar is fully insulated and sealed with proper vapor barrier*

BTU/h w/85°F air

entering condenser coil 3650

Dimensions 16.1”L x 20.5”W x 15.5”H 16.08”L x 16.23”W x 12.61”H

Refrigerant R-134a

HP 1.43

Voltage Rating 115V (15-amp dedicated circuit required) 115V (15-amp dedicated circuit required)

Weight (lbs) 57 56

Amps Evaporator: 1 (running amps), compressor: LRA 43, RLA 8

Line Set Liquid line: ¼" ; suction line: ½" (less than 50 ft.), ⁄" (greater than 50 ft.)

Drain Line ½”ID clear plastic tubing (not provided)

Installation Evaporator unit is installed in the cellar. Condensing unit is installed up to 100 feet from evaporator

unit. Allow for adequate airow.

Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable)

Temp. Delta Can maintain a 55°F temperature dierential with up to 110°F condenser air intake temperature

Warranty Two-year limited warranty (parts and labor)

Filter grille

Evaporator unit

*Each cellar is unique and has specic cooling requirements. Heat load calculations should always be performed prior to selecting a cooling unit.

Page 8 | 1-800-343-9463 PS 021319

FULLY DUCTED UNIT SPECIFICATIONS

Model 4000 Evaporator

(Fan Coil Unit)

4000 Condenser

(Air-Cooled Condensing Unit)

Cellar Size Approx. 1000 cu. ft., provided cellar is fully insulated and sealed with proper vapor barrier*

BTU/h w/85°F air

entering condenser coil 3120

Dimensions 20”L x 20.5”W x 15.5”H 16.08”L x 16.23”W x 12.61”H

Refrigerant R-134a

HP 1.22

Voltage Rating 115V (15-amp dedicated circuit required) 115V (15-amp dedicated circuit required)

Weight (lbs) 57 56

Amps Evaporator: 1 (running amps), compressor: LRA 43, RLA 8

Line Set Liquid line: ¼" ; suction line: ½" (less than 50 ft.), ⁄" (greater than 50 ft.)

Duct Size 8" supply, 10" return

Drain Line ½”ID clear plastic tubing (not provided)

Installation Evaporator can be installed up to 25 duct feet away from cellar. Condensing unit can be installed up to

100 line feet from evaporator unit.

Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)

Temp. Delta Can maintain a 55°F temperature dierential with up to 110°F condenser air intake temperature

Warranty Two-year limited warranty (parts and labor)

Duct plenum

Return air

Supply air

*Each cellar is unique and has specic cooling requirements. Heat load calculations should always be performed prior to selecting a cooling unit.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enfriador de vino de WHISPER KOOL

WHISPER KOOL

WHISPER KOOL Extreme Platinum Series Manual de usuario

WHISPER KOOL

WHISPER KOOL Slimline 2500 Manual de usuario

WHISPER KOOL

WHISPER KOOL Slimline 2500 Manual de usuario

WHISPER KOOL

WHISPER KOOL Ceiling Mount H.E. CM4000 Manual de usuario

WHISPER KOOL

WHISPER KOOL PLATINUM MINI Manual de usuario

WHISPER KOOL

WHISPER KOOL Mini Split Manual de usuario

WHISPER KOOL

WHISPER KOOL Extreme 3500 ti Manual de usuario

WHISPER KOOL

WHISPER KOOL Platinum Split Instrucciones de montaje

WHISPER KOOL

WHISPER KOOL 2000i Manual de usuario

WHISPER KOOL

WHISPER KOOL Slimline 2500 Manual de usuario

WHISPER KOOL

WHISPER KOOL SC PRO Series Manual de usuario

WHISPER KOOL

WHISPER KOOL Self-Contained Extreme Ti Manual de usuario

WHISPER KOOL

WHISPER KOOL QUANTUM Series Manual de usuario

WHISPER KOOL

WHISPER KOOL Mini Platinum Split H.E. PSMINI Manual de usuario

WHISPER KOOL

WHISPER KOOL Ceiling Mount 4000 Instrucciones de instalación y funcionamiento

WHISPER KOOL

WHISPER KOOL Mini Split Manual de usuario

WHISPER KOOL

WHISPER KOOL Platinum Split H.E. PS4000 Manual de usuario

WHISPER KOOL

WHISPER KOOL CEILING MOUNT 8000 H.E. Manual de usuario

WHISPER KOOL

WHISPER KOOL PLATINUM 8000ti Manual de usuario

WHISPER KOOL

WHISPER KOOL 17-1103 Manual de usuario

WHISPER KOOL

WHISPER KOOL EXTREME 5000TIR Manual de usuario

WHISPER KOOL

WHISPER KOOL SC Series Manual de usuario

WHISPER KOOL

WHISPER KOOL SLIMLINE LS Manual de usuario

WHISPER KOOL

WHISPER KOOL SS4000 Manual de usuario

Manuales populares de Enfriador de vino de otras marcas

U-Line

U-Line Echelon Wine Captain 2075WC Manual del propietario

Haier

Haier WS50GA Manual de usuario

Cavist

Cavist 62 Manual de usuario

Kenmore

Kenmore 461.99130 Manual de usuario

Miele

Miele KWT 6422 iG Manual de usuario

Danby

Danby DWC113BLSDB Manual de usuario

Caple

Caple Wi6128 Manual de usuario

Avanti

Avanti WC1001 Manual de usuario

Frigidaire

Frigidaire FFWC38F6LS Manual de usuario

Titan

Titan TT-W2454SZ Manual de instalación

Klarstein

Klarstein Botella 166 Uno Manual de usuario

Costway

Costway FP10130WL Manual de usuario

Lemair

Lemair LWC59 Manual de usuario

Haier

Haier JC-125GEA Manual de usuario

Caple

Caple WCi46B Manual de usuario

Climadiff

Climadiff CLI24 Guía rápida

Viking

Viking VCWB301LSS Manual de usuario

Caple

Caple WC6511 Manual de usuario
