Whispbar K781W Manual de usuario
K781W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 1 x 1 x 1 x 1
x 2 x 2 x 2 x 2
x 2 x 2 x 2 x 2
Revision No: 4D 1
Fitting Kit K781W
MAX kgs (lbs)
W/P WHD
Holden
Insignia VXR, 4dr Sedan 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Insignia, 4dr Sedan 09-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Insignia, 4dr Sedan Oct 12-13 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Vauxhall
Insignia, 4dr Sedan 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Insignia, 5dr Hatch 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Opel
Insignia, 4dr Sedan Oct 08-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Insignia, 5dr Hatch 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Buick
Regal, 5dr Hatch 09-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Regal, 5dr Hatch 09-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K781W
X
A B C 1 2 3
Insignia VXR, 4dr Sedan 15-+ (AU) -415mm 280mm - 910mm 850mm -
-16 -5/16ths" 11" - 35 13/16ths" 33 7/16ths" -
Insignia, 4dr Sedan 09-+ (NZ) -415mm 280mm - 910mm 850mm -
-16 -5/16ths" 11" - 35 13/16ths" 33 7/16ths" -
Insignia, 4dr Sedan 09-+ (EU) -415mm 280mm - 910mm 850mm -
-16 -5/16ths" 11" - 35 13/16ths" 33 7/16ths" -
Insignia, 4dr Sedan Oct 08-+ (EU) -415mm 280mm - 910mm 850mm -
-16 -5/16ths" 11" - 35 13/16ths" 33 7/16ths" -
Insignia, 4dr Sedan Oct 12-13 (AU) -415mm 280mm - 910mm 850mm -
-16 -5/16ths" 11" - 35 13/16ths" 33 7/16ths" -
Insignia, 5dr Hatch 09-+ (EU) -415mm 280mm - 905mm 850mm -
-16 -5/16ths" 11" - 35 5/8ths" 33 7/16ths" -
Insignia, 5dr Hatch 09-+ (EU) -415mm 280mm - 905mm 850mm -
-16 -5/16ths" 11" - 35 5/8ths" 33 7/16ths" -
Regal, 5dr Hatch 09-+ (CN) -415mm 280mm - 905mm 850mm -
-16 -5/16ths" 11" - 35 5/8ths" 33 7/16ths" -
Regal, 5dr Hatch 09-+ (CN) -415mm 280mm - 905mm 850mm -
-16 -5/16ths" 11" - 35 5/8ths" 33 7/16ths" -
3
Fitting Kit EN
K781W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K781W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K781W
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A, B, C, D = Clear
E, F = Grey
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 261A
B = 262A
C = 263A
D = 264A
6
Fitting Kit EN
K781W
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K781W

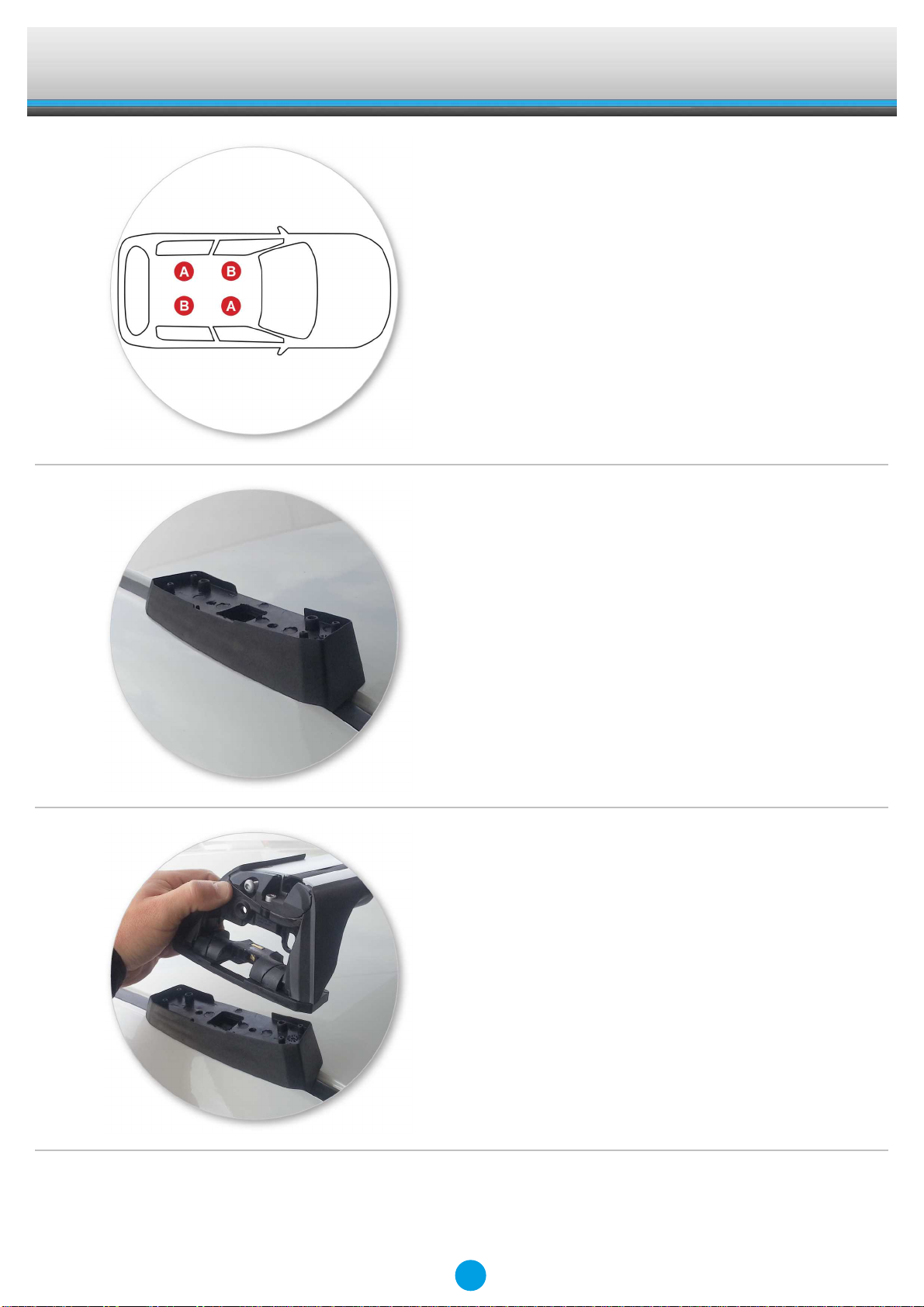

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 295A
B = 296A
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8
Fitting Kit EN
K781W
Fitment

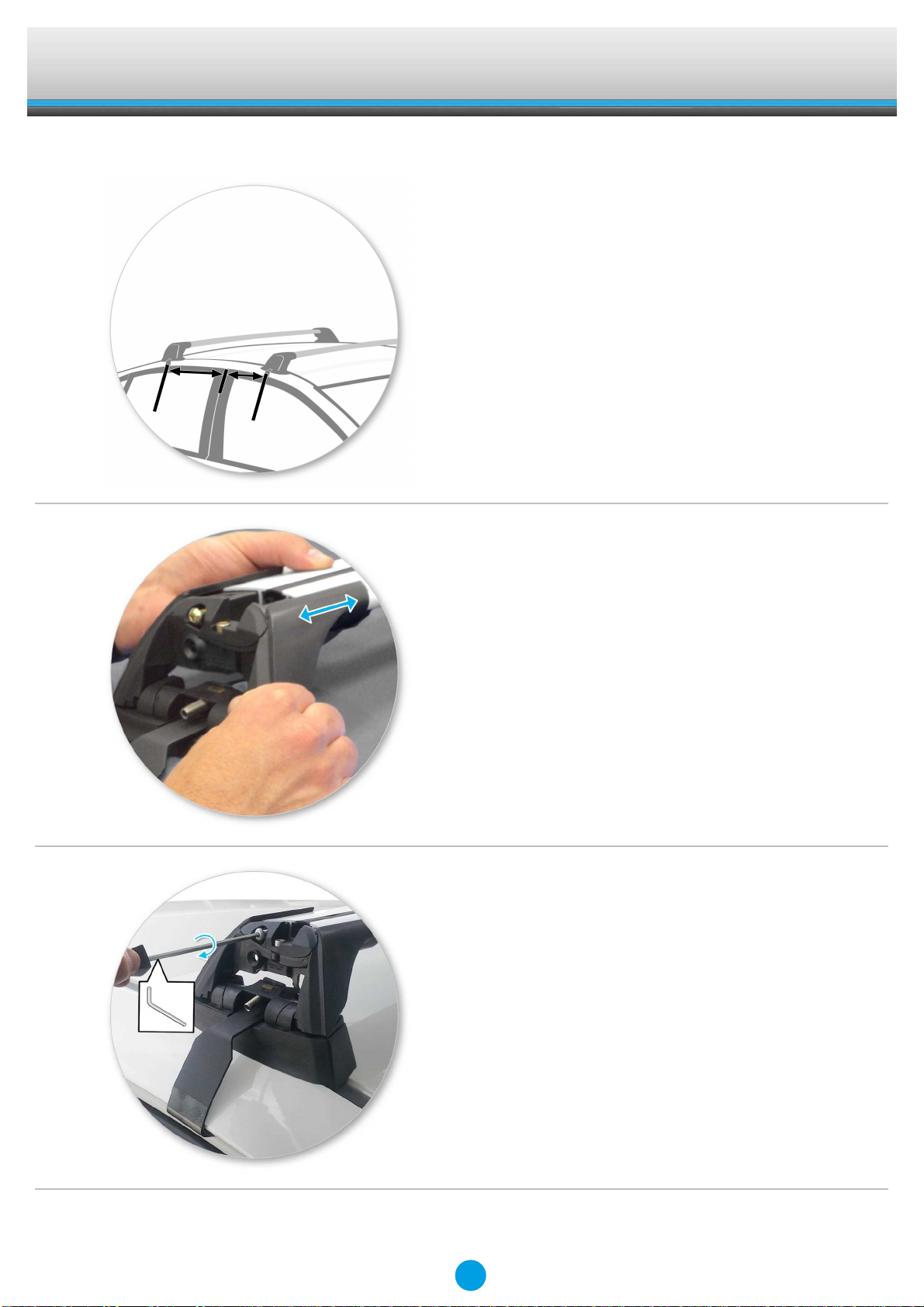

●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
9
Fitting Kit EN
K781W
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
