Whirlpool WTW5300SQ2 Manual de usuario

TOP AND CABINET PARTS

For Model: WTW5300SQ2

(White)

1−08 Litho in U.S.A. (drd) Part No. W10178999 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: WTW5300SQ2

(White)

W10178999

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10150593

Installation

Instructions

W10150601

Feature Sheet

W10150595

Use & Care Guide

8578910 Wiring Diagram

W10165635

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Do−It

Yourself (Washer)

2 8541774 Lid

3 9724509 Bumper, Lid (2)

W10119872

Screw, Lid Hinge

Mounting (4)

5 8318088 Hinge, Lid (L.H.)

6 91770 Hinge, Lid (R.H.)

7 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3362952 Dispenser, Bleach

9 3351614 Screw, Ground

10 8318084 Switch, Lid

11 357213 Nut, Push−In (2)

12 8318064 Top

13 21258 Bearing, Lid

Hinge (2)

14 62750 Spacer, Cabinet

To Top (4)

15 63424 Cabinet

16 3390631 Screw,

10−16 x 3/8 (4)

CONTROLS AND REAR PANEL PARTS

For Model: WTW5300SQ2

(White)

W10178999

CONTROLS AND REAR PANEL PARTS

For Model: WTW5300SQ2

(White)

W10178999

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler

3 8578337 Switch, Water

Temperature

4 3400073 Screw, Ground

5 8568314 Strap, Console (2)

W10153010

Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly (Includes

Items 17 & 27)

9 8546685 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 8577845 Switch, Water Level

13 8544893 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

17 8541668 Clamp, Hose

W10140917

Valve, Water Inlet

W/Vacuum Break

19 8572717 Capacitor,

Motor Start

20 8318046 Clip, Capacitor

21 8541667 Clamp, Hose

22 8519200 Support, Rear

Panel

23 3363366 Clamp, Hose

24 8317496 Clamp, Hose

25 3951449 Hose, Pump To Tub

(Includes Item 23)

26 8055003 Clip, Harness

& Pressure Hose

27 8578801 Panel, Console

28 8271359 Cap, End (R.H.)

29 3400818 Screw, Timer

Mounting

30 8541669 Bucket, Drain Hose

(Left Half)

31 8541658 Bucket, Drain Hose

(Right Half)

32 8566022 Knob, Timer

33 8566018 Dial, Timer

34 8536939 Clip, Knob

35 8565944 Knob, Control

36 388326 Screw, 8−18 x 1.25

(Panel to Top)

37 62863 Screw, 10−16 x 3/8

38 8577378 U−Bend,

Drain Hose

39 3347868 Cable Tie

W10157954

Wiring Harness

(For Detail See

Pages 9 & 10)

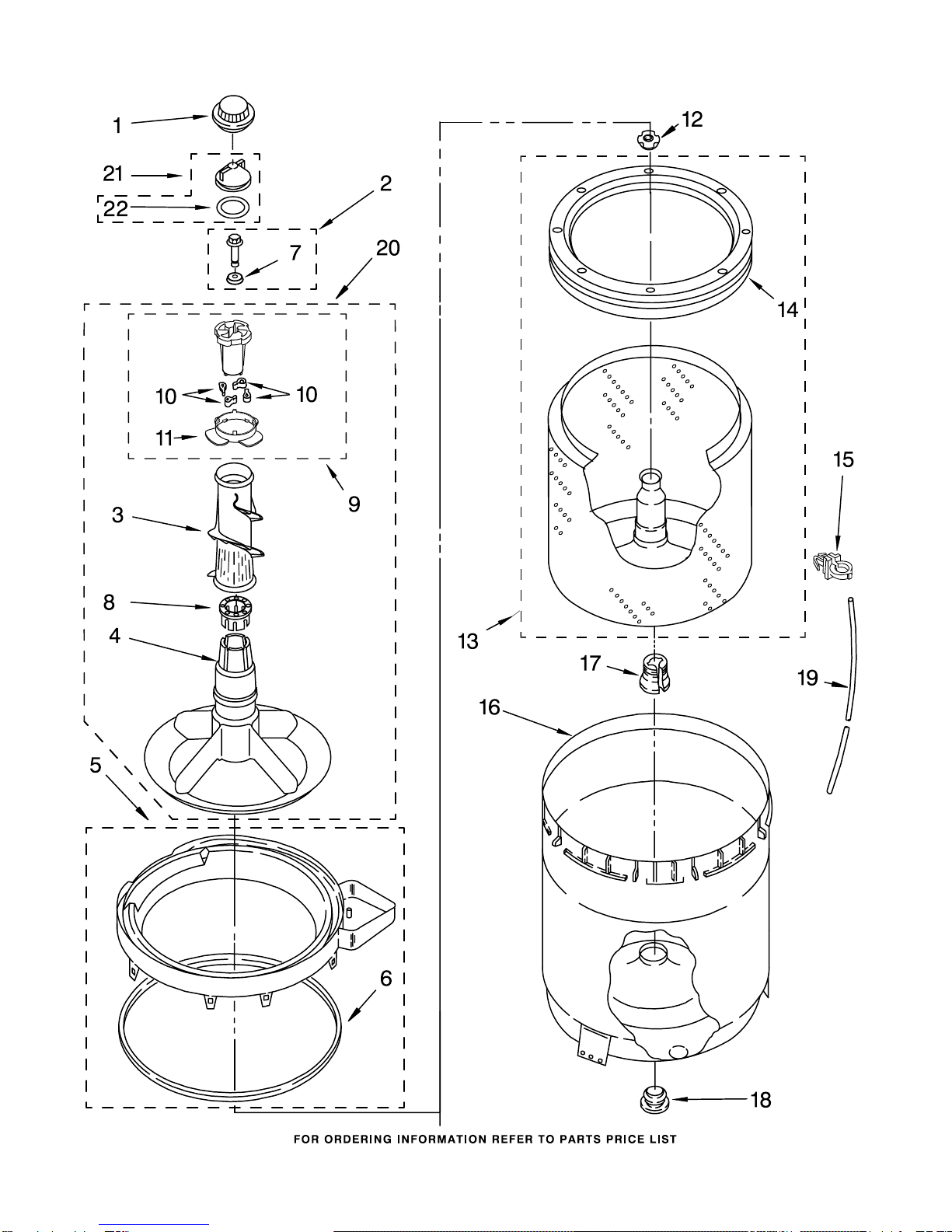

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5300SQ2

(White)

W10178999

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5300SQ2

(White)

W10178999

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3347288 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3949550 Washer

8 3350389 Spacer−Thrust

9 3363663 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3363661 Bearing, Cam

Driven

12 21366 Nut, Spanner

13 8526017 Basket & Balance

Ring

14 8519788 Balance Ring

15 2219077 Clip, Pressure

Switch Hose

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

20 3946501 Agitator

(Complete)

21 3354733 Cap, Barrier

W10072840

Seal−Inner Cap

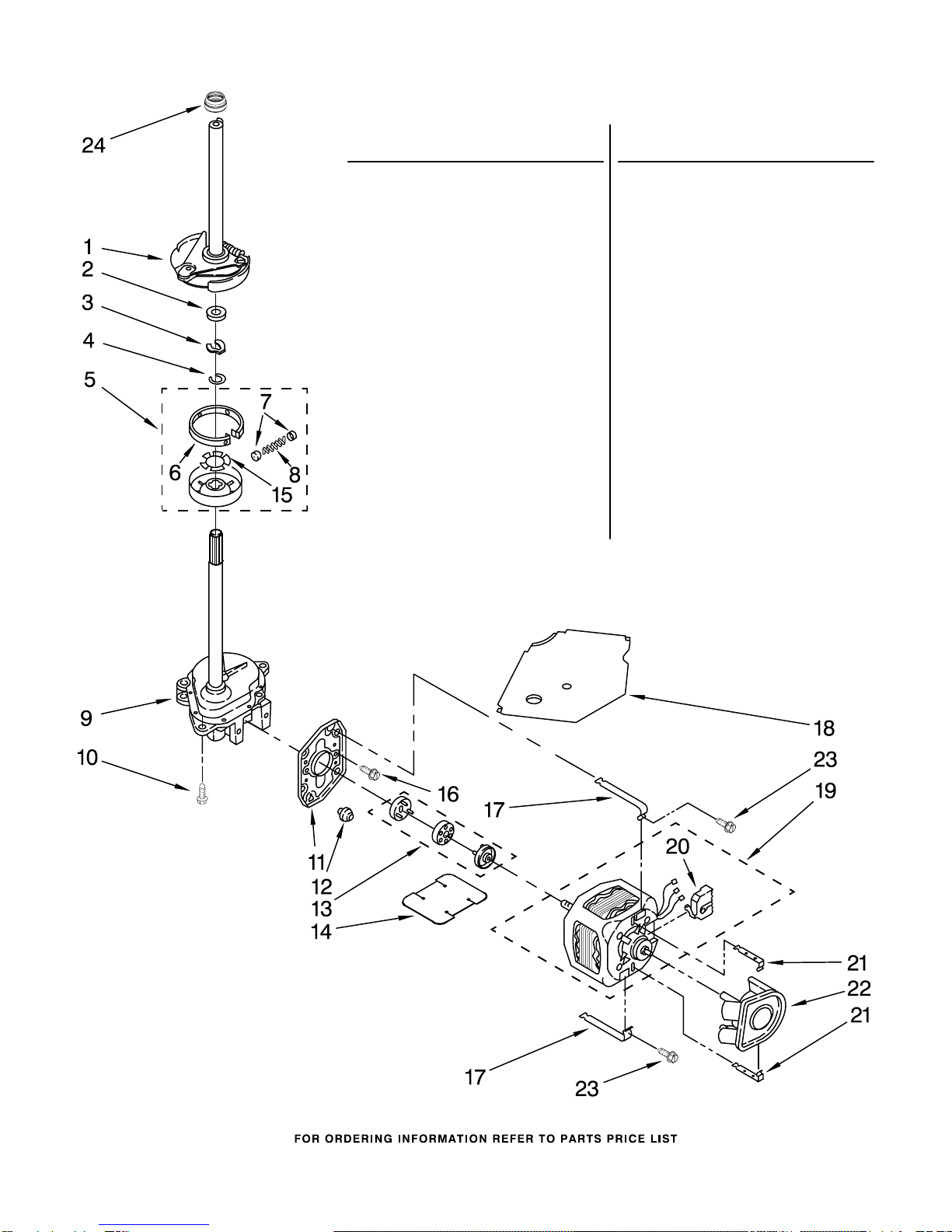

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: WTW5300SQ2

(White)

W10178999

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

14 3946532 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 8577374 Seal

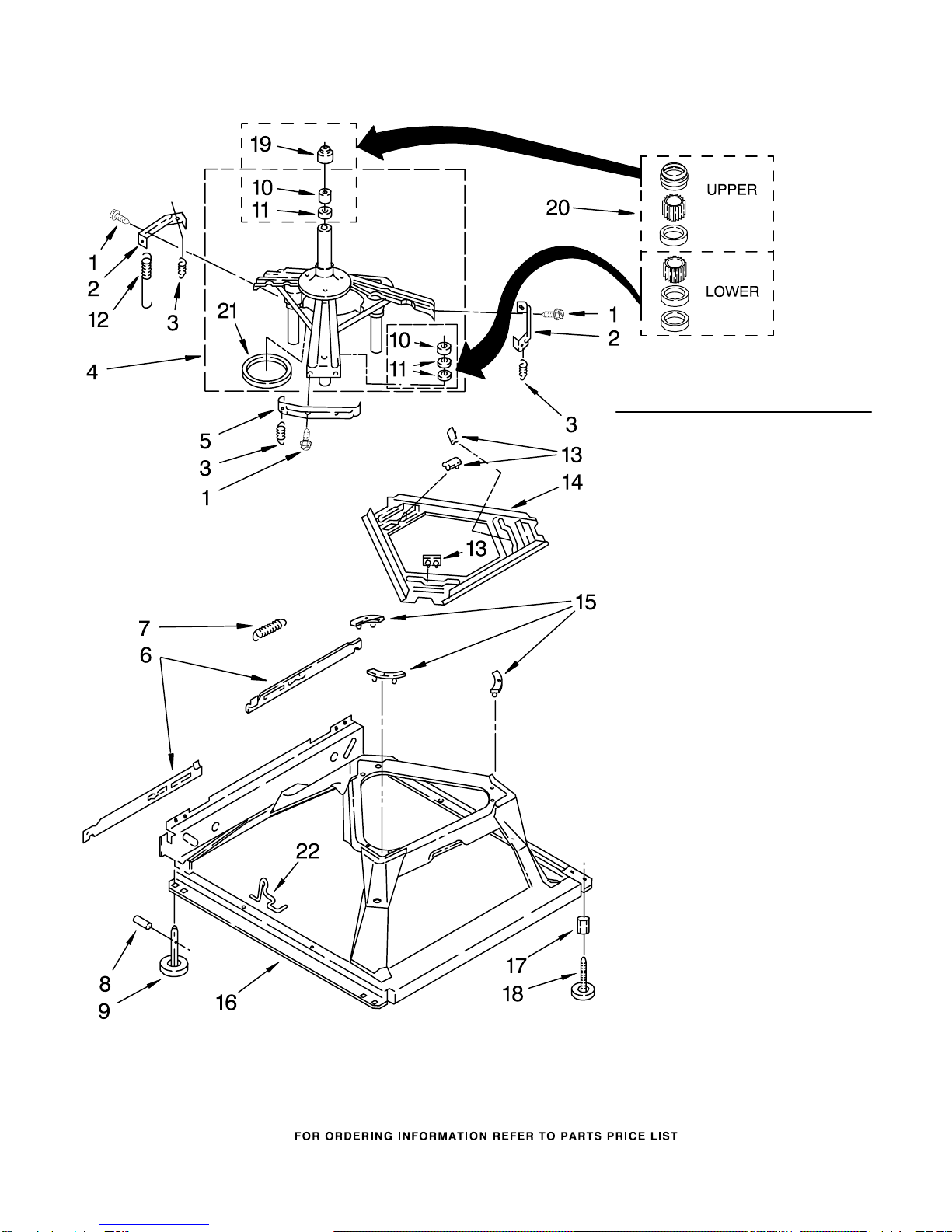

MACHINE BASE PARTS

For Model: WTW5300SQ2

(White)

W10178999

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

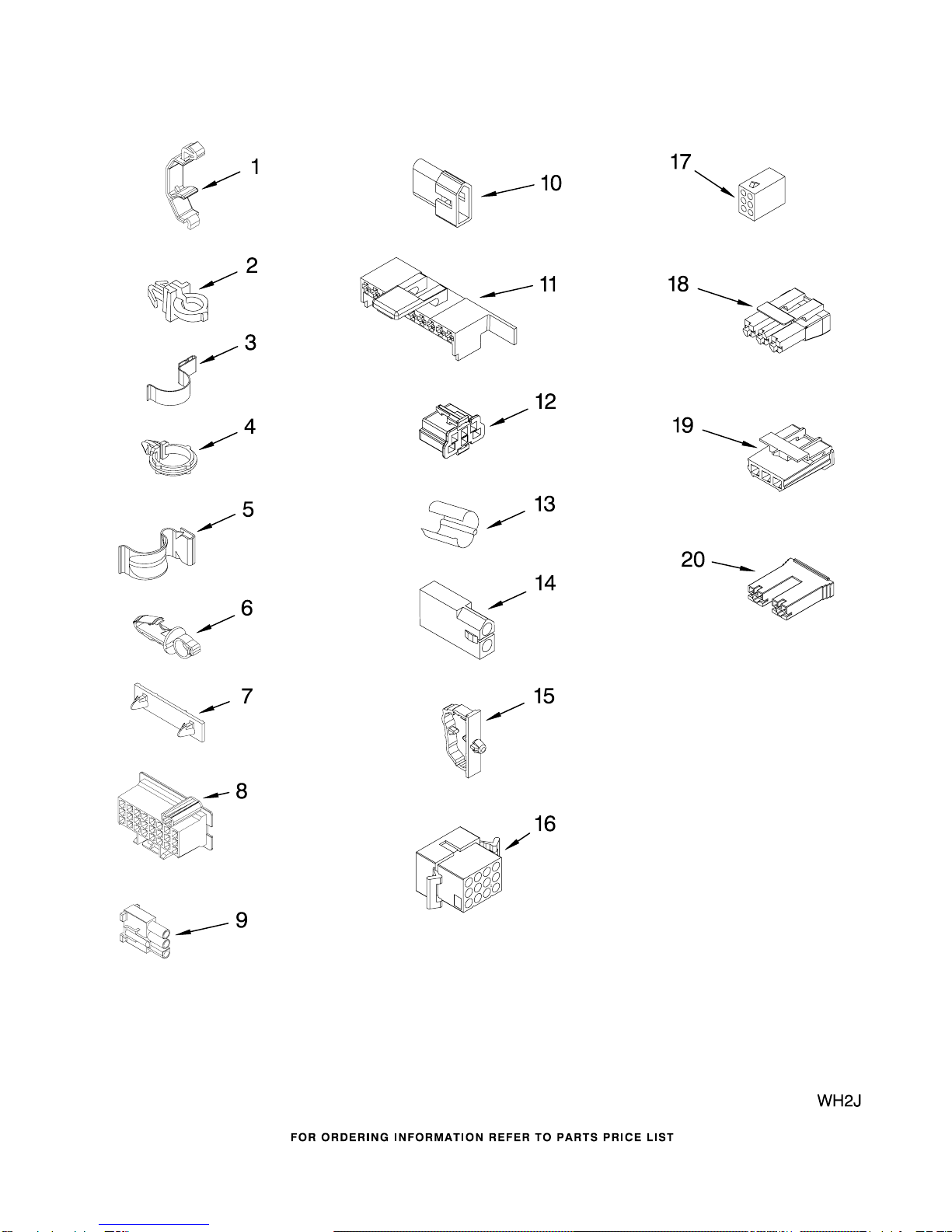

WIRING HARNESS PARTS

For Model: WTW5300SQ2

(White)

W10178999

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: WTW5300SQ2

(White)

W10178999
