Whirlpool LA3800XP Manual de usuario

AUTOMATIC

WASHER

role; Capacity

LA38OOXP

have Ovens, Trash Compactors. Room Au Condltloners. Oehumldlfiers, Automatic Washers, Clothes Oryers. Freezers. Refrigerator-Freeze’

Parts and features

LAUNDRY

INFORMATION

/ CENTER CYCLE

SELECTOR

NUMBER PLATE

1 II AGITATOR

BASKET

TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

Copy your Model and Serial Numbers here

When youneed service or call with a

question, have this information ready:

Model Number

1. Complete Model and Serial Num-

bers (from plate under the lid near the

hinge). Serio, Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty. Service

Company/

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

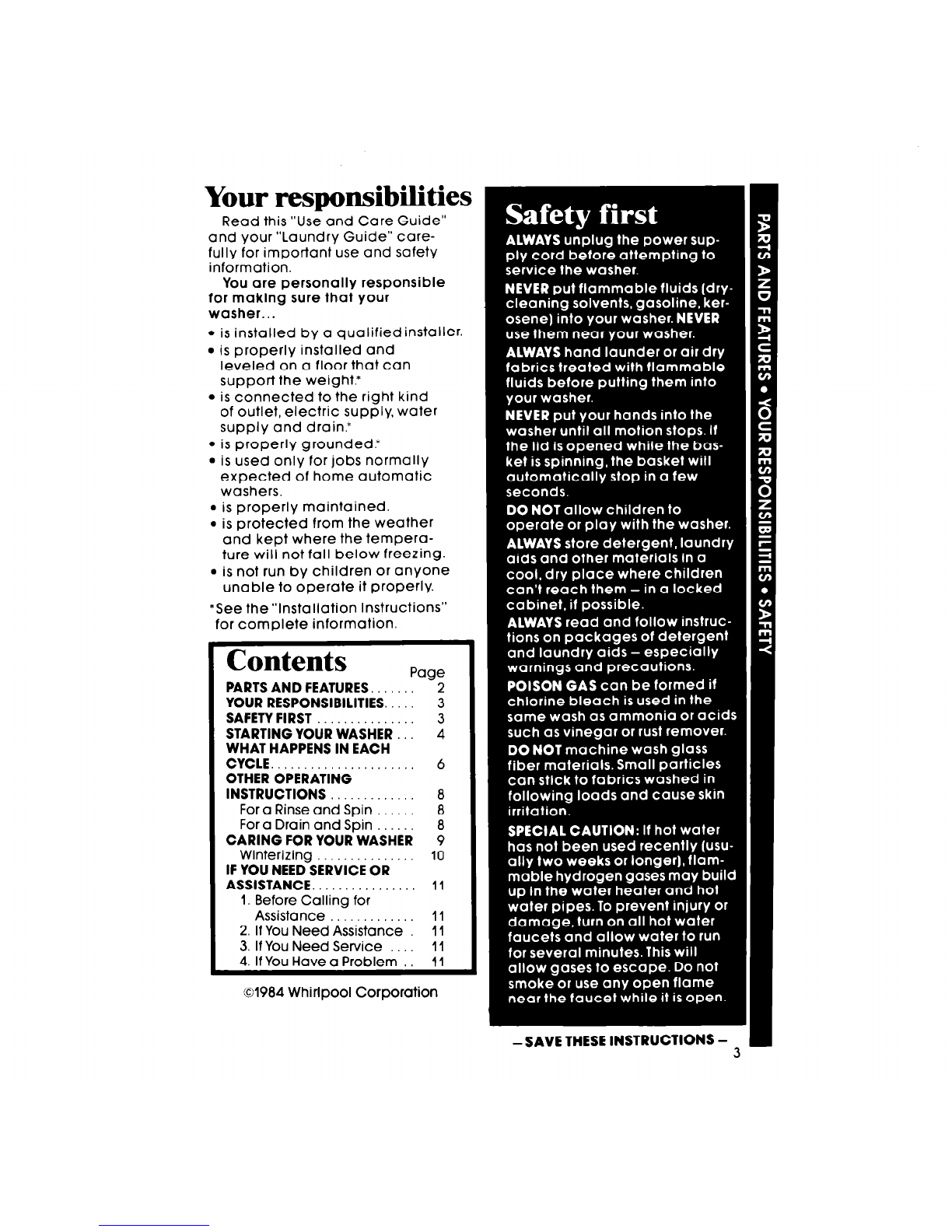

sponsibilitie

‘S

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded.-

. is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the”Installation InStrUCtiOnS”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBtLITIES. 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS 8

ForaRinseandSpin...... 8

For a Drain and Spin 8

CARING FOR YOUR WASHER 9

Winterizing 10

IF YOU NEED SERVICE OR

ASSISTANCE. 11

1. Before Calling for

Assistance 11

2. If You Need Assistance 11

3. If You Need Service 11

4. If You Have a Problem 11

01984 Whirlpool Corporation

-SAVE THESE INSTRUCTIONS - 3

Starting your washer

I. Measure and add detergent

2. Place sorted load in washer.

3. Start washer.

Select CYCLE and WASH TIME;

Start the washer

FILLAREA

A. Push In the Control Knob and turn

lt to the right. It must be pushed in

and turned only clockwise.

C. Start the washer by pulling out

the Control Knob. After filling, the

washer will agitate for the selected

number of minutes.

6. Stop on a number in the cycle youJ

want. The numbers are minutes of

wash time. The drawing shows10

minutes of agitation in the REGULAR

HEAVY Cycle. NOTE: The washer will

fill only when the knob points to a

FILLarea.

D. To stop the washer at any tlme

push In the Control Knob. To

restart the washer, pull out the

Control Knob.

HOT WATER can be selected only

in the REGULAR HEAVY Cycle. Turn the

Control Knob tol2or 14 minutes in the

REGULAR HEAVY Cycle.

All rinses use cold water. This saves

energy and helps prevent wrinkles

from seftlng into fabrics.

To select a

WATER LEVEL

HIGH WATER LEVEL. The washer will LOWER WATER LEVELS. Setting the

automatically fill to its highest level, washer to fill with less water also sets it

(about 20.5 gals.177.6 L),when the for a shorter wash time.

Control Knob points to a FILLarea. 1. Push the Control Knob in and turn it

v clockwise to a FILLarea in the cycle

Be careful to use enough water you want.

for the load. Too big a load or 2. Pull the Control Knob out; the washer

too little water can cause poor will start to fill.

cleaning and wear or tear load 3. When the washer reaches the de-

items. sired water level, push in the Control

For best results, the load should Knob and slowly turn it past the FILL

move freely in the water. Watch area. Pull out the Control Knob to

for rollover. An item (like a sock] start the washer.

should sink and come up again For all rinses, the washer fills to Its

later. highest level with cold water.

To select a

WASH WATER TEMPERATURE

WARM WATER can be selected by

turning the Control Knob to B or10 min-

utes in the REGULAR HEAVY Cycle.

A warm wash is preset in the SHORT

Cycle. Just turn the Control Knob to

the 6 or 8 minute setting in that

CyCle.

What happens in each cycle

Each cycle has been designed for different kinds of fabrics. Numbers on the

dial in each cycle are the minutes of WASH agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

SHORT Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

Use for delicate items that

need a short wash and

soin time. Wash nvlon hose

;

or panty hose in d net

_ laundry bog.

NOTE: You may hear the sound of water spraying during the spin parts

some cycles. In some cycles, cold water is sprayed on the spinning load

with the rinsing.

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any. on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

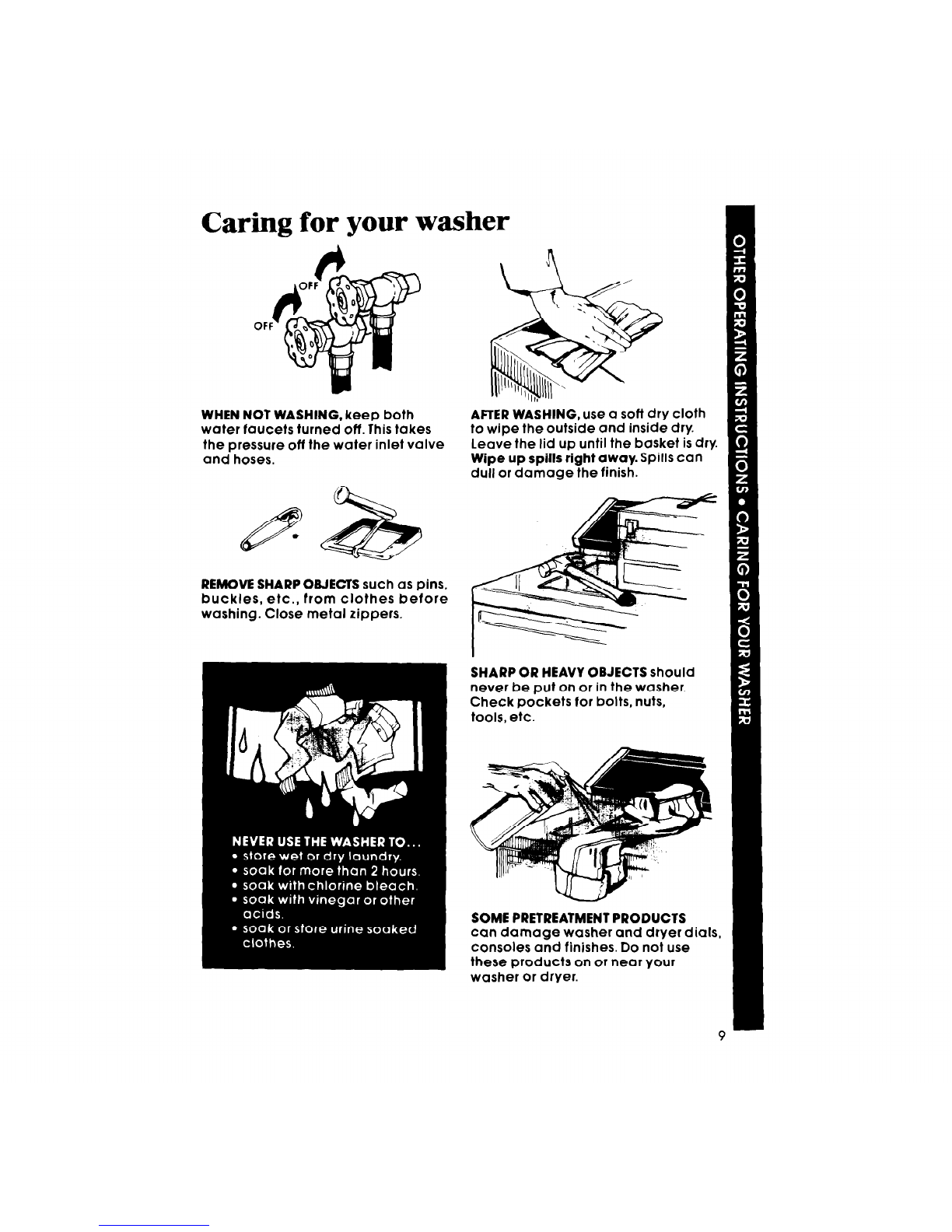

Caring for your w

rasher

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet valve

and hoses.

AFTER WASHING, use a soft dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right away. Spills can

dull or damage the finish.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer dia

consoles and finishes. Do not use

these products on or near your

washer or dryer.

Winterizing

Because some water stays in the washer, freez-

ing can cause a lot of damage. If your washer is

stored or moved during the cold weather

1. Shut off both water

faucets. Discon-

nect and drain

water inlet hoses,

2. Put a quart of

automobile-type

antifreeze in the

basket.

3. Set the washer for a

DRAIN and SPIN

[see page 81.Let It

run for about 30

seconds to mix the

antifreeze and

water.

To use the washer again.. .

1. Flush water pipes and hoses.

2. Connect hoses to the washer.

3. Turn on the water faucets,

4. Run the washer

through a com-

plete cycle with

one cup of deter.

gent to clean out

the antifreeze.
