Whirlpool LA33OOXP Manual de usuario

&ti SERIES

AUTOMATIC

WASHER

Design 2000”

~K&Capacity

LA33OOXP

Parts and features

LAUNDRY

INtUh

“‘^‘?MATION

1 rr

,LNTER CYCLE

CONTROL

KNOB AND

1 TEMPERATURE

-CLOTHES GUARD

- AGITATOR

- BASKET

-TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Cops your .Model and Serial Numbers here

When youneed service or call wtth a -I_ .-___

question, have this InformatIon reads

Model Vumber

1. Complete Model and Serial Num-

bers [from plate underthe Ild near the -~~---

hinge]

Sr~~ol ‘4 >rnber

2. Purchase date from sales

slip

Copy this Information In these spaces

P!irchoL,e Dole

Keep this book in the Laundry Informa-

tion Center with your”Laundry Guide,”

sales

slip

and warranty Service Company

Phone Yumber

There IS no warranty registration to return Proof-of-purchase IS all

that IS required for In-warranty service

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer. _.

is installed by a qualified installer

9 is properly installed and

leveled on a floor that can

support the weight.’

is connected to the right kind

of outlet, electric supply, water

supply and drain:

is properly grounded.

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS 8

ForaRinseandSpin...... 8

ForaDrainandSpin...... 8

CARING FOR YOUR WASHER 9

Winterizing 10

IF YOU NEED SERVICE OR

ASSISTANCE. 11

I, Before Calling for

Assistance 11

2. If You Need Assistance 11

3. If You Need Service 11

4. IfYou Have a Problem 11

01985 Whirlpool Corporation

Starting your washer

Before starting ~

e:b

1 Measure and add detergent

your washer 2 Place sorted load In washer

Start washer

~ Select CYCLE and WASH TIME;

1. Start the washer

Fill Area

A. Push in the Control Knob and turn

it to the right. It must be pushed in

and turned only clockwise

B. Stop on a number in the cycle you

want. The numbers are minutes of

wash time. The drawing shows10

minutes of agitation in the REGULAR

HEAVY Cvcle. NOTE: The washer will

fill only when the knob points to a

FILLarea.

C. Start the washer by pulling out

the Control Knob. After filling, the

washer will agitate for the selected

number of minutes.

I-

D. To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To select a

WASH WATER TEMPERATURE

HOT WATER con be selected only

in the REGULAR HEAVY Cycle Turn the

Control Knob to12 or14 minutes In the

REGULAR HEAVY Cycle

All rinses use cold water. This saves

energy and helps prevent wrinkles

from setting into fabrics.

To select a

WATER LEVEL

HIGH WATER LEVEL. The washer will

automatically fill to its highest level,

(about17.2 gals 165.1L),when the

Control Knob points to a FILLarea

WARM WATER can be selected by

turning the Control Knob to 8 or10 min-

utes in the REGULAR HEAVY Cycle.

A worm wash is preset in the SHORT

Cycle. Just turn the Control Knob to

the 6 or 8 mrnute setting in that cycle.

LOWER WATER LEVELS. Setting the

washer to fill with less water also sets it

for a shorter wash time.

1. Push the Control Knob in and turn it

clockwrse to Q FILLarea in the cycle

you wont.

2. Pull the Control Knob out; the washer

will start to fill

3. When the washer reaches the de-

sired water level, push in the Control

Knob and slowly turn it post the FILL

area Pull out the Control Knob to

start the washer.

For all rinses, the washer fills to its

highest level with cold water.

What happens in each cycle*

Each cycle has been designed for different ktnds of fabrics Numbers on the

dial In each cycle ore the minutes of WASH agitation time.

When the Cycle Control Knob is set to a number and pulled out,the washer

fills before agitation and timing starts After agitation starts, the knob turns

A cycle for sturdily con-

structed fabrics that ore FILL

heavily soiled

51IORI‘ C‘Jcle

Use for 3wcote

Items

that

need a shIrl wash ond

spin time Wash nylon hose

or panty hose In o net

lodndry bog

DO NOT

OVERLOAD WASHER

Overloading or packing can..

. cause poor cleaning;

increase wrinkling;

cause excessive lint;

wear out or tear items.

Be careful to use enough water for the

load. Too big a load or too little water

con cause poor cleaning and wear or

tear load items.

DO NOT LOAD

ABOVE CLOTHES GUARD

clockwise until It points to OFF and the cycle ends

NOTE:You may hear the sound of water spraying during the spin

some cycles. In some cycles, cold water IS sprayed on the spinnin

help with the rlnslng

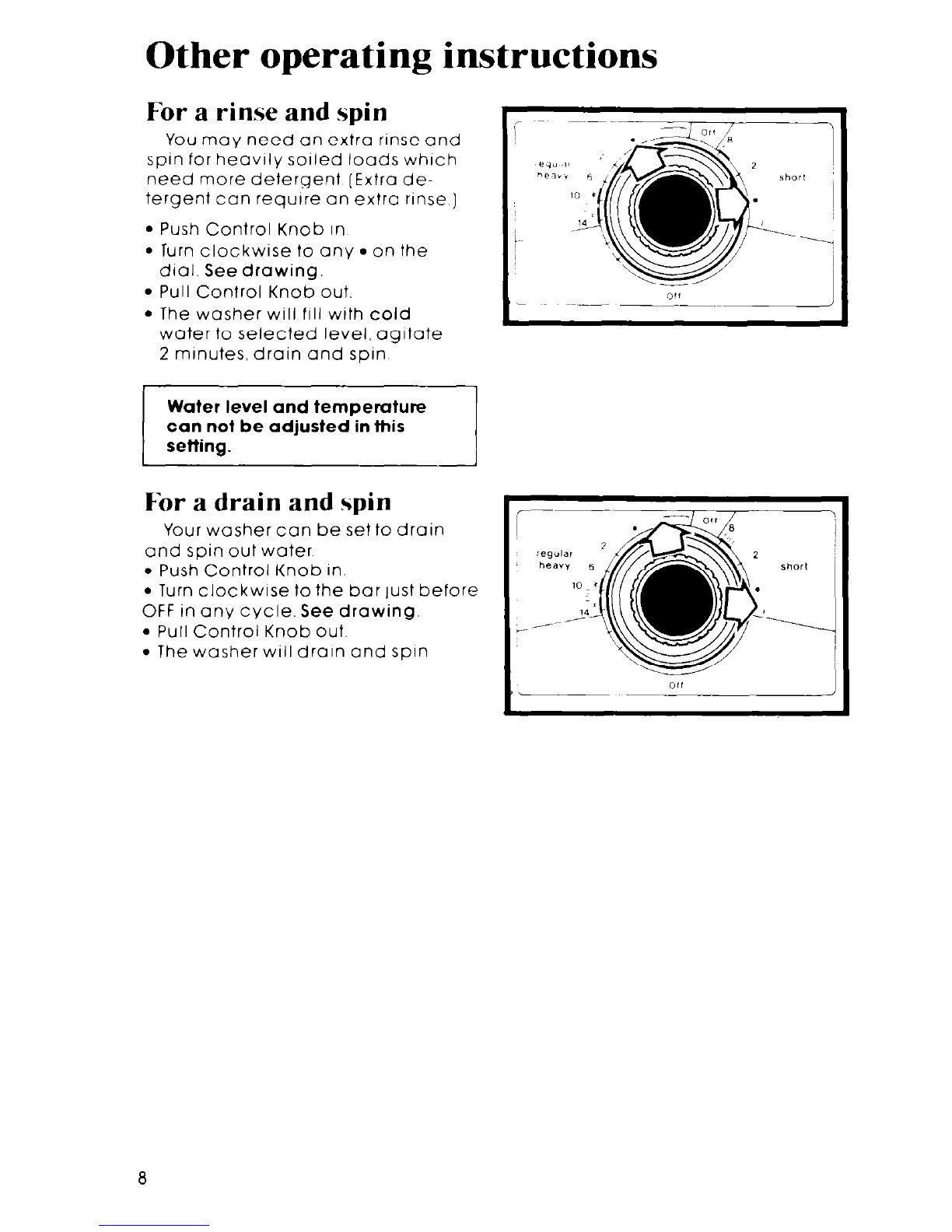

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent [Extra de-

tergent can require an extra rinse ]

Push Control Knob In

Turn clockwise to any

on the

dial See drawing.

Pull Control Knob out.

The washer will fill wtth cold

water to selected level, agitate

2 minutes, drain and spin

For a drain and spin

Your washer can be set to drain

and spin out water

Push Control Knob in

Turn clockwise to the bar just before

OFF In any cycle. See drawing.

Pull Control Knob out

The washer

will

drain and spin

Caring for your washer

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet valve

and hoses.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

AFlER WASHING, use a sofl dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry,

Wipe up spills right away. Spills can

dull or damage the finish.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can aamage wasner ana aryer arars

consoles and finishes. Do not use

these products on or near your

washer or dryer.

Winterizing

Because some water stays in the washer, freez-

ing can cause a lot of damage. If your washer is

stored or moved during the cold weather..

1. Shut off both water 2. Put a quart of

faucets. Discon- automobile-type

nect and drain antifreeze in the

water inlet hoses. basket.

3. Set the washer for c

DRAIN and SPIN

(see page 81.Let it

run for a bout 30

seconds to mix the

antifreeze and

water.

To use the washer again.. .

4. Run the washer

through a com-

plete cycle with

one cup of deter-

1. Flush water pipes and hoses. gent to clean out

2. Connect hoses to the washer. the antifreeze.

3. Turn on the water faucets.
