Whirlpool AWO/D 43115 Instrucciones de funcionamiento e instalación

SERVICE Whirlpool EMEA

Customer Services AWO/D 43115

Service Information

Frontloader Washing machine

AWO/D 43115

8592 336 10008

Last Modiﬁcation: 08/28/08

Creation Date: 08/14/08

Spare Part List 2

Exploded View 4

Technical Data 6

Wiring Diagram 8

Circuit Diagram 10

Program Chart 12

Testprogram 24

Error Codes 25

Service Bulletin 4812 712 40340 29

Service Bulletin 4812 712 40347 43

Service Bulletin 4812 712 40317 44

Service Bulletin 4812 712 40320 45

Service Bulletin 4812 712 40348 46

Service Bulletin 4812 712 40327 48

Service Bulletin 4812 712 40313 49

Service Bulletin 4812 712 40330 50

Service Bulletin 4812 712 40314 51

Service Bulletin 4812 712 40305 52

This document is only intended for qualiﬁed technicans who are aware of the

respective safety regulations.

Subject to modiﬁcations

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 2 of 53

Spare Part List

Pos 12NC Description

001 0 4812 440 11579 Cabinet U-SHAPE

003 0 4812 440 11581 Crossbar U-SHAPE

011 0 4812 500 18099 Adjust. foot M8, 112mm

021 0 4812 440 11471 Front 25

024 2 4812 440 11791 Cover rear

024 3 4812 442 18047 Cover plast rear

025 0 4812 440 11582 Support control board U-SHAPE

030 0 4812 440 11654 Table top 42/44 l U-SHAPE UBS possi

040 0 4812 417 18787 Hinge BK

050 0 4812 440 10779 Plinth GW

061 0 4812 466 89033 Counter weight upper, 44 l, EUREKA

061 1 4812 466 89034 Counter weight lower, 44/54 l, EUREKA

061 2 4812 310 39287 Mounting kit weight, EUREKA

081 0 4812 529 18063 Shock absorber U-SHAPE

084 0 4812 466 58023 Silent bloc

086 0 4812 401 18894 Fixation eureka

110 0 4801 111 00265 Handle door

130 0 4812 417 28107 Plate eureka

130 1 4812 417 28108 Plate Doorlock Lower

131 0 4801 111 00266 Lock

131 1 4812 417 28045 Pin Door Lock

131 2 4812 492 58022 Spring Door Lock

135 1 4812 498 18262 Door safety erk

135 2 4812 491 48004 Spring Door Safety

135 3 4812 290 68153 Holder adjust. Door Safety

140 0 4812 450 59812 Door glass DELTA EUREKA

143 0 4812 440 11141 Glassdoor frame

144 0 4812 440 11595 Frame door glas

144 3 4812 502 18669 Screw; 4.0x12

191 0 4812 460 68633 Door bellow eureka 473 50lt

191 1 4812 492 18028 Strap Eureka

191 2 4812 492 98011 Strap

200 0 4801 111 00741 Wash unit EUR-800-1000-44H11

223 0 4812 418 48958 Drum lifter plastic COD/44L/D

271 0 4812 358 18214 Belt POLY-V-1238/J4

272 0 4801 111 00742 Pulley EUR/LR

272 3 4812 502 18817 Screw pulley M8x23 Eureka

301 0 4812 452 17976 Control panel AWO/D 43115

303 0 4812 452 17755 Handle drawer EBL WP25-CPL

331 0 4812 414 58306 Knob timer

331 3 4812 414 58307 Spring Knob timer

332 0 4812 410 29399 Push button 4-opt.

333 0 4812 513 18172 Push button

333 1 4812 410 29401 Push button 2 options

400 0 4812 361 58518 Motor 38/64 A4768

400 1 4812 502 18828 Screw Motor, kit

409 0 4812 362 48446 Brush,carbon Emerson(MCA)

421 0 4812 121 18285 Interf.ﬁlter

430 0 4812 360 18559 Pump

451 0 4812 259 28919 Heating element 2050W, 230V + NTC

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 3 of 53

Pos 12NC Description

480 0 4812 321 78422 Cable DOM-MOT6-EU

490 0 4819 321 18136 Cable mains 2m SA

491 0 4812 321 28367 Strain relief

491 1 4812 502 38152 Screw 4.8x19

521 0 4801 111 00091 Control unit DOMINO, programmed

521 0 4812 214 70725 Control unit DOMINO,C1W-basic

571 0 4812 271 28558 Valve,magnet

581 0 4812 271 28585 Pressostat 50/25 INVENS.

620 0 4812 239 58046 Module E3/4 Opt.

630 0 4812 280 58048 Door lock

653 0 4812 134 18046 Light guide Prog. Flow

653 1 4812 134 18047 Guide,light Start low

653 2 4812 134 48361 Guide,light 4 opt.

653 3 4812 134 48362 Guide,light options low

691 0 4812 282 19485 Sensor NTC

701 0 4812 530 29329 Hose, inlet; EN 11770 Reﬂex

702 0 4812 530 29406 Hose valve-dispenser

707 5 4812 310 19102 Nozzle

708 1 4812 530 49392 Bend disp.-tub Eureka

711 0 4812 418 68379 Dispenser 3 ch.

712 0 4812 418 68381 Drawer

713 0 4812 418 68382 Safety device

718 0 4812 526 48226 Siphon

718 1 4812 418 89066 Separator

754 0 4812 530 29495 Drainhose tub-pump Eureka

754 1 4812 530 28832 Lock eco

760 0 4812 480 58385 Filter pump

781 0 4812 530 29496 Hose draining

782 0 4812 530 29497 Hose Pressostat

794 2 4812 401 18549 Clamp hose

900 0 4812 255 18298 Holder outlet hose

900 1 4812 290 88123 Bracket eureka

900 2 4812 401 18501 Clamp hose 19.2 mm

900 3 4812 401 18853 Cable clamp

900 4 4812 401 18414 Clamp hose

900 5 4819 401 18529 Clamp hose

900 8 4812 401 18854 Holder outlet hose

910 0 4812 505 18427 Nut M6 with washer

910 1 4812 502 48344 Screw

911 7 4812 903 08196 Screw M 5X14-Z; M 5X14-Z

930 0 4812 492 38419 Spring suspension-EUREKA

961 0 4812 532 68151 Spacer

965 0 4812 466 68936 Cover

993 0 4819 530 29028 U Curve for outlet hose

993 3 4812 395 58004 Tool

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 4 of 53

Exploded View

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 5 of 53

Exploded View

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 6 of 53

Technical Data

Dimensions + Weight

Product dimensions

Height ..........................................................................................81.5 -84cm

Width ...............................................................................................59.5 cm

Depth ...............................................................................................57.3 cm

Weight

net ....................................................................................................72 kg

Electrical base data

Voltage ...........................................................................................230V±10%

Frequency ............................................................................................... 50 Hz

Fuse ......................................................................................................10A

Power Consumption ...................................................................................~2.3 kW

Drum data

Volume .....................................................................................................44l

Wash speed ............................................................................................54 rpm

Spinning

max. ..............................................................................................1000 rpm

Pressostat

Level1 ...............................................................................................11 - 12/14

Overﬂow ................................................................................................11 -16

Door lock

Kindof switch ................................................................Switch withPTC heater ofbimetal

Nominalvoltage ...............................................................................230 (90- 264) V

Locking time ..............................................................................................≤6 s

Unlock time ...............................................................................................~85 s

Inlet valve

Nominalvoltage ............................................................................220 - 240V / 50Hz

Ratedﬂow .........................................(1.5- 5 bar) .........................................8 l/min

Pressurerange .....................................................................................0.3 - 10bar

Nominalresistance .......................................(20°C) .......................................3.8 kΩ

Drain pump

Nominalvoltage ............................................................................220 - 240V / 50Hz

Totalpower ...............................................................................................30 W

Resistor(coil) ............................................................................................160 Ω

Capacity .......................................(0.55- 1 m) .......................................14±2 l/min

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 7 of 53

Heating element

Nominalvoltage ...........................................................................230V + 10%, -15 %

Totalpower .............................................................................................2050 W

Resistance(20 °C) ........................................................................................24 Ω

Leakage current ...................................................................................... < 0.8 mA

NTC sensor

Resistance NTC

0 °C 35.9 kΩ

30 °C 9.8 kΩ

40 °C 6.6 kΩ

50 °C 4.6 kΩ

60 °C 3.2 kΩ

70 °C 2.3 kΩ

95 °C 1.1 kΩ

Motor

Resistance contacts .................................................................................... (20 °C)

Stator(full ﬁeld) ......................................................................................2.04Ω

Rotor .................................................................................................2.25Ω

Tachogenerator ......................................................................................68.7 Ω

Control unit

Type ..................................................................................................DOMINO

Nominalvoltage ..................................................................................230V / 50Hz

Output control unit

Motor M7.6 - DSS3.2 > 40 V

Aquastop AQ2.2 - DSS3.2 230 V

In pump step AQ2.1 - DSS3.3 230 V

NTC Not measurable

Pump DP2.1 - DP2.2 230 V

Doorlock DSS3.1 - DSS3.3 230 V

Pressostat E4 - E2 230 V

- empty PR2.1 - E2 230 V

- full PR2.2 - E2 230 V

Valve (Rast 2.5) V2.1 - V2.2 >170 V

Options Not measurable

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 8 of 53

Wiring Diagram

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 9 of 53

Legend

SERVICE Whirlpool EMEA

Customer Services

8592 336 10008, 08/28/08

page 10 of 53

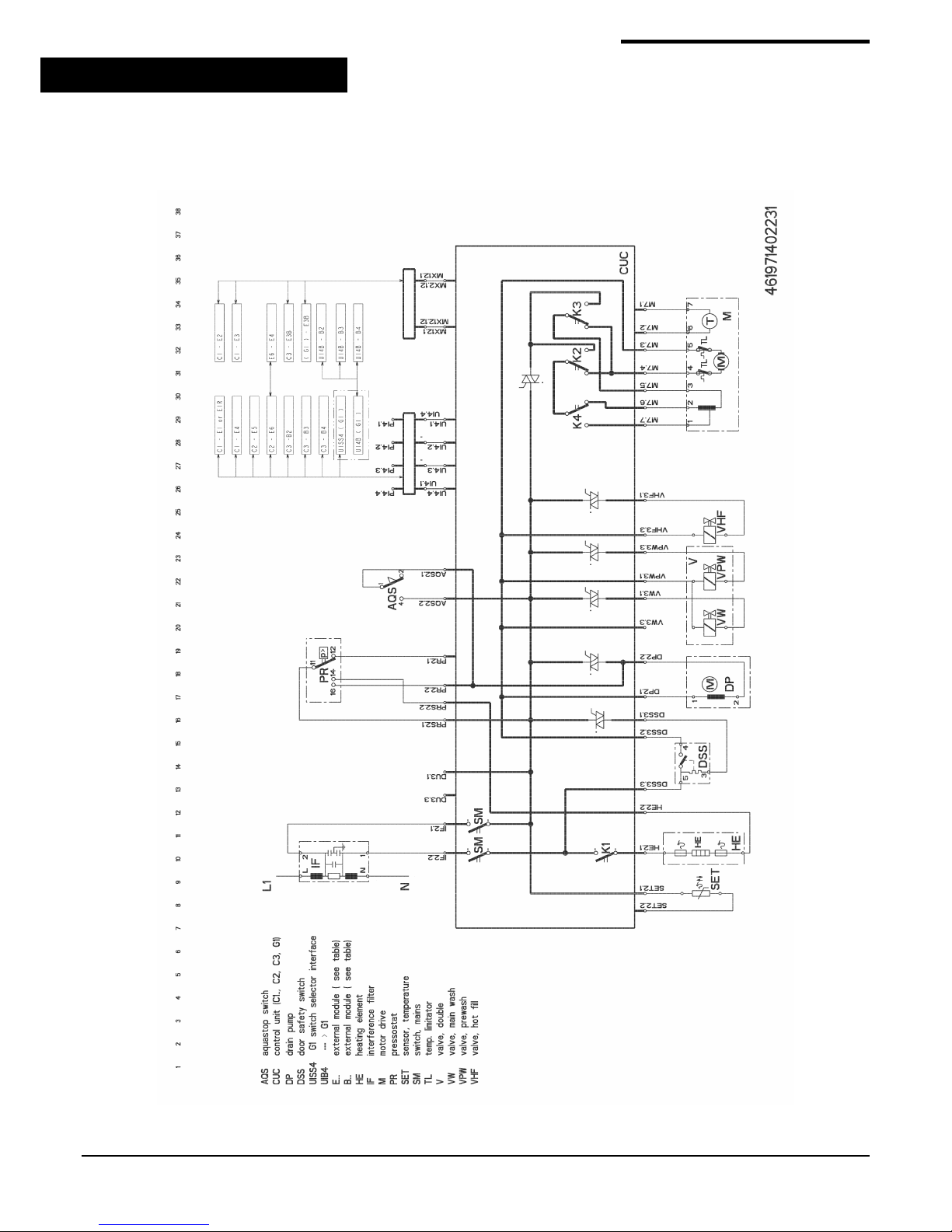

Circuit Diagram
