Whirlpool THIN TWIN LTE5243D Manual

®24" Electric Washer/Dryer

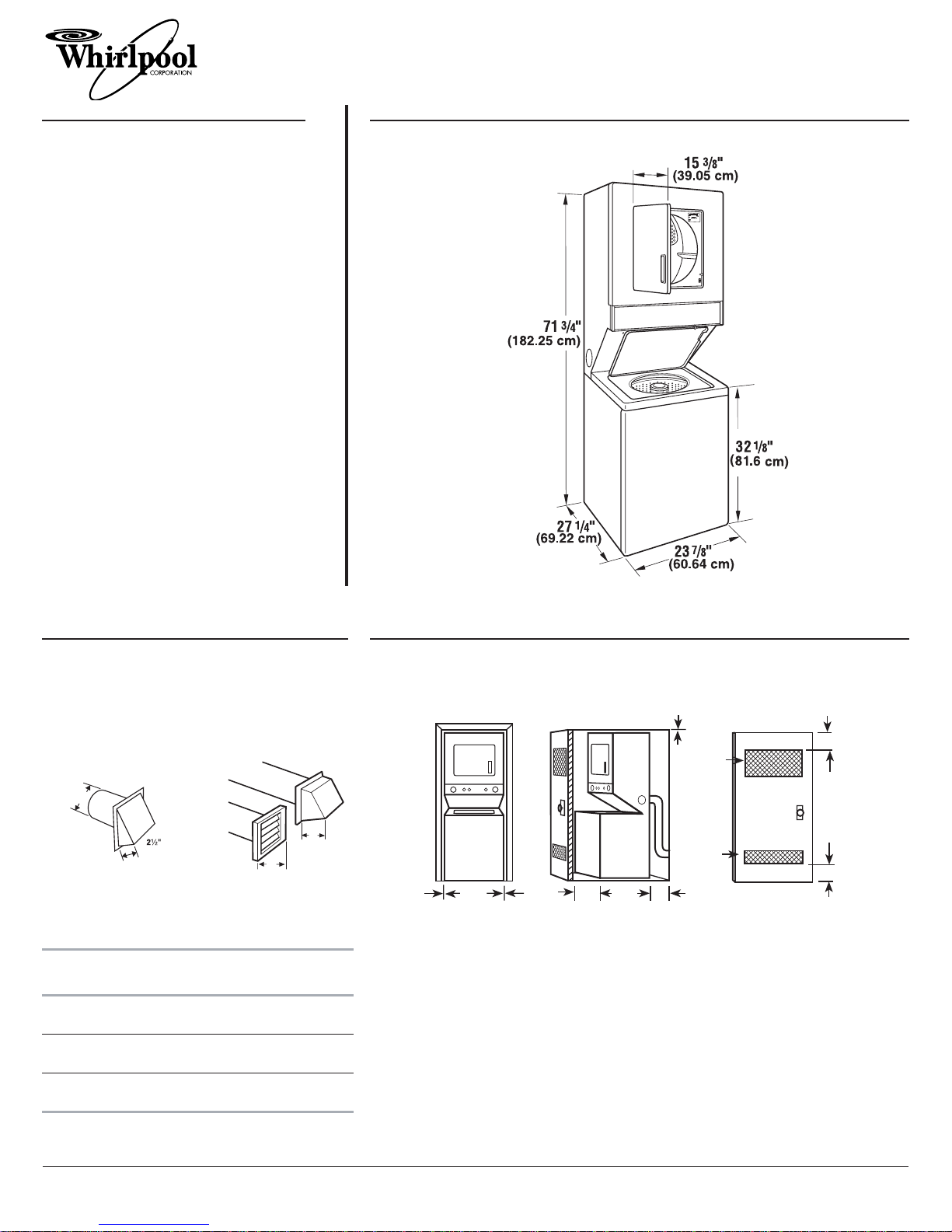

PRODUCT MODEL NUMBER OVERALL DIMENSIONS

RECESSED AREA AND CLOSET INSTALLATION

EXHAUST VENTING

LTE5243D

Electrical: A 120/240-volt, 60-Hz, AC-only,

electrical supply (120/208-volt electrical supply, if

specified on the serial/rating plate) is required on a

separate 30-amp circuit, fused on both sides of the

line. A time-delay fuse or circuit breaker is

recommended.

Exhaust venting: Exhaust your dryer to the

outside. Four-inch diameter vent is required. Rigid

or flexible metal exhaust vent must be used. Do

not use plastic or metal foil vent. Exhaust outlet

hood must be at least 12 inches from the ground

or any object that may be in the path of the

exhaust.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8542748 Rev. A

11-01-04

Plan installation to use the fewest number of elbows

and turns.

Maximum length of the exhaust system depends

upon the type of vent used, number of elbows and

the type of exhaust hood. The maximum length for

both rigid and flexible vent is shown in the chart.

Additional clearance for wall, door and floor molding may be required.

Rear clearance may be 0 in. when house exhaust system is lined up directly with dryer exhaust.

Vent Length Chart

NOTE: Side exhaust adds a 90°turn inside the washer/dryer. To

determine maximum exhaust length, add one 90°turn to the

chart.

Number of

90∫turns

or elbows

Type of Ve nt Box or

Louvered

hoods

Angled

hoods

0Rigid metal

Flexible metal

43 ft (13.1 m)

30 ft (9.1 m)

36 ft (11.0 m)

24 ft (7.3 m)

1Rigid metal

Flexible metal

33 ft (10.1 m)

24 ft (7.3 m)

26 ft (7.9 m)

18 ft (5.5 m)

2Rigid metal

Flexible metal

24 ft (7.3 m)

16 ft (4.9 m)

10 ft (3.0 m)

1. Louvered hood style

2. Box hood style

(10.2 cm)

(6.4 cm)

Angled hood style

* Most installations require a

minimum 5-1/2 in. (14 cm)

clearance behind the dryer for

the exhaust vent with elbow.

A. Recessed area

B. Side view - closet or confined area

C.Closet door with vents

48 in.

24 in.

2723

1" "

(0 cm) (0 cm) (2.5 cm)

(60.64 cm) (69.22 cm) (14 cm)

(7.6 cm)

(310 cm )

(155 cm )

(0 cm)

A B C
