Whirlpool GZ7930XG Instrucciones de uso

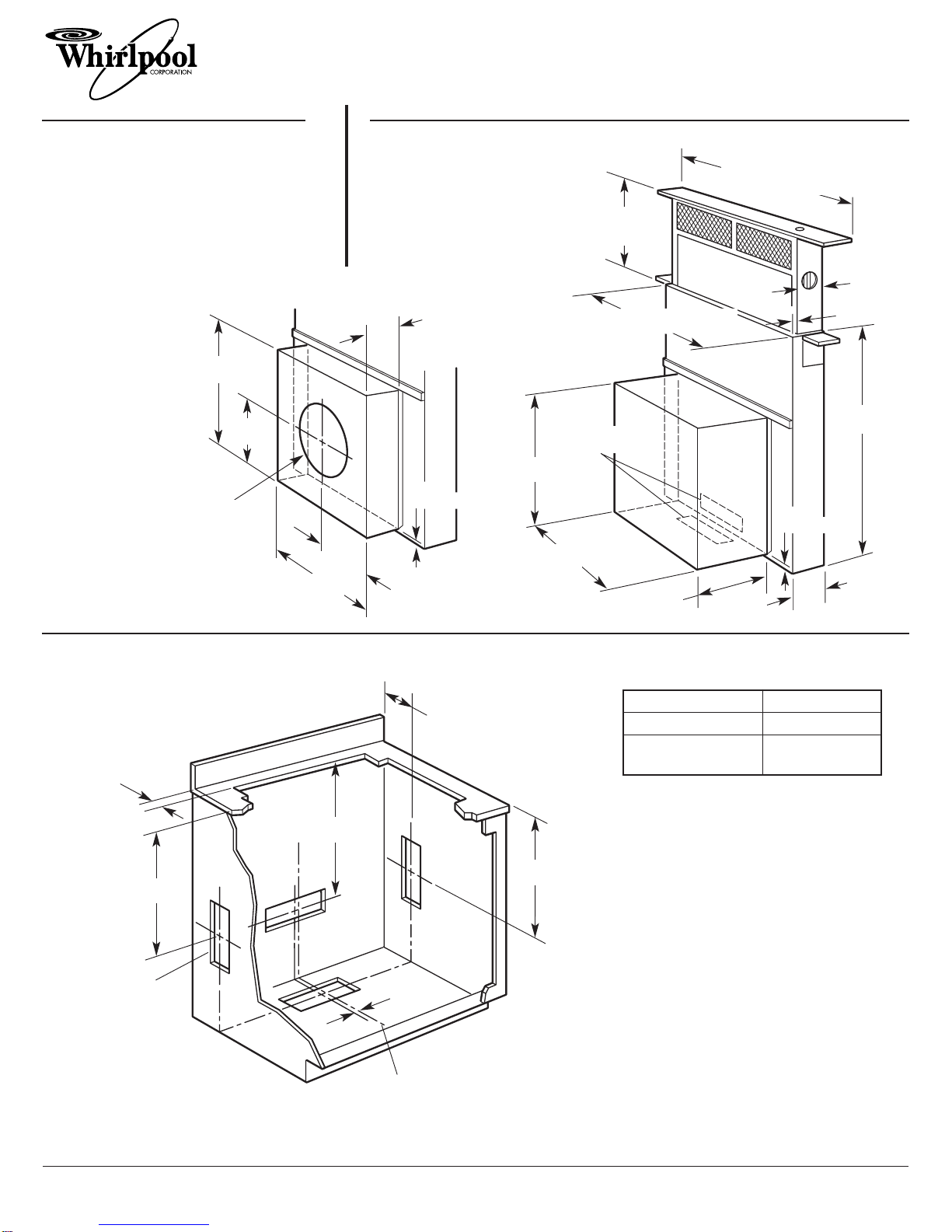

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

GZ7930XG

GZ7930XH GZ7936XG

GZ7936XH

Electrical: 120-volt, 60-Hz, AC-only, 15 amp

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit is

recommended.

Retractable Downdraft Vent System

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8284826 Rev. B

10-20-03

top trim widths

30" vent (76.2 cm)

36" vent (91.4 cm)

3/8" (9.5 mm)

8-1/4" (21 cm)

retractable

vent height

1-1/2"

(3.8 cm)

26-1/8"

(66.4 cm)

2-1/8”

(54 cm)

INTERNAL

BLOWER

MOTOR

5/8"

(15.9 mm)

(10.2 cm)

(20.3 cm)

9" (22.9 cm)

Diameter

16"

(40.6 cm)

(20,3 cm)

16"

(40.6 cm)

5/8"

(15.9 mm)

9-3/8"

(23.8 cm)

16"

(40.6 cm)

16"

(40.6 cm)

3-1/4"x 10"

(8.3 cm x 25.4 cm)

27" (68.6 cm) for 30" (76.2 cm) vent

33" (83.8 cm) for 36" (91.4 cm) vent

4-1/8"+A

(10.5 cm)

17-9/16"

(44.6 cm)

17-3/16"

(43.7 cm)

A = 1/2" (12.7 mm)

min.

23-9/16"

(59.8 cm)

3/8"

(9.5 mm)

centerline of

cooktop cutout

See cooktop manufacturer’s

instructions for cooktop cutout

depth and width.

Use dimensions for vent system

cutout location that applies to

your installation.

Vent system cutout dimensions for internal blower models only.

Exterior mounted blower systems connect with 10" (25.4 cm) round vent. The cutout

locations for this vent system will depend upon your specific installation.

Locate power supply

junction box at lower

right hand rear corner of

cabinet.

all cutouts shown are

for 3-1/4" x 10"

(8.3 cm x 25.4 cm)

vent system

Maximum length of vent system

For best performance, use no more than

three 90° elbows. If more than one elbow

is used, make sure that there is a

minimum of 24"(61 cm) of straight vent

between any two elbows. Do Not install

two elbows together. It is recommended

that you use round vent instead of

rectangular vent, especially if elbows are

required. If rectangular vent is required,

it should be transitioned to 6" (15.2 cm)

round vent as soon as possible.

Determining the length of system

you need:

To calculate the length of system you

need, add the equivalent feet for each

vent piece that will be needed. See

example for 6" (15.2 cm) round vent

system.

Vent Length

6" (15.2 cm) round 35 feet (8.9 m)

3-1/4" x 10" 35 feet (8.9 m)

(8.3 cm x 25.4 cm)

EXTERIOR-MOUNTED

BLOWER MOTOR

For use with

Model No. KPEC992M

[900 cfm (25.5 m3/m)]

only
