CABINET PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

06−08 Litho In U.S.A. (rrm)(bay) Part No. W10208011 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142146

Service &

Wiring Sheet

W10206563

Energy Label

2225623 Modular Icemaker

Service Sheet

Use & Care Guide

W10131410

Bilingual

W10131418

Trilingual

2302485 Customer Instruct

Sheet, Wtr Filter

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 2301705 Water Filter

5 2208136 Clamp, Tube

(Water Supply Line)

6 489427 Screw

7 Cap, Water Filter

2186494W White

2186494B Black

8 488886 Screw

9 2225521 Housing,

Water Filter

10 2200778 Insulation

11 3400504 Screw

12 549193 Clamp, Cord

13 2179826 Rivet

14 3196178 Screw

15 489497 Screw

16 2254618 Hinge, Center

17 2183852 Shim, Hinge

Center

18 489464 Screw

19 2300782 Clamp

20 2254473 Hinge Butt

22 Endcap, Grille

2300634W White

2300634B Black

24 Fitting, Water Tube

(NOT SERVICED)

25 Hole Plug (6)

2201012 White

2183998 Black

26 Corner Filler (2)

2201014 White

2201017 Black

27 Grille

(Includes

Illus. 22 & 30)

2300475W White

2300475B Black

28 489341 Washer, Plain

29 487576 Washer, Nylon

30 2189356 Clip, Grille (2)

31 Cover, Hinge

2213360 White

2213363 Black

32 Rail, Center

(NOT SERVICED)

33 2254576 Cover, Unit

34 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

LINER PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2304093 Adaptive Defrost

Control

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310081 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2300761 Control Box

13 2314594 Thermostat Assembly

(Includes

Illus. 5 & 18)

14 2214981 Insulation,

Water Tube

15 2213462 Harness, Indicator

Light

16 2320193 Cover, Evaporator

17 2255743 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129803

Wire Assembly,

Freezer Compartment

(Includes Item 31)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2225476 Freezer Floor,

Pullout

26 2212439 Air Separator

Assembly

27 8534009 Screw

28 2254454 Bracket

Evap. Fan, Rear

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2321800 Defrost, BI−Metal

32 2213495 Cover, Light Lens

33 489478 Screw

34 2302536 Knob, Damper

36 2205079 Seal, Rear

Thermostat

37 2171931 Valve

38 2225473 Retainer, Freezer

Floor

39 2300418 Housing Base

40 2198768 Rear Fence,

Pull−Out Freezer

Floor

41 2187601 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 2260802 Light Bulb

45 2204639 Shield, Heat

46 2179859 Post, Damper

47 2163810 Bracket,

Damper Knob

48 2166284 Gasket, Rear

51 2319867 Tube, Filter Inlet

52 2225531 Cover, Tubing

53 2301621 Tube, Water

54 2210563 Clip, Retainer

SHELF PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

SHELF PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mtg.

5 489478 Screw

7 2254458 Deflector, Air

(Crisper Cover)

8 2225698 Frame Assembly,

Shelf

9 2314500 Crisper Cover

10 2314478 Crisper Support

11 2210573 Glass, Crisper

Cover

12 2205162 Frame Assembly,

Meat Shelf

13 2225721 Shelf Assembly,

Spillguard (2)

14 2184667 Shelf, Freezer

15 2218130 Pan, Crisper

(Includes

Illus. 17,18 & 19)

16 2218132 Pan, Meat

17 2176222 Slide, Crisper

18 2212446 Body, Humidity

Control

19 2195341 Trim, Crisper Pan

20 2176357 Trim, Meat Pan

21 2254352 Ice Bucket

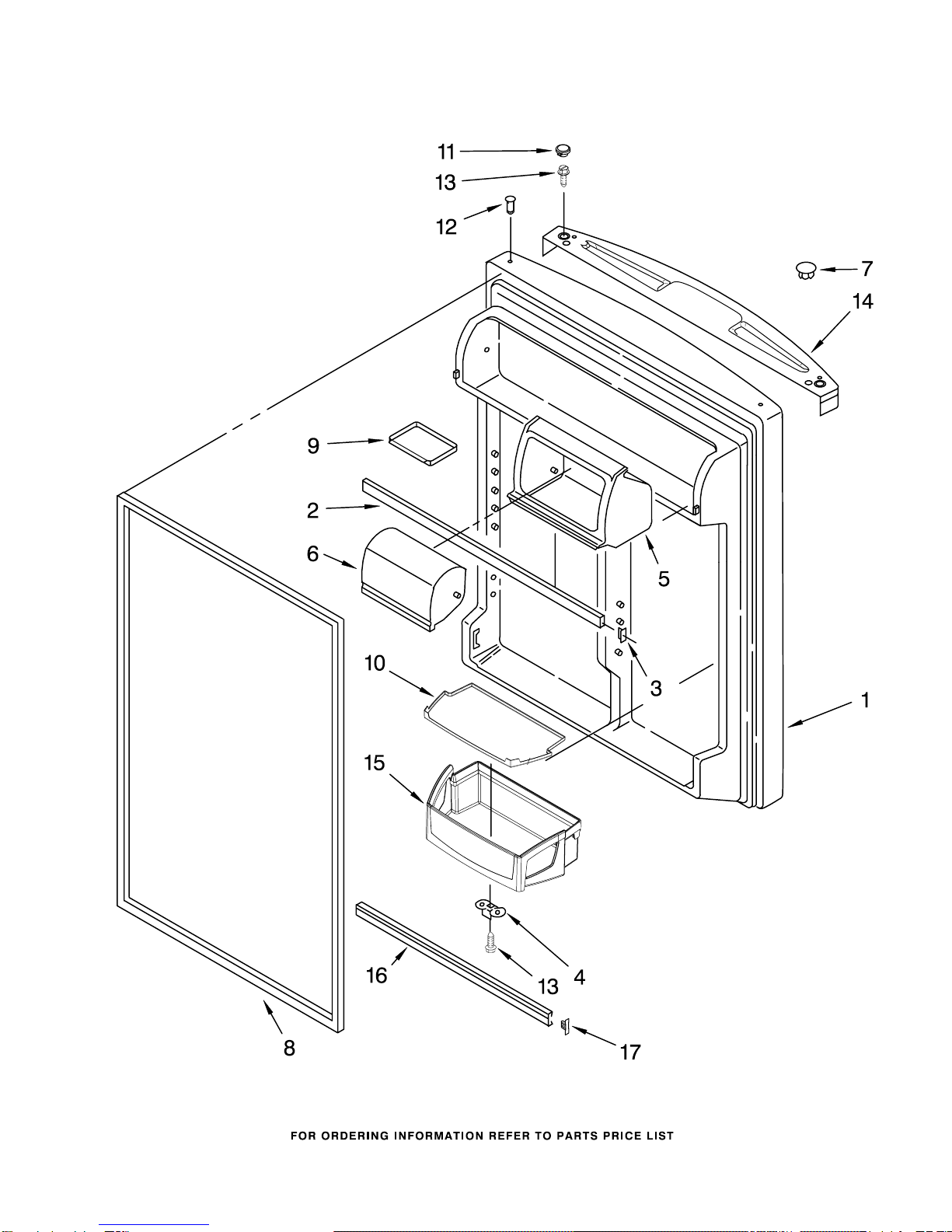

REFRIGERATOR DOOR PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

REFRIGERATOR DOOR PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 8 & 12)

2300636W White

2300636B Black

W10141745

Stainless

2 2159306 Trim, Door Shelf

3 2177340 Endcap, Door Trim

4 2189202 Bracket, Door

Stop

5 2210566 Housing,

Compartment

6 2218109 Door Compartment

7 Hole Plug,

Hinge Sleeve

2212648 White

2212651 Black

8 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

9 2195388 Tray, Door

10 2300431 Mat, Door Bin

11 Hole Plug,

Endcap

2204837 White

2204840 Black

12 2183003 Thimble

13 489276 Screw

14 Endcap, Handle

2212624 White

2221644 Black

15 2304918 Bin, Door Shelf (3)

16 2195948 Trim, Door Shelf

17 2156006 Plug, Trim

UNIT PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

UNIT PARTS

For Models: GR2SHWXVQ01, GR2SHWXVB01, GR2SHWXVS01

(White) (Black) (Stainless)

W10208011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320187 Plate, Unit

Mounting

2 2300499 Control Box,

Dispenser

3 2214960 Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533961 Screw

7 2254295 Drain Pan

8 2176301 Bracket, Heater

9 2300867 Power Supply,

Dispenser

10 2300638 Extension, Air

Baffle

11 2169104 Insulation,

Sound Dampening

14 Grommet (4)

1100826 Production

4387558 Service

15 2187861 Harness, Dispenser

(High)

W10174384

Bale Strap,

Compressor

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 2319835 Grommet−Cond(4)

22 2201185 Support Block

W10194431

Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

25 2314102 Harness, Dispenser

(Low)

26 2314103 Harness, Side Rail

27 2187864 Harness,

Front Rail

W10164016

Compressor

(Includes Items

14,29,32)

(Also Order 482801

Installation Kit

& 876765 Tube Kit)

29 Drier

W10177049

Production

W10143759

Service

30 2155774 Clamp

32 Capacitor

2264017 Production

1118576 Service

34 2315541 Air Baffle

35 2188874 Motor, Condenser

36 2187976 Wire Assy. Unit

37 2225834 Fan Blade

W10189808

Tube, Discharge

W10189806

Tube, Suction

40 2154109 Tube, Process

41 488500 Screw

42 3400518 Screw

43 2254574 Evaporator Tray

44 2209709 Connector−Water

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
