CABINET PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

1−08 Litho In U.S.A. (rrm) Part No. W10180450 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service &

Wiring Sheet

W10178120

Energy Label

Use & Care Guide

W10131409

Bilingual

W10131417

Trilingual

2225623 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 2189356 Clip, Grille

5 489385 Clamp, Tube

(Water Supply Line)

6 489427 Screw

7 3400504 Screw

9 489442 Screw

10 2221797 Rivet

12 549193 Clamp, Cord

13 489497 Screw

14 2254618 Hinge, Center

15 2183852 Shim, Hinge

Center

16 8281265 Screw

17 2254473 Hinge Butt

18 Fitting, Water Tube

(NOT SERVICED)

19 Hole Plug (6)

2201012 White

2183998 Black

20 Corner Filler (2)

2201014 White

2201017 Black

21 Grille

(Includes

Illus. 4 & 24)

2254386 White

2254388 Black

22 489341 Washer, Plain

23 487576 Washer, Nylon

24 2254385 Clip, Grille

25 Cover, Hinge

2213360 White

2213363 Black

26 Rail, Center

(NOT SERVICED)

27 2254578 Cover, Unit

28 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

LINER PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2304099 Timer, Defrost

5 2212485 Thermostat Tube

Barrier

7 2310057 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2315539 Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2200830 Thermostat Assembly

(Includes

Illus. 5 & 18)

15 488208 Screw

16 2320191 Cover, Evaporator

17 2255743 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm (2)

Switch

W10129791

Wire Assembly,

Freezer Compartment

(Includes

Illus. 28)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 8534009 Screw

26 2210390 Air Separator

Assembly

28 2321800 Defrost, BI−Metal

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2204639 Shield, Heat

33 489478 Screw

34 2302536 Knob, Damper

35 2254454 Bracket

Evap. Fan, Rear

36 2205079 Seal, Rear

Thermostat

37 2300417 Housing Base

38 2187601 Wiring Harness,

Freezer Light

39 2193491 Electrical Shield,

Freezer Light

40 2260802 Light Bulb

41 2179859 Post, Damper

42 2163810 Bracket,

Damper Knob

43 2166284 Gasket, Rear

44 2210509 Valve

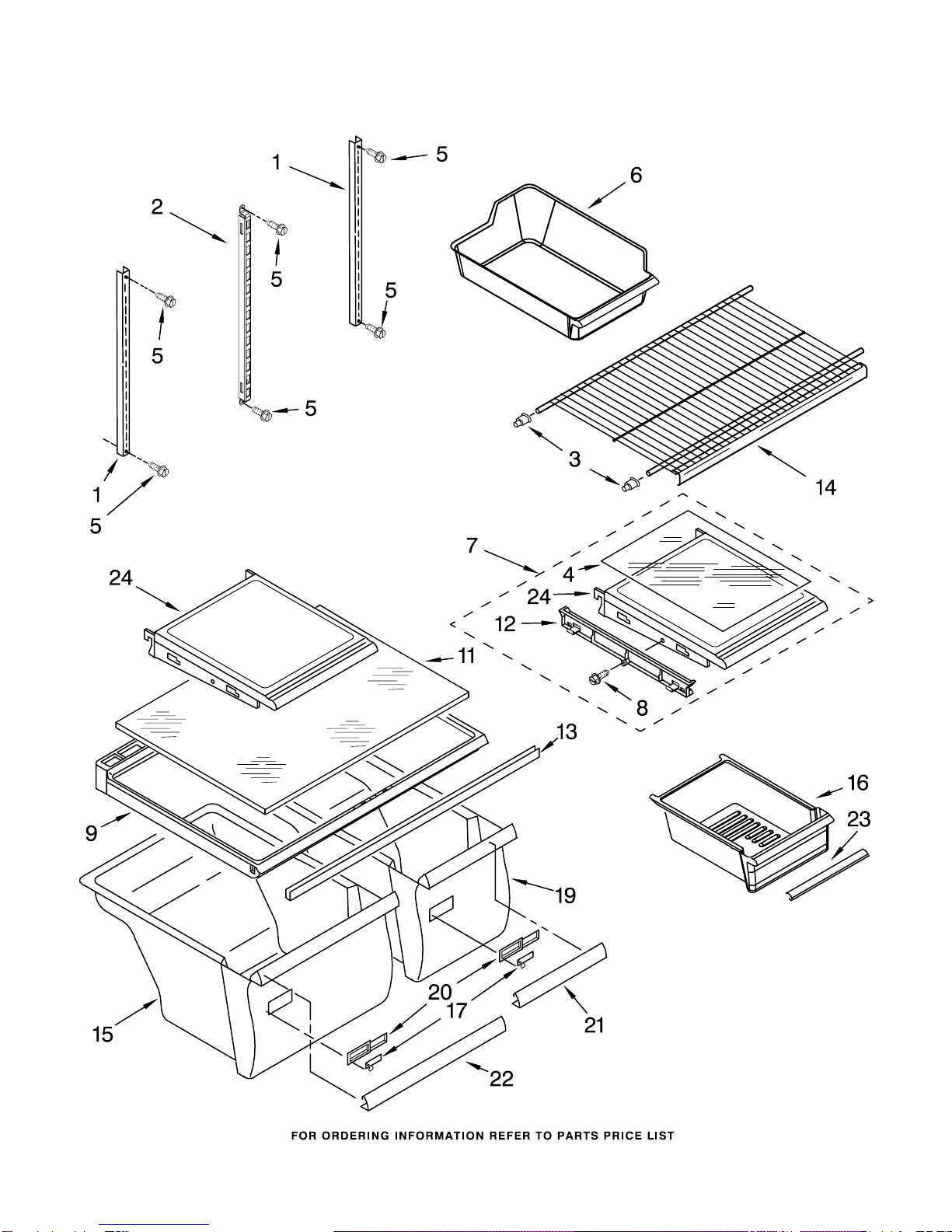

SHELF PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

SHELF PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mounting

4 2214912 Shelf, Glass

5 489478 Screw

6 2254352 Ice Bucket

7 2214910 Shelf, Cantilever

Meat Pan

(Complete)

8 3400065 Screw

9 2314497 Crisper Cover

11 2221693 Glass, Crisper

Cover

12 2214892 Slide, Pan

13 2314477 Crisper, Support

14 2176275 Shelf, Freezer

15 2218139 Pan, Crisper

(13−Inch)

(Includes 17,

20 & 22)

16 2218127 Pan, Meat

17 2176222 Slide, Humidity

Control

19 2218138 Pan, Crisper

(10−Inch)

(Includes 17,

20 & 21)

20 2212446 Body, Humidity

Control

21 2195340 Trim, Crisper Pan

22 2195341 Trim, Crisper Pan

23 2176356 Trim, Meat Pan

24 2214908 Shelf Assembly,

Spillguard (2)

REFRIGERATOR DOOR PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

REFRIGERATOR DOOR PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 6 & 8)

2205395 White

2205398 Black

2218280 Stainless Steel

2 2300430 Mat, Door Bin

4 2189202 Bracket, Door

Stop

5 489276 Screw, 8 x 1/2

6 2183003 Thimble

7 Hole Plug, Hinge

2212648 White

2212651 Black

8 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

9 2210566 Housing Compartment

10 2159302 Tray, Door

11 Handle

2212689 White

2221652 Black

12 2300447 Bin, Door (3)

13 2195949 Trim, Door Shelf

14 2218109 Door Compartment

15 2159312 Trim, Door Shelf

16 Hole Plug, Handle

2204837 White

2204840 Black

17 2177340 Endcap, Door Trim

18 2156006 Plug, Trim

UNIT PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

UNIT PARTS

For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00

(White) (Black) (Stainless Steel)

W10180450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533859 Screw

7 2254294 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

11 2255113 Strap

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

15 2225929 Start−Device

Combination

(Start Relay and

Overload For

Production

Compressor Only)

16 2201184 Support Block

17 2150304 Roller (2)

18 2179826 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 3400518 Screw

22 4387765 Wire Assembly

(Service Only)

23 2183454 Relay

(Service Only)

28 2218968 Compressor

(Includes Items

12,13,14,22,

23,29 & 32)

29 Drier

2199167 Production

2317845 Service

30 2155774 Clamp

32 Capacitor

2264017 Production

1118576 Service

33 2315541 Air Baffle

34 2188728 Motor, Condenser

35 2310433 Wire Assy. Unit

36 2225834 Fan Blade

37 2205384 Tube, Discharge

38 2225237 Tube, Suction

39 2154109 Tube, Process

40 488500 Screw

41 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
