CABINET PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

1−08 Litho In U.S.A. (rrm) Part No. W10180440 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service &

Wiring Sheet

W10178119

Energy Label

Use & Care Guide

W10131409

Bilingual

W10131417

Trilingual

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

5 8281265 Screw

6 2179826 Rivet

7 489427 Screw

8 549193 Clamp−Service Cord

9 489497 Screw

10 2254618 Hinge, Center

11 2183852 Shim, Hinge

Center

12 489385 Tube Clamp

13 2254473 Hinge Butt

14 3400504 Screw

15 Fitting, Water Tube

(Not Serviced)

16 Hole Plug (6)

2201012 White

2200924 Biscuit

2183998 Black

17 Seal, Front

(Not Serviced)

18 Seal, Rear

(Not Serviced)

19 Corner Filler (2)

2201014 White

2200926 Biscuit

2201017 Black

20 Grille

(Includes

Illus. 23 & 26)

2254386 White

2254389 Biscuit

2254388 Black

21 489341 Washer

22 487576 Washer

23 2189356 Clip, Grille

24 Cover, Hinge

2213360 White

2213364 Biscuit

2213363 Black

25 Rail, Center

(Not Serviced)

26 2254385 Clip, Grille

27 2254578 Cover, Unit

28 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

DOOR PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 9, & 17)

2183898 White

2205281 Biscuit

2200712 Black

2 Handle, Trim

2193353W White

2193353T Biscuit

2193353B Black

5 Handle,

Refrigerator

2213112W White

2213112T Biscuit

2213112B Black

6 489357 Screw

8 8281146 Screw

9 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

10 2262218 Nameplate

11 2188234 Shelf, Flip−Up

12 2180027 Trim, Door Shelf

13 8281206 Screw

14 2204810 Door Bin (3)

15 Freezer Door

(Includes

Illus. 17 & 18)

2182487 White

2205279 Biscuit

2200710 Black

16 Hole Plug,

Handle

2189000 White

2200936 Biscuit

2189009 Black

17 2314293 Thimble

18 Door Gasket,

Magnetic

2214966 Mist Beige

2214968 Black

19 2189202 Bracket, Door

Stop (2)

20 489276 Screw

21 Hole Plug

2212648 White

2212649 Biscuit

2212651 Black

22 2156007 Plug, Trim

23 2156006 Plug, Trim

24 2218113 Compartment Door

25 Handle, Freezer

2213111W White

2213111T Biscuit

2213111B Black

26 2195946 Trim, Door (2)

27 2195916 Endcap (4)

28 2195949 Trim, Door

LINER PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

LINER PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (Side)

4 2304099 Adaptive Defrost

Control

5 2212485 Thermostat Tube,

Barrier

6 941839 Hole Plug

7 2310057 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2315539 Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2210489 Thermostat Assy.

(Includes

Illus. 5 & 18)

14 489478 Screw

15 488208 Screw

16 2320192 Cover, Evaporator

17 527949 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2321800 Defrost, Bi−Metal

26 2210390 Air Separator

Assembly

27 2205003 Cover, Hole

28 8534009 Screw

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2204639 Shield, Heat

32 487996 Cap

W10129791

Wire Assembly

Freezer Compt.

(Includes

Illus. 25)

34 2302536 Knob, Damper

35 2179859 Post, Damper

36 2205079 Seal, Rear

Thermostat

37 2163810 Bracket,

Damper Knob

38 2171931 Valve

39 2254454 Bracket

Evap. Fan, Rear

UNIT PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

UNIT PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533859 Screw

7 2254294 Drain Pan

8 2319835 Grommet−Cond(4)

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

11 489373 Screw

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

15 2225929 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

16 2201184 Support Block

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 2255113 Strap

21 3400518 Screw

23 2183454 Relay

(Service Only)

28 2218968 Compressor

(Includes Items

12,13,14,23

29,32 & 33)

29 Drier

2317845 Service

30 2155774 Clamp

32 Capacitor

2264017 Production

1118576 Service

33 4387765 Wire Assembly

(Service Only)

34 2315541 Air Baffle

35 2188874 Motor, Condenser

36 2187382 Wire Assembly

Unit

37 2225834 Fan Blade

38 2205384 Tube, Discharge

39 2225237 Tube, Suction

40 2154109 Tube, Process

41 488500 Screw

42 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

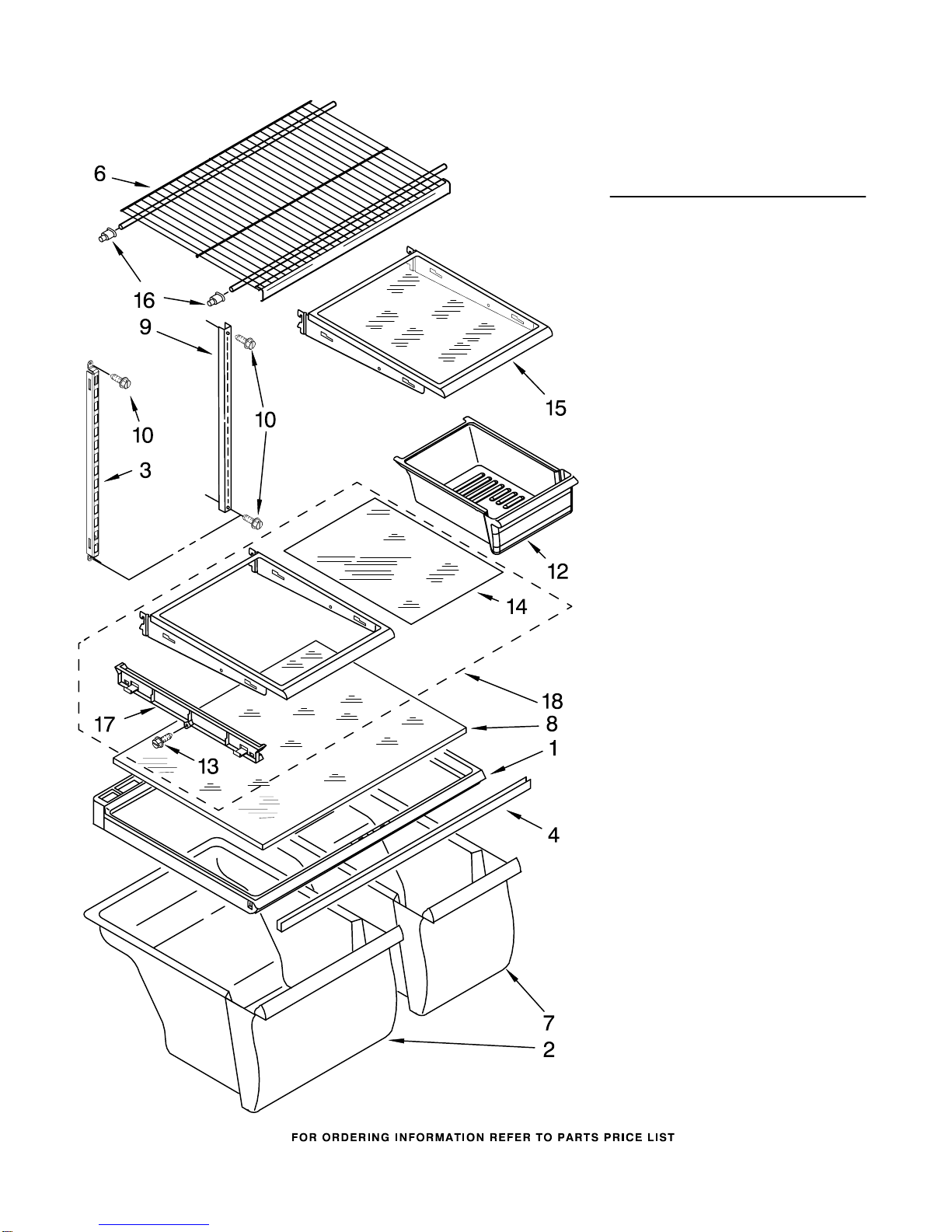

SHELF PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION

1 2314497 Cover, Crisper

2 2218124 Crisper Pan

(13−Inch)

3 2300520 Ladder,

Center Shelf

4 2314477 Support, Crisper

Cover

6 2176275 Shelf

7 2218123 Crisper Pan

(10−Inch)

8 2221693 Glass, Crisper Cover

9 2210522 Ladder,

Side Shelf (2)

10 489478 Screw

12 2218127K Meat Pan

13 3400065 Screw

14 2214912 Glass, Half Shelf

15 2214908 Shelf Assembly,

Spillguard

16 2163762 Cup, Shelf Mtg.

17 2214892 Track, Pan

Slide (2)

18 2214910 Shelf Assembly

OPTIONAL PARTS

For Models: ET8FTEXVQ00, ET8FTEXVT00, ET8FTEXVB00

(White) (Biscuit) (Black)

W10180440

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
