Whirlpool 3ED20PK Manual de usuario

Zkl 01’

2 Home

Appliances

UseAndCare

A Note To You

Important Safety

Using Your

Refrigerator

Caring For Your

Refrigerator

Food Storage Guide 15

Warranty

NO-FROST REFRIGERATOR-FREEZERS

MODELS 3ED20PK 6ED20PK

A NoteToYou

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 18. If you need further help, feel free to call an authorized

Whirpool’ service company. When calling, you will need to know your appliance’s complete model

number and serial number. You can find this information on the model and serial number label (see

diagram on page 4). For your convenience, we have included a handy place below for you to record

these numbers, the purchase date from the sales slip and your dealer’s name and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Imtxwtant SafbW Instructions

~ n - - -- ~ ~ ~ I

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

Never clean refrigerator parts with flammable

refrigerator. fluids, The fumes can create a fire hazard or

Child entrapment and suffocation are not explosion.

problems of the past. Junked or abandoned . FOR YOUR SAFETY

refrigerators are still dangerous even if DO NOT STORE OR USE GASOLINE

they will “just sit in the garage a few days.” OTHER FLAMMABLE VAPORS AND LIQUIDS

If you are getting rid of your old refrigerator, IN THE VICINITY OF THIS OR ANY OTHER

do it safely. APPLIANCE. THE FUMES CAN CREATE A

Never allow children to operate, play with, or FIRE HAZARD OR EXPLOSION.

crawl inside the refrigerator. -SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 13°C (55°F).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding.

9 Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

PartsAnd Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like.

Control panel Light

Model and

serial number

Ice cube

1-6 f$ - 11 llpdoor shelve’s

Shelf glide

Utility bin

Door shelves

Base grille

Control panel

Freeze; control Refrigerator control

Before Using Your

Rebigerator

In This Section

Page Page

Cleaning it ...........................................................5 Installing it ........................................................5

Plugging it in .......................................................5 Leveling it ..............................,.............. ... ......6

It is important to prepare your refrigerator for use. This section will tell you how to clean it,

Connect

it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 13.

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or 20

ampere fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance be

provided. Use a receptacle which cannot be

turned off with a switch or pull chain. Do not use

an extension cord.

Installing it

1. Allow 1.25 cm (‘/2 inch) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the refrigerator is to be against a wall, you

might want to leave extra space on the hinge

side closest to the wall so the door can be

opened wider.

3. The refrigerator can be flush against the wall.

Leveling it

Your refrigerator has 2 leveling screws-one on

Right to raise;

the right and one on the left. To adjust one or

left to lower

both of these, follow the directions below.

Front

1. Remove base grille. (See page 11.)

Use a screwdriver

roller

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

4. Check with level.

5. Replace base grille. (See page 11.)

Using Your Refrigerator

In This Section

Page

Setting the controls ........................................... .7

Changing the control settings.. ........................ .9

Adjusting the refrigerator shelves ................... .9

Removing the freezer shelves .......................... .9

Adjusting the shelf glide ................................... .9

Removing the crisper and crisper cover.. ....... .9

Removing the meat drawer and cover..

..........

Page

Adjusting the meat drawer temperature.. ....10

Removing the freezer bin

..............................

Using the ice cube trays ............................... 10

Removing the base grille ............................. .ll

Changing the light bulbs ...............................

Understanding the sounds you may hear ...12

Saving energy ................................................ 12

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from 1

(warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from A

(warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when ice

cream is firm. If you need to adjust these

settings, see “Changing the control settings” on

page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

hanging the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide.

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

r---- _------

RECOMMENDED

CONDITION: REASON: CONTROL SElTINGS:

If Refrigerator Door opened often Refrigerator 4

Section is Large amount of food added Freezer A

TOO WARM Room temperature too warm

- If Freezer Door opened often Refrigerator 3

Section is Large amount of food added Freezer C

TOO WARM Very cold room temperature

(can’t cycle often enough)

If Refrigerator Controls not set correctly Refrigerator 2

Section is for your conditions Freezer B

TOO COLD

If ICE isn’t Heavy ice usage

MADE FAST Very cold room temperature

ENOUGH (can’t cvcle often enouah)

Refrigerator

Freezer

If BOTH

SECTIONS

are TOO WARM

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

items.

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear hooks into the slots in the shelf

supports.

2. Tilt up front of shelf until hooks drop into slots.

3. Lower front of shelf to level position. Glass shelves are

heavy. Be careful.

- *, - I m-----m I ----a- 3

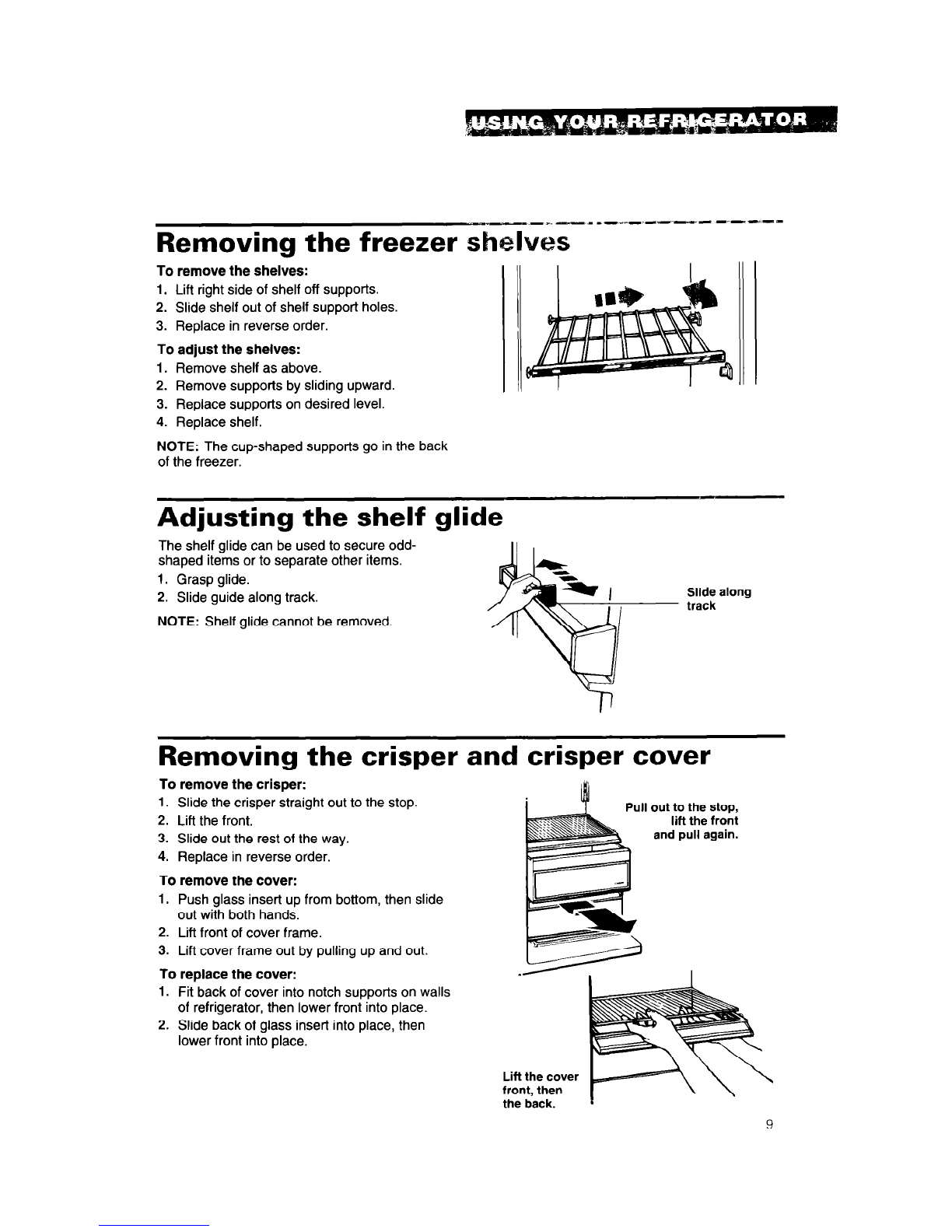

Removing the freezer shelves

To remove the shelves:

1. Lift right side of shelf off supports.

2. Slide shelf out of shelf support holes.

3. Replace in reverse order.

To adjust the shelves:

1. Remove shelf as above.

2. Remove supports by sliding upward.

3. Replace supports on desired level.

4. Replace shelf.

NOTE: The cup-shaped supports go in the back

of the freezer.

Adjusting the shelf glide

The shelf glide can be used to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide guide along track.

Slide along

track

NOTE: Shelf glide cannot be removed.

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push glass insert up from bottom, then slide

out with both hands.

2. Lift front of cover frame.

3. Lift cover frame out by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on walls

of refrigerator, then lower front into place.

2. Slide back of glass insert into place, then

lower front into place.

out to the stop,

lift the front

and pull again.

Lift the cover

front, then

the back.

i.-m,ll..- -vu --I*-.l- Y-m,

emowing the meat drawer and cover

To remove the meat drawer: i

. Slide the meat drawer out to the stop.

I . Lift the front.

:‘. Slide meat drawer out the rest of the way.

2.“. Replace in reverse order.

To remove the cover:

.‘. Remove crisper, crisper cover and meat

drawer.

; . Tilt front of cover up, lift at back and pull

straight out.

:1. Replace in reverse order.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through

an opening between the freezer and the refrig-

erator. This helps keep the meat drawer colder

than the rest of the refrigerator for better storage

of meats.

Slide the control to let more or less cold air

through.

Removing the freezer bin

For proper air movement, keep the freezer bin in

place when the refrigerator is operating.

To remove the bin:

1. Slide bin out to the stop.

2. Lift bin at the front to clear the stop.

3. Slide bin out the rest of the way.

To replace the bin:

1. Place bin on the slides.

2. Make sure the stops clear the front of the

slides.

3. Slide bin in.

Using the ice cube trays

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool EL13PC Manual de usuario

Whirlpool

Whirlpool ER2MHKXPL02 Manual de usuario

Whirlpool

Whirlpool WHR46TS1E Manual de usuario

Whirlpool

Whirlpool ETl8JK Manual de usuario

Whirlpool

Whirlpool G2IXEFMW - 4-10 Manual de usuario

Whirlpool

Whirlpool GC5SHGXKB00 Manual de usuario

Whirlpool

Whirlpool ET1CHMXKB06 Manual de usuario

Whirlpool

Whirlpool WT1626N Manual de usuario

Whirlpool

Whirlpool W9TXNMFWB - Top Freezer Refrigerator Manual de usuario

Whirlpool

Whirlpool ET1MHKXMB06 Manual de usuario

Whirlpool

Whirlpool 8ET18DK Manual de usuario

Whirlpool

Whirlpool WRS322FDAW02 Manual de usuario

Whirlpool

Whirlpool GS6NHAXVQ - 25 Cubic Foot Qualified Refrige Guía de solución de problemas

Whirlpool

Whirlpool ED5KVEXVQ - 25' Dispenser Refrigerator Instrucciones de montaje

Whirlpool

Whirlpool ET18LK Manual de usuario

Whirlpool

Whirlpool WRF736SDAB Instrucciones de montaje

Whirlpool

Whirlpool ED2VHEXSB00 Manual de usuario

Whirlpool

Whirlpool WRIBT41WB Manual de usuario

Whirlpool

Whirlpool Refrigerator-freezer Manual de usuario

Whirlpool

Whirlpool lT20AK Manual de usuario

Whirlpool

Whirlpool ET18XM Manual de usuario

Whirlpool

Whirlpool W10197275 Manual de usuario

Whirlpool

Whirlpool ED22PF Manual de usuario

Whirlpool

Whirlpool WH27S1E Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
