COOKTOP PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

1−06 Litho in U.S.A. (cre) Part No. 8186523

30" DROP−IN

ELECTRIC

STANDARD CLEAN

OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8300649 Installation

Instructions

9763523 Use & Care Guide

8302071 Tech Sheet

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

2 3192459 Burner Box

4 3192575 Bracket, Mounting

5 3196537 Screw, 8−18 x 3/8

6 3400843 Screw

7 3192102 Trim, Extension

8 Cooktop

3191168 White

8284709 Biscuit

10 3191228 Panel, Control

11 3183956 Seal, Switch (4)

12 Switch, Infinite

3191471 Use W/ 6" Surface

(Blue Shaft)

3191472 Use W/ 8" Surface

(Silver Shaft)

13 4456181 Light, Indicator

14 3195917 Clip, Element

15 3400855 Screw, 8−32 x 1/4

17 4448444 Grommet

19 Drip Bowl

3195208 6" (2)

3195209 8" (2)

20 Element, Coil

8053265 6" LF−RR

8053267 8" RF−LR

22 3196231 Knob, Control (4)

23 3192330 Bracket, Switch

Mounting

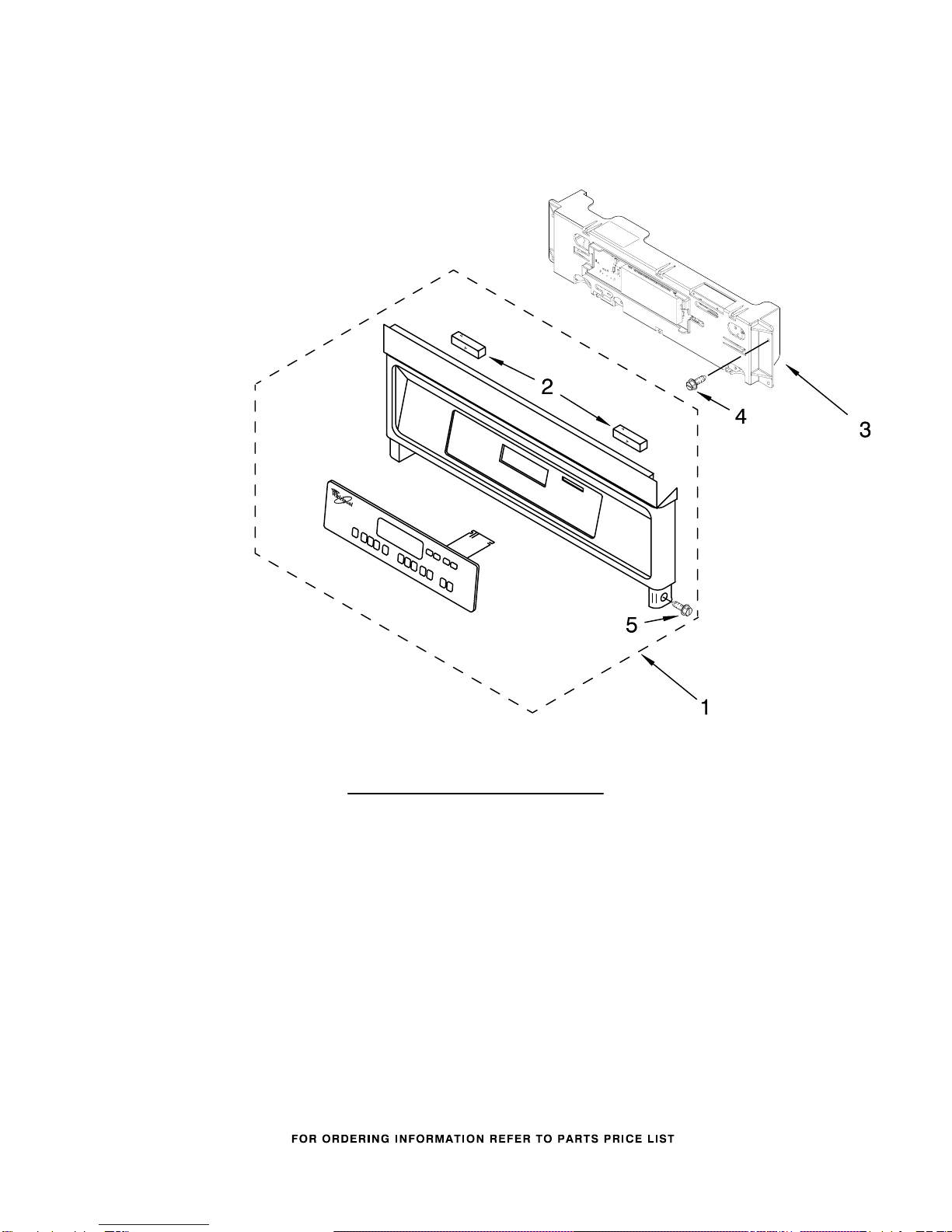

CONTROL PANEL PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION

1 4456313 Control Panel Assy.

W/Membrane Switch

2 4451034 Gasket,

Control Panel

3 8302994 Assy, Control

4 4449745 Screw

5 3400832 Screw

OVEN PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

OVEN PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

4450844 RH Black

4450847 LH Black

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4449743 Screw

6 3196176 Screw

7 8303099 Top, Chassis

8 4449809 Screw

9 4452159 Tube, Vent

10 4451664 Fan & Bracket Assy

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452165 Lens, Light

14 9759060 Frame, Front

15 4450493 Gasket, Door

16 4449040 Screw

17 4449154 Screw

19 4451478 Support, Insulation

21 Rail, Side

4450579 Right Side

4450580 Left Side

23 4450051 Deflector

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

37 4451354 Fuse − Thermal

43 9759713 Base, Chassis

49 4448933 Retainer

50 4451747 Cover, Back

51 4448477 Trim, Bottom

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

OVEN DOOR PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION

1 4455618 Door Liner

2 4449259 Glass, Inner

3 Hinge, Door

9760565 R.Side (Brown)

9760566 L.Side (Brown)

4 4457132 Retainer, Glass

5 4450813 Bracket, Handle

6 8300820 Seal, Top

7 4449809 Screw

8 8300903 Assy, Door Glass

9 4448854 Handle, Door

10 4450863 Retainer, Glass

11 4449743 Screw

INTERNAL OVEN PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION

1 4456103 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

TOP VENTING PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4454943 Plate, Mounting

3 4450038 Screw

10 4451985 Suppressor

11 4449868 Block, Terminal

12 3400080 Screw

13 4448549 Vent,

(Control Panel)

14 Side, Control Compt.

3191832 Right

3191833 Left

15 4452244 Back, Control

16 3191842 Cover, Rear

17 4449809 Screw

OPTIONAL PARTS

For Models:RS610PXGW11,RS610PXGV11

(White) (Black on Biscuit)

8186523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

3191220 Harness, Wire

(Main)

4455805 Grommet

8301875 Harness, Wire

(EDC)

FE02313 Bushing

4451163 Conduit

3400015 Screw, Ground

4448664 Clamp

3192236 Harness, Wire

(Infinite Switch)

4455592 Harness, Wire

(Light)

4454384 Ground, Wire

4452222 Spacer, Harness

4454835 Tie, Cable

Miscellaneous

4448950 Screw, Install.

8−14 x 1" (4)

814381 Hinge Pin Kit
