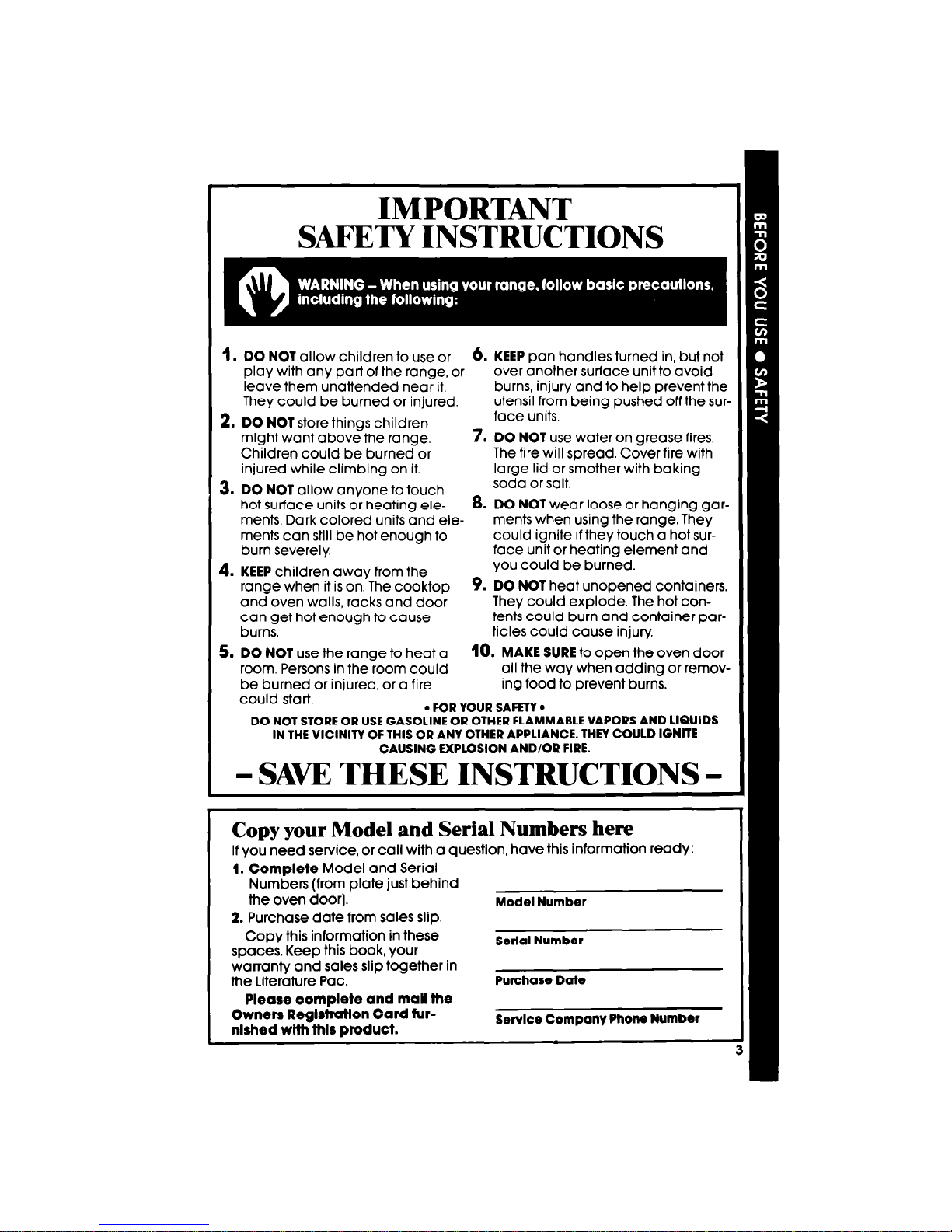

IMPORTANT SAFETY

INSTRUCTIONS. . . . . . . . . . . . 3

PARTSAND FEATURES. . . . . . 4

USING YOUR RANGE. . . . . . . 5

Using the Surface Units . . . 5

Optional Canning Kit . . . 6

Setting the Clock , . . . . . . . , 6

Using the Minute Timer . . . . . . 7

Using the Oven Controls . . . 7

Baking . . . . . . . . 7

Broiling . . . . . . 9

Using the Automatic

MEALTIMER’ Clock 11

Oven Vent . . . . . . . 12

Storage Drawer .

Optional Rotisserie

CARING FOR YOUR RANGE

Control Panel

Surface Units and

Reflector Bowls

Lift-Up Cooktop

Using the Self-Cleaning

Cycle . . . . . . . . . .

Cleaning Chart . . . . .

Oven Light

IF YOU NEEDSERVICE OR

ASSISTANCE

WHIRLPOOL RANGE

WARRANTY

. . 17

., 21

‘Tmk.

01987 Whirlpool Corporation

Before you use your range

Read thls Use 81Care Gulde and The Cooking Guide for important safety

Intormatlon.

You are personally responsible for:

Reading and following all safety precautions in this Use & Care Guide and the

Cooking Guide.

Installing the range where it is protected from the elements, and on a floor

strong enough to support its weight.

Properly connecting the range to electrical supply and grounding. (See

“Installation Instructions:‘)

Making sure the range is not used by anyone unable to operate it properly.

Properly maintaining the range.

Using the range only for jobs expected of a home range.

See “Cooklng Guide” for important safety and use information.

IMPORTANT

SAFETY INSTRUCTIONS

DO NOT

allow children to use or

6. KEEP

pan handles turned in, but not

play with any part of the range, or over another surface unit to avoid

leave them unattended near it. burns, injury and to help prevent the

They could be burned or injured. utensil from being pushed off the sur-

DO NOT

store things children face units.

might want above the range. 7.

DO NOT

use water on grease fires.

Children could be burned or The fire will spread. Cover fire with

injured while climbing on it. large lid or smother with baking

DO NOT

allow anyone to touch soda or salt.

hot surface units or heating ele- 8.

DO NOT

wear loose or hanging gar-

ments. Dark colored units and ele- ments when using the range. They

ments can still be hot enough to could ignite if they touch a hot sur-

burn severely. face unit or heating element and

4. KEEP

children away from the you could be burned.

range when it is on. The cooktop 9.

DO NOT

heat unopened containers.

and oven walls, racks and door They could explode. The hot con-

can get hot enough to cause tents could burn and container par-

burns. titles could cause injury

DO NOT

use the range to heat a 10.

MAKE SURE

to open the oven door

room. Persons in the room could all the way when adding or remov-

be burned or injured, or a fire ing food to prevent burns.

could start.

FCR YOUR SAFETT

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND

LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE

CAUSING EXPLOSION AND/OR FIRE.

- SAW THESE INSTRUCTIONS -

Copy your Model and Serial Numbers here

If you need service, or call with a question, have this information ready:

1. Complete

Model and Serial

Numbers (from plate just behind

the oven door].

Model Number

2. Purchase date from sales slip.

Copy this information in these

spaces. Keep this book, your

Serial Number

warranty and sales slip together in

the Literature Pac.

Purchase Date

Please complete and mall the

Owners Reglstratlon Card tur-

nlshed with this Dtoduct.

Servlce

Company Phone Number

Parts and features

Model RF365BXP

CLOCK START STOP

CONTROL KNOB

CONTROL PANEL

PLUG-IN

AUTOMATIC OVEN

LIGHT SWITCH

MODEL AND SE

NUMBER PLATE

REMOVABLE

STORAGE DRAWER

LITERATURE PAC

(not shown]

OVEN TEMPERATURE OVEN SIGNAL OVEN

CONTROL LIGHT SELECTOR

LOCK

CLEAN RIGHT REAR / RIGHT FRONT \

LIGHT LIGHT CONTROL KNOB CONTROL KNOB

Using the surface units

Surface Unit Indicators

The solid dot in the surface unit

indicator shows which surface unit

is turned on by that knob.

Signal light

One of the signal lights will glow

when a surface unit is on.

Control knobs must be pushed in

before turning

them to a setting. They

can be set anywhere between HI

and OFF.

Until you get used to the settings, use the

start cooking at the high settings; then turn

following as a gulde.

For best results,

the control knob down to Continue

cooking.

Use HI

to start

Use MED-HI Use MED Use MED-LO

foods cook- to hold a for gravy, to keep food

ing; to bring rapid boil; to puddings cooking after

liquids to a fry chicken and icing; to starting it

boil. or pancakes. cook large on a higher

amounts of setting.

vegetables.

CAUTION: The use of the HI setting for long periods of time

can damage surface units and discolor chrome reflector

bowls. Start cooking on HI and turn control down to con-

tinue cooking.

Use LO

keep food

warm until

ready to

serve. Set the

heat higher

or lower

within the LO

band to keep

food at the

temperature

you want.

Use only flat-bottomed utensils for best cooking results and to prevent damage

to the cooktop. Specialty items with rounded or ridged bottoms (woks, ridged

bottom canners or tea kettles] are not recommended.

See the “Cooking Guide” for important utensil information.

Optional Canning Kit (Part

NO.

242905)

The large diameter of most water-bath or pressure canners combined with

high heat settings for long periods of time can shorten the life of regular surface

units and cause damage to the cooktop.

If you plan to use the cooktop for canning, we recommend the installation

of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care” Service

Company.

See the “Cooking Guide” for important canning information.

Setting the Clock

Push in and turn the Minute Timer Knob to set the Clock.

Push in Minute Timer Knob and

turn clockwise

until clock shows

the right time of day.

2. let the Minute Timer Knob pop

out. Turn clockwise until Minute

Timer hand points to OFF.

The

clock setting will change if you

push in the knob when turning.

Wlfhoui pushing It in,

turn the

Minute Timer Knob until the hand

passes the setting you want.

2. Wlthout pushlng In,

turn the knob

back to the setting you want.

When the time Is up,

a buzzer

will sound. To stop the buzzer, turn

the Minute Timer hand to OFF.

PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THECLOCK

SETTING.

Using the Oven Controls

Baking

Rack(s) should be placed so

the top of the food will be cen-

tered in the oven. Always leave

at IeastlYz to 2 inches (4-5 cm)

between the sides of the pan

and the oven walls and other

pans. For more information, see

the “Cooking Guide:

1. Position the rack(s) properly

before

turning on the oven.

change rack posltlon,

lift rack at

front and pull out.

continued on next page

Using the Minute Timer

The Minute Timer does not start or stop the oven. It works like a kitchen timer.

Set it in minutes up to an hour. You will hear a buzzer when the set time is up.

DO NOT PUSHIN THEKNOB

when setting the Minute Timer.

2. Set Oven Selector to BAKE. 3. Set Oven Temperature Control to

the baking temperature you want.

The Oven Signal Light will come on.

The oven is preheated when the

Oven Signal Light first goes off.

Put food in the oven. Note:

Oven

racks, walls and door will be

hot.

During baking, the elements will

turn on and off to keep the oven

temperature at the setting. The

Oven Signal Light will turn on and

off with the elements.

The top element helps heat

durlng baklng, but does not

turn red.

5. When baking is done, turn both

the Oven Temperature Control

and the Oven Selector to OFF

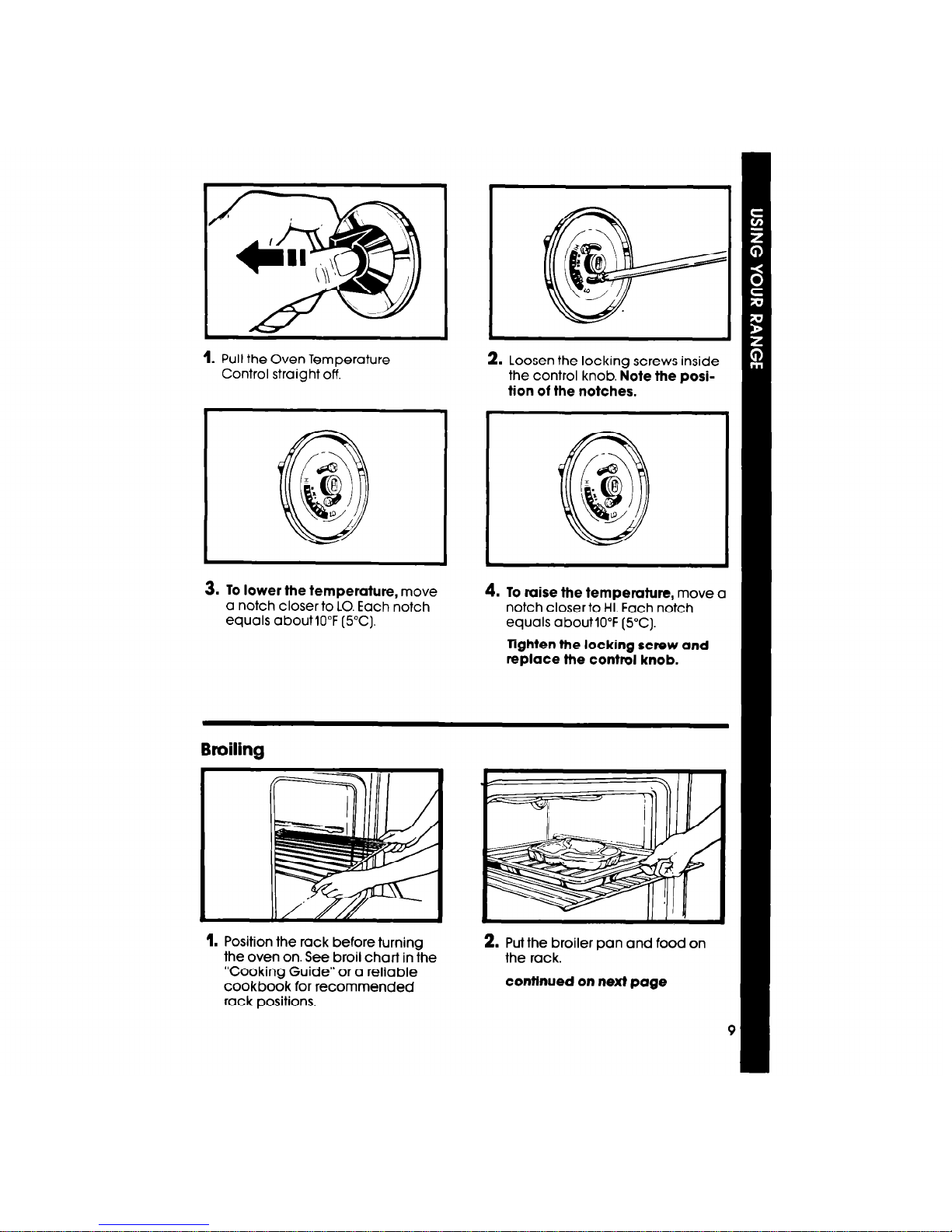

Adjusting the Oven Temperuture Control

Does your oven seem hotter or colder than your old oven? The temperature

of your old oven may have shifted gradually without your noticing the change.

Your new oven is properly adjusted to provide accurate temperatures. But when

comparing to your old oven, the new design may give you different results.

If after using the oven for a period of time, you are not satisfied with the

temperature settings, they can be adjusted by following these steps:

1. Pull the Oven Temperature

Control straight off. 2. Loosen the locking screws inside

the control knob. Note the

posi-

tion of the notches.

3. To lower the temperature,

move

a notch closer to LO.Each notch

equals aboutlO”F (5°C).

4. To raise the temperature,

move a

notch closer to HI. Each notch

equals aboutlO”F (5°C).

lighten the locking screw and

replace the control knob.

Broiling

1. Position the rack before turning

the oven on. See broil chart in the

“Cooking Guide” or a reliable

cookbook for recommended

rack positions,

2. Put the broiler pan and food on

the rack.

continued on next page

3. Close the door to the Broil Stop

position, (open about 4 inches,

10.2 cm). The door will stay open

by itself.

4. Set the Oven Selector and the

Oven Temperature Control to

BROIL.

5. When broiling is done, turn

both

the Oven Selector and the Oven

Temperature Control to OFF.

Custom Broil

If food is cooking too fast, turn the Oven Temperature Control

counterclock-

wise

until the Oven Signal Light goes off.

If you want the food to broil slower from the start, set the Oven Temperature

Control between 150” and 325°F (655 and 142°C). The lower the temperature,

the slowerthe cooking.

The Oven Selector must be on BROIL for all broiling temperatures.

CAUTION: The door must be parfly open whenever fhe oven Is

set to BROIL. Leaving the door open allows the oven to maintain

proper femperufures.

Tabla de contenidos

Otros manuales de Rango de Whirlpool

Whirlpool

Whirlpool W10430949B Manual de usuario

Whirlpool

Whirlpool RF263LXTB2 Manual de usuario

Whirlpool

Whirlpool Roper FES325RQ1 Manual de usuario

Whirlpool

Whirlpool Gold GGE388LX Manual de usuario

Whirlpool

Whirlpool 8523781 Manual de usuario

Whirlpool

Whirlpool Gold SF114PXS Manual de usuario

Whirlpool

Whirlpool VSF315PEMQ3 Manual de usuario

Whirlpool

Whirlpool 40' Electric Freestanding Range Manual de usuario

Whirlpool

Whirlpool RF375PXW Manual de usuario

Whirlpool

Whirlpool WFE321LW Manual de lista de piezas

Whirlpool

Whirlpool IEL730C Manual de usuario

Whirlpool

Whirlpool 9763003 Manual de usuario

Whirlpool

Whirlpool GW395LEGT5 Manual de usuario

Whirlpool

Whirlpool W10196150B Manual de usuario

Whirlpool

Whirlpool CEL1110AAH Manual de usuario

Whirlpool

Whirlpool WGE755 Manual del propietario

Whirlpool

Whirlpool IES355RQ2 Manual de usuario

Whirlpool

Whirlpool Gold GY397LXU Manual de usuario

Whirlpool

Whirlpool Need For Speed WFG775H0HZ Manual de usuario

Whirlpool

Whirlpool WFE540H0EB Manual de usuario

Whirlpool

Whirlpool FGP325A Manual de usuario

Whirlpool

Whirlpool YSF377PEG Manual de usuario

Whirlpool

Whirlpool Super Capacity 465 Manual de usuario

Whirlpool

Whirlpool WFG710H0AH0 Manual de usuario

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
