COOKTOP PARTS

STANDARD CLEAN RANGE

7−07 Litho in U.S.A. (rek) Part No. W10154773 Rev. B

30" ELECTRIC FREESTANDING

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions

Installations

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

W10115596

Tech Sheet

9762761 Safer Cooking Tips

W10035930

Spring, Locator

3 3196170 Screw

4 Cooktop

9763321 White/White

9763323 Black

5 Element, Surface

8523695 2000 W − LF

8523697 1500 W − LR

8523695 2000 W − RR

8523697 1500 W − RF

6 3196169 Screw

7 3196454 Bracket, Element

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

CONTROL PANEL PARTS

2W10154773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White LH

W10009050

White RH

W10009080

Black LH

W10009090

Black RH

2 9757609 Nameplate

3 Panel, Backguard

9762018 White

W10120937

Black

W10127721

Stainless

4 Switch, Infinite

3148953 Left Front

3148952 Left Rear

3148953 Right Rear

3148952 Right Front

5 Light, Indicator

8523265 Surface Unit (2)

6 3196068 Lens, Light (3)

7 Knob, Infinite (4)

9761962 White

9761964 Black

8 8523280 Shield, Heat

9 3196166 Screw

10 8272473 Cover, Upper

11 8273564 Clip

12 Control, Range

W10108280

White

W10108290

Black

13 3196178 Screw

14 9762078 Brkt−Mntg, EOC

15 9762095 Brkt−Mntg, Console

16 3400882 Screw

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

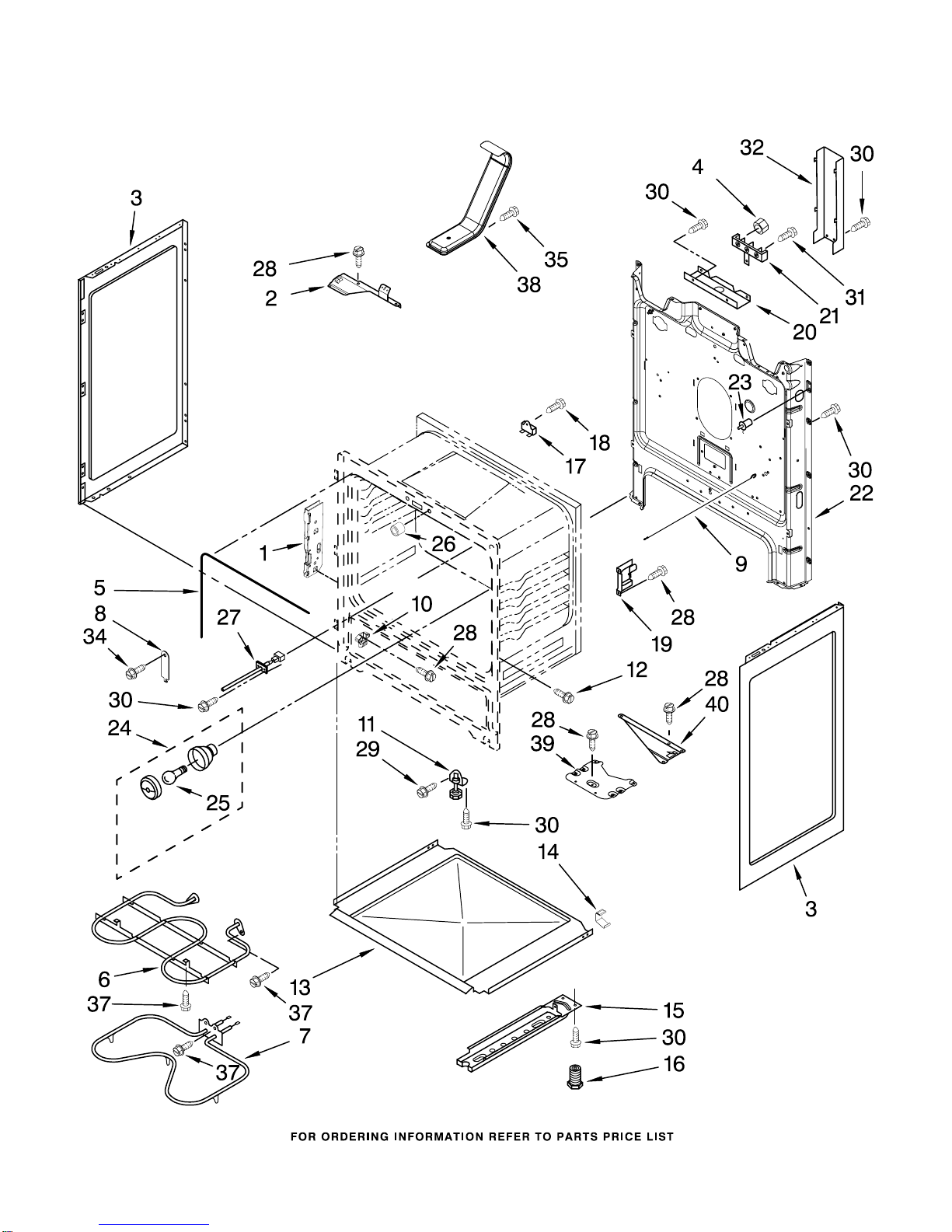

CHASSIS PARTS

W10154773

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

CHASSIS PARTS

4W10154773

Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt − Mounting

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White−Textured

8053832 Black

4 112432 Nut

W10129032

Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 9761517 Clip,Door Mntg(2)

9 9757239 Rod − Dr Switch

W10114344

Glide, Drawer Frnt

11 3196037 Foot, Front (2)

W10067840

Screw

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 3196548 Thermal, Fuse

18 3196172 Screw

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9758701 Spacer − Door

27 8273902 Sensor, Oven

28 3196169 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

W10031780

Screw

35 3196566 Screw

37 3196174 Screw

38 9761299 Flue

39 3195736 Support, Front (2)

40 3195987 Support, Corner RR

INSULATION

8273263 Insulation, Wrap

8272611 Insulation, Back

8272613 Insulation, Vent

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

DRAWER & BROILER PARTS

W10154773

Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

8053339 White

8053341 Black

6 8053334 Glide, Drawer (2)

7 3196168 Screw

W10031790

Screw(Stls.Model)

9 9781235 Clip(Stls. Model)

10 9755798 Panel(Stls.Model)

11 9757219 Handle(Stls.Model)

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

DOOR PARTS

6W10154773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)

1 Trim, Top

9761975 White

9762391 Black

9762394 Stainless Model

2 3196164 Screw

3 Handle, Door

9761982 White

9761983 Black

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Window, Inner

7 9761501 Retainer, Insul.

8 Hinge, Door (2)

9761494 White,Black

9761493 Stainless Model

9 Glass, Outer

W10075980

White

W10075990

Black

9756435 Stainless

10 Trim, Side

8523172 White Left Hand

8523166 White Right Hand

8523171 Black LH

8523165 Black RH

11 3196160 Screw

12 Trim, Lower

8523175 White

8523177 Black

8523180 Stainless Model

W10031780

Screw

W10113759

Strap, Door

OPTIONAL PARTS (NOT INCLUDED)

W10154773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

4396923 Pan, Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762959 Harness, Wire

(Cooktop Left)

9762958 Harness, Wire

(Cooktop Right)

W10083650

Harness, Wire

(Sensor/Dr Switch)

8523279 Wire, Ground

3196154 Screw

W10083550

Harness, Wire

(Main)

313660 Clip, Wire Ground

3196173 Screw

8524132 Shield, Wiring

3196174 Screw

(Grnd Wire / Back)

For Models: RF214LXTQ0, RF214LXTB0, RF214LXTS0

(Designer White) (Black) (Stainless)
