Whirlpool RF263LXTB0 Manual de usuario

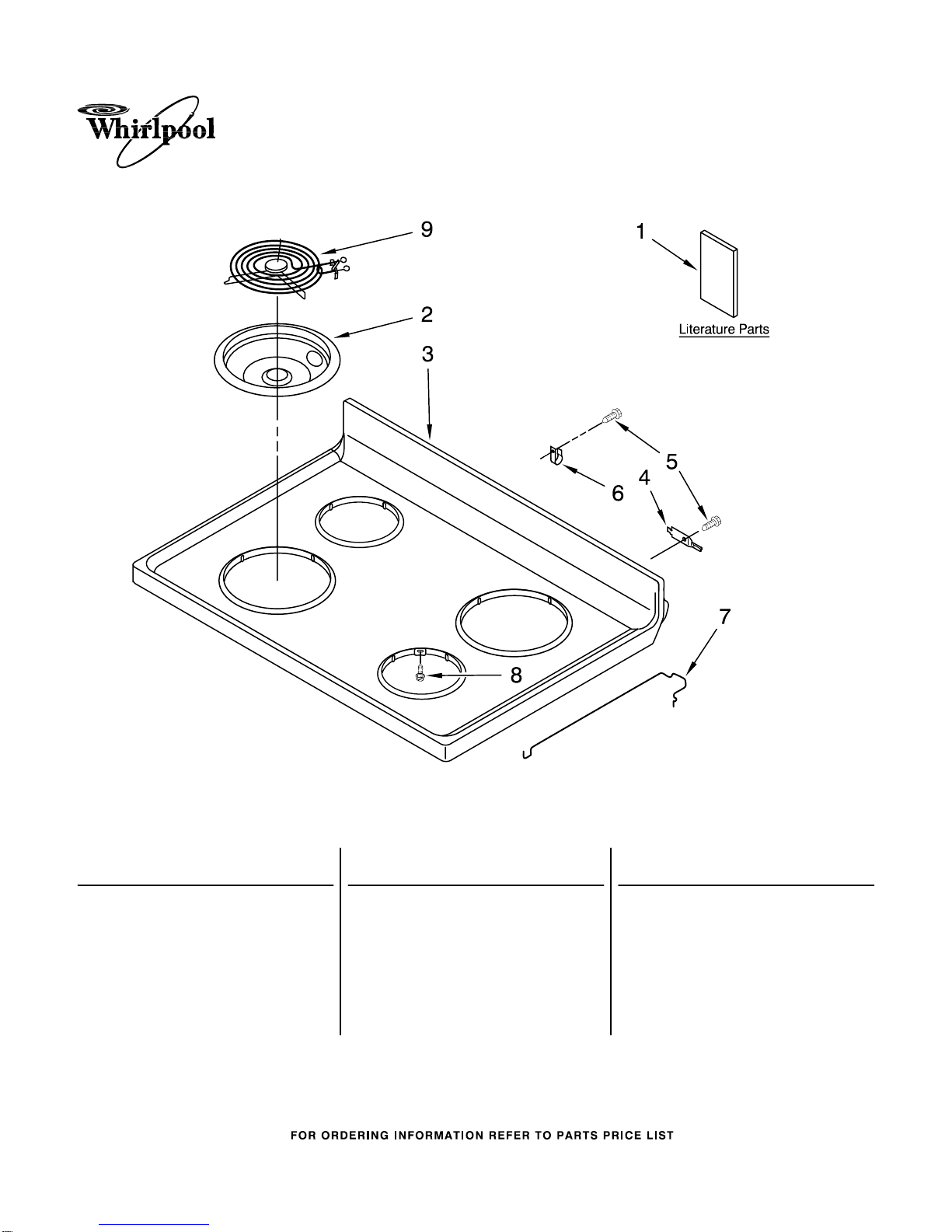

COOKTOP PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

3−07 Litho in U.S.A. (cre) Part No. W10133262 Rev. A

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions

Installations

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

9762976 Tech Sheet

9762761 Safer Cooking Tips

2 Bowl, Drip

3195208 6" Chrome (2)

3195209 8" Chrome (2)

3 Cooktop

3186231 White

8272527 Biscuit

3186233 Black

4 3195060 Hinge, Cooktop (2)

5 3196178 Screw (2)

6 308605 Relief, Strain

7 3195812 Rod, Support (2)

8 3196154 Screw

9 Element, Surface

9761347 6" (2)

9761345 8" (2)

CONTROL PANEL PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White Left Hand

W10009050

White Right Hand

W10009060

Biscuit Left Hand

W10009070

Biscuit Right Hand

W10009080

Black Left Hand

W10009090

Black Right Hand

2 9757609 Nameplate

3 Panel, Control

9762015 White

9762016 Biscuit

9762017 Black

W10117592

S.Steel

4 Switch, Infinite

3148954 LF/RR

3148952 LR/RF

5 Light, Indicator

8523265 Surface Unit (2)

6 3196068 Lens, Light (3)

7 Knob, Infinite (4)

9761962 White

9761963 Biscuit

9761964 Black

8 8053912 Shield, Heat

9 Screw

3196166 White

8281194 Biscuit

3196168 Black

10 8272473 Cover, Upper

11 8273564 Clip

12 Control, Range

W10114376

White

W10114378

Biscuit

W10114377

Black

W10114379

S.Steel

13 3196178 Screw

14 9762078 Brkt−Mntg, EOC

15 9762095 Brkt−Mntg, Console

16 3400882 Screw

17 3196200 Clip, Spring (2)

CHASSIS PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

CHASSIS PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt − Mounting

2 3186144 Box, Burner

3 Panel, Side (2)

Incl Side Foil #45

8053830 White

8272519 Biscuit

8053832 Black

W10010350

Seal, Oven Flange

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 3195809 Bumper (2)

9 9757239 Rod − Dr Switch

10 9759785 Glide, Drawer Frnt

11 3196037 Foot, Front (2)

12 Frame, Front

(Not Serviced)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 3196548 Thermal, Fuse

18 3196172 Screw

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9758701 Spacer − Door

27 8273902 Sensor, Oven

28 3196169 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

W10031780

Screw

35 3196567 Screw

36 3196168 Screw

37 3196174 Screw

38 9758238 Retainer, Insul(2)

39 3196560 Screw (2)

40 9755804 Tube, Vent

41 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

44 112432 Nut

45 9761490 Insulation, Side

46 9761512 Clip, Mounting

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

DRAWER & BROILER PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761030 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196815 Almond

3196813 Black

5 Panel, Drawer Frnt

8053339 White

8272501 Biscuit

8053341 Black

6 8053334 Glide, Drawer (2)

7 3196168 Screw

DOOR PARTS

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9761975 White

9761976 Biscuit

9762391 Black

9762394 S.Steel

2 3196164 Screw

3 Handle, Door

9761982 White

9761984 Biscuit

9761983 Black

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Window, Inner

7 9761357 Retainer, Insul.

8 Hinge, Door (2)

9761493 WH,BT,BL Models

9761496 S.Steel Model

9 Glass, Outer

W10075980

White

W10076000

Biscuit

W10075990

Black

9756417 Black (Used on

S.Steel Model)

10 Trim, Side

8523172 White Left Hand

8523166 White Right Hand

8523173 Biscuit Left Hand

8523167 Biscuit Right Hand

8523171 Black Left Hand

8523165 Black Right Hand

11 3196160 Screw

12 Trim, Lower

8523175 White

8523178 Biscuit

8523177 Black

8523180 Black (Used on

S.Steel Model)

13 8272618 Insulation

14 3186289 Frame, Window

W10031780

Screw

16 8522414 Seal, Window

17 3196025 Clip, Glass (6)

W10113759

Strap, Door

19 3196794 Bracket, Window

20 9761517 Clip, Dr Mntg (2)

21 3196165 Screw

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0

(White) (White on White) (Biscuit) (Black) (S.Steel)

W10133262

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

4396923 Pan, Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762428 Harness, Wire

(Sensor/Dr Switch)

9761476 Harness, Surface

Unit

311227 Wire, Ground

3196154 Screw

9762952 Harness, Wire

(Main)

313660 Clip, Wire Ground

3196173 Screw

308605 Relief, Strain

8524132 Shield, Wiring

3196174 Screw

(Grnd Wire / Back)
