Whirlpool GS563LXSB1 Manual de usuario

COOKTOP PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

1−08 Litho in U.S.A. (mo) Part No. W10181237 Rev. A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10162212

Guide, Use & Care

Tech Sheet

W10041630

(French)

9762983 (English)

Instructions,

Installation

9757142 (Spanish)

9757143 (French)

Safer Cooking Tips

9762761 (English)

W10065852

(French)

2 Cap, Burner

3192487 Black

9763244 Grey

9763248 Espresso

LF − RF

3192488 Black

9763243 Grey

9763247 Espresso

3192486 Black

9763242 Grey

9763246 Espresso

4 Burner

4455981 LF−RF

4455980 LR

4455979 RR

5 Cooktop

8272251 White

8272253 Black

8272743 Biscuit

6 Panel, Manifold

8523855 Black

8523854 White

8523856 Biscuit

7 Knob, Control (2)

8273279 Black

8522623 White

8522626 Biscuit

8 Knob, Accusimmer

8273280 Black

8522625 White

8522628 Biscuit

9 Knob, Powerburner

8273281 Black

8522624 White

8522627 Biscuit

12 Grate

9762228 Gray

9762229 Espresso

9763283 Black

14 3400701 Screw

15 3196557 Screw

9762997 (English)

DRAWER & BROILER PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274021 Rack, Partial

4 9761031 Drawer, Storage

5 3196817 Bracket, Drawer(2)

6 Rivet, Push (2)

3196814 White

3196815 Almond

3196813 Black

7 Panel, Drawer Frnt

8053336 White

8053338 Black

8272502 Biscuit

8 Spacer, Glide

8053334 White,Blk,Biscuit

W10133364

Stainless Steel

10 3196168 Screw

11 8274022 Rack, Insert

W10138079

Rack, Oven

13 Stnlss Mdl Only

14 9755797 Panel,Stnlss Stl

15 9762251 Handle, Drawer

16 9781235 Speed Clip

MANIFOLD PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

MANIFOLD PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273692 Left Front

8273694 Left Rear

8273696 Right Front

8273697 Right Rear

4 8523433 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 9762230 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

20 Orifice, Burner

8273065 Left Front

8273064 Right Front

8273065 Left Rear

8273067 Right Rear

21 8053262 Spreader, Flame

(Broiler)

22 9758382 Valv−Soln/Shtoff

23 3196265 Screw

24 3196176 Screw

25 3196385 Screw

26 3400016 Screw

27 8272470 Tube(GPR−Shutoff)

Following Parts Not Illustrated

8523420 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

CHASSIS PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10153186

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8272519 Biscuit−Textured

8053832 Black−Textured

6 8523249 Brkt, Manifold Mtg

9 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

11 3195097 Bottom, Oven

W10131826

Sensor, Oven

13 8053967 Baffle, Burner

14 8053969 Shield, Heat

15 8053968 Shield, Lower

16 9760314 Rail, Base (2)

W10031780

Screw

19 9758701 Spacer, Door

20 9757098 Back, Main

21 8522416 Seal, Oven

22 8053971 Brace, Main Back

23 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

24 3196576 Clip, Panel (6)

25 9757891 Cord, Power

26 9757239 Rod − Dr Switch

27 9757262 Switch, Door

28 3196701 Light Socket Assy

29 311255 Bulb, Oven Light

30 9761013 Latch, Door

W10078370

Rod, Latch

W10107820

Latch−Mtr

W10114344

Glide, Drawer (2)

34 3196560 Screw (2)

35 9760407 Brkt−Mounting

37 3196178 Screw

38 3196152 Screw

39 Screw

3196166 White

3196167 Almond

3196168 Black

W10067840

Screw

41 9756911 Suppressor

42 3196179 Screw

43 9761490 Insulation

45 3196168 Screw

46 9761512 Clip − Mounting

47 3196160 Screw

INSULATION

8524099 Insulation, Wrap

8272614 Insulation, Back

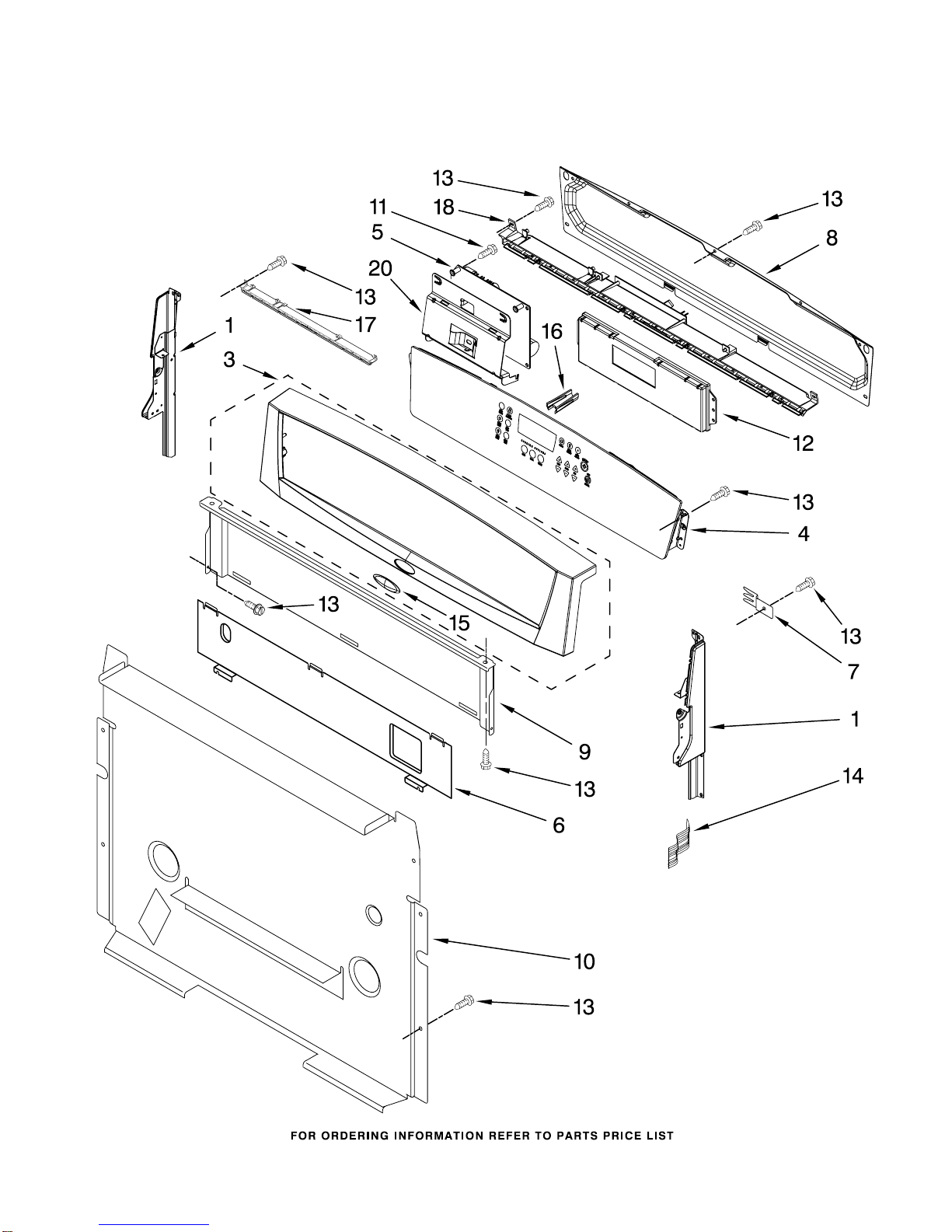

CONTROL PANEL PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

CONTROL PANEL PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10009080

Black

W10009040

White

W10009060

Biscuit

Endcap, Right Hand

W10009090

Black

W10009050

White

W10009070

Biscuit

3 Panel, Control

9762586 Black

9762585 White

9762587 Biscuit

9762588 Unvsl Slvr fr SS

4 Bracket, Control

9763256 White

9763262 Black

9763252 Biscuit

5 9758080 Module, Spark

6 8053505 Shield,Lower Heat

7 8523412 Bracket, Support

8 9756366 Cover, Upper

9 8053910 Shield, Heat

10 9760190 Cover, Lower

11 8273564 Clip, Upper Cover

W10116542

Control, Range

13 3196178 Screw

W10155287

Cnnctr Cbl, Flex

15 9757613 Nameplate

16 9757490 Support, Glass

17 9762589 Module, Light

18 9762855 Brkt−Mntg, Console

20 9762253 Bracket, DSI

DOOR PARTS

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

9761977 Stainless Steel

2 3196164 Screw

3 Handle, Door

9761979 Black

9761978 White

9761980 Biscuit

9761981 Stainless Steel

4 9761344 Liner, Door

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

9 8272618 Insulation, Door

10 9761496 Hinge, Door

11 9761357 Retainer, Insul.

12 Trim, Door Side

Left Hand

W10113926

Black

8523172 White

8523173 Biscuit

9762249 Universal Silver

Right Hand

W10113925

Black

8523166 White

8523167 Biscuit

9762250 Universal Silver

13 Glass, Outer Door

W10010680

Black

W10010660

White

W10010670

Biscuit

14 3196160 Screw

W10031780

Screw

W10031790

Screw

19 Trim, Bottom

8523177 Black

8523175 White

8523178 Biscuit

W10113759

Strap, Door

21 3196794 Bracket, Window

22 3196165 Screw

23 9761517 Clip, Door Mntg(2)

OPTIONAL PARTS (NOT INCLUDED)

For Model: GS563LXSQ1, GS563LXST1, GS563LXSB1, GS563LXSS1

(Designer White) (Designer Biscuit) (Black) (Black Stainless)

W10181237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10095210

Harness, Main

W10045060

Harness,Grnd DSI

8524207 Harness, Bake &

8523599 Harness, Wire

(Cooktop Spark)

3196696 Clip, Harness

3196520 Clip, Wire

3196896 Clip, Wire

3400964 Clip, Wire

313438 Clip, Harness

3196174 Screw,Grnd Hrnss

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rango de Whirlpool

Whirlpool

Whirlpool RF310PXA Manual de usuario

Whirlpool

Whirlpool WFE520S0FS0 Manual de usuario

Whirlpool

Whirlpool GGE350LWS00 Manual de usuario

Whirlpool

Whirlpool RY160LXT Manual de usuario

Whirlpool

Whirlpool RF361 BXD Manual de usuario

Whirlpool

Whirlpool SF3020EE N Manual de usuario

Whirlpool

Whirlpool WGE555S0BB Manual de lista de piezas

Whirlpool

Whirlpool WEG750H0H Manual de usuario

Whirlpool

Whirlpool 9760332A Manual de usuario

Whirlpool

Whirlpool 8523781 Manual de usuario

Whirlpool

Whirlpool 8113P023-60 Instrucciones de instalación

Whirlpool

Whirlpool STANDARD CLEANING GAS RANGE Manual de usuario

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Manual de usuario

Whirlpool

Whirlpool WDE150LVQ Manual de usuario

Whirlpool

Whirlpool Roper FES325RQ1 Manual de usuario

Whirlpool

Whirlpool WEE515S0LS Manual de usuario

Whirlpool

Whirlpool 9761040 Manual de usuario

Whirlpool

Whirlpool RF3620XP Manual de usuario

Whirlpool

Whirlpool WFC110M0A Manual de lista de piezas

Whirlpool

Whirlpool YWEE510S0FV Manual de usuario

Whirlpool

Whirlpool GAS DOUBLE OVEN RANGE Manual de usuario

Whirlpool

Whirlpool TEP315KW1 Manual de usuario

Whirlpool

Whirlpool WFG710H0AE Manual de usuario

Whirlpool

Whirlpool WEE730H0DS Manual de usuario

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
