Whirlpool RF362LXT Manual de usuario

COOKTOP PARTS

5−07 Litho in U.S.A. (rek) Part No. W10139612 Rev.A

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions,

Installation

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

W10117605

Tech Sheet

9762761 Safer Cooking Tips

W10035930

Spring, Locator

3 3196170 Screw

4 Cooktop

9763330 White

9763331 Biscuit

9763332 Black

5 Element, Surface

8523047 2400/1000W LF,RF

8273994 1200W LR,RR

6 8272791 Bracket, Element

7 3196169 Screw

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

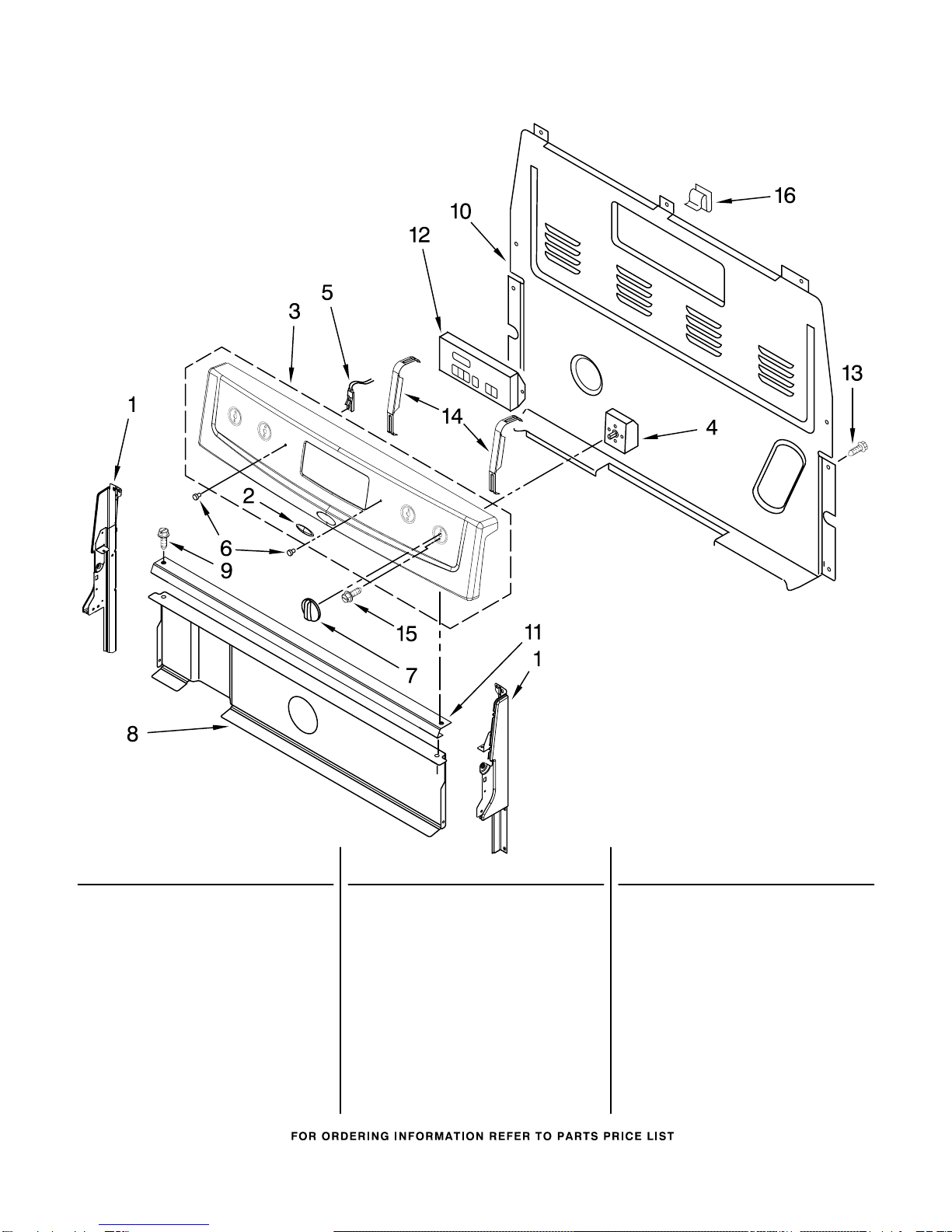

CONTROL PANEL PARTS

2W10139612

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080

Black Left

W10009090

Black Right

W10009040

White Left

W10009050

White Right

W10009060

Biscuit Left

W10009070

Biscuit Right

2 9757609 Nameplate

3 Panel, Control

W10117602

Black

W10117601

Biscuit

W10117600

White

W10117603

Stainless

4 Switch, Infinite

9758060 Front (LF,RF)

3148951 Rear (RR,LR)

5 8523265 Light, Ind. (2)

6 3196068 Lens, Light (2)

7 Knob, Infinite (4)

9761964 Black

9761962 White

9761963 Biscuit

8 8523280 Shield, Heat

9 Screw

3196166 White

8281194 Biscuit

3196168 Black

10 8272473 Cover, Upper

11 9762095 Brkt−Mntg, Console

12 Control, Range

W10108100

Black

W10108090

White

W10108110

Biscuit

13 3196178 Screw

14 9762078 Brkt−Mntg, EOC

15 3400882 Screw

16 8273564 Clip

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

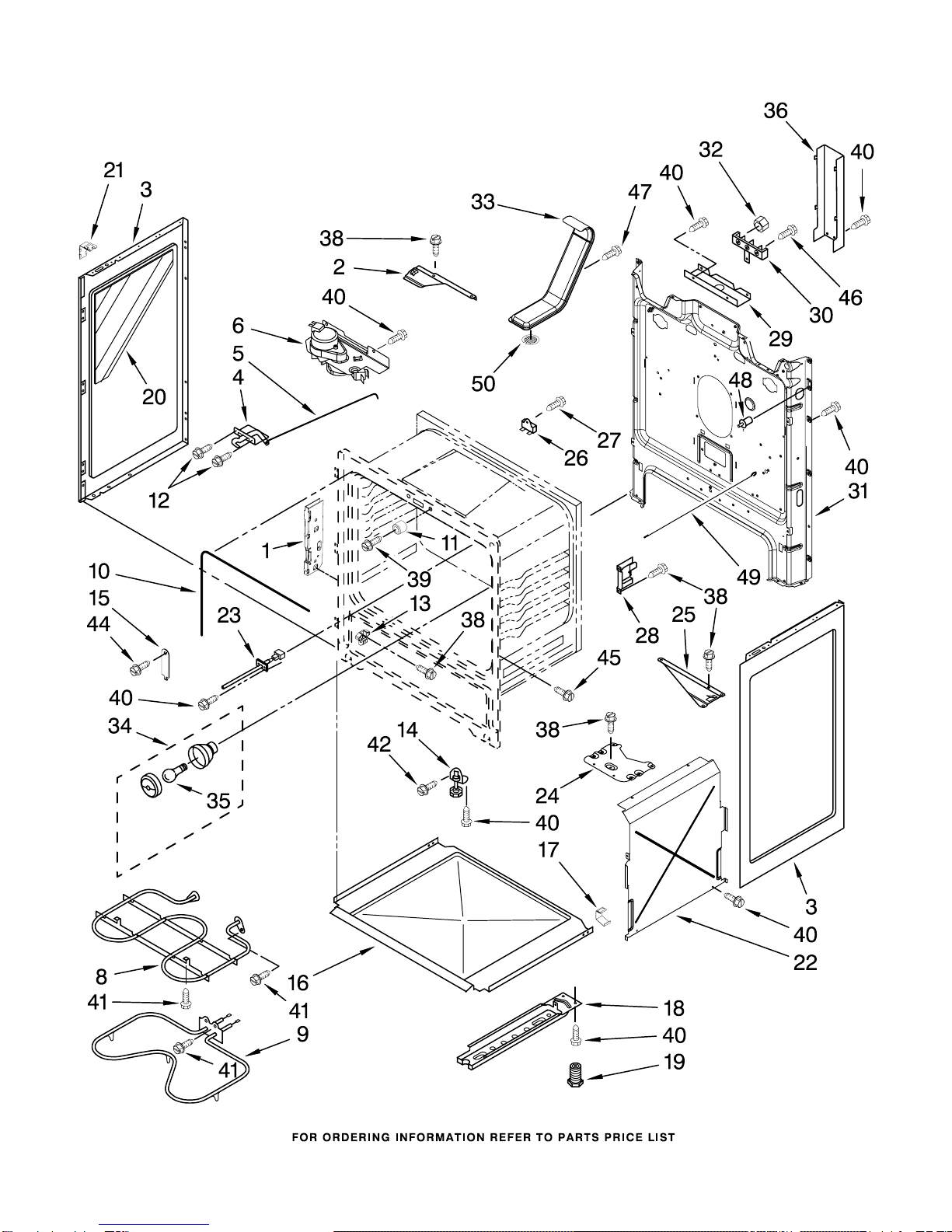

CHASSIS PARTS

W10139612

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

CHASSIS PARTS

4W10139612

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt−Mntg,Dr Hnge

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White−Textured

8272519 Biscuit−Textured

8053832 Black−Textured

4 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

8 9757340 Element, Broil

9 9758541 Element, Bake

10 8522416 Seal, Oven Door

11 9758701 Spacer, Door

12 3196560 Screw

W10114344

Glide, Drawer (2)

14 3196037 Foot, Front (2)

15 9761517 Clip,Door Mntg(2)

16 8054068 Tray, Insulation

17 3196576 Clip, Panel (6)

18 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

20 9761490 Insulation

21 9761512 Clip− Mounting

22 9758238 Retainer, Side (2)

23 8273902 Sensor, Oven

24 3195736 Support, Front (2)

25 3195987 Support, Corner RR

26 3196548 Fuse, Thermal

27 3196172 Screw

28 3186116 Support, Oven (2)

29 3186034 Bracket, Service

30 9761958 Block, Terminal

31 8274034 Back, Main

32 112432 Nut (3)

33 9761299 Vent Tube Asm

34 3196701 Light Socket Assy

35 311255 Bulb, Oven Light

36 9758283 Cover, Box

38 3196165 Screw

39 3196168 Screw

40 3196178 Screw

41 3196174 Screw

42 3196179 Screw

W10031780

Screw

W10067840

Screw

46 3400016 Screw

47 3196566 Screw

48 9757262 Switch − Door

49 9757239 Rod − Door Switch

Rear Mount

50 9761301 Screen − Catalyst

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

8272613 Insulation, Vent

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

DRAWER & BROILER PARTS

W10139612

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

3196815 Almond

5 Drawer Front

8053339 White

8272501 Biscuit

8053341 Black

6 8053334 Glide, Drawer (2)

7 3196168 Screw

8 9755798 Panel(Stls. Model)

9 9757219 Handle(Stls.Model)

W10031790

Screw(Stls. Model)

11 9781235 Clip(Stls. Model)

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

DOOR PARTS

6W10139612

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761976 Biscuit

9761975 White

9762394 Black/Stainless

Model

2 3196164 Screw

3 Handle, Door

9761983 Black

9761984 Biscuit

9761982 White

9761985 S.Steel

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insltn

10 Hinge, Door (2)

9761493 White/Biscuit Mdl.

9761496 Stainless Model

11 Glass, Outer Door

w10075990

Black

W10075980

White

W10076000

Biscuit

9756435 Stainless Mdl.

12 Trim, Side

W10128571

Black Left

W10128562

Black Right

W10128573

Biscuit Left

W10131044

Biscuit Right

W10128572

White Left

W10128563

White Right

13 3196160 Screw

14 Trim, Bottom

8523177 Black

8523178 Biscuit

8523175 White

8523180 Stainless

W10031790

Screw

W10113759

Strap, Door

17 3196025 Clip, Door Glass

18 3196794 Bracket, Window(2)

19 3196165 Screw

W10031780

Screw

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)

OPTIONAL PARTS (NOT INCLUDED)

W10139612

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10115055

Harness, Wire

(Cooktop Left)

W10115056

Harness, Wire

(Cooktop Right)

W10084660

Harness, Wire

(Sensor)

W10117606

Harness, Wire

(Main)

8523279 Wire, Ground

8524132 Shield, Wiring

313660 Clip, Ground Wire

3196173 Screw

3196154 Screw, Ground

For Models: RF362LXTQ1, RF362LXTT1, RF362LXTS1, RF362LXTB1

(Designer White) (Designer Biscuit) (Black Stainless) (Black)
