Whirlpool GY398LXPB00 Manual de usuario

COOKTOP PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

30" Slide−In

ELECTRIC OVEN

SELF CLEAN

Illus. Part

No. No. DESCRIPTION

3−06 Litho in U.S.A. (cre) Part No. 8186215 Rev.B

1 Literaturre Parts

9757446 Installation

Instructiions

9757454 Use & Care Guide

9757667 Tech Sheet

9757680 Anti−Tip Instruct.

3191638 Safe Cooking Tips

2 3192459 Burner Box

3 4454023 Bracket, Mounting

3179776 Screw

4 Cooktop

9756788BT

Biscuit

9756788WH

White

9756788BL

Black

9756450 Gasket

5 4453764 Clip, Ceran (2)

3179776 Screw

6 Trim−CkTop, SI

4453875WH

White LH

4453875BT

Biscuit LH

4453875BL

Black LH

4453875SS

S.Steel LH

4453870WH

White RH

4453870BT

Biscuit RH

4453870BL

Black RH

4453870SS

S.Steel RH

3400805 Screw

7 Switch, Infinite

9750638 LR, RF

9750639 RR

9750641 LF

8 8523739 Light, Indicator

10 9756821 Support, Wiring

4449809 Screw (2)

12 Element, Surface

8523698 1200W LR,RF

8523696 1800W RR

8523692 2500W LF

13 9757800 Bracket, Front

Support

3179776 Screw (4)

16 9751984 Bi−Metal

3196160 Screw (2)

17 9758799 Bracket, Ind. Lamp

3196160 Screw (2)

18 Trim, Extension

4453865WH

White

4453865BT

Biscuit

4453865BL

Black

4453865SS

S.Steel

3196160 Screw

19 3191791 Spring, Locator

20 9757802 Bracket, Rear Sprt

3179776 Screw (4)

21 9756813 Rail, Element (2)

3179776 Screw (4)

22 486754 Screw

23 9759628 Cover, Cktp Rear

3179776 Screw (4)

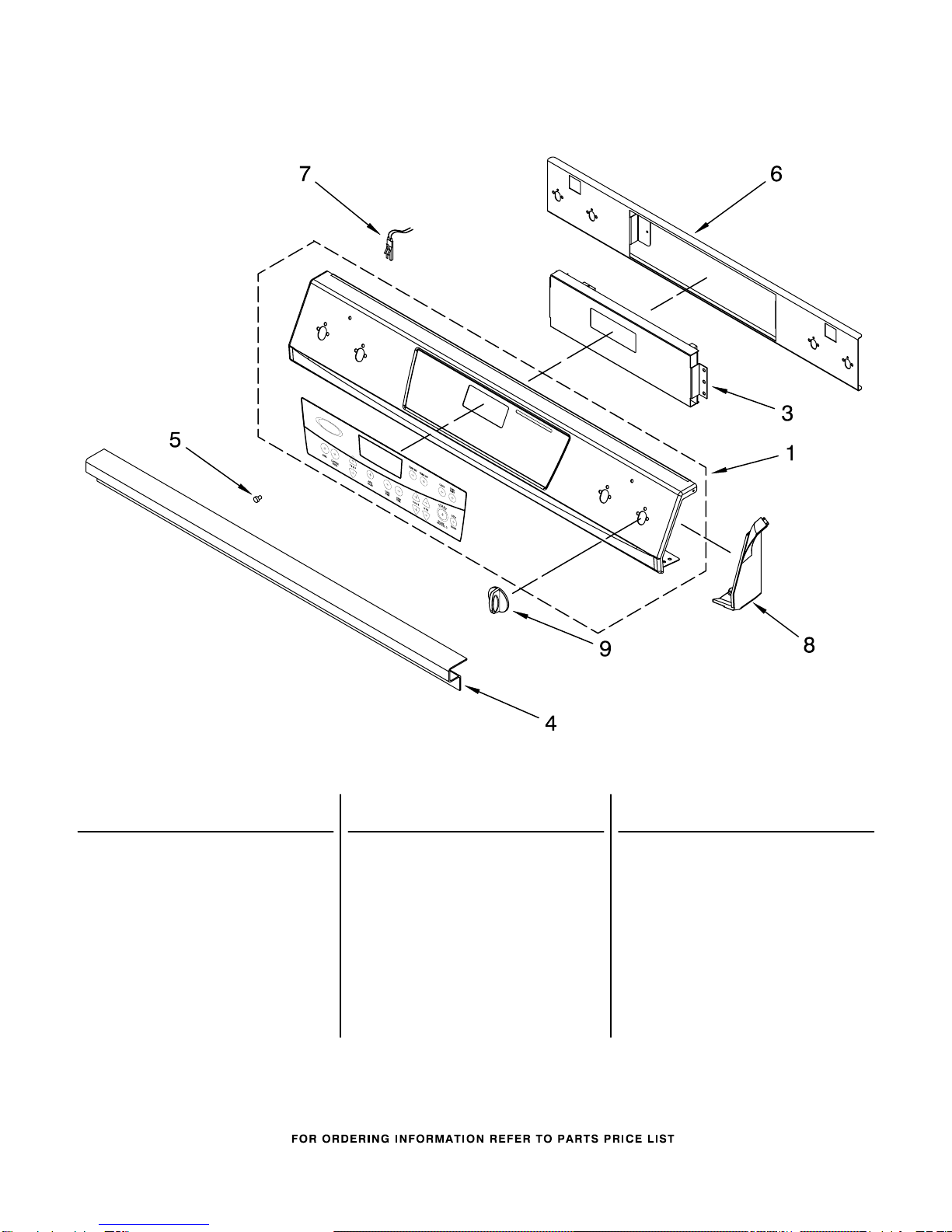

CONTROL PANEL PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

8191149 White

8191150 Biscuit

8191151 Black

8191152 S.Steel

3 9757475 Control, Migration

9780271 Screw

4 9757119 Bracket, Console

3179776 Screw (3)

5 3196068 Lens, Ind. (2)

6 9757410 Bracket, Control

486579 Screw

7 8523265 Housing, Ind. Lt.

8 Endcap

9756614BT

Biscuit LH

9756614WH

White LH

9756614BL

Black LH

9756611BT

Biscuit RH

9756611WH

White RH

9756611BL

Black RH

3196172 Screw

9 Knob

9756659BL

Black

9756659WH

White

9756659BT

Biscuit

OVEN PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

OVEN PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

(Right Hand)

9757735WH

White

9757735BT

Biscuit

9757735BL

Black

9757735SS

S.Steel

(Left Hand)

9757734WH

White

9757734BT

Biscuit

9757734BL

Black

9757734SS

S.Steel

3400832 Screw

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

7 4455865 Top Chassis

4449809 Screw

8 Oven, Side Panel

9781907PB

Black

9781907PW

White

9781907PT

Biscuit

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4455612 Frame, Front

4449040 Screw

4450118 Nut

15 4455382 Gasket, Door

16 4453951 Deflector, Vent

Bottom

17 4452152 Bracket, Mounting

19 4451478 Support, Insulation

4449809 Screw

22 8302474 Latch, Motorized

4449154 Screw

23 341196 Thermostat SPST

(205)

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 9759761 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

37 4451442 Thermostat (TOD)

(Temp.) SPST

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

54 Vent, Bottom Upper

9756481WH

White

9756481BT

Biscuit

9756481BL

Black

9756481SS

S.Steel

55 Trim, Btm Vent

9756485WH

White

9756485BT

Biscuit

9756485BL

Black

9756485SS

S.Steel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

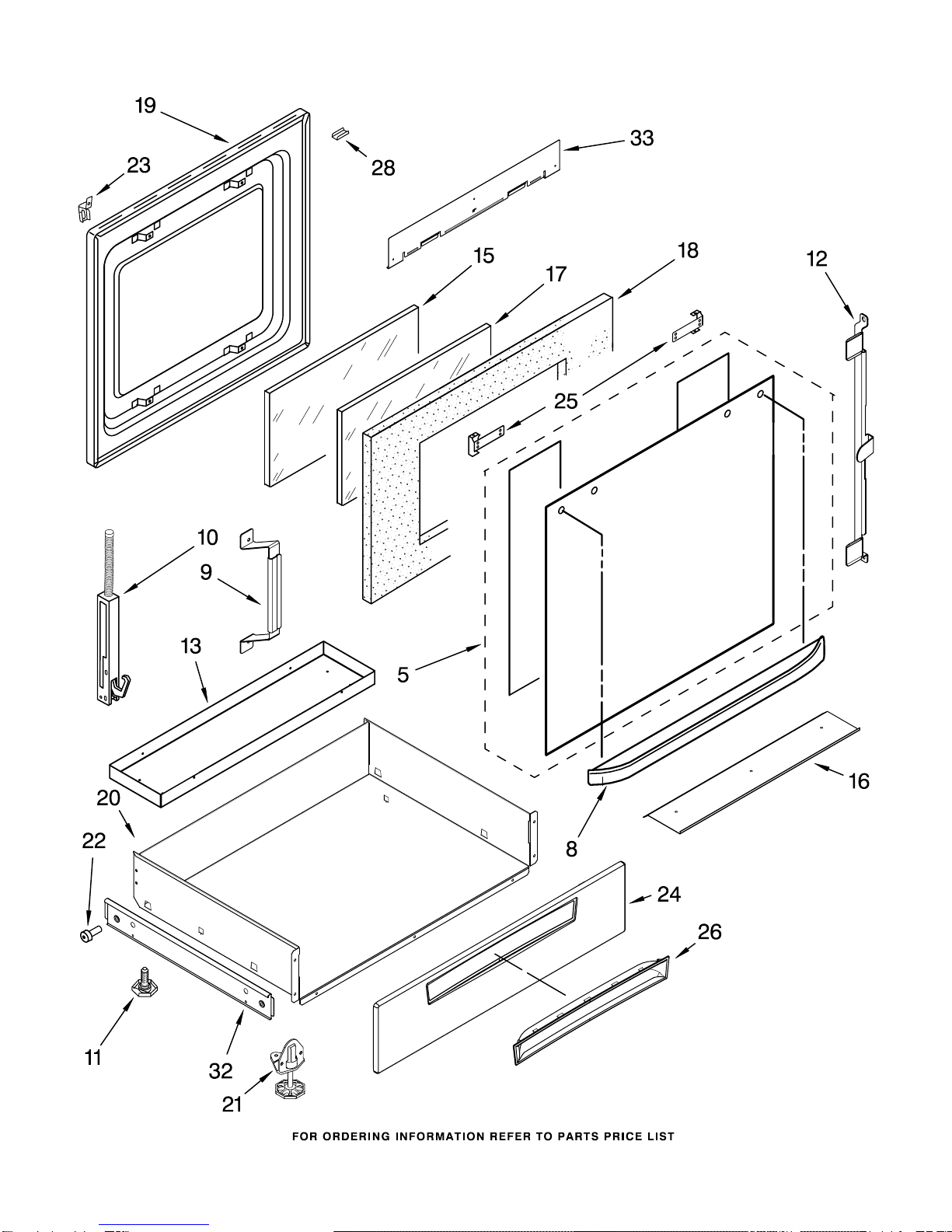

DOOR AND DRAWER PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

DOOR AND DRAWER PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION

5 Glass, Door Front

9759641 Black

9759639 White

9759640 Biscuit

9759642 S.Steel

8 Handle, Door

4448854 Black

4448855 White

4448856 Biscuit

9 8302094 Bracket, Central

10 Hinge, Door

8300571 White RH

8300572 White LH

8300573 Lt.Blue RH

8300574 Lt.Blue LH

4449743 Screw

11 312701 Foot, Rear

12 8302092 Bracket, Side

13 9757798 Panel, Drawer

15 9757706 Glass, Inner

16 4457114 Shield, Heat Btm

17 4449263 Glass, Inner (2)

18 4451722 Insulation, Door

19 4455618 Liner, Door

20 9757806 Drawer & Roller

21 3196037 Foot, Front

4449743 Screw

22 422604 Roller, Drawer

23 9759743 Retainer, Door

24 Front, Drawer

4453921WH

White

4453921BL

Black

4453921BT

Biscuit

4453921SS

S.Steel

25 4450813 Bracket, Handle

4451040 Screw

26 Handle, Drawer

9756674WH

White

9756674BT

Biscuit

9756674BL

Black

28 4450863 Retainer, Clip

32 9756673 Guide, Roller

33 9757707 Shield, Heat Top

INTERNAL OVEN PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION

1 4448988 Cover, Fan

4449154 Screw

2 4456103 Element, Broil

4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

8 4451583 Motor, Convection

Fan

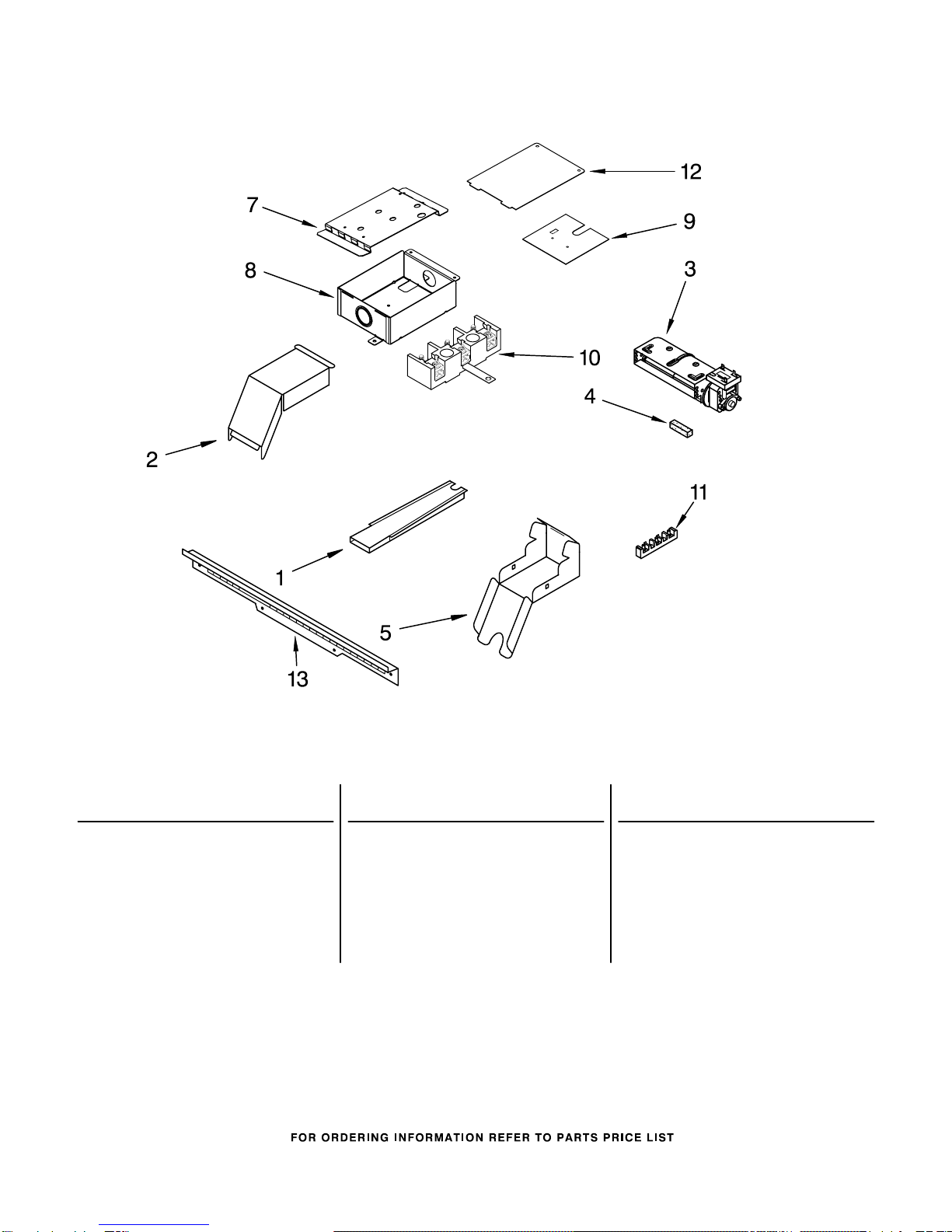

TOP VENTING PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

4449040 Screw, 8−18 x 3/8

2 4455178 Elbow, Vent Top

3 8300223 Blower

4455352 Bracket

4449809 Screw (4)

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

7 9759749 Bracket, Term.Box

4449809 Screw (2)

8 9757404 Box, Terminal

4449809 Screw (3)

9 9759721 Insulator,Term Box

10 9757136 Block, Terminal

11 4449868 Block, Terminal

3400080 Screw

12 9757405 Cover, Term Box

3196160 Screw (2)

9757118BL

Vent,

(Control Panel)

4450038 Screw

OPTIONAL PARTS

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00

(Black) (White) (Biscuit) (S.Steel)

8186215

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9759840 Harness, Wire

(Main)

9759702 Harness, Wire

(Cooktop Power)

9759701 Harness, Wire

(Cooktop Left)

9759703 Harness, Wire

(Cooktop Right)

9759715 Conduit

3196173 Screw (Conduit)

313660 Clip, Ground Wire

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

3400015 Screw, Ground

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)

9782676 Anit−Tip Assy

Filler,Counter Top

9757784WH

White

9757784BL

Black

9757784BT

Biscuit

9757784SS

S.Steel
