OVEN PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

6−06 Litho In U.S.A. (cre) Part No. 8186314 Rev. A

27" BUILT−IN ELECTRIC

COMBO

SENSOR/SC

(GOLD LINE)

OVEN PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303655 Installation

Instructions

8303649 Use & Care Guide

(Oven)

8303650 Use & Care Guide

(Microwave)

8302010 Tech Sheet

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

2 Trim, Side

8302927 RH Black

8302929 RH White

8302931 RH Biscuit

8303217 RH S.Steel

8302928 LH Black

8302930 LH White

8302932 LH Biscuit

8303218 LH S.Steel

Screw

8281236 Black Model

4449041 White

694091 Biscuit Model

4 4448520 Bumper, Door

6 4452490 Spacer, Foam

7 4455864 Top Chassis

4449809 Screw

8 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens,Light

11 4452368 Oven Light Assy

12 4452166 Bulb,Light

13 8300791 Bracket, Combo

14 4455611 Frame, Front

4449040 Screw

15 4455381 Gasket, Door

18 4452152 Bracket, Mounting

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

8303117 Right Side

8303118 Left Side

4448444 Grommet

4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452233 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

30 4449845 Bracket, Support

4449809 Screw

32 8300154 Insulation,

Bottom Vent

33 9760676 Deflector, Vent

4449809 Screw

34 4451666 Vent, Center

4450038 Screw

37 9759243 Thermostat (TOD)

(Temp.) SPST

4449809 Screw

43 4455529 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

8302937 Black Model

8302938 White Model

8302939 Biscuit Model

8302940 S.Steel

3400832 Screw

52 8303503 Vent, Control

53 4451755 Chassis, Back

4452260 Spacer, Foam

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

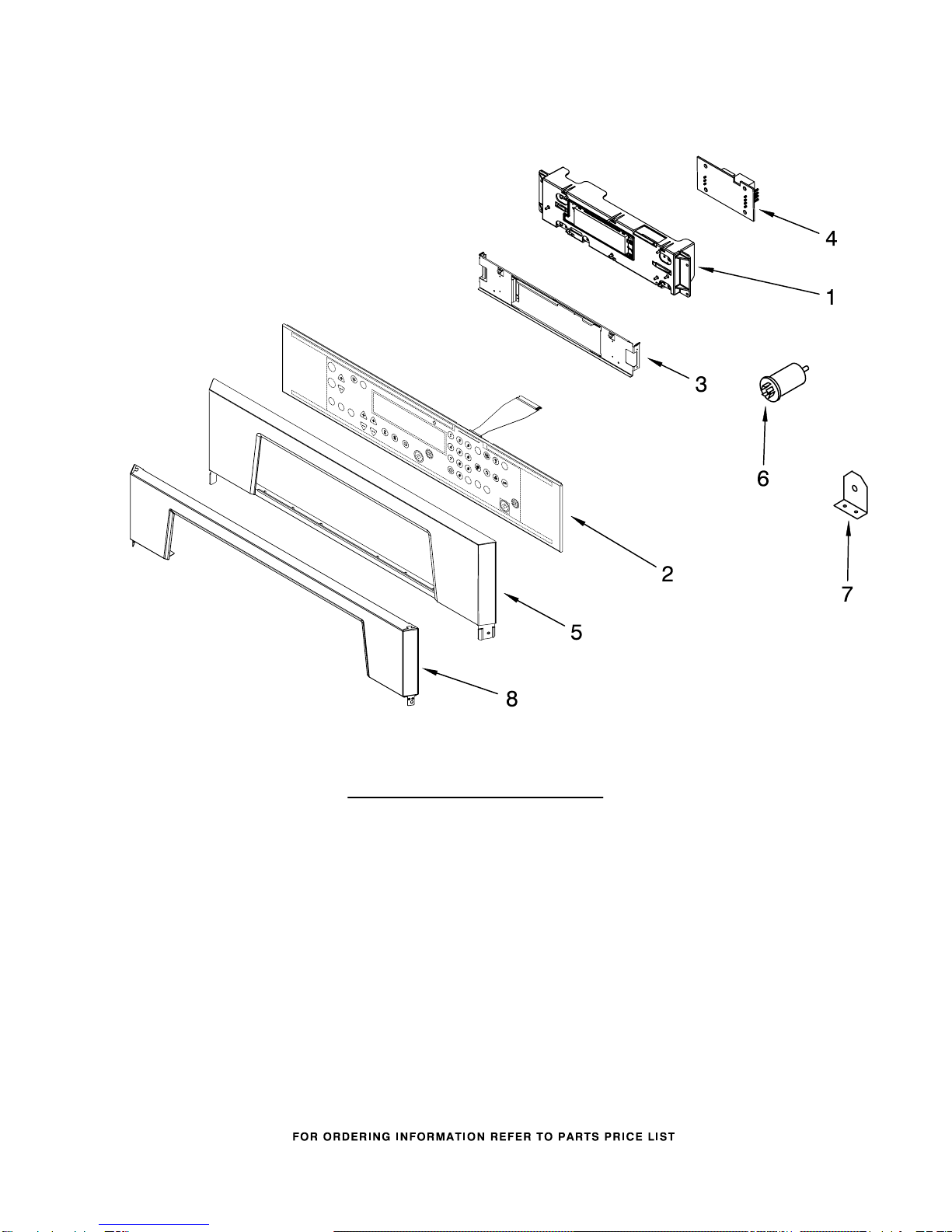

CONTROL PANEL PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION

1 8303819 Assy, Control

2 Assy, Switch

8303183 Black & Steel Mdl

8303225 White Model

8303231 Biscuit Model

3 8302991 Control, Bracket

8281179 Screw

4449745 Screw

4 8301848 Board, Mtrzd Latch

5 Control Panel

8302844 Black Model

8302845 White Model

8302846 Biscuit Model

6 4451592 Filter

7 4451632 Bracket, Filter

8 8302878 Trim−Panel

(Use on S.Steel

model only)

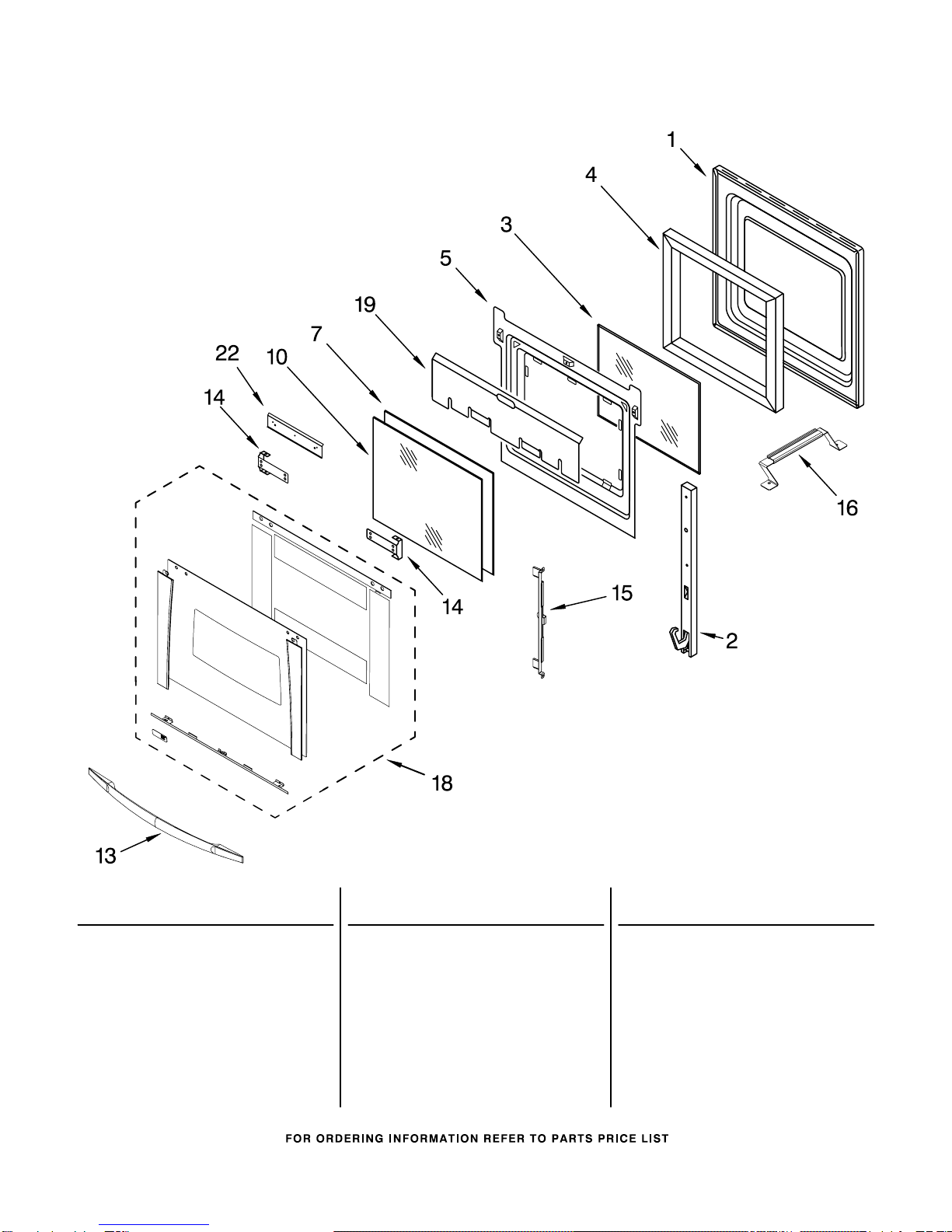

OVEN DOOR PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303699 Door Liner

2 Hinge, Door

8300575 Right Hand

8300576 Left Hand

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4457131 Retainer, Glass

4449809 Screw

7 9759224 Glass, Inner

4449809 Screw

10 9759227 Glass, Inner

13 Door Handle

8302810 Black Model

8302811 White Model

8302812 Biscuit Model

8303163 S.Steel

14 8303166 Bracket,Handle

4451040 Screw

3400832 Screw

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

18 Assy.,Door Glass

8303299 Black Model

8303305 White Model

8303309 Biscuit Model

8303287 S.Steel Model

19 4457102 Shield, Heat

4449809 Screw

22 4457113 Shield, Heat (Btm)

3400832 Screw

LATCH PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

4449040 Screw

2 4455178 Elbow Vent−Top

3 4455177 Elbow Vent−Bottom

9 4450407 Baffle, Rear

4449809 Screw

10 9759525 Latch, Motorized

16 4452003 Blower

21 4451758 Seal, Foam

22 4455191 Plate, Blower

INTERNAL OVEN PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448715 Rack, Oven

9759322 Pad, Rack

7 4452153 Element, Bake

CABINET AND STIRRER PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

CABINET AND STIRRER PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375299 Bracket, Capacitor

3 4375037 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct,

Magnetron

11 4375315 Damper

12 4375260 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375264 Block, Slide

17 4375248 Cover Plate, Upper

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

25 4375020 Capacitor

26 4375072 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375079 Thermostat

34 4375286 Transformer

35 Hinge, Door

4375323 Left

4375324 Right

36 4451008 Torsion Spring

37 Bracket, Hinge

4375327 Left

4375328 Right

38 4375329 Inlet

39 4375331 Door Strap

40 4375333 Fan Cap

41 4375334 Fan Cap Bottom

42 Holder, Switch

4375335 Left

4375336 Right

43 4375337 Isolation Plate

44 4375338 Cover Plate

45 4375339 Plate, Door

46 4375340 Inner Frame

47 Side Plate

4375341 Right

4375342 Left

48 4455915 Turntable

49 4375344 Ring Assembly

50 4375345 Shaft

51 4375346 Switch

52 4375347 Motor, Turntable

53 4375348 Lamp

54 4375349 Rectifier

55 4375350 Cable

56 4375351 Holder, Lamp

MICROWAVE DOOR PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

9 4450834 Glass, Middle

10 8303555 Frame, Door

14 Bracket, Mounting

4449141 Right Side

4449142 Left Side

4449809 Screw

15 4449083 Filler, Side

4449809 Screw

16 Handle, Door

8302810 Black Model

8302811 White Model

8302812 Biscuit Model

8303163 S.Steel Model

17 Glass, Outer

8303262 Black Model

8303270 White Model

8303246 Black Stainless

8303276 Biscuit Model

24 8303168 Bracket, Handle

4451040 Screw

MICROWAVE COMPARTMENT PARTS

For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00

(Black) (White) (Biscuit) (S.Steel)

8186314

Illus. Part

No. No. DESCRIPTION

5 Support Rails

4452551 Right Side

4452552 Left Side

4449809 Screw

11 4452547 Rear Channel

4449809 Screw

4449154 Screw
