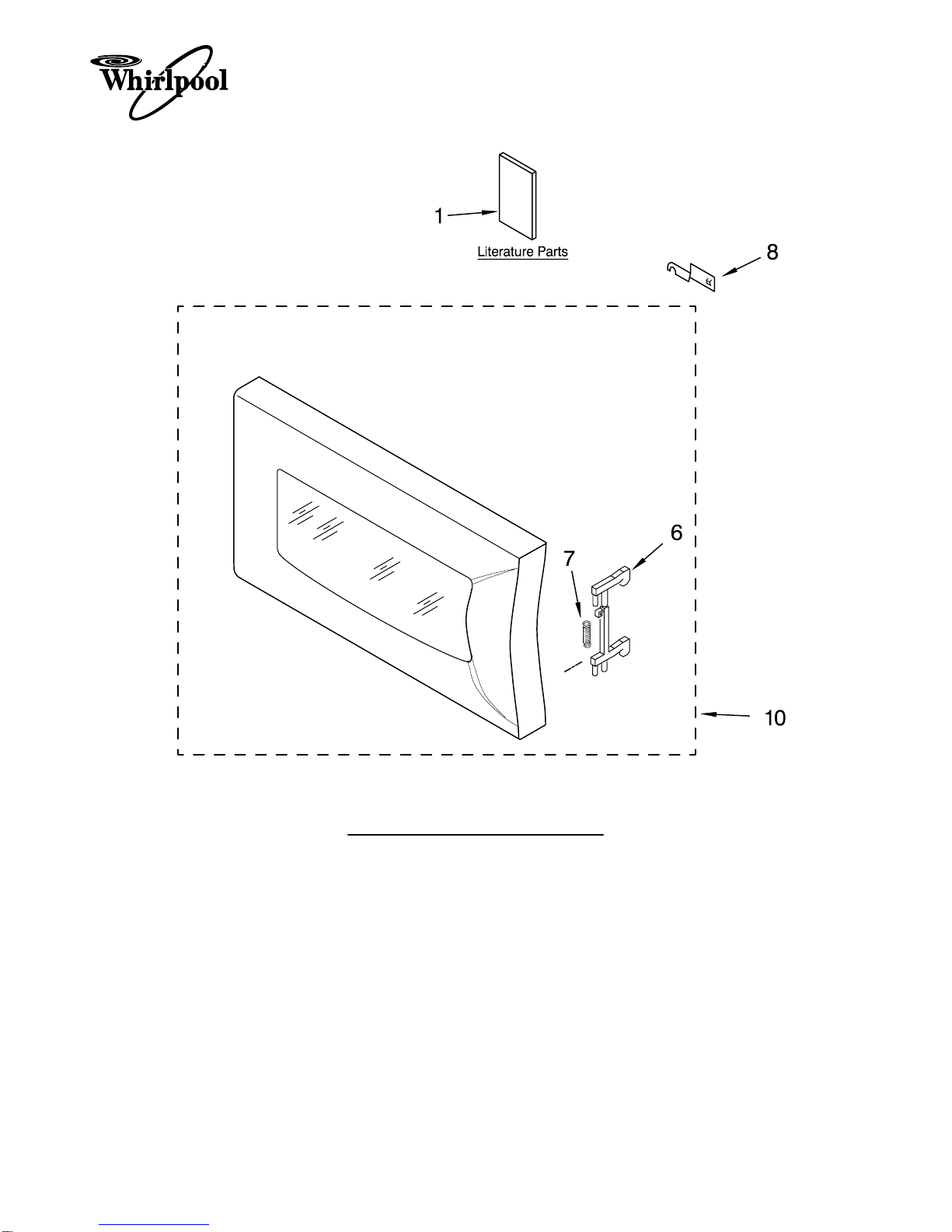

DOOR PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

12−05 Litho In U.S.A. (dmm) Part No. 8206408

MICROWAVE OVEN

1.1 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8205986 Use & Care Guide

8205493 Tech Sheet

8204843 Installation

Instructions

8183908 Cook Guide Label

6 8184263 Latch

7 8171918 Spring, Latch

8 8184265 Cap

10 Door Assembly

8205494 Black

8205495 White

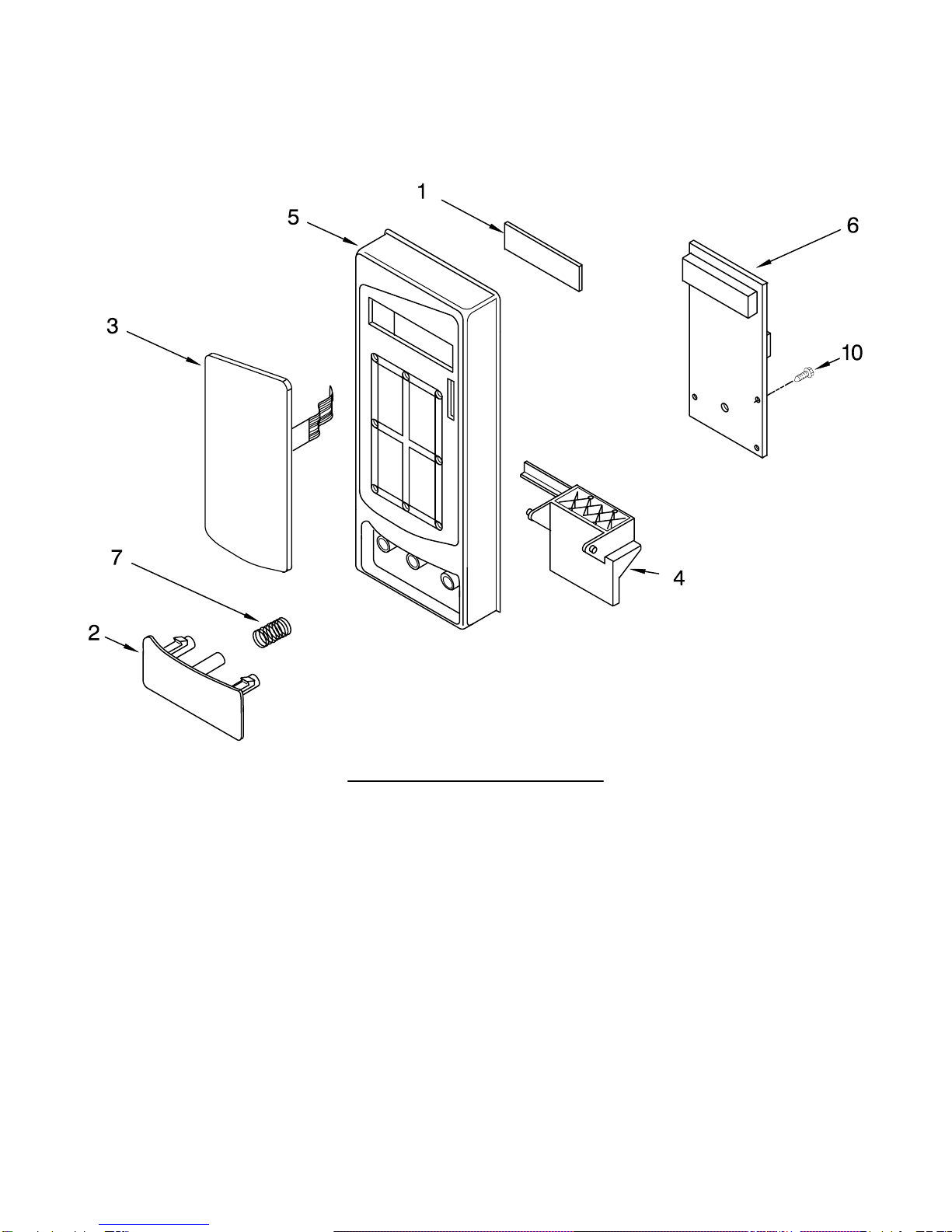

CONTROL PANEL PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

8206408

Illus. Part

No. No. DESCRIPTION

1 Window

4359720 White Model

8204891 Black Model

2 Button

8204895 Black

8204894 White

3 Switch, Membrane

8204890 Black

8204889 White

4 8184269 Lever, Release

5 Control Panel

8204893 Black

8204892 White

6 8204896 Microcomputer

7 8184272 Spring

10 8184272 Screw

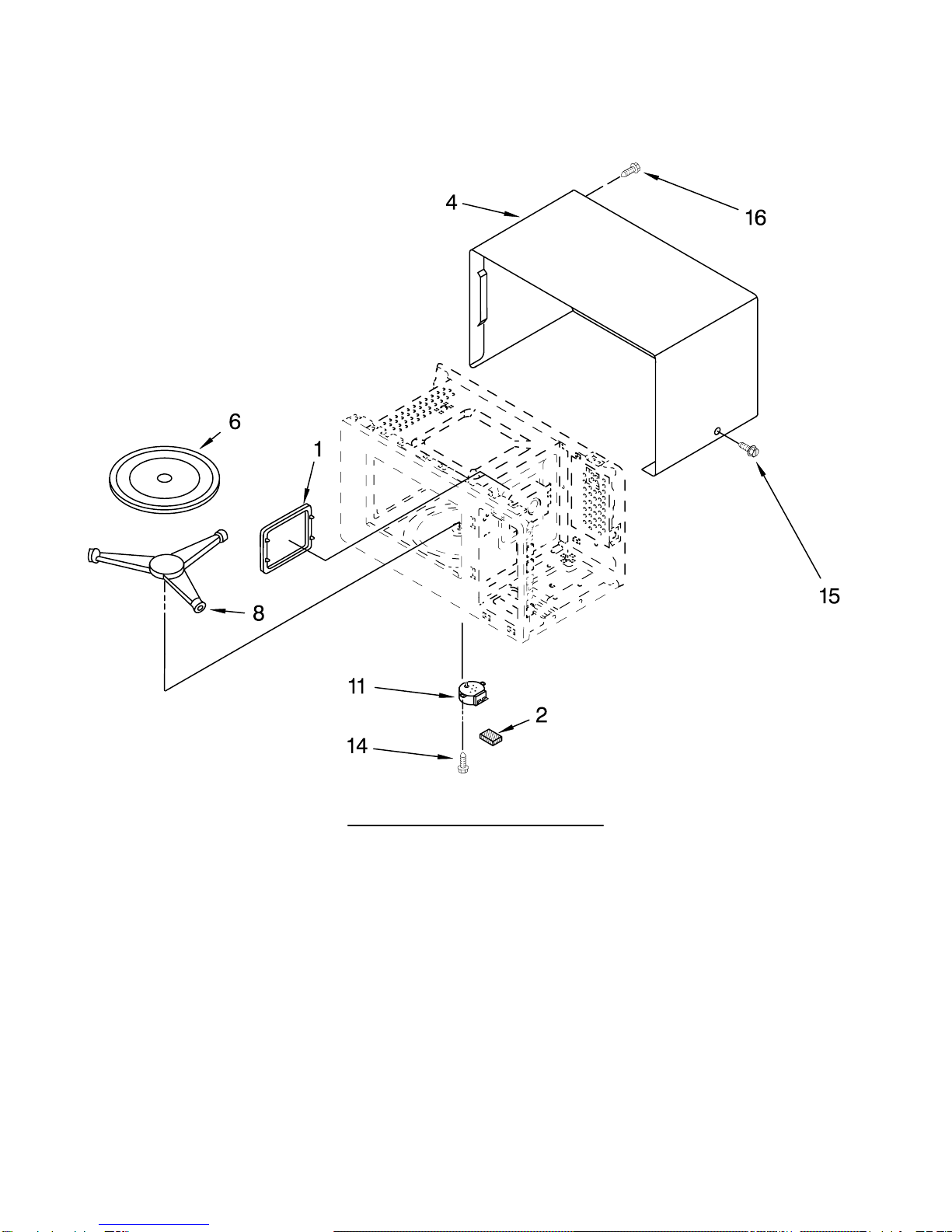

OVEN CAVITY PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

8206408

Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

2 4359781 Cushion

4 Outer Case

8205496 Black

8184280 White

6 8204899 Tray, Glass

8 8184282 Turntable Support

11 8184283 Motor, Synchronous

14 4358188 Screw

15 Screw

4358829 Black

4358362 White

16 8171862 Screw

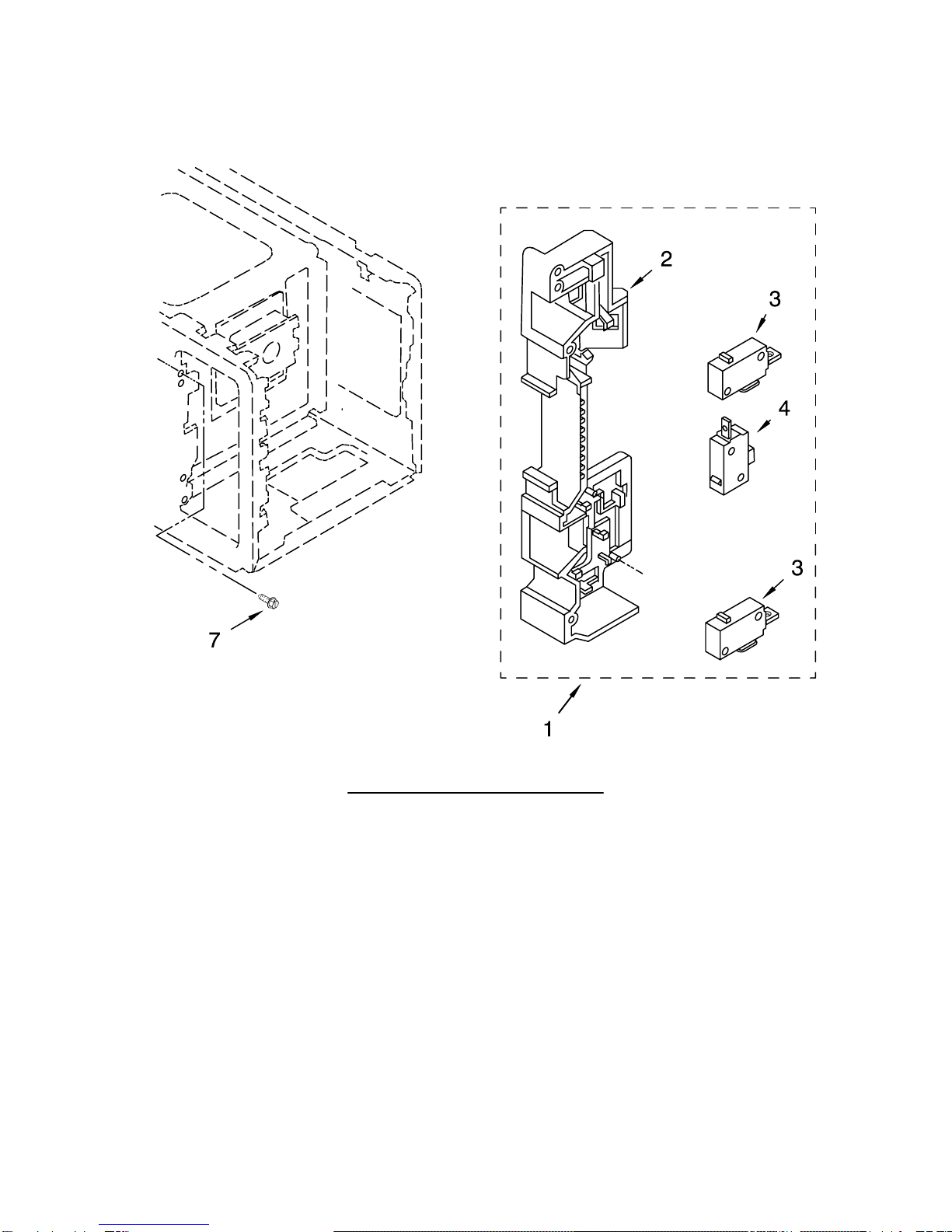

LATCH BOARD PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

8206408

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8184285 Switch Micro

Primary/Secondary

4 8184286 Switch, Micro

Monitor

7 4358271 Screw

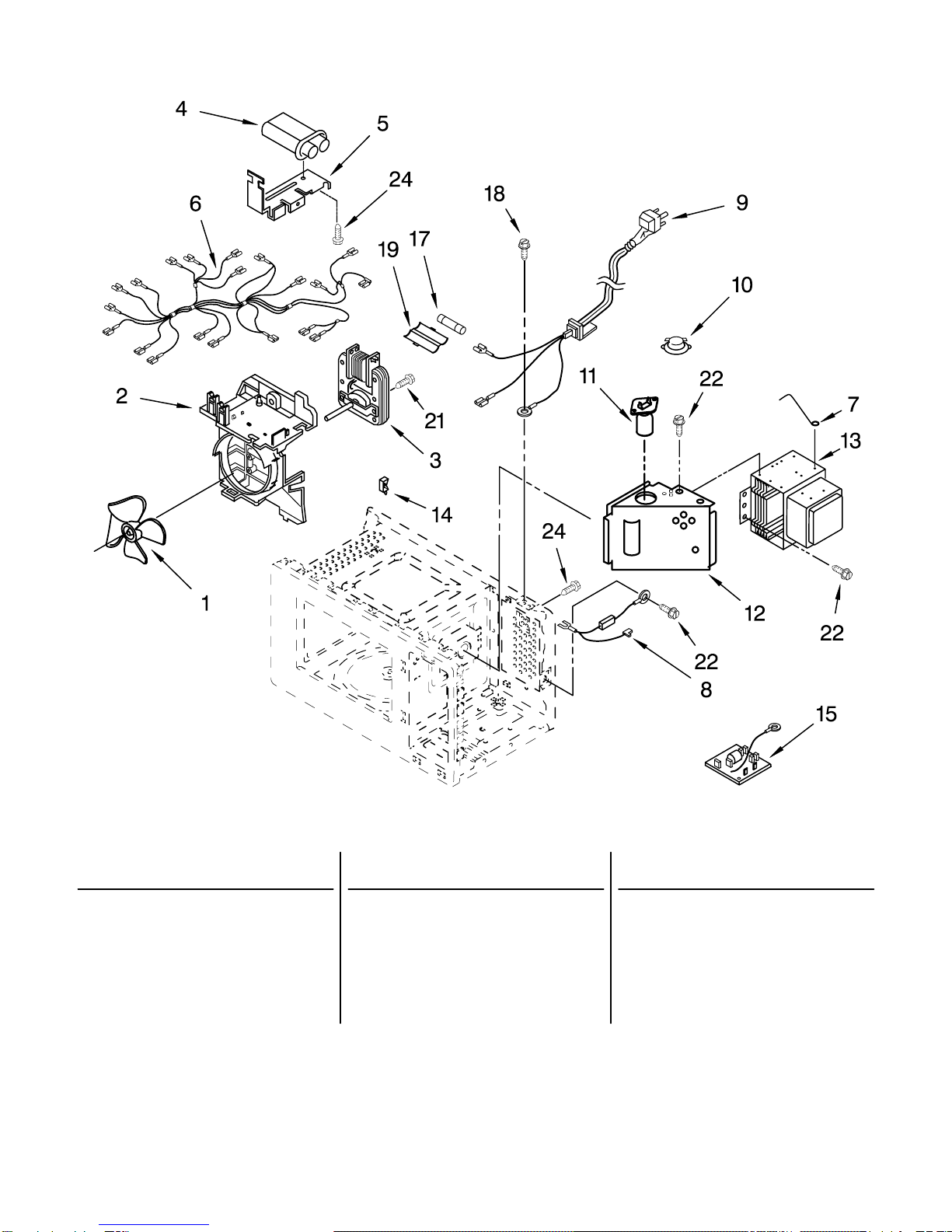

OVEN INTERIOR PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

8206408

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184292 Blade, Fan

2 8184289 Guide, Suction

3 8183767 Motor, Fan

4 8184619 H.V. Capacitor

5 8184288 H.V.C Bracket

6 8206311 Leadwire Assembly

7 8184290 Bracket, Support

8 8184295 H.V. Diode Cable

9 8184381 Power Cord

10 4359164 Thermostat

11 8171810 Lamp, Baseless

12 8184291 Duct, Air

13 8205460 Magnetron

14 4359794 Holder

15 8206270 Filter, Noise

17 8183507 Fuse

18 8204902 Screw, Ground

19 8205483 Cap

21 4358190 Screw

22 4358489 Screw

24 4358381 Screw

BASE PLATE PARTS

For Models: MT4110SPQ2, MT4110SPB2

(White) (Black)

8206408

Illus. Part

No. No. DESCRIPTION

1 8184297 Base Plate

2 4358192 Screw

3 8184298 Leg

4 8184293 Transformer

5 4358489 Screw

6 4358381 Screw

7 4158967 Cushion
