CONTROL PANEL PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

10−07 Litho in U.S.A. (dmm) Part No. 8206191

Illus. Part

No. No. DESCRIPTION

1 Literature

8204920 U & C Guide

8205606 Tech Sheet

8190419 Instructn, Install

8205810 Cook Guide Label

3 8205375 Panel Asy, Control

Includes Lens and

Membrane Switch

4 8205378 Bracket, Control

6 8205379 Microcomputer

Microwave Oven

1.8 Cu. Ft.

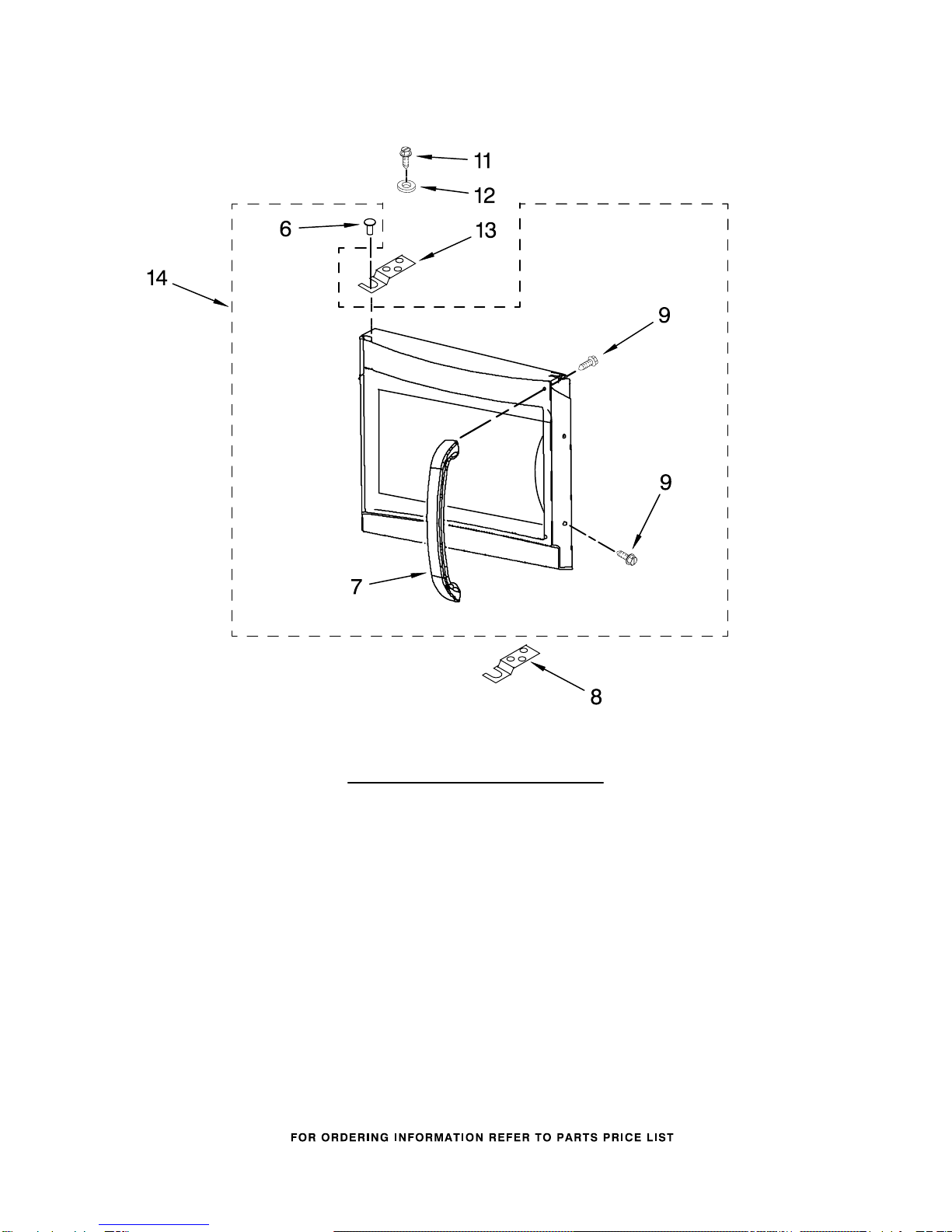

DOOR PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

Illus. Part

No. No. DESCRIPTION

6 8184922 Pivot, Door

7 8206176 Handle, Door

8 8204678 Lower Hinge

9 8169479 Screw

11 8204690 Screw

12 8204691 Washer

13 8204679 Upper Hinge

14 8206194 Complete Door

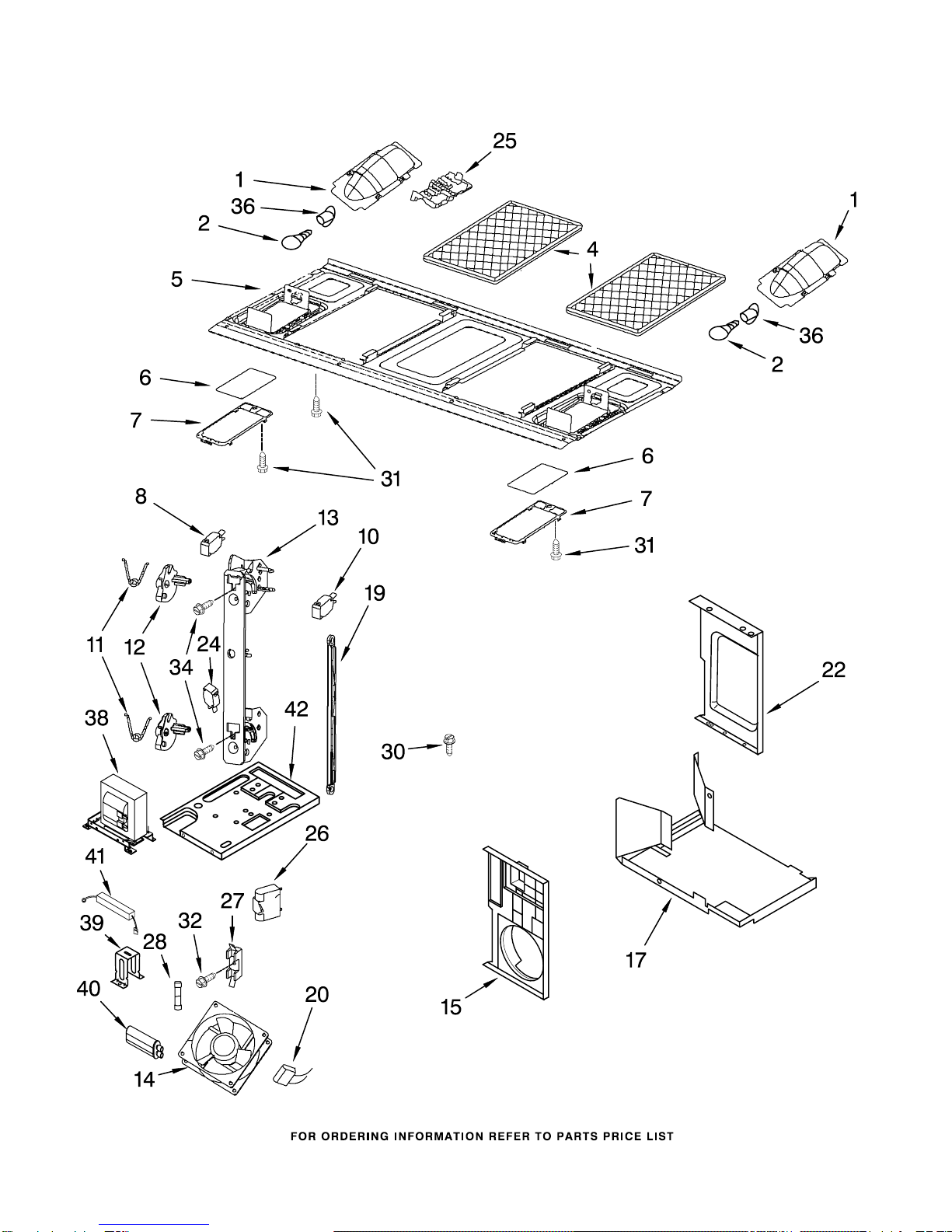

INTERIOR AND VENTILATION PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

INTERIOR AND VENTILATION PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

Illus. Part

No. No. DESCRIPTION

1 8205096 Reflector, Lamp

2 8183993 Lamp

4 8184001 Filter, Grease

5 8205366 Plate, Bottom

6 8184141 Glass, Lamp

7 8184889 Holder, Glass

8 4393697 Switch, Micro

Primary/Secondary

10 4393599 Switch, Micro

11 8169438 Spring, Interlock

12 8205211 Plate, Cam

13 8185189 Support, Interlock

14 8205362 Fan, DC 12 Volt

15 8205364 Housing, Fan

17 8205357 Diffuser, Housing

19 8185190 Rod−Locking Link

20 8184093 Capacitor, 125 V

22 8205356 Plate, Side

24 4393598 Switch, Micro

25 8184202 Cover, Terminal

26 8184091 Motor, Capacitor

27 8184312 Holder, Fuse

28 4393308 Fuse

30 8184199 Screw

31 4393835 Screw

32 8184200 Screw

34 8169477 Screw

36 8169539 Holder, Lamp

38 8205933 Transformer, H.V.

39 8205359 Bracket, Capacitor

40 8205360 Capacitor, H.V.

41 8205361 Diode, H.V.

42 8205365 Chassis

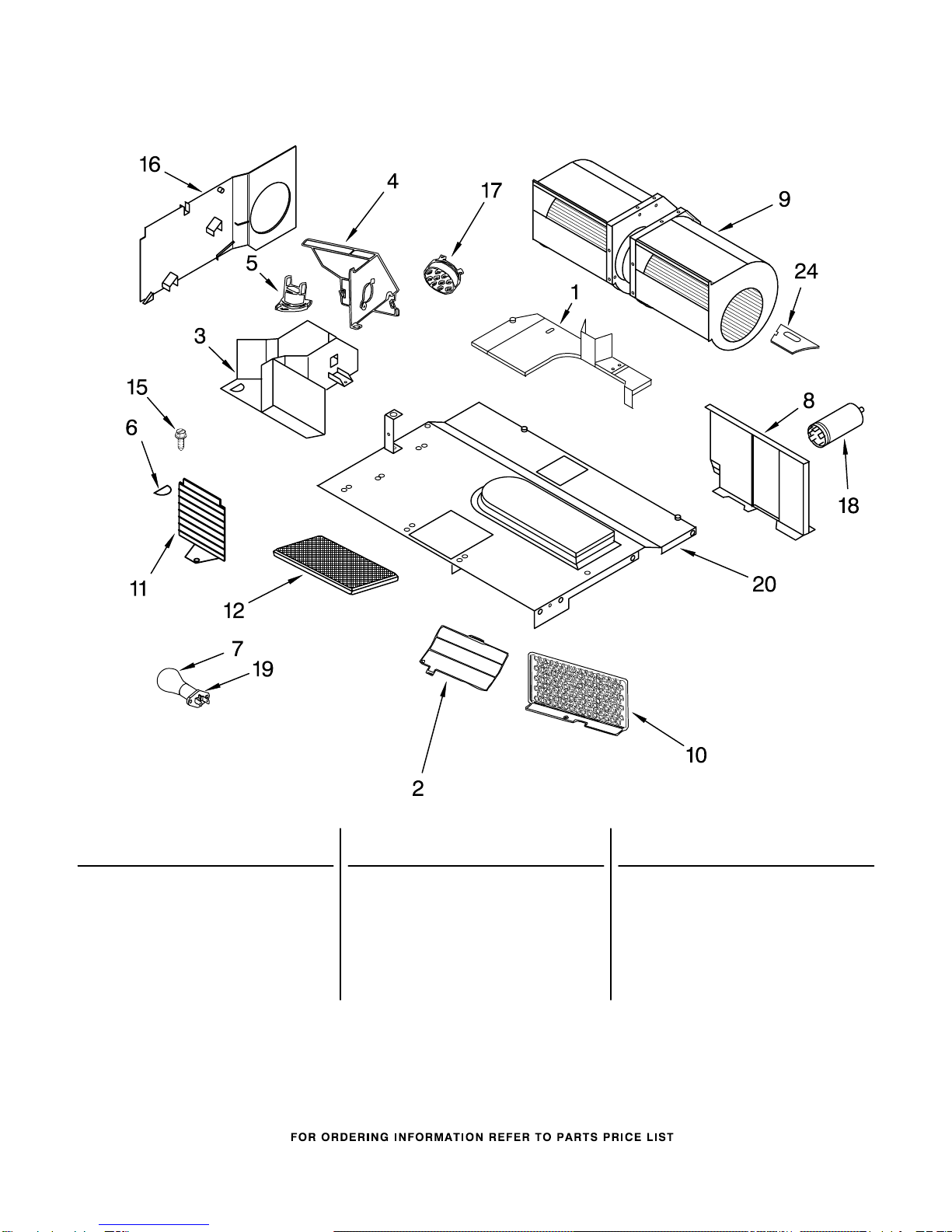

AIR FLOW PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205350 Deflector, Air

2 8205353 Cover, Lamp

3 8205368 Duct, Air

4 8204789 Bracket, Thermostat

5 8183703 Thermostat

6 8204676 Cover

7 8183993 Lamp

8 8205354 Air Guide, Back

9 8184825 Motor, Fan Assy

10 8205355 Shield

11 8204790 Shield

12 8205146 Filter, Charcoal

15 8169474 Screw

16 Air Guide

8205367 Left

8205352 Right

17 4393808 Humidity, Sensor

18 8169561 Filter

19 8169539 Holder, Lamp

20 8205351 Base Plate,

Air Guide

24 8185097 Socket, Motor Wire

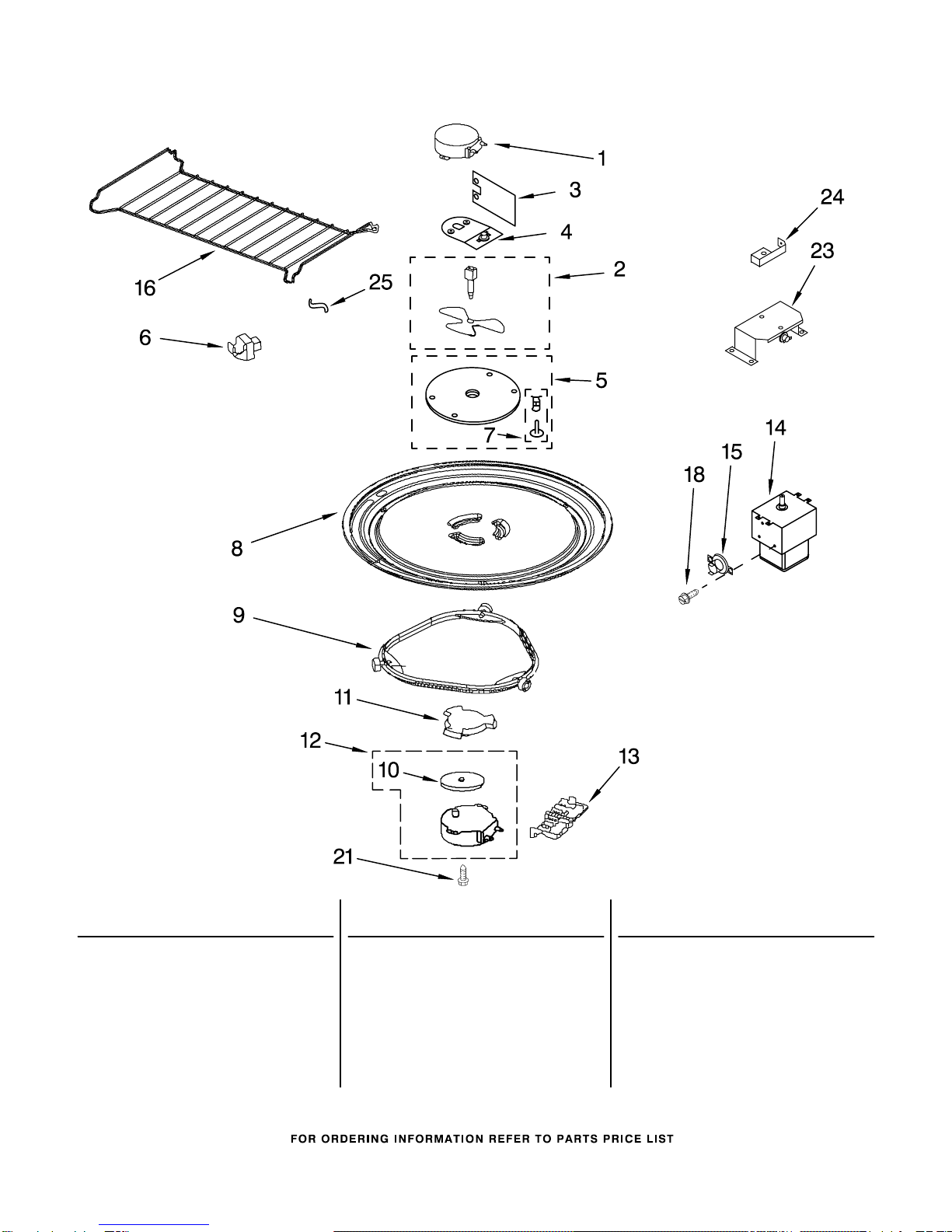

MAGNETRON AND TURNTABLE PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205044 Motor, Stirrer

2 8205202 Stirrer

Shaft/Blade

3 8205369 Shield, Nomex

4 8184585 Thermostat/Bracket

5 8184604 Cover, Inlet

Includes Nails

and Bushings

6 8204662 Hook, Rack (4)

7 8184549 Nails/Bushings

(5 of each)

8 4393799 Turntable

9 8205778 Ring, Turntable

10 8184109 Spacer, Waterproof

11 8205779 Driver, Turntable

12 8183953 Motor, Turntable

13 4393756 Cover, Terminal

14 8205363 Magnetron

15 8184951 Thermostat

16 8205549 Rack

18 4393838 Screw

21 4393832 Screw

23 8184586 Thermostat/Bracket

24 8184669 Bracket, Plug

25 8205039 Spacer (4)

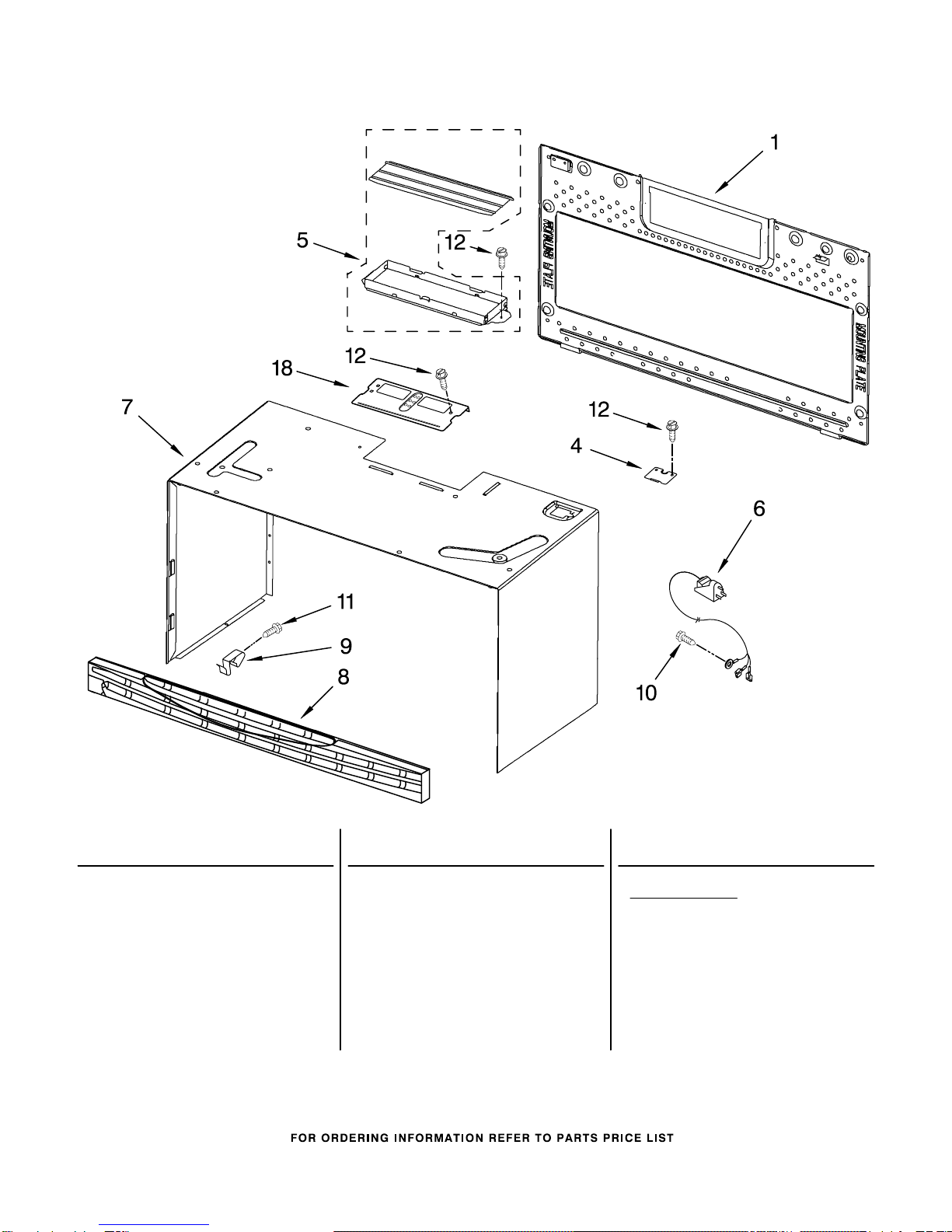

CABINET AND INSTALLATION PARTS

For Model: MH3184XPY1

(UNIVERSAL SILVER)

8206191

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206172 Plate, Mounting

4 8184897 Lid, Power Cord

5 8205558 Damper Assembly

6 8205808 Cord, Power

7 8205348 Case, Outer

8 8206193 Grille, Vent

9 8184190 Clip, Grille

10 4393836 Screw

11 8169475 Screw

12 4393472 Screw

18 8206192 Plate, Damper

Miscellaneous

8169659 Installation,

Hardware

8184731 Template, Upper

8169704 Screw, Top Mountng

8205696 Ground Wire Assy

8205693 H.V. Wire Assy

8205695 Main Harness

8206195 Harness, Turntable

and Cooktop Lights
