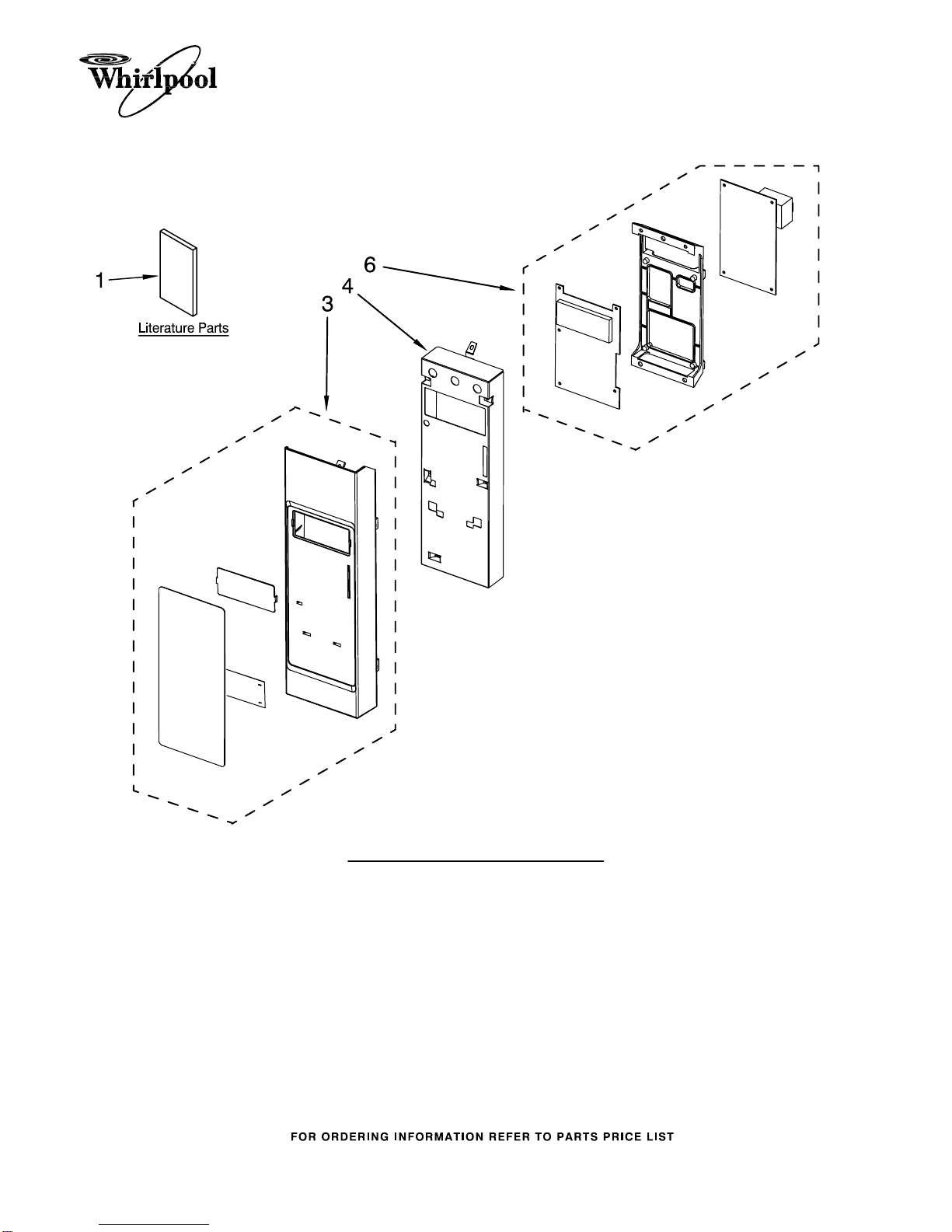

CONTROL PANEL PARTS

For Models: MH1160XSQ0, MH1160XSB0

(White) (Black)

6−06 Litho in U.S.A. (LWP) Part No. 8188433 Rev A

Microwave Oven

1.7 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

8205878 U & C Guide

8206434 Tech Sheet

8205879 Cook Guide Label

3 Panel Asy, Control

Includes Lens and

Membrane Switch

8206422 White

8206423 Black

4 8206361 Bracket, Control

W10108790

Microcomputer

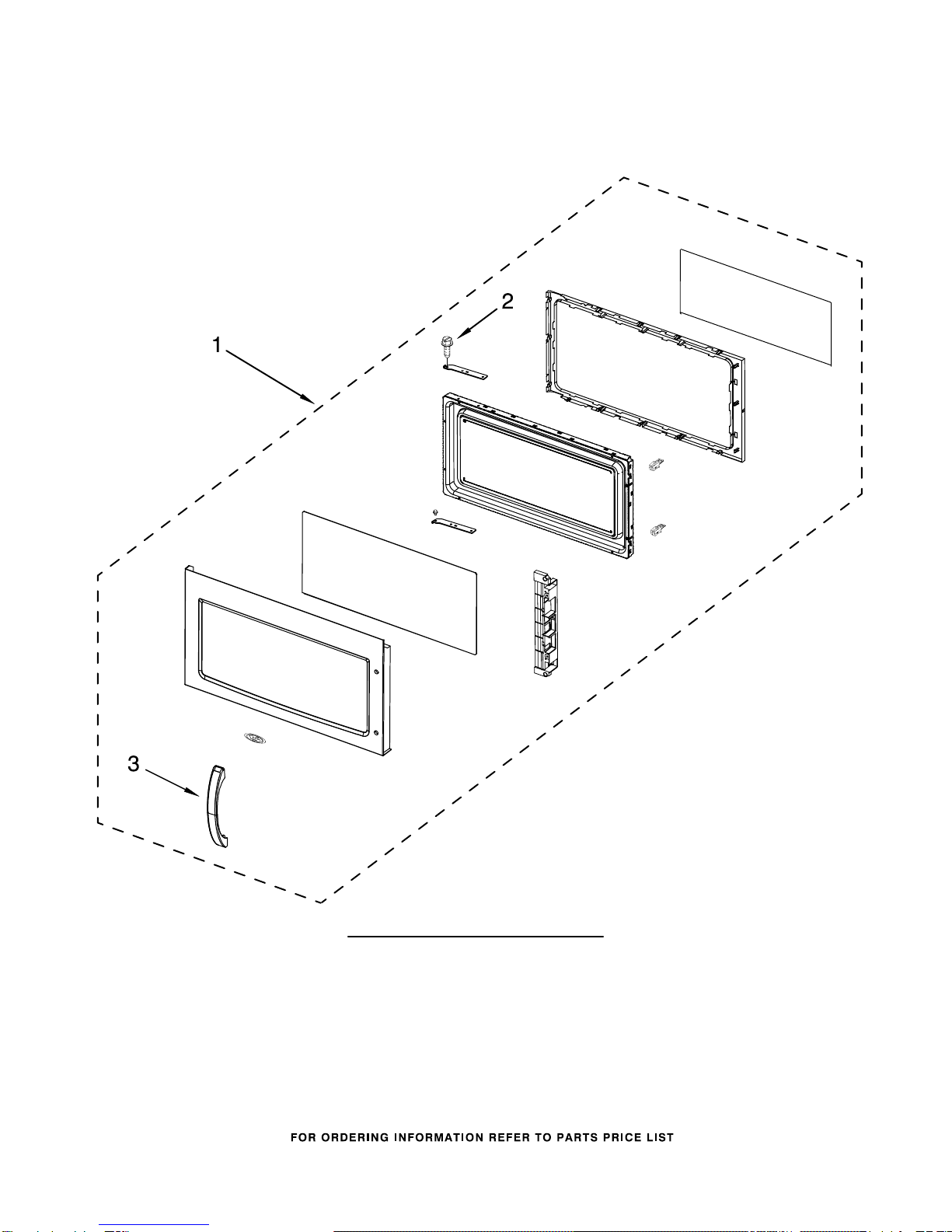

DOOR PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

8206394 White

8206395 Black

2 8206181 Screw

3 Handle

8206401 White

8206402 Black

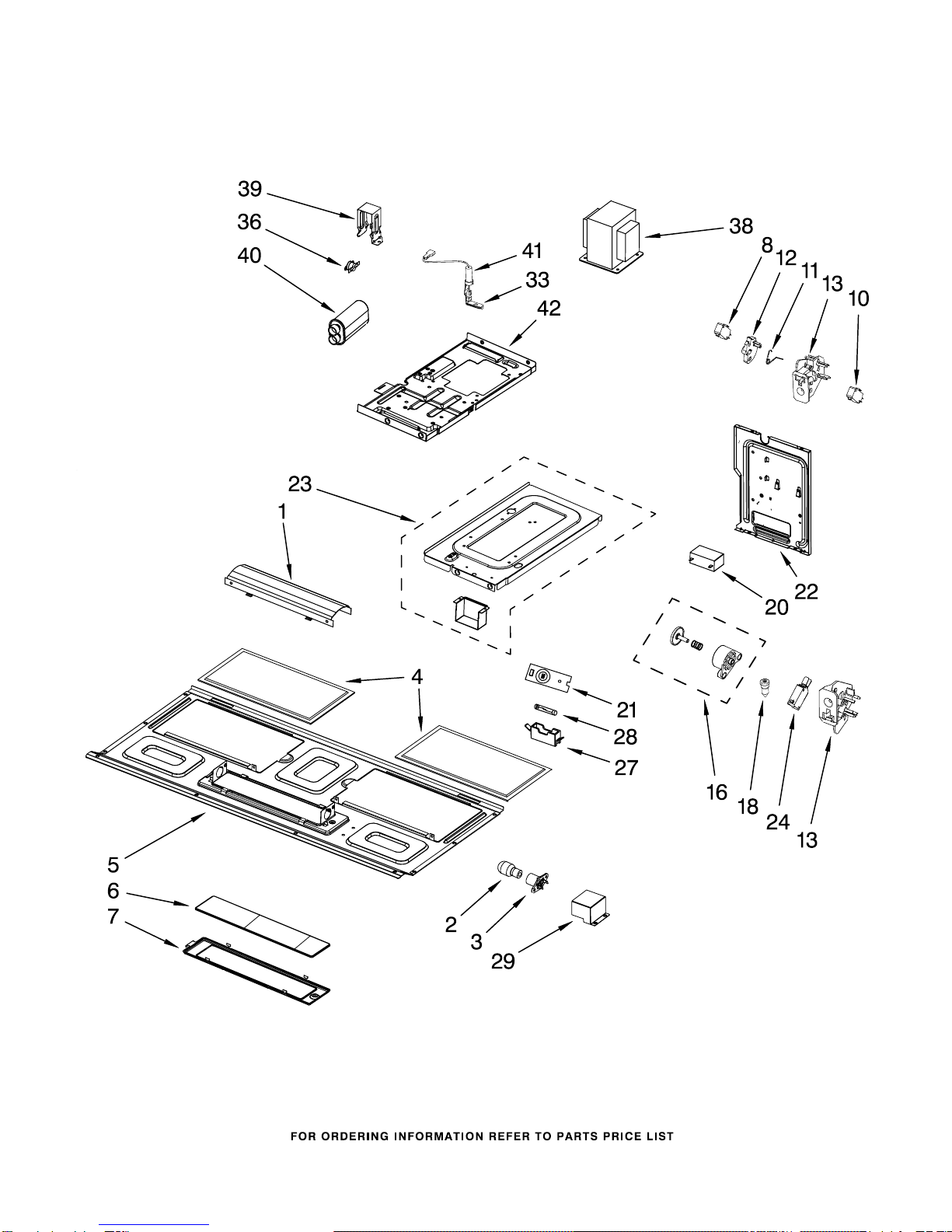

INTERIOR AND VENTILATION PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

INTERIOR AND VENTILATION PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

Illus. Part

No. No. DESCRIPTION

1 8206387 Reflector, Lamp

2 8206232 Lamp

3 8206374 Holder, Lamp

4 8206229 Filter, Grease

5 8206386 Plate, Bottom

6 8206376 Glass, Lamp

7 8206375 Holder, Glass

8 8206345 Switch, Micro

V5P010CG3

10 8206347 Switch, Micro

V5P020CG3

11 8169438 Spring, Interlock

12 8183824 Plate, Cam

13 Support, Interlock

8206419 Top

8206353 Bottom

16 8206558 Piston Assembly

18 8206180 Screw

20 8206357 Capacitor, 125 V

21 8206421 Thermistor (PCBA)

22 8206348 Plate, Side

23 8206358 Chassis Assembly

24 8206352 Switch, Micro

V5P030CG3

27 8184312 Holder, Fuse

28 4393308 Fuse

29 8206359 Terminal Cvr,Lamp

33 8206370 Support, Diode

36 8206379 Thermostat

38 8206343 Transformer, H.V.

39 8206378 Bracket, Capacitor

40 8206380 Capacitor, H.V.

41 8206369 Diode, H.V.

42 8206344 Chassis

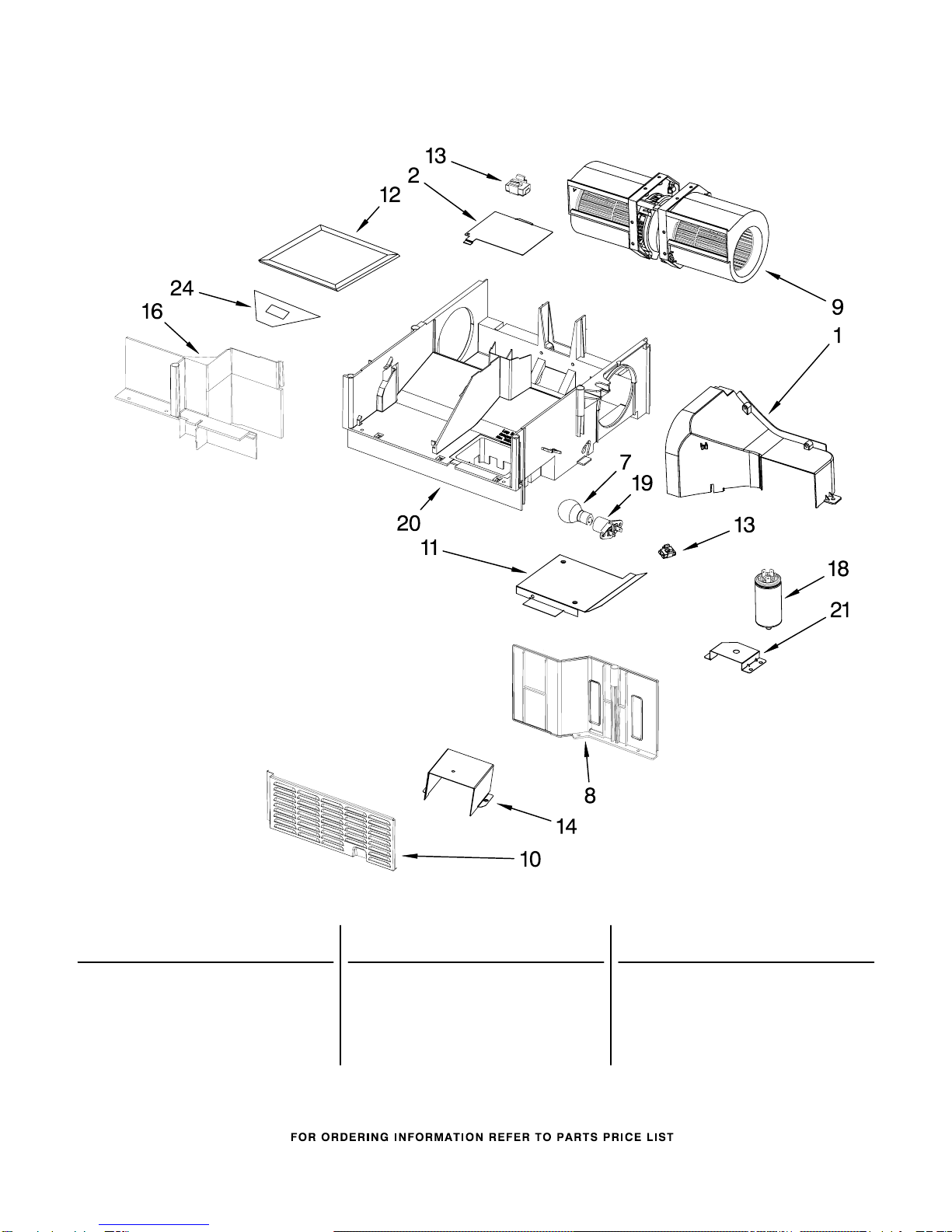

AIR FLOW PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206340 Deflector, Air

2 8206382 Cover, Lamp

7 4393681 Lamp

8 8206371 Cover, Side Inlet

9 8206381 Motor, Fan Assy

W10107800

Shield

11 8206377 Air Guide

12 8206230 Filter, Charcoal

W10107810

Mounting, Nut (2)

14 8206625 Channel, Air

16 8206384 Air Guide

18 8206624 Filter

19 8169539 Holder, Lamp

20 8206383 Base Plate,

Air Guide

21 8206368 Brkt−Mntg,Filter

24 8185097 Socket, Motor Wire

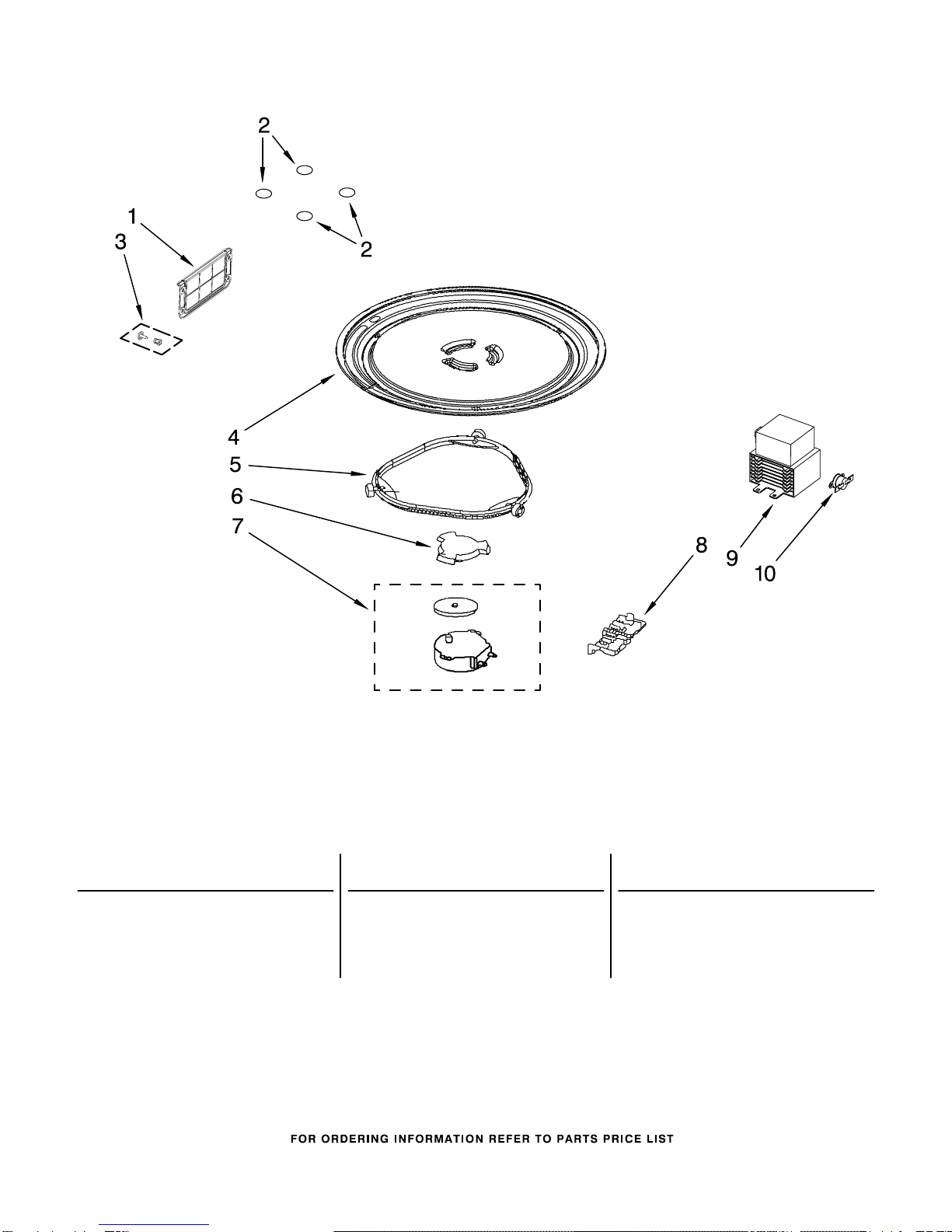

MAGNETRON AND TURNTABLE PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206389 Cover, Inlet

Includes Nails

and Bushings

W10108800

Cavity Plugs

3 8184549 Nails/Bushings

(4 of each)

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

7 8183953 Motor, Turntable

8 8206354 Cover, Terminal

9 8206341 Magnetron

10 8206342 Thermostat

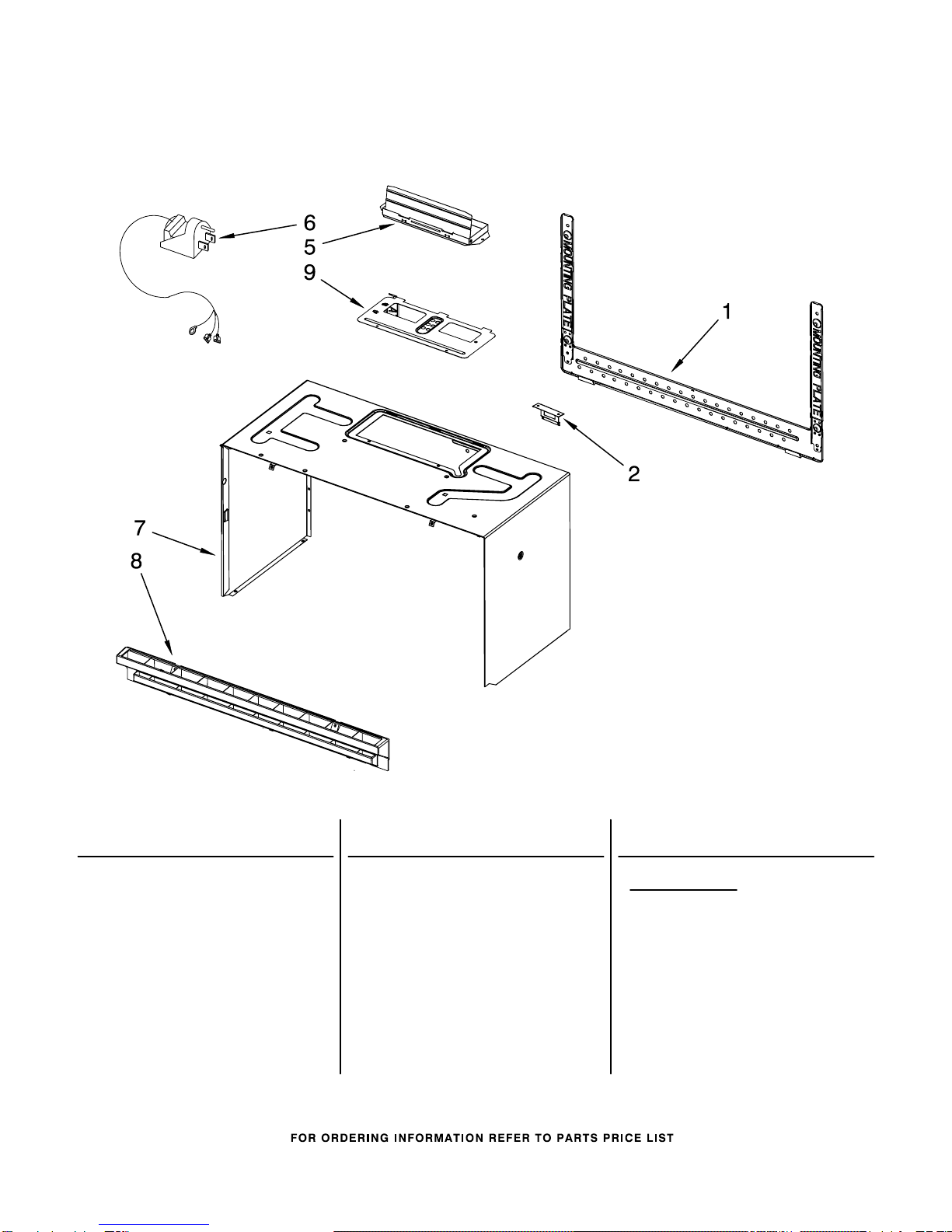

CABINET AND INSTALLATION PARTS

For Models: MH1160XSQ0, MH1160SXB0

(White) (Black)

8188433

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206385 Support, Wire Clip

5 8206442 Damper Assembly

6 8206388 Cord, Power

7 Case, Outer

8206337 White

8206338 Black

8 Grille, Vent

8206390 White

8206391 Black

9 8206336 Plate, Damper

Miscellaneous

8205948 Installation,

Hardware

8184731 Template, Upper

8169704 Screw, Top Mountng

W10107710

Main Harness

8205635 Ground Wire Assy

8206415 H.V. Wire Assy

W10107760

Grnd Wire, Filter

W10107730

Hdlmp/TT Wire Assy

W10107740

HV Trnsfmr Wr Assy

W10107770

Harness Wire, NTC
