Whirlpool TK Pure 7B Di Manual de usuario

SERVICE Whirlpool EMEA

Customer Services TK Pure 7B Di

BAUKNECHT ServiceInformation

Condensation Dryer

TK Pure 7B Di

8560 798 03071

Last Modiﬁcation: 03/20/08

Creation Date: 03/20/08

SparePartList 2

ExplodedView 4

TechnicalData 6

WiringDiagram 9

CircuitDiagram 11

Testprogram 13

ErrorCodes 14

ServiceBulletin481271340331 15

ServiceBulletin481271340300 16

ServiceBulletin481271340313 17

ServiceBulletin481271240301 19

ServiceBulletin481271340317 20

ServiceBulletin481271340336 21

ServiceBulletin481271340324 22

This document is only intended for qualiﬁed technicans who are aware of the

respective safety regulations.

Subject to modiﬁcations

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 2 of 23

SparePartList

Pos 12NC Description

004 0 481244011701 Bottom CD

011 0 481250018054 Foot adjustable

012 0 481252878033 Roll

012 1 481252898003 Shaft Front + Roll

012 2 481252028188 Shaft rear

021 0 481244010819 Front VBL GW

022 0 481244010821 Panel side GW

024 0 481244011569 Panel rear

030 0 481244011504 Table top short BK EBL

053 0 481244011155 Flap EBL WH

053 2 481241728103 Lock transmit. plinth EBL

053 4 481244011171 Plinth EBL WH

053 5 481241728102 Axle f.ﬂap EBL

100 0 481244011705 Door transparent CD WH/BK

131 1 481227138354 Door lock system

133 2 481241728056 Lock Bag ﬁlter

191 0 481246668607 Gasket door

204 0 481246638014 Protector

220 0 481241818177 Drum cpl. SS

223 0 481241889017 Drum lifter GW

261 0 481241879821 Case f.water cont.

271 0 481235818164 BELT PV 1936 H6

273 0 481235818055 Pulley jokey

275 0 481249268129 Spring

291 0 481246668561 Gasket front

291 2 481246668837 Gasket drum rear

301 0 481245310691 Control panel + handle drawer

303 0 481249878682 Handle drawer galv.

331 0 481241458338 Knob timer

331 3 481241458307 Spring Knob timer

331 4 481241458345 Knob timer ring, silver

332 0 481251318197 Push button options

333 0 481251318196 Push button start

401 0 481236118532 Motor + fan wheel + clamp

401 1 481240118421 Clamp Motor

420 0 481212118144 Capacitor 10 mF

421 0 481212118284 Interf.ﬁlter

430 0 481236058212 Pump,draining cpl. IMS 12318002104

443 0 481236118537 Blower wheel

443 1 481236118518 Fan wheel with Clamp

443 2 481229088096 Clamp blower wheel, stainless

456 0 481225928895 Heat.elem. 1300W+1300W - 230V 1HAV0A4450

490 0 481232118042 Connect.cable 3m

490 0 481232118044 CABLE,MAINS 5M 4X1

490 1 481232128433 Strain relief + protect.

521 0 481221470748 Control unit TINY/DOMINO TB, Basic

521 0 481221470843 Control unit TINY/DOMINO BQ, progr.

620 0 481223958061 Module E1/7 Opt.

620 1 481223958063 Module humidity

631 0 481227138497 Microswitch f.pump/belt

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 3 of 23

Pos 12NC Description

631 1 481236018476 Floater

631 2 481236058093 O-Ring

633 0 481227618523 Switch door

633 1 481227618422 Pin Start reset GW

651 0 481213428056 Lamp drum light cpl.

651 1 481213418052 Lamp drum light

691 0 481225928863 Sensor temper.NTC

691 1 481228298014 Gasket NTC

692 0 481221058055 Bracket Sensor

692 1 481227858001 Sensor

692 2 481221058075 Cover Sensor, Kit

707 9 481253048165 Tube inﬂow

740 0 481251148417 Heat exchanger H2

741 0 481244008035 Blower cold air

741 1 481253048244 Cover blower house

743 0 481253048683 Air guide w/o Light/old Sensor ho.

743 1 481253049096 Heating chamber SS

743 3 481253048239 Cover blow.house

743 8 481246688519 Gasket f.blow.house

750 0 481241879823 Tank condensw.4.3l

750 1 481253028856 Water guide

751 1 481241888044 Water collector

751 2 481240118472 Clamp sump cover

751 3 481227118014 Cover water switch

761 0 481248058322 Filter; bag GW

781 0 481253028243 EVACUATION PIPE 1,5 m F I D UK ND SP

783 0 481253008003 Hose inﬂow bottom

783 1 481253008009 Hose reﬂow long

783 2 481253008001 Hose Pump bottom

794 0 481246688863 Gasket AC, Bottom

794 1 481246628108 Gasket heater channel

794 4 481246688521 Gasket ﬁlter

900 1 481229088053 Clip

900 2 481229088099 Clip for Heater

900 3 481240418529 Crossbar Control panel

903 0 481253228028 Clip ﬁx

910 1 481250248347 Screw,selftap 3,5x14

910 8 481250248348 Screw ST 4,2x11

912 4 481250248015 Screw 4,0x16-TORX

922 0 481253258005 Ring circlip Triring

922 1 481253258007 Ring circlip

930 0 481249298039 Spring f.ﬂap

950 0 481246648101 Felt,strip bottom group

950 1 481246688517 Gasket inlet bottom

952 3 481246688522 Gasket sensor wiring

962 0 481246638012 Protector Motor

962 2 481246638056 Foil Aluminium Display board

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 4 of 23

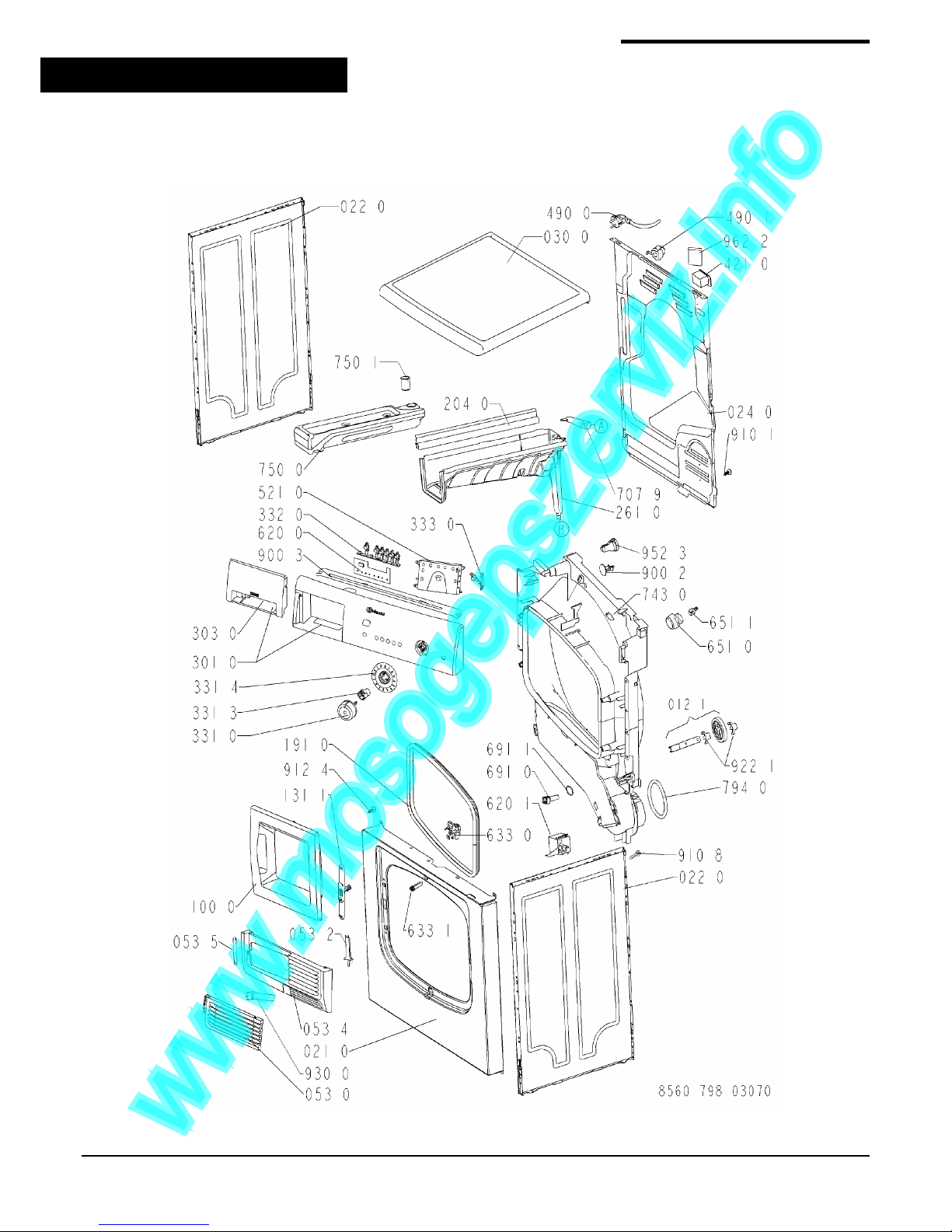

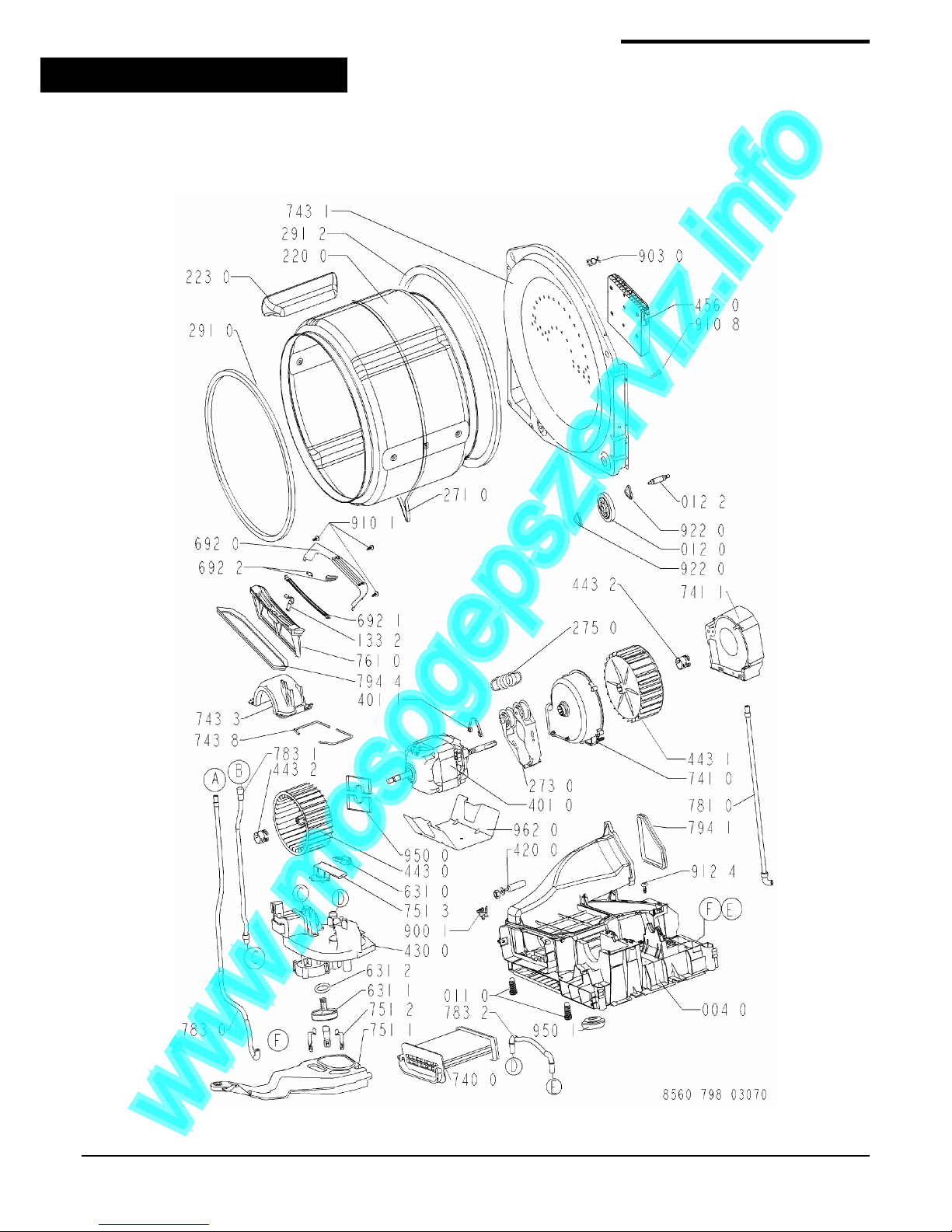

ExplodedView

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 5 of 23

ExplodedView

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 6 of 23

TechnicalData

Dimensions+Weight

Product dimensions

Height ................................................................................................85 cm

Width ...............................................................................................59.5 cm

Depth .................................................................................................60 cm

Weight

net ....................................................................................................40 kg

Electricalbasedata

Voltage ...........................................................................................230 V ±10%

Frequency ...............................................................................................50 Hz

Fuse ......................................................................................................16 A

Total connected load ...................................................................................2.49 kW

Surroundingstemperature

Room temperature .........................................max. .........................................35 °C

Room temperature ..........................................min. ..........................................5 °C

Capacityoflaundry

Cotton .....................................................................................................7 kg

Easy care ................................................................................................2.5 kg

Directdrainingoption

Max. allowable length ....................................................................................2.5 m

Max. height for drain outlet ...............................................................................1.0 m

Heatingelement

Nominal voltage ..........................................................................230 V + 10 % / - 15 %

Total power ..................................................................................2 x 1300 W ±5 %

Resistor NTC ..........................................1300 W ..........................................36 Ω

Resistor NTC ..........................................2600 W ..........................................18 Ω

Thermostatscondenser

Caracteristics of the NTC

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 7 of 23

0 °C 34.6 kΩ

25 °C 11.5 kΩ

60 °C 3.3 kΩ

70 °C 2.4 kΩ

95 °C 1.2 kΩ

100 °C 1.0 kΩ

110 °C 0.8 kΩ

130 °C 0.5 kΩ

180 °C 0.2 kΩ

Safety thermostat ............................................................................................TL

Switch off temperature .........................................................................190 °C ±5 K

Main-andblowermotor

Type ....................................................................................1-phase asynchronous

Nominal voltage ..........................................................................230 V + 10 % / - 15 %

Frequency ...........................................................................................50 ±3 Hz

Power Consumption .....................................................................................285 W

Resistor (coil)

Main coil ............................................(2 - 3) ............................................19 Ω

Auxiliary coil ..........................................(3 - 4) ..........................................18 Ω

Condensationpump

Type ......................................................................................1-phase synchronous

Nominal voltage ....................................................................220 - 240 V + 10 % / - 15 %

Frequency ...............................................................................................50 Hz

Resistance ...........................................(25 °C) ...........................................450 Ω

Power Consumption ..................................................................................14 ±2 W

Capacity (height 1.1m) .................................................................................2.6 l/min

Microswitch

Nominal voltage ..........................................................................230 V + 10 % / - 15 %

Frequency ............................................................................................50/60 Hz

Current ....................................................................................................16 A

Doorswitch

Nominal voltage ...........................................................................................12 V

Max. current .............................................................................................50 mA

Controlmodule

Type ............................................................................................TINY/DOMINO

Nominal voltage ..........................................................................230 V + 10 % / - 15 %

Frequency ............................................................................................50/60 Hz

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 8 of 23

Humiditymodule

Nominal voltage ...........................................................................................24 V

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 9 of 23

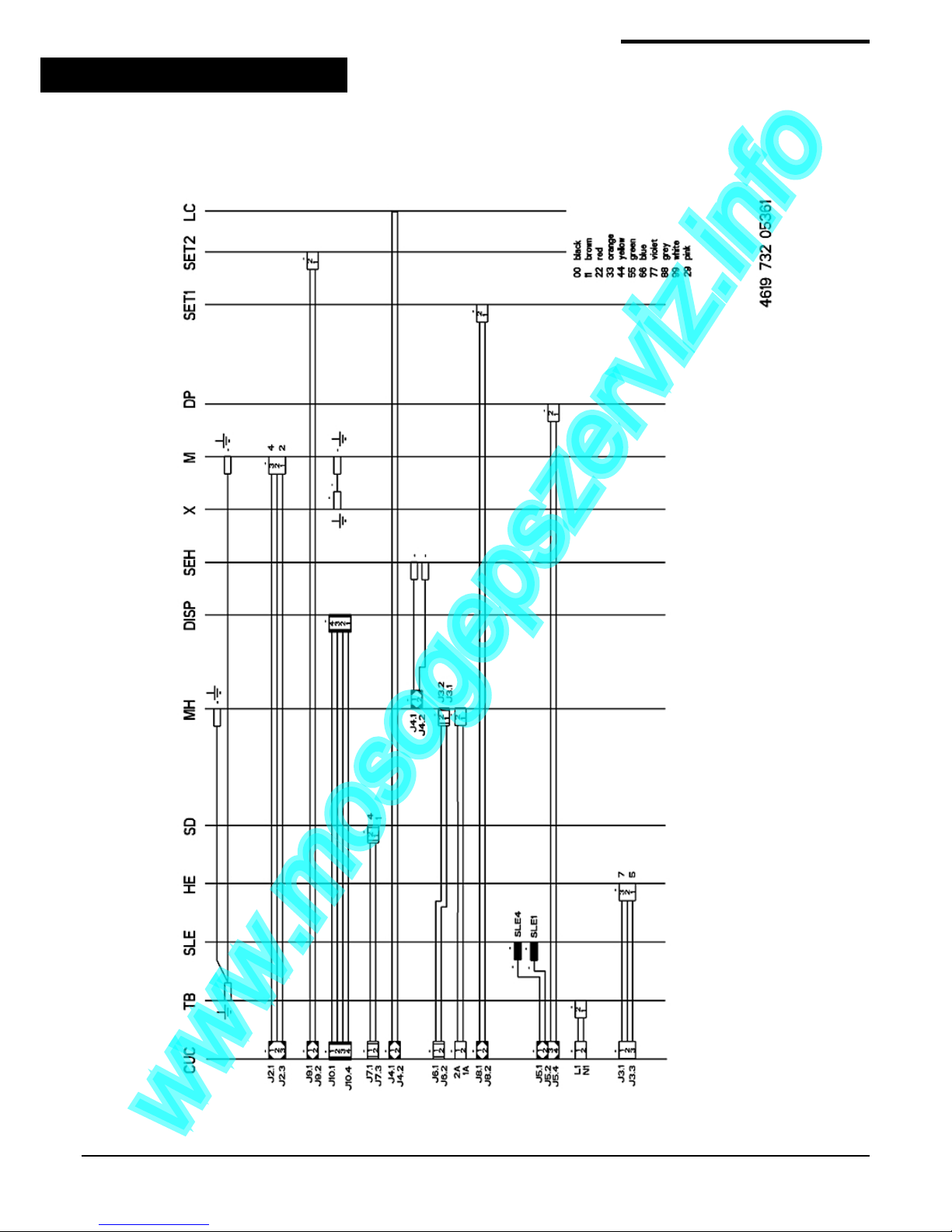

WiringDiagram

www.mosogepszerviz.info

SERVICE Whirlpool EMEA

Customer Services

8560 798 03071, 03/20/08

page 10 of 23

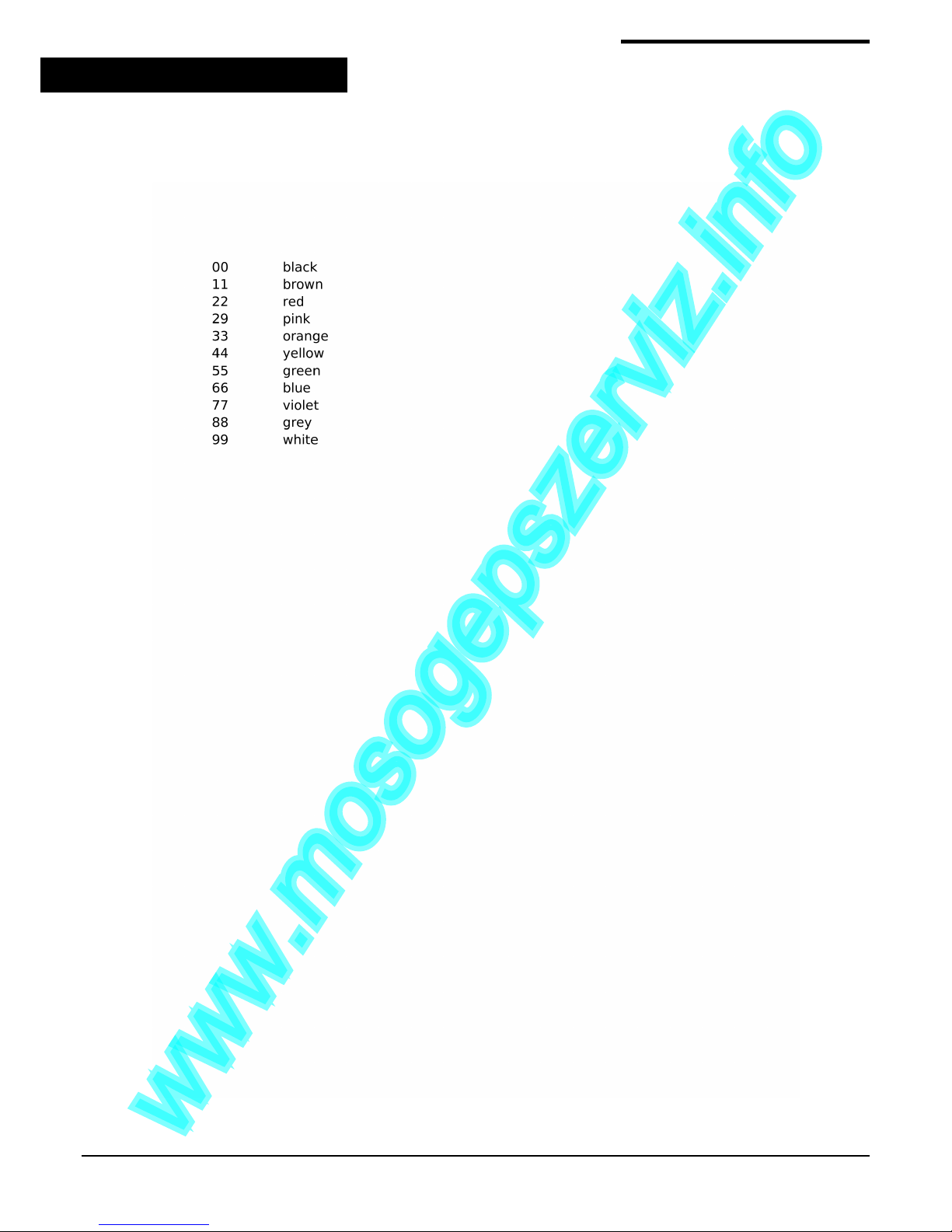

Legend
