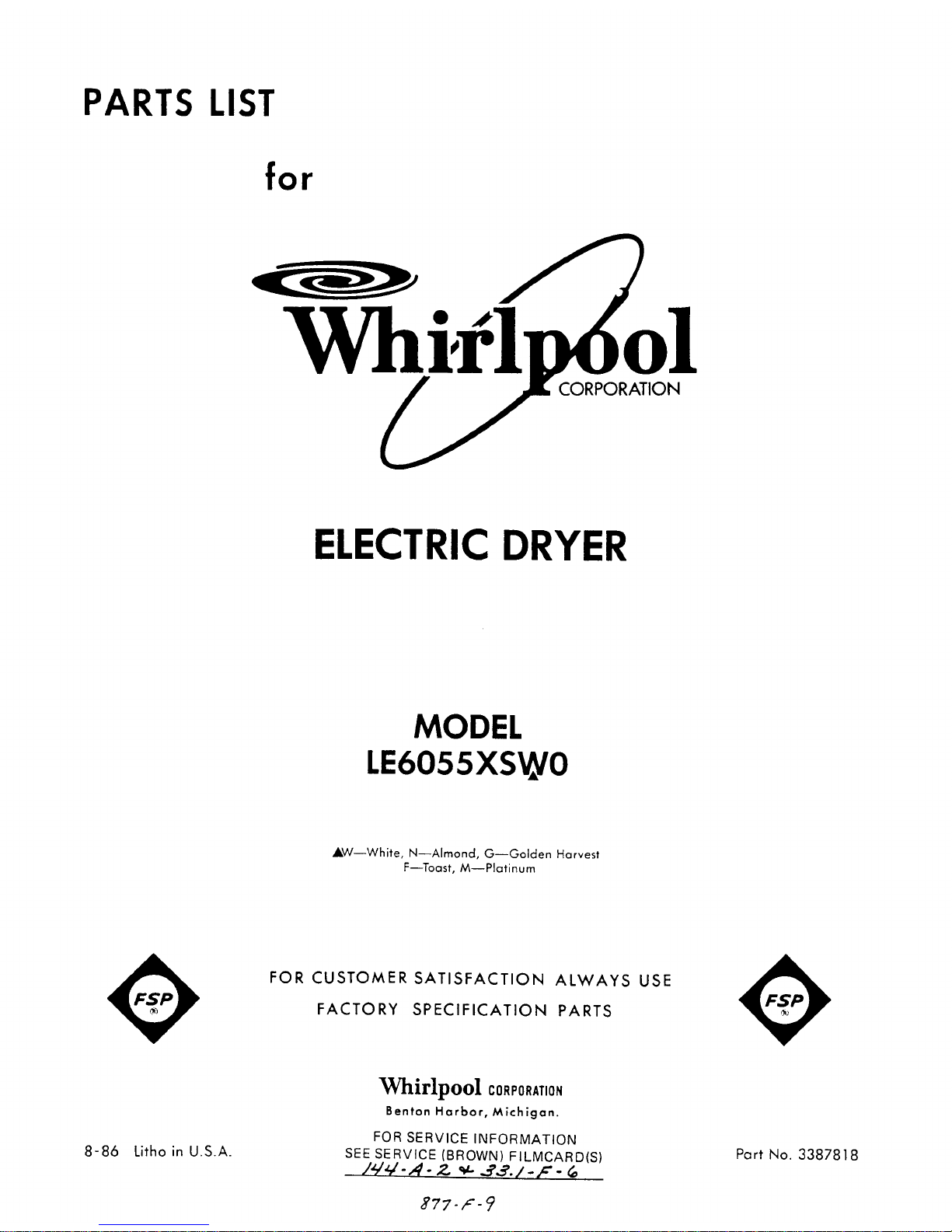

Whirlpool LE6055XSWO Manual de usuario

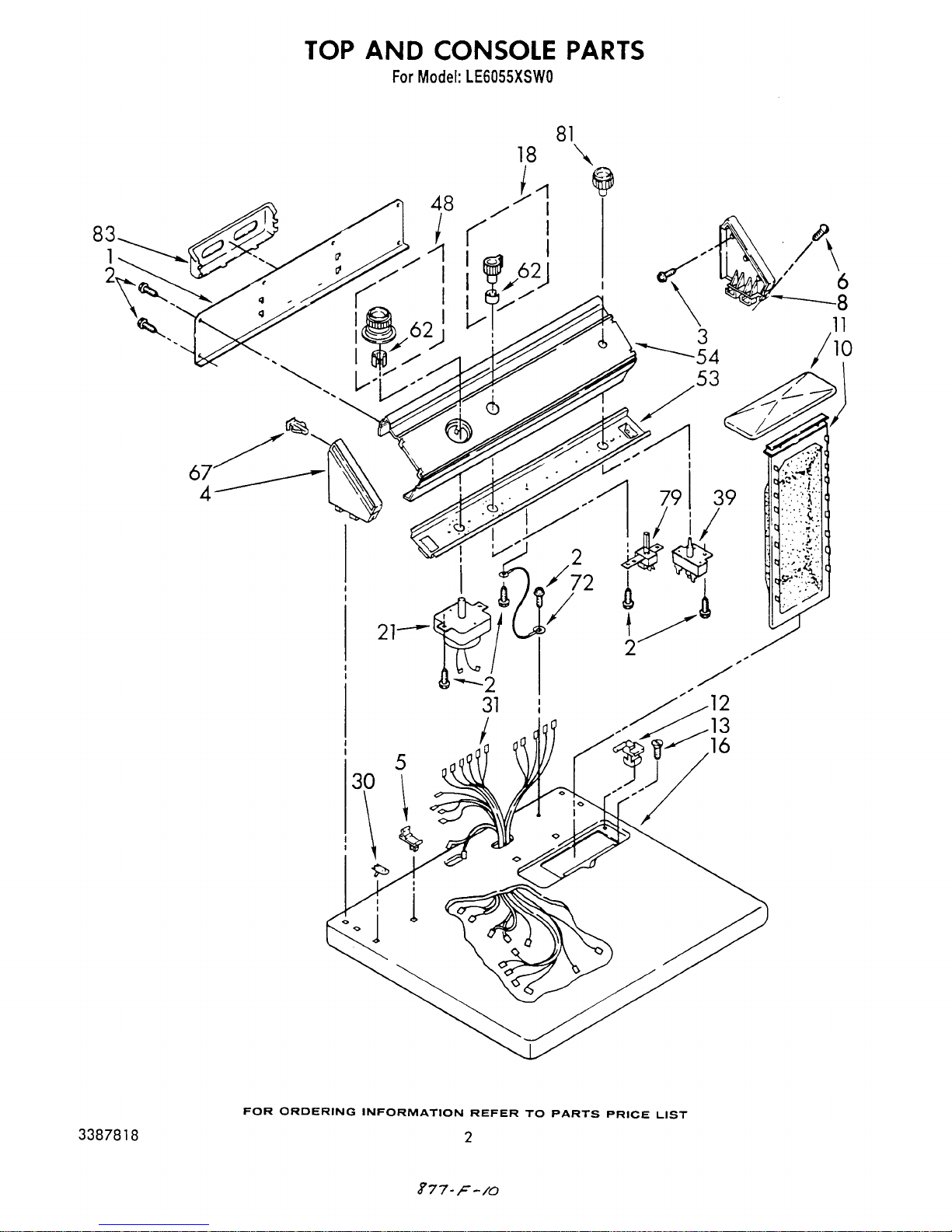

1 386367 Panel, Rear Console

2 343641 Screw, 10-16 x 1/2

3 355326 Screw, 13-16 x 5/8

4 63789 Cap, End (L.H.)

5 358472 Stop, Push-In

6 64211 Screw, 8-18

8 63795 Cap, End (R.H.)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

689313 Golden Harvest

695022 Toast

695023 Platinum

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

16 Top

695507 White

695508 Almond

695509 Golden Harvest

695510 Toast

695511 Platinum

18 386635 Control Knob, Temperature

21 687950 Timer, 60 Hz.

30 358473 Nut, Push-In (2)

31 3388070 Harness, Wiring

39 660936 Switch, Push-To-Start

346364 (Alt.)

692021 (Alt.)

48 3387902 Timer Knob Assembly

53 386627 Bracket, Control

54 3388004 Panel, Control

62 688805 Clip

67 689559 Clip, Push-On (4)

72 690853 Wire, Ground

79 694720 Switch, Temperature

81 3387894 Knob, Push To Start

83 63020 Rack, Literature

LITERATURE PARTS

LIT693849 Guide, Dryer

LIT696760 Use & Care Guide

LIT696234 Instructions, Installation

LIT3387818 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (In Refrigerator)

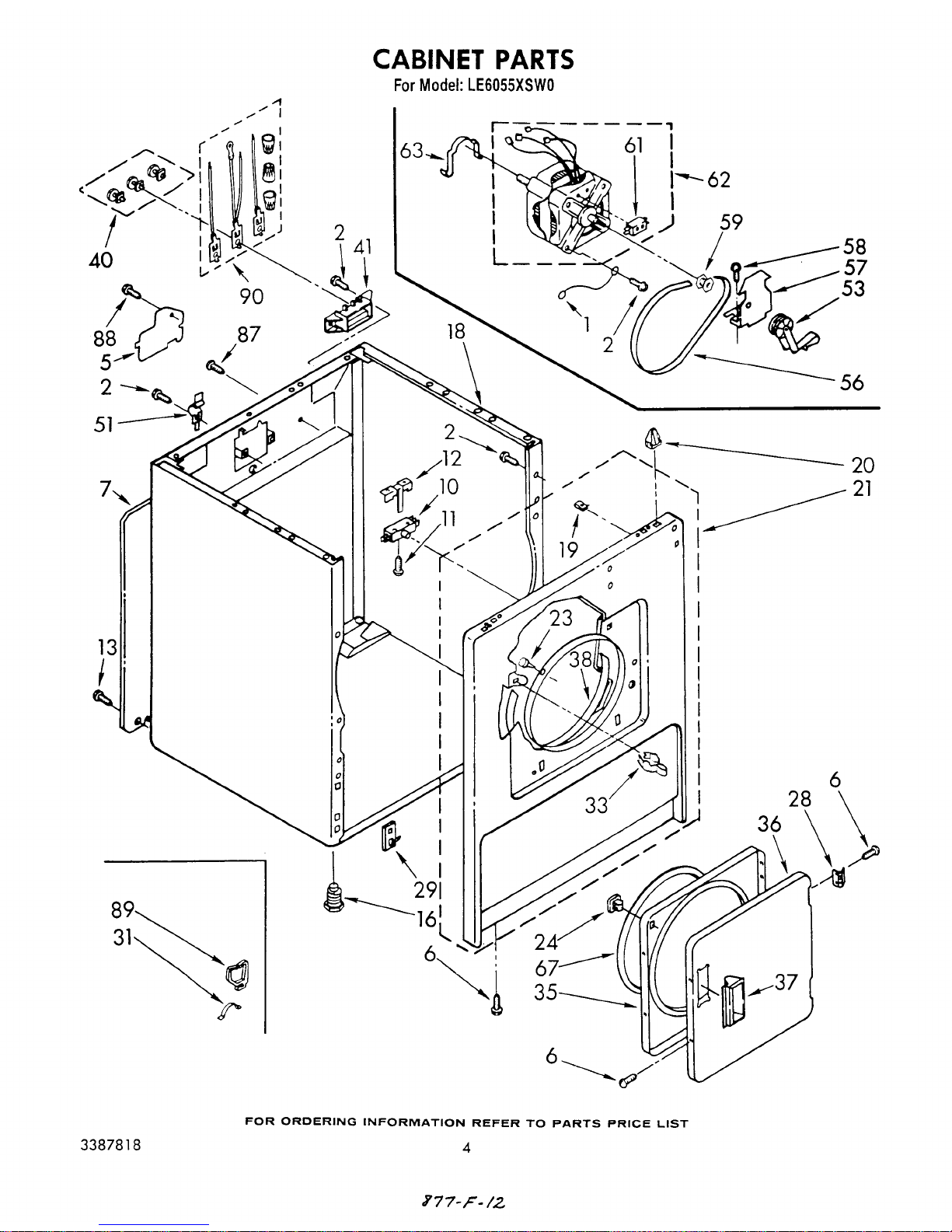

1 690236 Wire, Ground (Motor)

2 9416643 Screw, 10-16 x 1/2

5 690893 Cover, Terminal Block

6 694091 Screw

7 346368 Panel, Rear

10 347207 Switch, Door

11 98129 Screw, 6-20 x 1-3/8 (2)

12 295998 Lever, Door Switch

13 693994 Screw, Rear Panel Mounting

16 688222 Foot, Dryer (4)

18 Cabinet

690847 White

690848 Almond

690851 Golden Harvest

694874 Toast

694875 Platinum

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 Upper Front Panel Assembly

693197 White

693198 Almond

693201 Golden Harvest

695259 Toast

695260 Platinum

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 348023 Hinge and Pin Assembly (2)

29 237823 Clip, Front Panel (2)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695656 Door, Rear

36 Door Front

348205 White

689314 Almond

689319 Golden Harvest

695214 Toast

695215 Platinum

37 Handle, Door

686715 White

689306 Almond

689584 Golden Harvest

695285 Toast

695286 Platinum

38 349462 Seal & Bearing Assembly

40 279393 Terminal Block Kit For Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 694871 Pulley, 60 Hz.

61 337351 Switch (Use W/695075 Motor)

349588 Switch (Use W/689788 Motor)

62 695075 Motor Assembly 60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 685763 Seal, Door

87 690989 Screw, 10-32 x 1/2 (External Ground)

88 693995 Screw, 10-16 x 1/2

89 688412 Clip, Retainer

90 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)

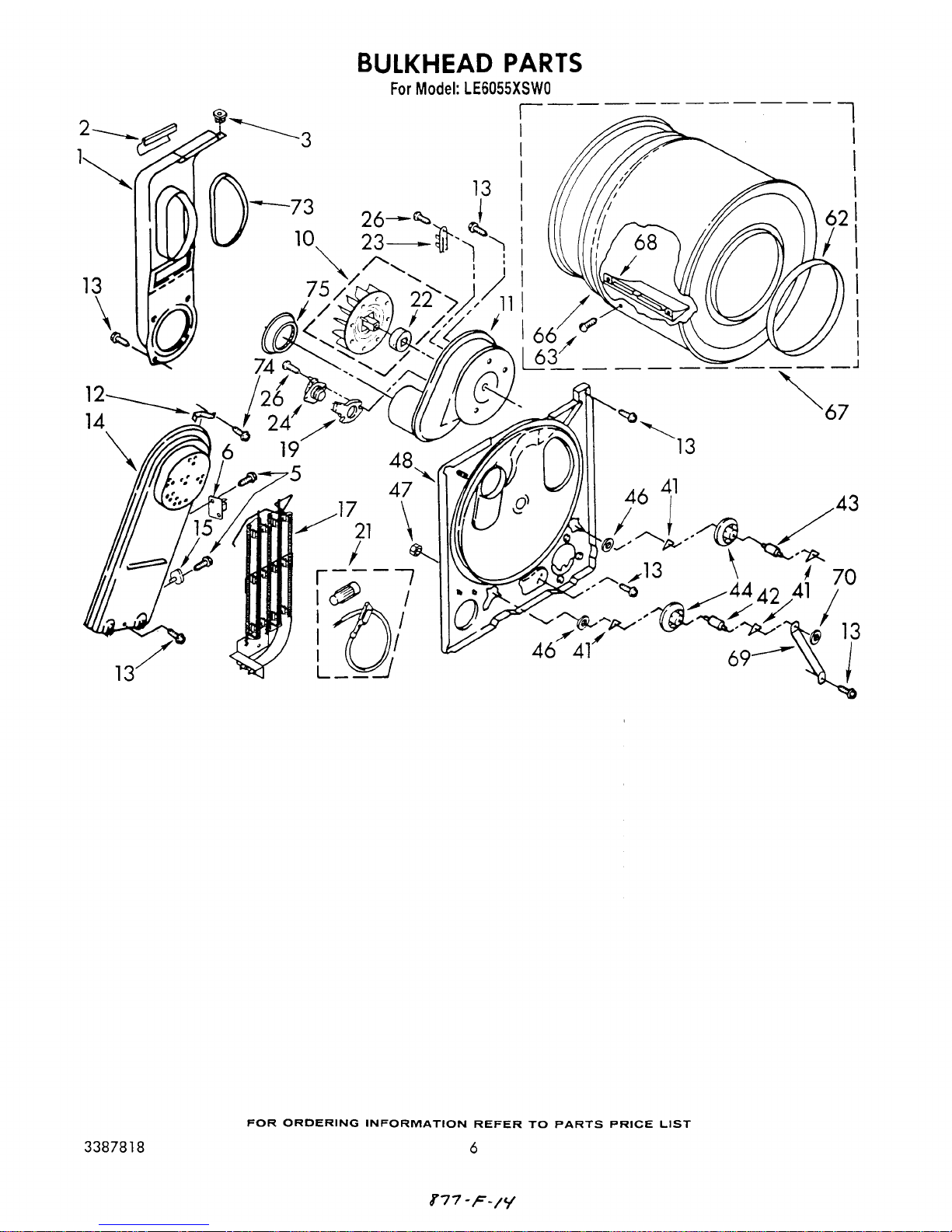

1 694283 Lint Chute Assembly

2 686770 Support Protector

3 98460 Nut, Push-In (2)

5 90767 Screw, 8 x 3/8

6 695563 Thermal, Cut-Off (Hi-Limit Thermostat Illus. No.15 Included)

10 695499 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 695547 Box, Heater

15 696397 Thermostat, High Limit 250~F (121.1~C) (60 Hz.)

17 660982 Element, Heater (For 240 Volt Installation)

693300 (Alt.)

693298 (Alt.)

693062 (Alt.)

696326 Element, Heater (For 208 Volt Installation)

19 660039 Thermostat, Operating 150~F (66~C)

341146 (Alt.)

341147 (Alt.)

21 279457 Wire Kit (For Heater Element Wiring Harness Repair)

22 694630 Seal, Blower

23 694511 Fuse, Thermal

24 61894 Thermostat, Heater

26 695240 Screw, 8-18 x 1/2

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 349241 Roller, Support

46 348197 Washer, Support

47 120377 Nut, 3/8-16

48 685775 Bulkhead

62 297936 Ring, Bearing

63 690372 Screw, 11-16 x 7/8

66 337449 Seal, Rear Drum

67 695584 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10-16 x 1/2

75 696302 Shield, Exhaust
