TOP AND CONSOLE PARTS

For Models: LET7646AQ2, LET7646AZ2

(Designer White) (Designer Almond)

2−95 Litho in U.S.A. (dhb) Part No. 4377422

ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Models: LET7646AQ2, LET7646AZ2

(Designer White) (Designer Almond)

4377422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3397545

Panel, Rear

Console

688805

Clip

Wire, Jumper

3393811

Violet

3393812

Blue

Cap, End (L.H.)

3358531

White

3358532

Almond

3390647

Screw, 8−18 x 1/2

3353145

Screw, Console

689180

Clip, Retainer

Cap, End (R.H.)

3358516

White

3358517

Almond

3388706

Resistor, Timer

349639

Screen, Lint

Cover, Lint Screen

688150

White

689310

Almond

339229

Hinge, R.H.

339230

Hinge, L.H.

688983

Screw, 8−18 x 5/8

693995

Screw (6)

Top

3396022

White

3396023

Almond

694419

Buzzer, Mini

3395683

Connector,

(Motor)

3394427

Clip

3397269

Connector, Timer

3398137

Timer, 60 Hz.

357213

Nut, Push−In (2)

3399663

Harness, Wiring

(Includes 690261

Terminal Block)

3390646

Screw, 8−18 x 5/16

LITERATURE AND OPTIONAL PARTS

3395395

Switch,

Push−To−Start

Timer Knob

Assembly

3396146

White

3396149

Almond

3396295

Bracket, Control

Panel, Control

3397222

White

3397242

Almond

690853

Wire, Ground

Switch,

Clean−Touch

3396239

White

3396237

Almond

Button, Push

To Start

3396176

White

3396177

Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401083

Use & Care Guide

LIT3397597

Instructions,

Installation

LIT3401723

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930

White

350956

Almond

350938

Primer, Gray

PAINT, BULK (1 qt.)

799344

White (Uncut)

978883

Almond (Uncut)

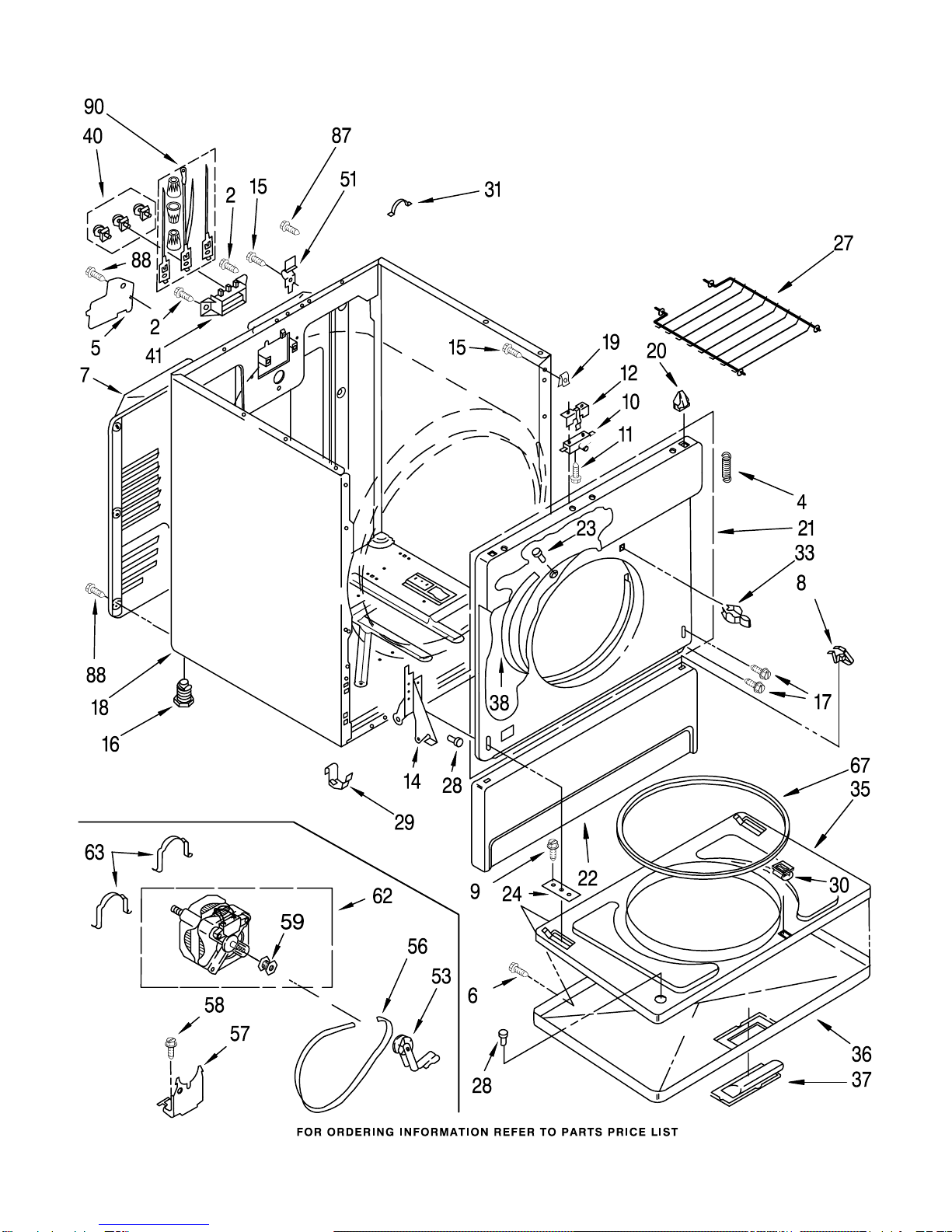

CABINET PARTS

For Models: LET7646AQ2, LET7646AZ2

(Designer White) (Designer Almond)

4377422

CABINET PARTS

For Models: LET7646AQ2, LET7646AZ2

(Designer White) (Designer Almond)

4377422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3393008

Screw, 10−16 x 1/2

237979

Spring, Door (2)

3396795

Cover, Terminal

Block

694091

Screw

3396805

Panel, Rear

3388229

Clip,

Toe Panel (2)

3357011

Screw,

10−16 x 1/2

347207

Switch, Door

98129

Screw,

6−20 x 1−3/8 (2)

691581

Lever, Door Switch

Mounting

687905

Hinge, R.H.

687906

Hinge, L.H.

343641

Screw, 10−16 x 1/2

3392100

Foot, Dryer (4)

342043

Screw,

10−32 x 1/2

Cabinet

3399585

White

3399586

Almond

98234

Clip, Ground

690363

Lock, Front

Top (2)

Upper Front

Panel

338012

White

689533

Almond

Panel, Toe

692427

White

692428

Almond

685203

Clip, Felt Pad

337189

Clip, Hinge (2)

3397713

Rack, Dry

238614

Bumper

297092

Clip, Hinge (2)

690081

Catch, Door

98997

Clip, Harness

696144

Strike, Door

695954

Door, Rear

Door Front

348728

White

689330

Almond

Handle, Door

690270

White

690271

Almond

349464

Seal & Bearing

Assembly

279393

Terminal Block

Kit For

Terminal Block

690261

Block, Terminal

238088

Hinge, Top (2)

691366

Idler & Pulley

Assembly

660996

Belt, Drive

348780

Base, Motor

172455

Bolt,

5/16−18 x 3/4

3401143

Pulley, 60 Hz.

3395652

Motor Assembly

60 Hz.

(Pulley Not

Included With

Motor)

660658

Clamp, Motor

343481 (Alt.)

685441 (Alt.)

3390733

Seal, Door

697776

Screw, 10−32 x 1/2

(External Ground)

693995

Screw, 10−16 x 1/2

279318

Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

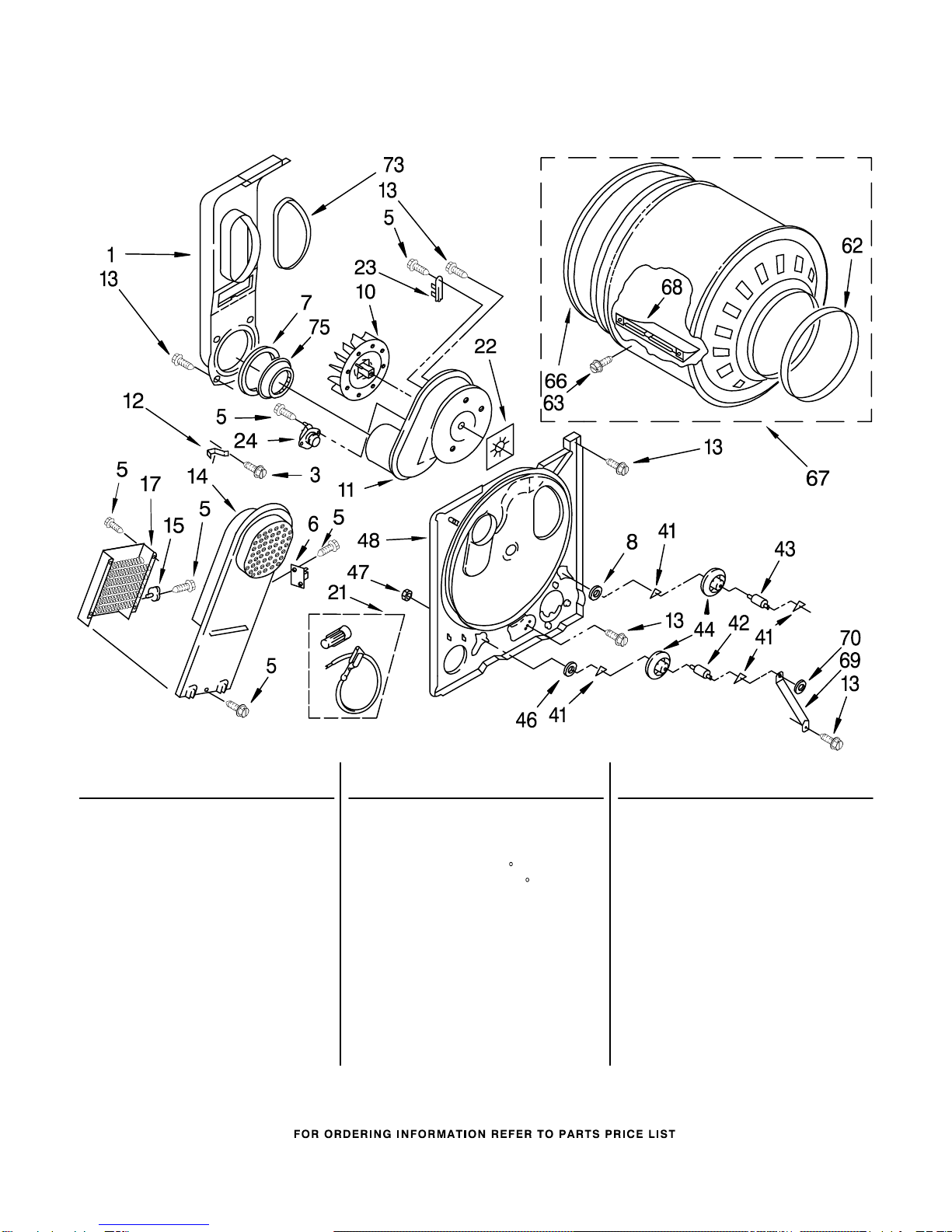

BULKHEAD PARTS

For Models: LET7646AQ2, LET7646AZ2

(Designer White) (Designer Almond)

4377422

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3396352

Lint Chute Assembly

3400800

Screw, 8−18 x 3/4

90767

Screw, 8 x 3/8

3399848

Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

347139

Seal, Lint

Chute

3388703

Washer, Support

694089

Wheel, Blower

695081

Housing, Blower

3398161

Clip

343641

Screw, 10−16 x 1/2

3397566

Box, Heater

3390291

Thermostat,

High Limit

250 F

(121.1 C) (60 Hz.)

3398064

Element, Heater

(For 240 Volt

Installation)

279457

Wire Kit (For

Heater Element

Wiring Harness

Repair)

3392123

Seal, Blower

3392519

Fuse, Thermal

3387139

Thermostat,

Internal Bias

690997

Ring, Tri

3399506

Shaft, L.H.

3399507

Shaft, R.H.

3397588

Roller, Support

348197

Washer, Support

3359452

Nut, 3/8−16

3399464

Bulkhead

3394509

Ring, Bearing

97787

Screw, 11−16 x 7/8

3397509

Seal, Rear Drum

3396778

Drum Assembly

342847

Baffle, Drum

3394133

Bracket, Support

90296

Clip

3398160

Seal

696302

Shield, Exhaust
