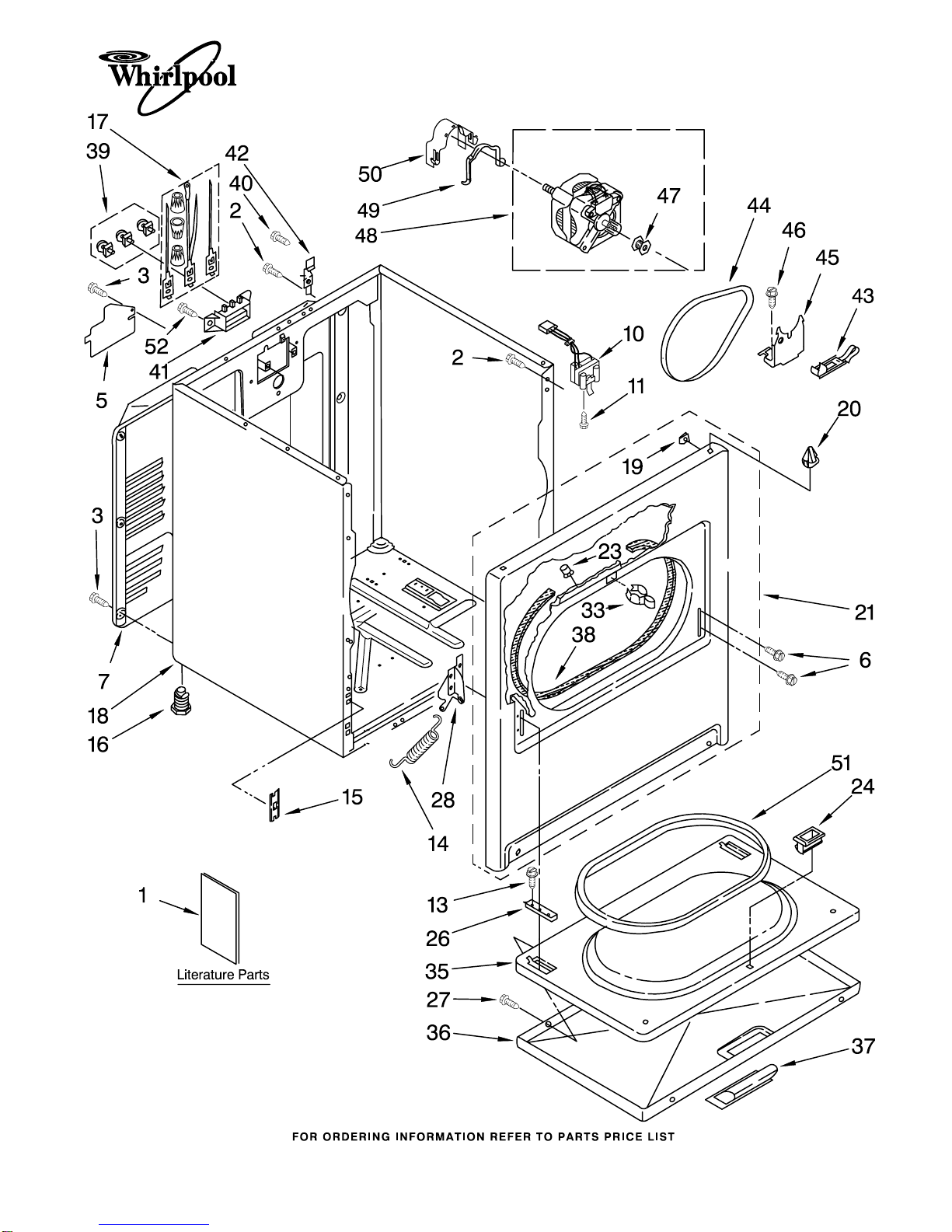

CABINET PARTS

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

12−01 Litho in U.S.A. (djc) Part No. 8179738

29"ELECTRIC DRYER

CABINET PARTS

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

8179738

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3397618

Instructions,

Installation

LIT8528324

Use & Care Guide

LIT8528190

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

5 3396795 Cover, Block

6 342043 Screw, 10−32 x 3/8

7 3396805 Panel, Rear

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 3357011 Screw, 10−16 x 1/2

14 692495 Spring, Door (2)

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 Cabinet

8530603 White

8530606 Biscuit

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 Panel, Front

695620 White

3977244 Biscuit

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

33 696144 Strike, Door

35 695737 Door, Rear

36 Door, Front

3393549 White

3977241 Biscuit

37 Handle, Door

690270 White

3977242 Biscuit

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)

40 697776 Screw, 10−32 x 5/8

41 3397659 Block, Terminal

42 238088 Hinge, Top (2)

43 3394332 Idler & Slide

Assembly

44 8066065 Belt, Drive

45 348780 Base, Motor

46 3400500 Bolt,

5/16−18 x 3/4

47 3394341 Pulley, 60 Hz.

48 661654 Motor Assembly

60 Hz.

49 660658 Clamp, Motor

50 3404162 Clamp, Motor

(W/Shield)

51 3390731 Seal, Door

52 3393008 Screw, 10−16 x 1/2

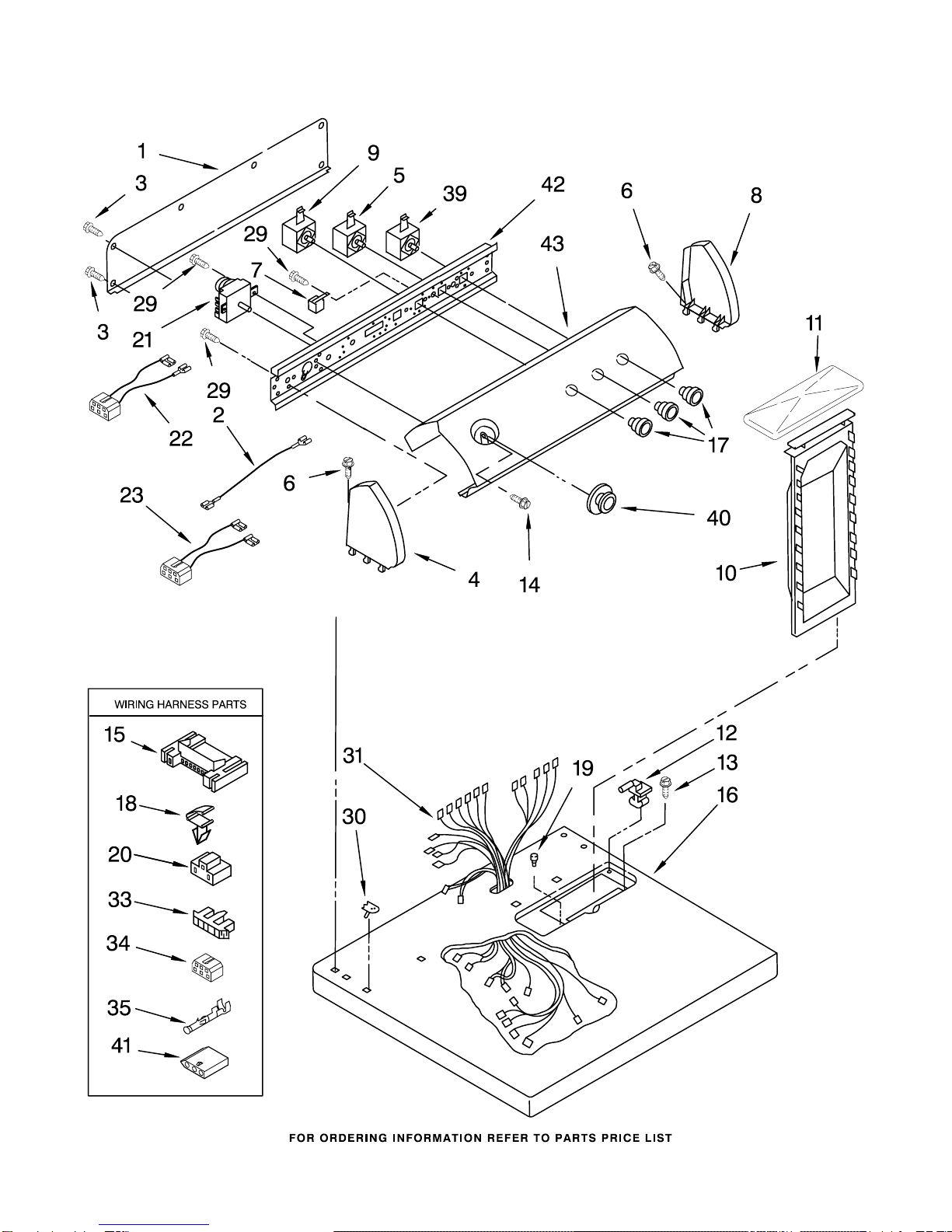

TOP AND CONSOLE PARTS

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

8179738

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

8179738

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 3401684 Wire, Jumper

(Black)

3 693995 Screw, Hex Head

4 Cap, End (L.H.)

8271365 White

8271368 Biscuit

5 3405156 Switch,

Finish Guard

6 388326 Screw, Console

7 694419 Buzzer, Mini

8 Cap, End (R.H.)

8271359 White

8271362 Biscuit

9 3399639 Switch,

Temperature

10 349639 Screen, Lint

11 Cover, Lint

Screen

8283378 White

8283380 Biscuit

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 3395683 Connector

(Motor)

16 Top

8271390 White

8271392 Biscuit

17 Knob, Control (3)

8271339 White

8271348 Biscuit

18 3394427 Clip−Harness

19 297535 Bumper, Lint Lid

20 3401144 Connector,

(PTS Relay)

21 8299783 Timer, 60 Hz.

22 3397695 Wire, Jumper

(Guard On/Off)

23 3396029 Wire, Jumper

(Temperature)

29 3390646 Screw, Mounting

(8−18 x 5/16)

30 357213 Nut, Push−In (2)

31 8299873 Harness, Wiring

33 3397269 Connector

(Timer)

34 3347243 Connector

6−Circuit

35 94614 Terminal

39 3398095 Switch,Push−To−Start

40 Timer Knob Assembly

8312687 White

8271404 Biscuit

41 3936144 Connector

42 8271418 Bracket, Control

43 Panel, Control

3977861 White

3977870 Biscuit

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

3406839 Dry Rack

279948 Kit,

Dryer Repair

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

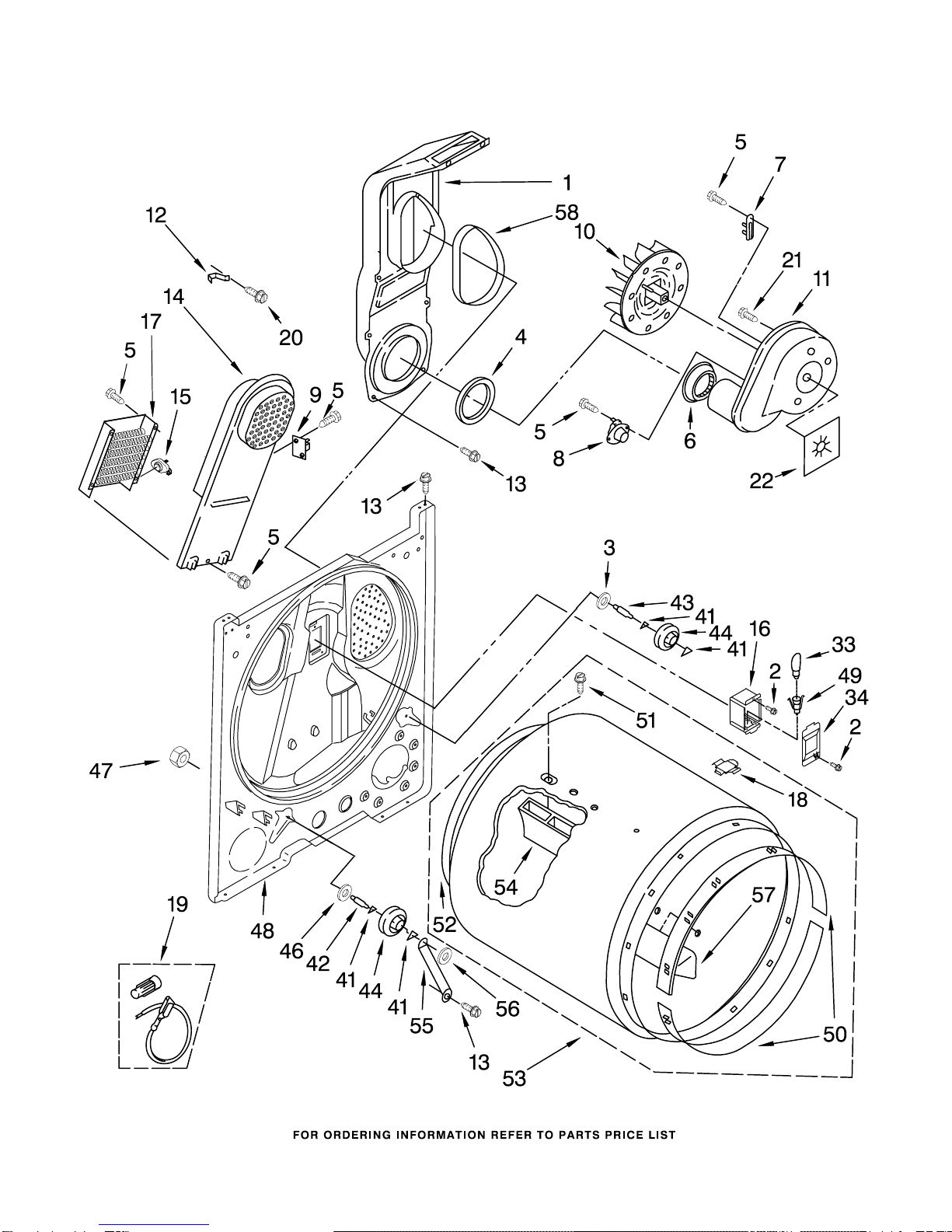

BULKHEAD PARTS

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

8179738

BULKHEAD PARTS

For Models: LER7620KQ1, LER7620KT1

(Designer White) (Biscuit)

8179738

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Thermal Fuse

8 3387134 Thermostat,

Internal−Bias

9 3977393 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

10 694089 Wheel, Blower

(Includes Illus.

No. 22)

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket, Drum

Light

17 3403585 Element, Heater

18 8066086 Drum Hole

Plug

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3390647 Screw, 8−18 x 1/2

22 3394196 Seal, Blower

33 3406124 Bulb

34 3402841 Lens, Drum Light

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3403413 Bulkhead

49 3403634 Socket Assembly

50 692526 Ring, Bearing (2)

51 97787 Screw, 11−16 x 3/4

52 3406130 Seal, Rear Drum

53 695587 Drum Assembly

54 692490 Baffle, Drum (2)

55 3976434 Bracket, Support

56 90296 Clip

57 3403636 Baffle, Drum (1)

58 339956 Seal
