Whirlpool LER3422AW0 Manual de usuario

1 Top

4319377 White

4319405 Almond

2 4319396 Panel, Rear (240 Volt)

3 4319418 Base Assembly

4 4319313 Clip, Motor (2)

5 3391887 Motor, 60 Hz.

6 3388235 Switch (Use W/3391887 Motor)

7 696541 Base, Motor

8 307563 Rivet, Plastic (4)

9 691366 Idler & Pulley Assembly

10 776076 Screw (2) (8 x 1/2 AB)

11 343641 Screw, 10-32 x 1/2

12 3389729 Pulley, 60 Hz.

14 238614 Bumper

15 3394652 Belt, Drive

16 Panel, Side

4319382 White

4319406 Almond

17 295998 Clip, Door Switch

18 347207 Switch, Door

19 98129 Screw, 6-20 x 1-3/8 (2)

20 690621 Timer, 60 Hz.

21 62863 Screw, 10-16 x 3/8

22 98997 Clip

23 4319376 Bracket, Timer

24 Front Panel Assembly

4319385 *White

4319408 *Almond

25 3393657 Restrainer, Belt

26 685203 Clip, Felt Pad (2)

27 349462 Seal & Bearing Assembly

28 345670 Lock, Top (2)

30 3389441 Catch, Door

31 Panel, Control

9830469 White

9830470 Almond

32 Knob Assembly

9830451 White

9830452 Almond

33 98139 Screw, 8-32 x 5/16 (2)

34 694091 Screw (4)

35 4319328 Hinge & Pin Assembly (2)

37 4319390 Wire, Ground

38 696144 Strike, Door

39 685763 Seal, Door

40 279393 Terminal Block Kit (For Terminal Block)

41 4319442 Door, Rear

42 Door, Front

4319327 White

4319333 Almond

43 Handle, Door

4319329 White

4319334 Almond

44 233550 Foot (4)

53 3394083 Clip (2)

56 98234 Clip (2)

59 688193 Lockwasher

60 689038 Switch, Push-To-Start

62 90891 Nut, Hex

63 345530 Ring, Trim

64 688041 Nut, Knurled

69 690259 Bracket, Terminal

70 4319417 Harness, Wiring

71 690261 Block, Terminal

72 4319465 Cover, Terminal Block

76 694415 Strain Relief, Power Cord

77 3389955 Cord, Power

78 686769 Protector, Harness

79 279318 Terminal, Tinned & Brass (Includes Illus. 40)

*When Ordering Any Of The Above Front Panels (Key No. 31) Must Also Be Ordered.

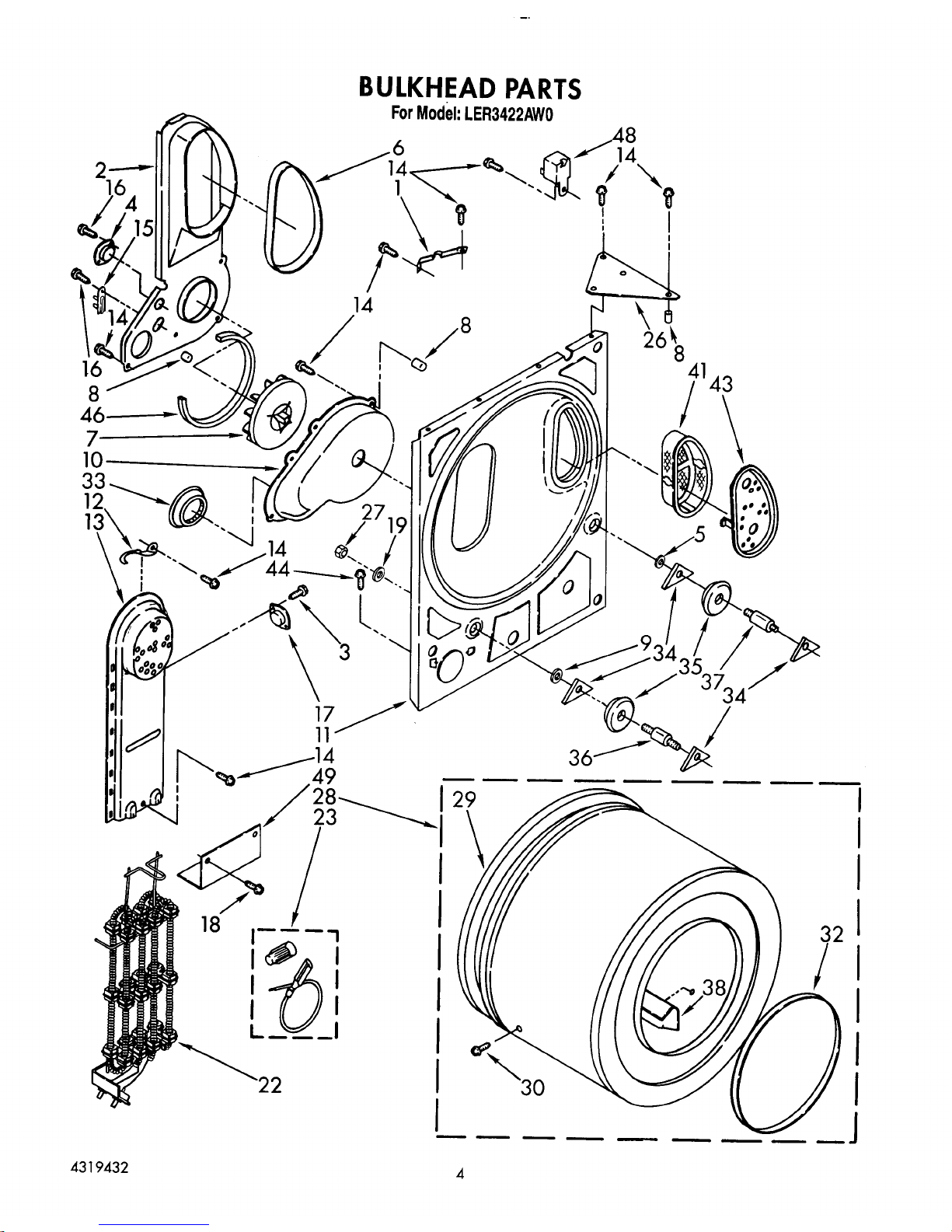

1 9830393 Clip

2 9830484 Air Duct Assembly

3 90767 Screw, 8A x 3/8

4 660073 Thermostat, 155~F (68~C)

341199 (Alt.)

5 339492 Washer, Support

6 339956 Seal

7 696426 Wheel, Blower

8 359702 Protector, Screw (2)

9 3388703 Washer, Support

10 696419 Scroll, Fan

11 4319387 Bulkhead

12 4319315 Clip

13 4319438 Box, Heater

14 343641 Screw, 10-16 x 1/2

15 3392519 Fuse, Thermal

16 695239 Screw, 8-18 X 3/8

17 696818 Thermostat, 225~F (107~C)

18 62863 Screw, 10-16 x 3/8

19 4319307 Washer, Support

22 696632 Element, Heater

23 279457 Wire Kit (For Heater Element Wiring Harness Repair)

26 4319441 Gusset (2)

27 120377 Nut, 3/8-16

28 4319388 Drum Assembly

29 9830197 Seal, Rear

30 690372 Screw, 11-16 x 7/8

32 3394508 Bearing, Ring

33 696302 Shield, Exhaust

34 690997 Ring, Tri

35 3389901 Roller, Support

36 4319306 Shaft, L.H.

37 4319304 Shaft, R.H.

38 4319389 Baffle, Drum Short (3)

41 348399 Screen, Lint

43 685273 Cover, Lint Screen

44 342202 Screw, Tapping

46 9830394 Seal

48 694419 Buzzer, Mini

49 4319395 Reflector, Heat

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT9830492 Instructions, Installation

LIT3391427 Guide, Dryer

LIT9830485 Use & Care Guide

LIT677818 Do-It-Yourself Manual

LIT4319432 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)
