Parts and features

CYCLE CONTROL LAUNDRY

KNOB /INFORMATION CENTER

c&h

-TEMPERATURE

sELEcToR

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question,

have this information ready Complete Model Number

1. Comdete

Model and Serial Numbers

(from-the plate located as shown)

2. Purchase

date

from sales slip Complete Senal Number

Copy this information in these spaces.

Keep this book, your warranty, sales slip Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer Service Company and

console. Telephone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Contents

PARTSANDFEATURES.

YOUR RESPONSIBILITIES.

SAFETY FIRST.

SELECTING A CYCLE AND

STARTING YOUR DRYER

OPERATING INSTRUCTIONS

Automatic Cycles .

Timed Drying . .

DRYING TIPS. . . . .

FLUFFAIR Setting . . . .

TUMBLE PRESS@Setting . . .

Gentle Heat

Drying Times

Mixed Loads . . . . . .

Page

. B

Page

End-of-Cycle Signal B

Lint Signal 8

LINT SCREEN. . 9

LINT REMOVAL. 9

CARING FOR YOUR DRYER.. IO

Cleaning Dryer Interior 10

Vacation Care . . 10

IF YOU NEED SERVICE OR

ASSISTANCE, 11

I, Before Calling for

Assistance . . 11

2. If You Need Assistance . . 11

3. If You Need Service . . . . 11

4. If You Have a Problem 11

2 01985 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer..

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is located in an

area wnere 111e WITI-

perature is above 45°F (7.2%).

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used bv children or anyone

FOR YOUR SAFETY

IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

3. EXTINGUISH ANY OPEN

FLAME.

4. IMMEDIATELY CALL

YOUR GAS SUPPLIER.

FOR YOUR SAFETY 9

DO NOT STORE OR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THIS OR ANY OTHER

APPLIANCE.

Selecting a cycle

and starting

your dryer

Before starting your dryer. be

sure laundry ISsorted and loaded

properly (see your”Dryer Guide”).

Be sure the door is tightly closed.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY-Bedspreads, HEAVY

mattress pad&quilts. HIGH

HEAVYWEIGHT FABRICS -Towels,

jeans,corduroys, work clothes

MEDIUMWEIGHT COTTONS - A~:~~L~~C PERMJEzESS

Sheets, pillowcases, cotton

underwear,diapers KNITS GENTLE

LIGHTWEIGHT COTTONS - Batistes, LOW

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes. PERMIT PRESS

AUTOMATIC MED

jacket&raincoats

MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT

clothes,sheets. slacks PRESS

LIGHTWEIGHT FABRICS - Lingerie, MED

blouses,dresses . . . . . . . . . . . . . . . . . . . LOW

KNITS

HEAVYWEIGHT - Cottons, rayons,

blends,T-shirts,slacks,shirts AUTOMATIC MED LOW

LIGHTWEIGHT - Synthetics (polyester, PERMANENT

acrylic, etc.] and blends, lingerie, PRESS KNITS GENTLE

blouses, dresses LOW

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC

Sheer Curtains (2 or 3 panels) PERFR;JsENT Ex

LOW

Gauze,lace,etc. ...._____...........I...

RUBBER, PLASTIC, HEAT-SENSITIVE TIMED

FABRICS DRYING

FOAM RUBBER - Pillows, bras,

stuffed toys _. _. 20-30 MINS.

PLASTIC - Shower curtains,

tablecloths _. 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MINS.

FLUFF

AIR

Select a

1. CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The dryer will start tumbling when

you push the START Button.

The Temperature Selector can

be set at any desired drying tem-

perature or anywhere between

two temperatures.

To stop and restart

the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Control Knob moves and stops

several times until the load reaches

the dryness setting you selected. Then

the knob automatically moves to

OFF and tumbling stops.

weight cotton items. The load tum-

bles without heat during the last 5

minutes. This helps make the load

easier to handle.

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in.

For the first few loads, set the Control

Knob to point to an* in either auto-

matic cycle. When the dryer stops.

feel the dried items.

If items are drier than you like, use

a setting to the right of the* the

time you dry a similar load.

If items are not as dry as you like,

use a setting to the left of the *the

next time you dry a similar load.

Tlmeddqing

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items. items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want - from 10 to 60.

. The last 5 minutes of this cycle are

without heat - a cool-down time. This

helps make the load easier to

handle.

Drying tips

TUMBLE PRESS” Setting

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber pil-

lows, stuffed toys, sneakers, etc.

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a surtcase, closet, or items not

removed from the dryer.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/ MED.

3. Push START Button.

The load will tumble in heated air

for 10 minutes. The heat shuts off and

the dryer continues to tumble the

load for 5 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Gentle Heat

The dryer automatically reduces the

heat setting in HEAVY HIGH and PERMIT

PRESSMED cycles. The last 7 minutes

of each of these cycles gradually

reduces the dryer temperature to a

lower heat setting. This helps prevent

over drying.

Drying times Mixed loads

Drying times will vary depending on.

amount of moisture In the clothes.

0 type and weight of the fabric.

0 size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryer temperature selection.

See page 6 in your “Dryer Guide”

for more information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove

dry items and reset the control.

End-of-cycle signal The dryer sounds a signal to let you know

when the cycle is finished.The signal cannot be

turned off and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

Clean lint screen before

each load.

If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

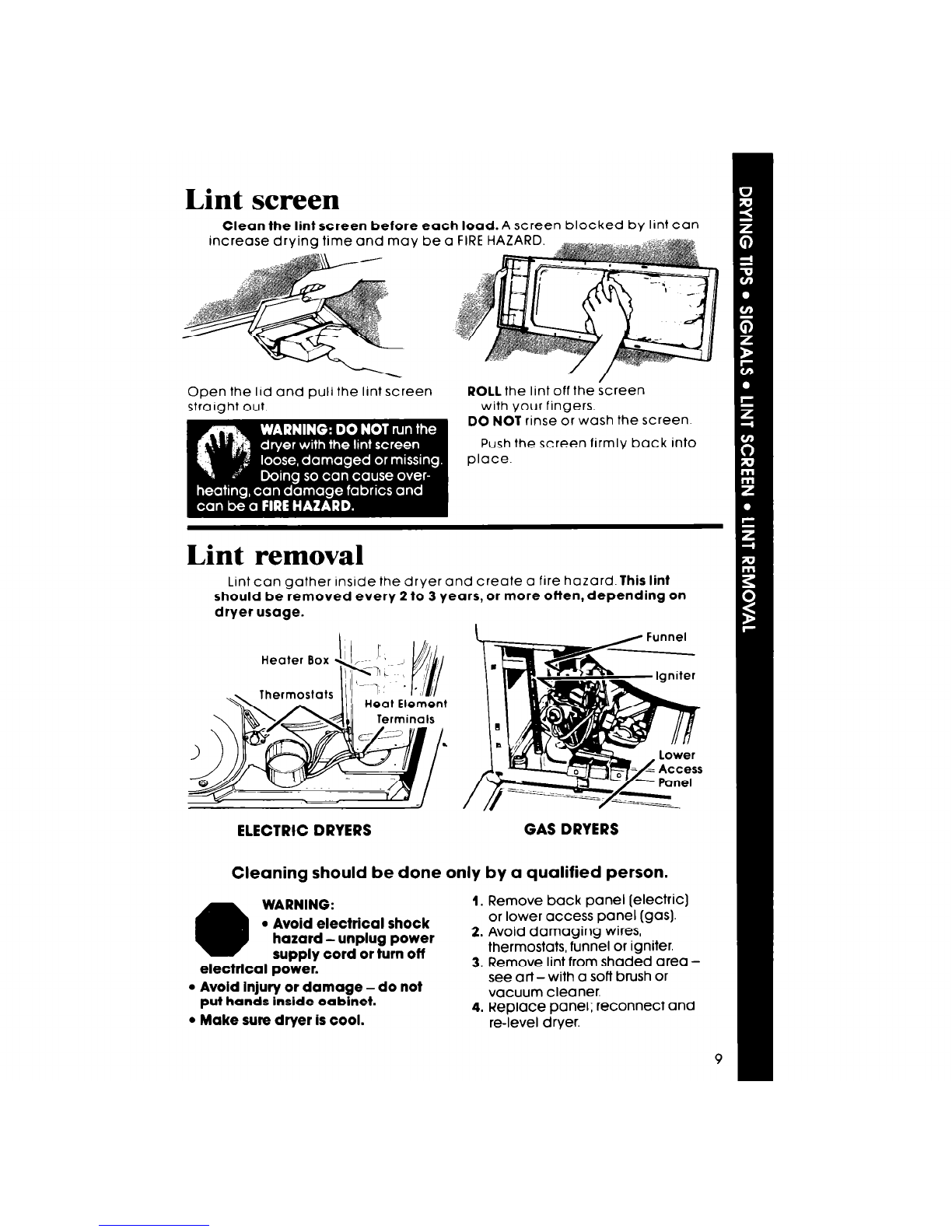

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

Open the Ird and pull the lint screen ROLL the lint off the icreen

Lint removal

Lint can gather rnsrde the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

Heat Element

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

l Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

l Avoid Injury or damage -do not

put hands inside cabinet.

l Make sure dryer is cool.

Remove back panel (electric)

or lower access panel (gas).

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer.

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc.

Close metal

zippers.

Wlpe off all spills

with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never

leave wet or damp laundry

in your dryer.

Sharp or heavy objects

should

never be put on or in the dryer.

Check packets for bolts, nuts, etc.

Some pretreatment products

can

damage dials, consoles and finish.

Do not use these products on or

near your dryer.

Cleaning dryer interior

Before cleaning interior,

unplug power supply cord

or turn ofl electrical

power to avoid electrical

shock hazard.

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until all

excess dye is removed. Wipe thor-

oughly with a damp cloth. Tumble

a load of rags.

-OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

For gas dryers, close gas valve.

0 Clean lint screen.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Whirlpool

Whirlpool

Whirlpool AZA-HP 7572 Manual de usuario

Whirlpool

Whirlpool CEM2750KQ Manual de usuario

Whirlpool

Whirlpool WED8300SB0 Manual de usuario

Whirlpool

Whirlpool LE6400XP Manual de usuario

Whirlpool

Whirlpool WDH3090GW Manual de usuario

Whirlpool

Whirlpool Gold ELECTRIC AND GAS DRYER Manual de usuario

Whirlpool

Whirlpool 27" W10563341A Manual de usuario

Whirlpool

Whirlpool LE5800XK Manual de usuario

Whirlpool

Whirlpool Cabrio W10151492A Manual de usuario

Whirlpool

Whirlpool WGD7800XB0 Manual de usuario

Whirlpool

Whirlpool cabrio WED6200S Manual

Whirlpool

Whirlpool WED5010LW Manual de usuario

Whirlpool

Whirlpool TEDL640DQ0 Instrucciones de instalación

Whirlpool

Whirlpool LE5700XK Manual de usuario

Whirlpool

Whirlpool LET5624BW1 Manual de usuario

Whirlpool

Whirlpool COMPACT DRYERS Manual de usuario

Whirlpool

Whirlpool Cabrio,- WGD5500X Manual de lista de piezas

Whirlpool

Whirlpool DUET SPORT W10151580B Manual de usuario

Whirlpool

Whirlpool Cabrio WED8000D Manual de usuario

Whirlpool

Whirlpool TRAK 6450 Manual de usuario

Whirlpool

Whirlpool WGD5600SQ Manual de usuario

Whirlpool

Whirlpool WGD5800SG0 Manual de usuario

Whirlpool

Whirlpool WGD9250WL - Duet Lunar - Gas Dryer Manual de usuario

Whirlpool

Whirlpool Gold Resource Saver YGEW9877JQ1 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
