Whirlpool WED8300SB0 Manual de usuario

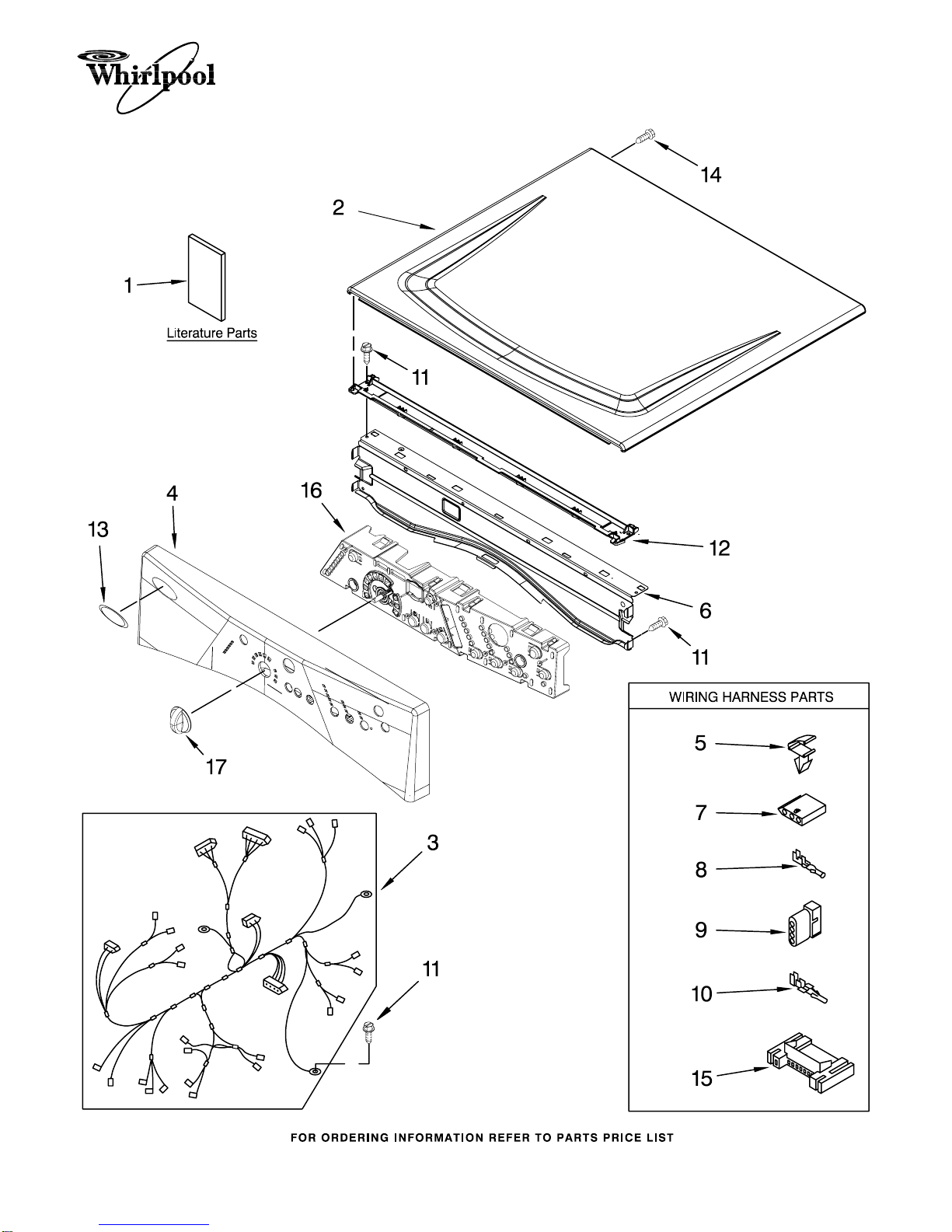

TOP AND CONSOLE PARTS

For Model: WED8300SW0, WED8300SB0

(White) (Black)

1−08 Printed in U.S.A. (LT) Part No. 8181044 Rev. C

27" Electric Dryer

TOP AND CONSOLE PARTS

28181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8578899 Use & Care Guide

8572759 Tech Sheet

8578904 Guide,

Quick Start

2 Top

8563730 White

W10129703

Black

W10110972

Harness, Main

4 Panel, Console

W10099598

White

W10099631

Black

5 3394427 Clip, Harness

6 8565237 Bracket, Console

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

12 8574968 Chanel, Water

W10117943

Badge, Assembly

14 3400238 Screw, 2−28 x 1/2

15 3395683 Connector,

(Motor)

16 8571955 Assembly,

User Interface

17 Knob, Assembly

8574963 White

W10129067

Black

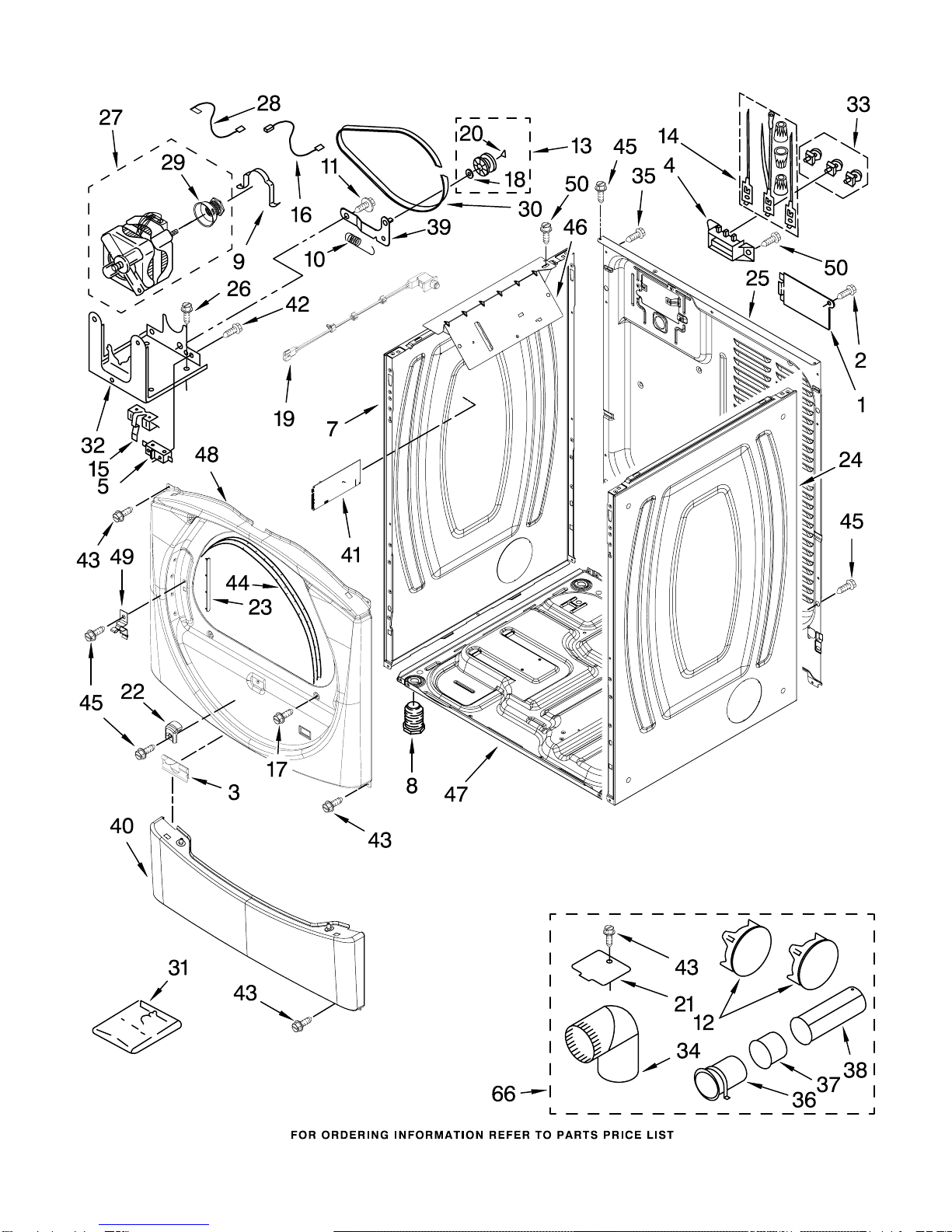

CABINET PARTS

8181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

CABINET PARTS

48181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8519459 Clip, Toe Panel

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

7 Panel, Side (L.H.)

8565054 White

W10112962

Black

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

3388309 Black

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

17 3357011 Screw,10−16 x 1/2

W10121334

Washer, Thrust

19 8574875 Switch, Assembly

Door

20 690997 Tri Ring

21 8066115 Cover−Plate

22 Ramp, Door

8580015 White

23 8565043 Plug,

Front Panel

24 Panel, Side (R.H.)

8565048 White

W10112963

Black

25 8565059 Panel, Rear

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8572546 Kit,

Stack Assembly

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 8533974 Screw, Ground

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 Toe Panel

8540621 White

W10112964

Black

W10050520

Control Board

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8563727 Bracket, Control

47 8565046 Base, Cabinet

48 Front Panel

(Includes

Illus. 44)

8571818 White

W10129648

Black

49 8565122 Strike, Door

50 90767 Screw, 8−18 x 3/8

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

66 279818 White

279820 Black

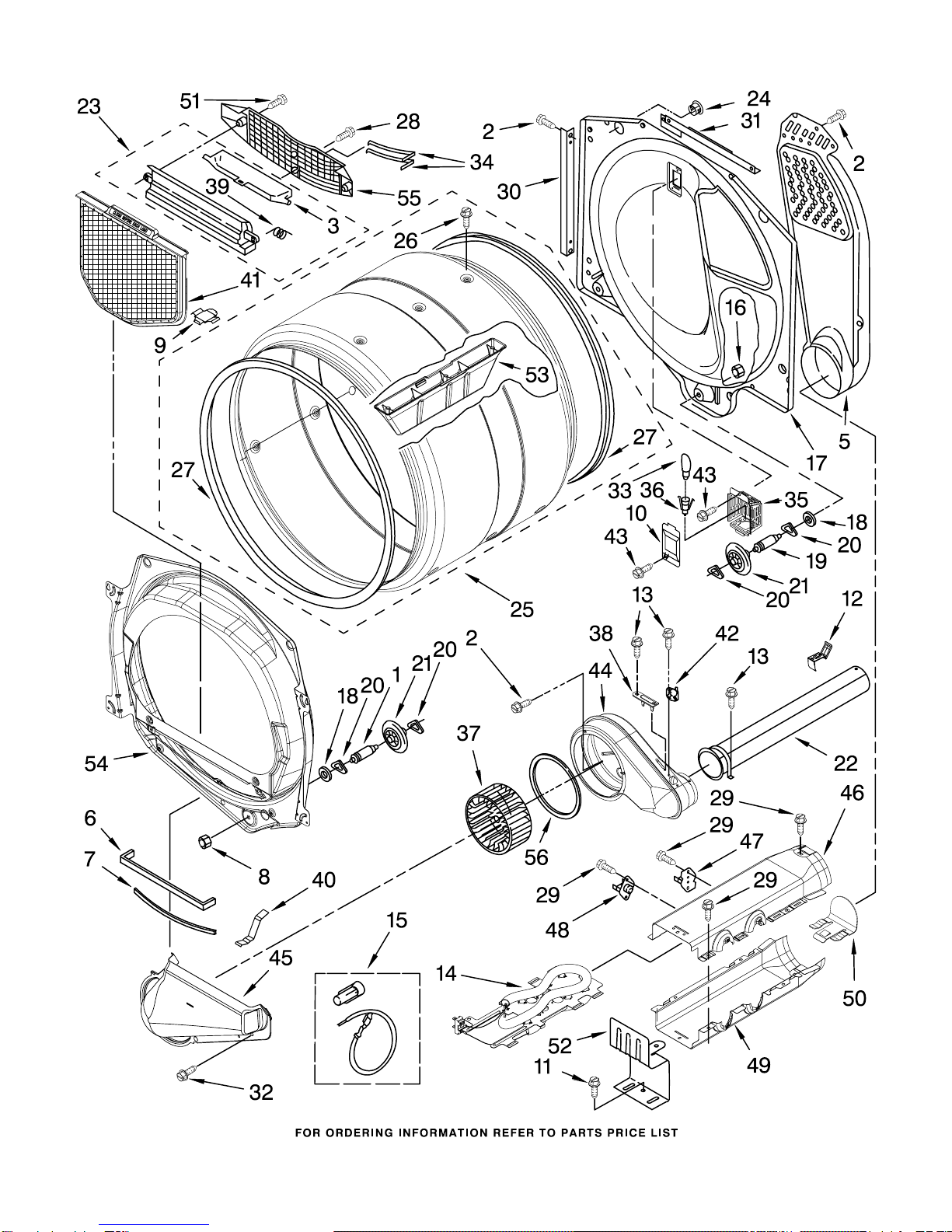

BULKHEAD PARTS

8181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

BULKHEAD PARTS

68181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 8563758 Door, Lint

Screen

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 8066086 Drum Hole

Plug

10 3402841 Lens,

Drum Light

11 693995 Screw, 8−18 x 3/8

12 8572105 Clip, Exhaust

13 8533971 Screw,8−18 x 5/16

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

17 8520836 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563728 Exhaust Pipe

23 8563755 Housing, Outlet

24 8529007 Plug,

Rear Bulkhead

25 8563735 Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8571651 Bracket, Upper

Rear Bulkhead

32 489463 Screw, 8−18 x 5/8

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

36 3403634 Socket Assembly

37 697772 Wheel, Blower

38 3392519 Thermal Fuse

(91 C)

39 3394986 Spring, Lint

Screen Door

40 8066208 Clip−Spring

W10049370

Lint, Screen

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing, Slot

Heater Box

47 8318314 Thermal Cut−Off

(Includes

Illus. 48)

48 3391914 Thermostat 295 F

(146 C)

49 8544770 Housing, Tab

Heater Box

50 8544776 Flange,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8066099 Bracket,

Heater Box

53 8565733 Baffle, Drum

54 8565061 Bulkhead, Front

55 8563756 Grill, Outlet

56 697770 Seal, Cover Plate

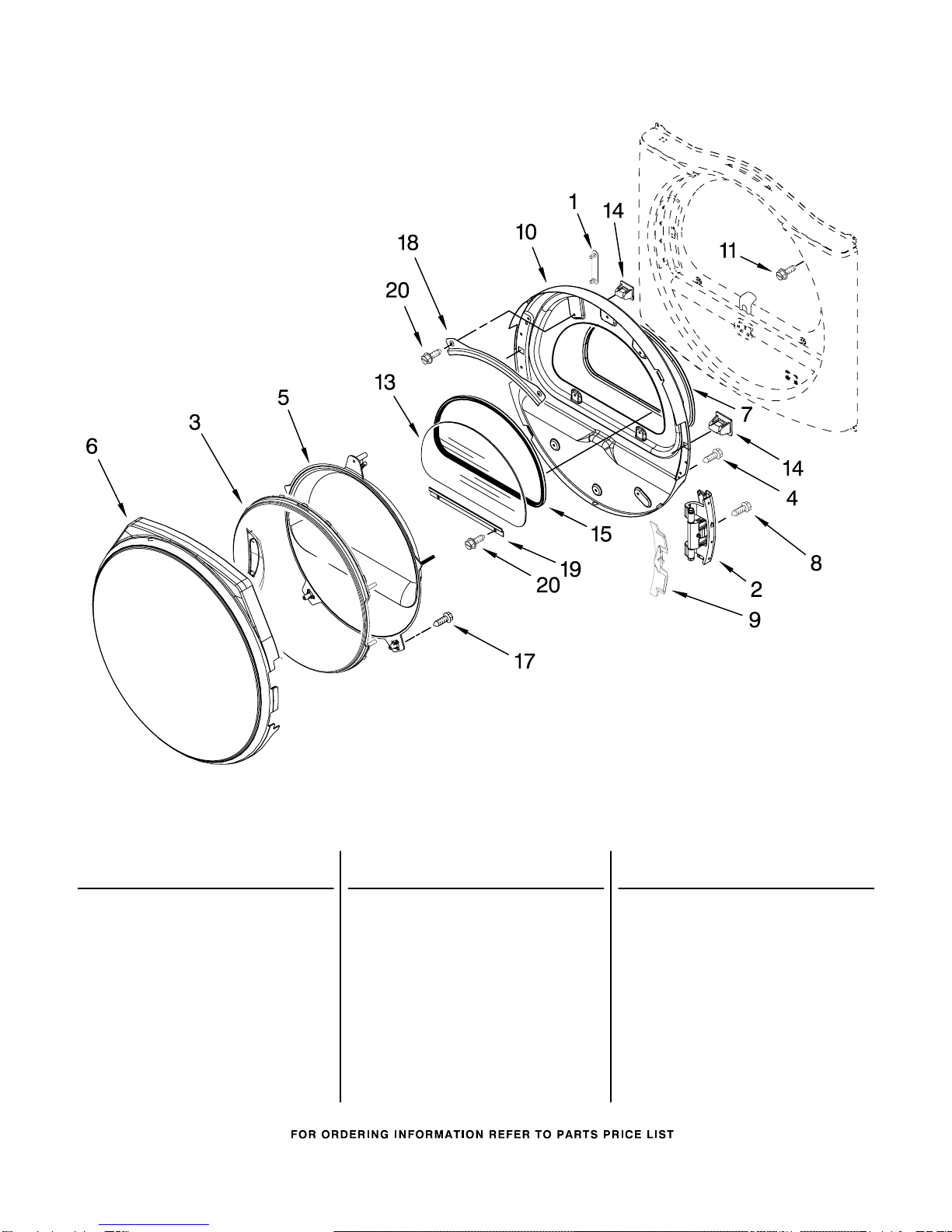

DOOR PARTS

8181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8565119 Plug Strip

2 8578887 Door, Hinge

Assembly

W10044180

Door Assembly

(Outer)

4 8534044 Screw,8−18 x 1/2

5 Door,

Intermediate

W10108900

White

W10129704

Gray

6 Door, Outer Ring

8571836 White

W10129706

Black

7 Door Seal

(Not Serviceable)

W10017850

Screw,

10−24 x .455

9 Cover, Hinge

8571839 White

W10129722

Black

10 8578933 Door Assembly

(Inner)

(Includes

Illus. 1 & 14 )

11 355515 Screw,

8−18 x 11/16

13 8565117 Window

14 690081 Door Catch

Assembly

15 8579663 Seal, Window

17 8534022 Screw

18 8519356 Retainer (Upper)

19 8519354 Retainer (Lower)

20 3393258 Screw, 10−16 x 1/2

OPTIONAL PARTS (NOT INCLUDED)

88181044

For Model: WED8300SW0, WED8300SB0

(White) (Black)

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (uncut)

786302 Black (uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8563738 Dry Rack
