Whirlpool WED5900SB Manual de usuario

CABINET PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

5−06 Litho in U.S.A.(LT) Part No. 8181284

29" Electric Dryer

CABINET PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8577188 Installation

Instructions

W10042910

Sheet,

Cycle Feature

8578183 Use & Care Guide

W10042930

Tech Sheet

W10042920

Sheet, Feature

Resource Saver

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 342043 Screw, 10−32 x 3/8

7 3396805 Panel, Rear

8 8546676 Clip,

Door Spring

9 98669 Locator, Top

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 18849 Pad, Top Hinge

13 3357011 Screw, 10−16 x 1/2

14 8541401 Spring, Door (2)

15 3394083 Clip,

Front Panel (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes

Illus. 34)

18 Cabinet

(Includes

Illus. 4)

8530603 White

8530605 Black

19 98234 Clip, Ground

20 18776 Lock, Front Top (2)

21 Panel, Front

695620 White

3978795 Black

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

29 696144 Strike, Door

30 695737 Door, Rear

31 Door, Front

3393549 White

3403110 Black

32 Handle, Door

W10095180

White

W10095200

Black

33 3406129 Seal & Bearing

Assembly

34 279393 Terminal Block

Kit (For

Terminal Block)

35 697776 Screw, 10−32 x 5/8

36 3397659 Block, Terminal

37 8066217 Hinge, Top (2)

38 691366 Idler & Pulley

Assembly

39 8066065 Belt, Drive

40 348780 Base, Motor

41 3400500 Bolt,

5/16−18 x 3/4

42 8066184 Pulley, 60 Hz.

43 8066206 Motor Assembly

60 Hz.

44 660658 Clamp, Motor

45 3404162 Clamp, Motor

(W/Shield)

46 3390731 Seal, Door

47 3393008 Screw, 10−16 x 1/2

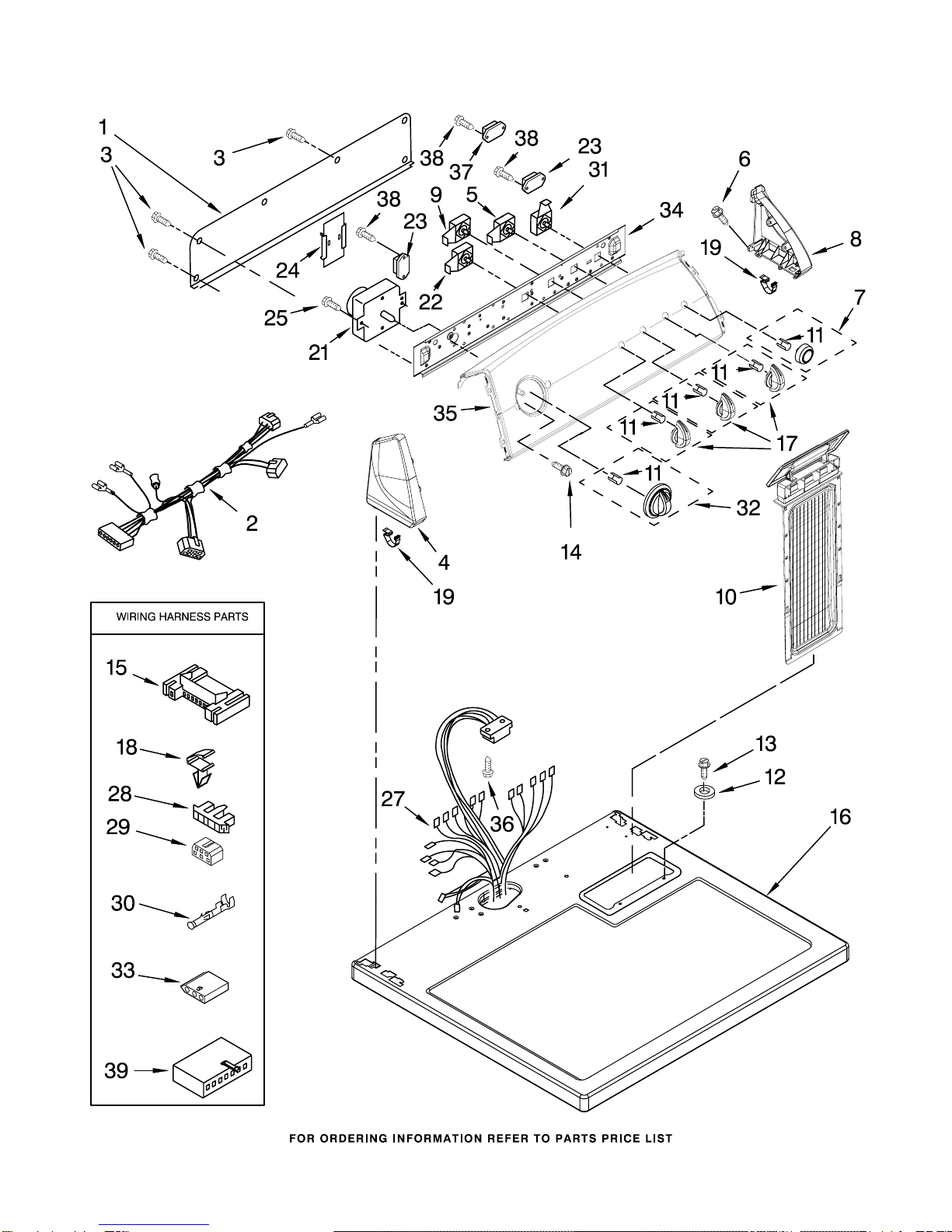

TOP AND CONSOLE PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

TOP AND CONSOLE PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 8283135 Harness, Console

3 693995 Screw, Hex Head

4 Cap, End (L.H.)

8566035 White

8566037 Black

5 3405151 Switch, Signal

6 388326 Screw, Console

7 Knob,

Push−To−Start

W10034770

Silver

8 Cap, End (R.H.)

8566032 White

8566034 Black

9 3405152 Switch,

Wrinkle Shield

10 Screen, Lint

8557857 White

8557859 Black

11 8536939 Clip, Spring

12 237446 Washer

(Top/Chute)

13 688983 Screw, 8−18 x 5/8

14 8533951 Screw, Grounding

15 3395683 Connector

(Motor)

16 Top

W10028870

White

W10028890

Black

17 Knob, Control (3)

W10034380

Silver

18 3394427 Clip−Harness

19 8312709 Clip−Console

21 8299771 Timer, 60 Hz.

22 8299970 Switch,

Temperature

23 3405281 Power Relay (2)

24 3976623 Control Board

25 8533971 Screw, Mounting

(8−18 x 5/16)

27 8299897 Harness, Wiring

28 3397269 Connector

(Timer)

29 3347243 Connector

6−Circuit

30 94614 Terminal

31 3977456 Switch,

Push−To−Start

32 Timer Knob

Assembly

W10034750

Silver

33 3936144 Connector

34 8566052 Bracket, Control

35 Panel, Control

(Includes

Illus. 20)

8566077 Silver

36 343641 Screw, 10−16 x 1/2

37 8566493 Heat Relay

38 3388228 Screw, 6−20 x 3/8

39 3936150 Connector,

7−Circuit

BULKHEAD PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

BULKHEAD PARTS

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3390719 Thermal Fuse

8 8577274 Thermistor

9 3977393 Thermal, Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

(Includes

Illus. 22)

11 8577231 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3404153 Thermostat,

180 F

(82.2 C)

16 3977373 Bracket, Drum

Light

17 3401338 Element, Heater

18 8066086 Drum Hole

Plug

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3390647 Screw, 8−18 x 1/2

23 3976479 Pad, Sensor

24 3406124 Bulb

25 3402841 Lens, Drum Light

26 690997 Ring, Tri

27 3399506 Shaft, L.H.

28 3399507 Shaft, R.H.

29 3397590 Roller, Support

30 348197 Washer, Support

31 3359452 Nut, 3/8−16

32 3403414 Bulkhead

33 3403634 Socket Assembly

34 692526 Ring, Bearing (2)

35 97787 Screw, 11−16 x 3/4

36 3406130 Seal, Rear Drum

37 695587 Drum Assembly

38 692490 Baffle, Drum (2)

39 3976434 Bracket, Support

40 90296 Clip

41 3403636 Baffle, Drum (1)

42 339956 Seal

OPTIONAL PARTS (NOT INCLUDED)

For Models: WED5900SW0, WED5900SB0

(White/Grey) (BLACK)

8181284

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3406839 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

786020 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

786032 Black
